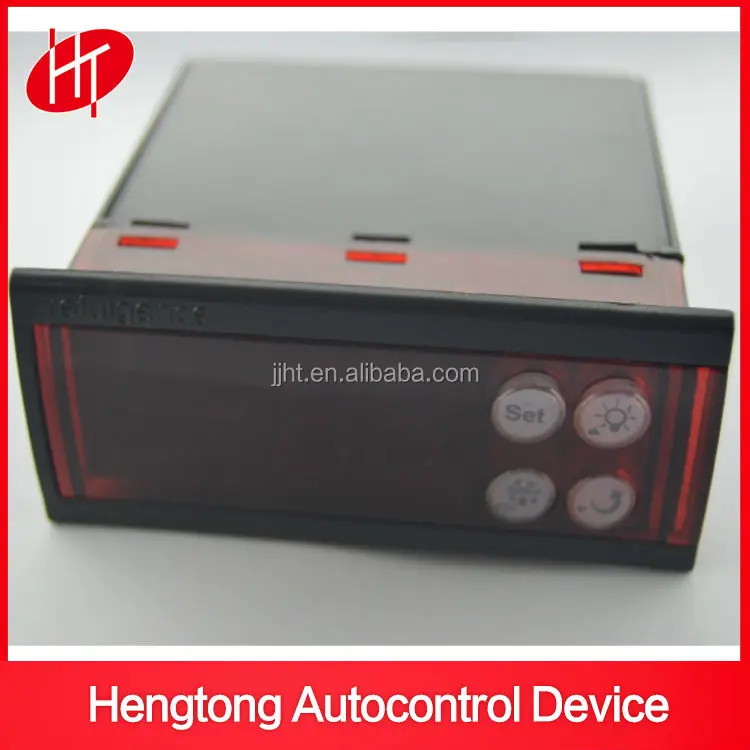

Горячая Распродажа интеллектуальная печатная плата холодильника электронный регулятор температуры

Technical parameters

Temperature measurement range:-45℃~+85℃

Display resolution ratio: 0.1℃ Within -9.9℃~+9.9℃, other range 1℃

Temperature measurement accuracy: ±1℃ within -45℃~+50℃, ±2℃ within 50℃~85℃

Cabinet control range:-40℃~+50℃

Supply voltage:(220V±10%)V AC/50HZ

Overall power consumption:<3W

Port output capacity:

Refrigeration: 30A/240VAC,normally open output, can directly drive single phrase 1.5HP(240VAC)load

Defrosting: Natural defrost or electric heating defrosting is optional, need add defrost relay under electric heater defrosting,

240VAC can connect heating wire under 500W.

specification and size

installation dimension:71*29MM

Whole machine size:78.3*35.5*81MM

Operating ambient temperature:0℃~55℃

storage temperature:-25℃~75℃

Storage humidity:20%~85%(no frosting)

Product function

Compressor control and compressor startup protection

Parameter setting process, with power off memory, can one-key reset

Auto defrosting and manual defrosting, defrosting parameter can be adjusted

Senor failure warning

Jiujiang Hengtong Auto-control Device Co.,Ltd. is a private joint-stock company, established in November 2000. The company covers an area of 80,000 Square meters , It is a beautiful and comfortable place for us in working here.

Hengtong main products include thermostats, water pump, thermostat assembly, LED light board, capillaries, which are mainly used in refrigerators, freezers, water dispensers, household air conditioners, car air conditioners, environmental conditioning, fryers, ovens, washing machines , dishwashers and other appliances, the company has more than 1,500 employee, 25 lines for low temperature products, with an annual low temperature thermostat 40 million pieces; 10 lines for  high temperature products, with an annual output of high-temperature thermostat 20 million pieces; 4 lines for thermostat assembly (including injection molded parts and LED lights), with an annual temperature assembly 20 million sets; 4 production lines  for LED assembling, with an annual 40 million sets of  LED lights , 4 production lines for pumps, annual pump 10 million pieces;4 production lines for the capillary tube, with an annual 1000 tons capillary; 20 injection molding machines.
