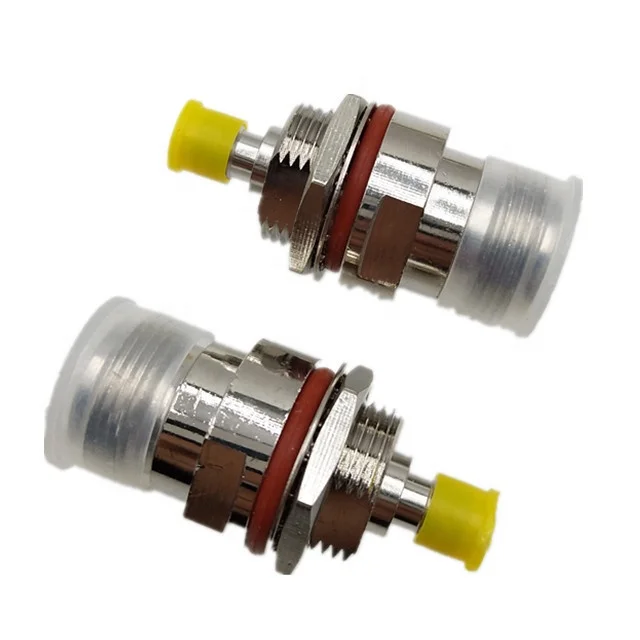

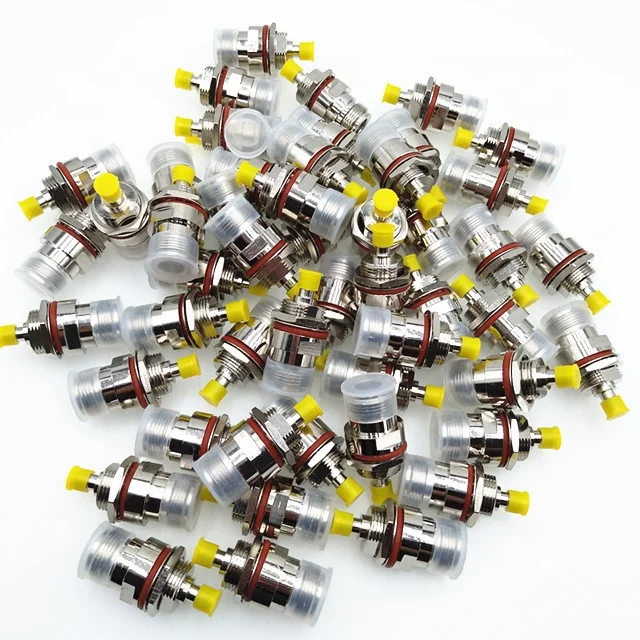

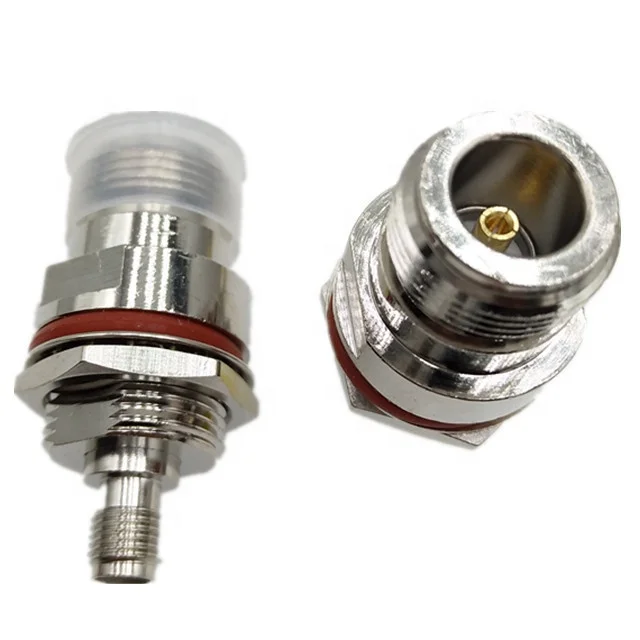

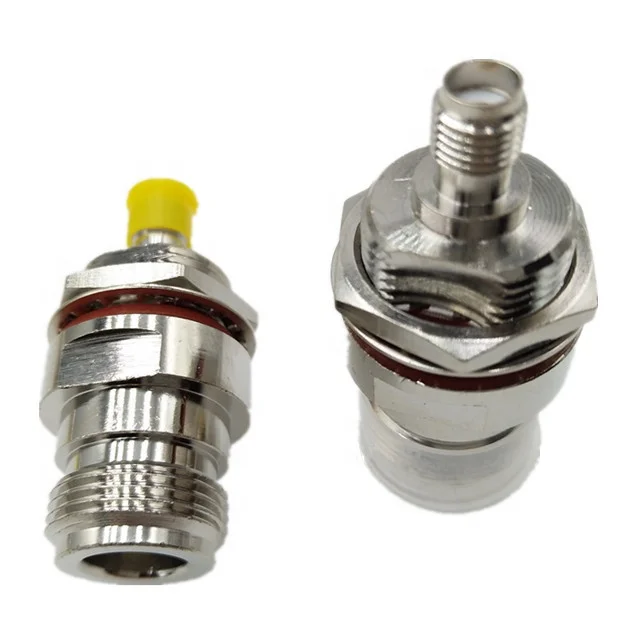

N гнездо с гайкой фиксированным к гнезду SMA водонепроницаемым латунным RF
- Категория: Разъемы и клеммы >>>
- Поставщик: Zhangjiagang,RY,Electronic,CO.,LTD
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 1.11 $* | 1.96 $* |
| Jul-16-2025 | 1.83 $* | 1.31 $* |
| Jun-16-2025 | 1.64 $* | 1.54 $* |
| May-16-2025 | 1.83 $* | 1.25 $* |
| Apr-16-2025 | 1.18 $* | 1.95 $* |
| Mar-16-2025 | 1.8 $* | 1.86 $* |
| Feb-16-2025 | 1.64 $* | 1.10 $* |
| Jan-16-2025 | 1.73 $* | 1.40 $* |
Характеристики
N female to SMA female adapter
N Female With Nut Fixed To SMA Female Connector With Waterproof Brass RF Adapter
Product Description
Our this product line features popular coaxial cable, RF connectors, RF cable and other high quality coaxial products such as SMA connectors, coax adapters, and tools.
RF Coaxial cable assemblies are available in 50 Ohm and 75 Ohm styles. In addition, We stocks hundreds of low loss 50 Ohm antenna RF cable assemblies, pigtails and bulk cable for all your wireless connectivity needs.
Coax interfaces include: BNC, SMA, TNC, Type F, RCA, SMB, MCX, MMCX, Type-N, and more. We carry coax RF connectors and tools such as cable strippers, coaxial crimp tools, compression tools, and pin crimp tools to accommodate all of your coaxial termination requirements.
| Interface | EC 60169-15 | ||
| Electrical | |||
| Characteristic Impedance | 50ohm | ||
| Frequency Range | DC-12GHz | ||
| VSWR | ≤1.15@DC-3000MHz | ||
| Insertion Loss | ≤0.10dB | ||
| Durability | Mating cycles ≥500 | ||
| Material and Plating | |||
| Parts Name | Material | Plating | |
| Body | Brass | AU/NI | |
| Insulator | PTFE | — | |
| Center Conductor | Phosphor Bronze | Au | |
| Coupling Nut | Brass | Au | |
| Gasket | Silicone Rubber | — | |
| Environmental | |||
| Operating Temperature | -40℃-85 ℃ | ||
| Weatherproof Rate | IP65 | ||
Similiar Product
Application
Company Information
RY Electronics has over 10 years of experience designing and manufacturing custom cable assemblies and antennas in large or small volumes depending on your needs.
Our manufacturing facilities can build just about many types of custom cable assembly(LVDS cable/Flat cable/RF cable/wire harness) as well as GPS/WIFI/ISM/GSM/3G/4G antenna and RF connectors.
Our advantages:
1. Quality control:most of products have UL CE ROHS, certificate. ISO9001:2008.
2. Low MOQ:5pcs/10pcs/20pcs/50pcs,depends on different items.
3. Fast Delivery Time :2~15 days, On-Time Delivery.
4. Good After-Sales Service: we could offer technical support or return service in short time.
5. 1 Year Warranty.
6. OEM/ODM service.
7. We are available with Alibaba Trade Assurance, you'll enjoy:
•100% product quality protection
•100% on-time shipment protection
•100% payment protection for your covered amount
