Полуавтоматическая машина для XKP-560 неныжная Автошина рециркулируя производственная линия резинового порошка

Описание и отзывы

Трекер стоимости

Характеристики



Tire Recycling Waste tire cutting machine / whole tire cutting machine / scrap tire cutting equipment





Features of waste tire cutting machine





Waste tire cutting machine is used to Recycle waste tires into rubber powder.



 Energy saving 1/3 compared with the old model.



 Final products are rubber powder (99.9% purity), wire steel , and nylon; Powder is

 completely free of any wire or nylon ;



All goods for sale have 2 years warranty;





Advantages of waste tire cutting machine:



 Patented Products: Patent Number: 200920223850.2 1/3 energy saving (Take XKP-450 as an example)



                       Common product         Ours



 Motor power                  57kw                             45kw



 Capacity                         4-6ton                           8ton



 High output, and the money you saved on the power can buy another production line.





Process of waste tire cutting machine



Waste tire - Tire de beader- whole tire cutting - tire shreddering - Rubber crushing - Rubber powder

 1.Ring cutter

Item	Specification
motor power	5.5
Speed of main screw	46.8  r/min
MAX Diameter of tyre	1200mm
Dimension	1100*900*1700mm
Purpose :To cut the steel ring from the tyre



2.Strips cutter

Item	Parameter
Motor Power	5.5kw
Disc Diameter	380mm
Rotate Speed	18.4r/min
Dimension	1290*870*1550
Purpose: To cut the old tyre intostrip



3.Block cutter

Item	Specification
motor power	11kw
Speed of main screw	420 r/min
Out diameter of cutter	200mm
Dimension	1130*830*1100
Purpose: To Cut the strip into block



4.Bead wire remover

Item	Specification
Motor power	15 KW
Linear speed of front roller	15.5 m/min
Ratio of speed	1.1
Dimension	1520*1150*12101mm
Purpose:To Separate  the steel ring  from the rubber after 1 step.

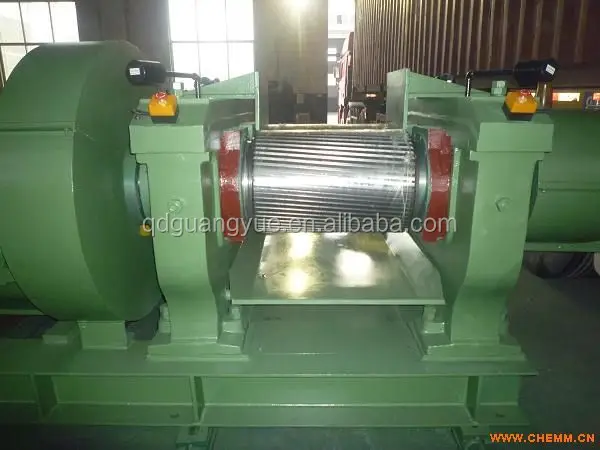

5.Tyre crusher

Item	XKP-560
Diameter of front roll(mm)	560 (smooth)
Diameter of back roll(mm)	510 (groove)
Working length(mm)	800
Linear speed of front roll(m/min)	25.56
Ratio	1:1.30
MAX gap(mm)	15
capacity(kg/h)	600-800
Motor power(kw)	75
Dimension (l*w*h)(mm)	5064*2284*1978
Weight(kg)	18000
