Small volume high rigidity and easy to assemble built-in economic module
US $399.00-$500.00
Высокая скорость шариковый винт линейный привод SFU2525 25 мм
- Категория: Linear Motion >>>
- Поставщик: Zaozhuang,Yiding,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.70 $* |
| Aug-16-2025 | 0.27 $* | 0.63 $* |
| Jul-16-2025 | 0.87 $* | 0.51 $* |
| Jun-16-2025 | 0.9 $* | 0.16 $* |
| May-16-2025 | 0.75 $* | 0.44 $* |
| Apr-16-2025 | 0.29 $* | 0.51 $* |
| Mar-16-2025 | 0.92 $* | 0.76 $* |
| Feb-16-2025 | 0.6 $* | 0.46 $* |
| Jan-16-2025 | 0.36 $* | 0.20 $* |
Характеристики

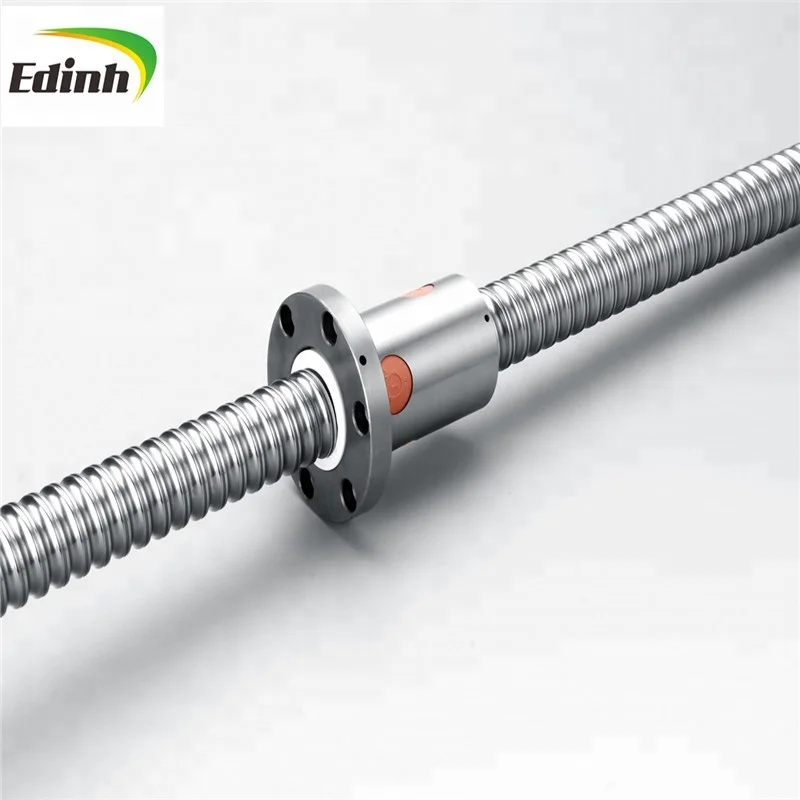

High speed Ball Screw Linear Actuator SFU2525 25mm lead screw
Product Description
Ball Screw is made of screw and ball nut. It's function is to turn the rotary motion into linear motion which is a future extension and development of ball screw. The significance of the development is to move into a rolling bearing from sliding action. With little frication, Ball Screw are widely used into various industrial equipment and precision instruments.
Applications:
Machine tools
Industrial machinery
Printing, paper-processing, automatic machines, textiles, etc.
Electronic machinery
Robot, measuring instruments, medical equipment, X-Y table, factory automation equipment, etc.
Transport machinery
Material handling equipment, nuclear reactor-actuator, etc.
Aircraft applications: aircraft flaps, actuators, airport loading equipment, etc.
Features
SFU Serial ball screw lead bearings Enter at a high speed and give (lead one greatly) Low noise Small High replacement (standard
product)
High precision work
Significantly reduce drive power
Simple lubrication structure
Dust, sealing ability
Easy to install, easy to swap
Large carrying capacity, rigidity and strong
Machine tools
Industrial machinery
Printing, paper-processing, automatic machines, textiles, etc.
Electronic machinery
Robot, measuring instruments, medical equipment, X-Y table, factory automation equipment, etc.
Transport machinery
Material handling equipment, nuclear reactor-actuator, etc.
Aircraft applications: aircraft flaps, actuators, airport loading equipment, etc.
Features
SFU Serial ball screw lead bearings Enter at a high speed and give (lead one greatly) Low noise Small High replacement (standard
product)
High precision work
Significantly reduce drive power
Simple lubrication structure
Dust, sealing ability
Easy to install, easy to swap
Large carrying capacity, rigidity and strong
Ballscrew model
pitch 4mm: SFU1204, SFU1604, SFU2004
pitch 5mm: SFU1605, SFU2005, SFU2505, SFU3205, SFU4005
pitch 10mm: SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310
double nut: DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010
pitch 4mm: SFU1204, SFU1604, SFU2004
pitch 5mm: SFU1605, SFU2005, SFU2505, SFU3205, SFU4005
pitch 10mm: SFU1610, SFU2010, SFU2510, SFU3210, SFU4010, SFU5010, SFU6310
double nut: DFU1605, DFU2005, DFU2505, DFU2510, DFU3205, DFU3210, DFU4005, DFU4010, DFU5010
Precision grade | Model | diameter | lead/pitch | length |
C7 | SFU1204 | 12mm | 4mm | as per demand |
C7 | SFU1605 | 16mm | 5mm | as per demand |
C7 | SFU1610 | 16mm | 10mm | as per demand |
C7 | SFU2005 | 20mm | 5mm | as per demand |
C7 | SFU2020 | 20mm | 20mm | as per demand |
C7 | SFE2040 | 20mm | 40mm | as per demand |
C7 | SFU2505 | 25mm | 5mm | as per demand |
C7 | SFU2510 | 25mm | 10mm | as per demand |
C7 | SFU3205 | 32mm | 5mm | as per demand |
C7 | SFU3210 | 32mm | 10mm | as per demand |
C7 | SFU4005 | 40mm | 5mm | as per demand |
C7 | SFU4010 | 40mm | 10mm | as per demand |
C7 | SFU5005 | 50mm | 5mm | as per demand |
C7 | SFU5010 | 50mm | 10mm | as per demand |
C7 | SFU6310 | 63mm | 10mm | as per demand |
Our Services
Samples | OK |
OEM | OK |
Packing & Shipping
package | 1)Neutral package + carton package 2)Carton package + pallet 3)Wood package + pallet |
Delivery Time | 1-3 days after order |
Shipping | by air to door address / by sea to sea port |
Company Information
