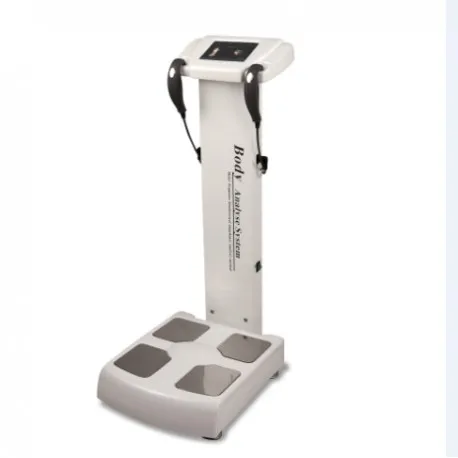

Анализатор индекса массы тела Inbody 770 120 анализатор

Technical Parameters

Test Method

Multi-frequency bioelectrical impedance analysis (MFBIA)

Test Part

bioelectrical impedance analysis on the part of left upper limb, right upper limb, trunk, left lower extremity, right lower extremity

Test Frequency

Three differenct frequency(20KHZ, 50KHZ, 100KHZ)

Electrode Method

8 point contact eletrode

Computing method of body components

Do not estimate through empirical value

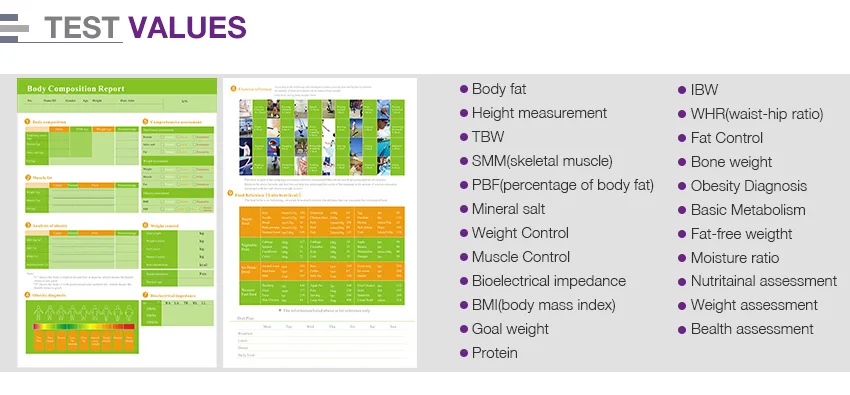

Output Value(25)

TBW, protein, mineral salt, Body fat, bone weight, Weight,IBW, fat-free weight, SMM(Skeletal muscle), BMI(Body mass index), PDF(percentage of body fat), WHP(waist-hip ratio),moisture ratio, Obesity diagnosis, nutritional assessment, Weight assessment, obesity assessment, Goal weight,Weight control,Fat control, Muscle control, Health assessment, basic metabolism, bioelectrical impedance.

Rated current

less than 180μA

Power

Input power: AC100~240V, 50/60HZ

Screen

320*240 STN LCD Touching Screen

Operation Language

English and Multiple Language Option

Values Storage

50000×10 and SD Card unlimited expansion is available

External Storage

SD Card tranfer to computer for large storage

External Interfaces

RJ-45, USB2

Printer Interfaces

USB

IC Card System

standard IC card control

Printer

A4 color paper ink-jet printer(manufacturers appoint the model), internally installed thermal printer

MEAS. Of Package

49CM*50CM*118CM (woodern case), GW: 40KG; NW:32KG.

Test time

No more than 2 minutes

Operation Environment

Temperature: 10~400°C(50~1040°F),humidity: 30~80%RH, 500~600hPa

Conservation Environment

Temperature: 0~400°C(32~1040°F),humidity: 30~80%RH, 500~600hPa

Test scope of weight

10~200Kg; Test scope of age: 10~99 ages; Test scope of height: 90~200cm

External expansion project

Ultrasonic Height Measurer(selective purchasing)
