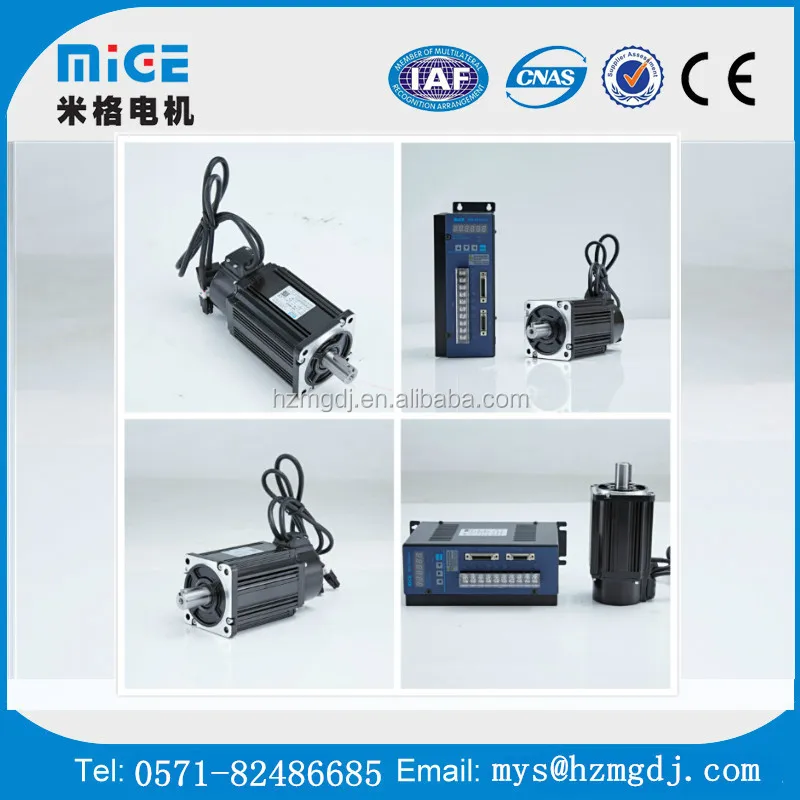

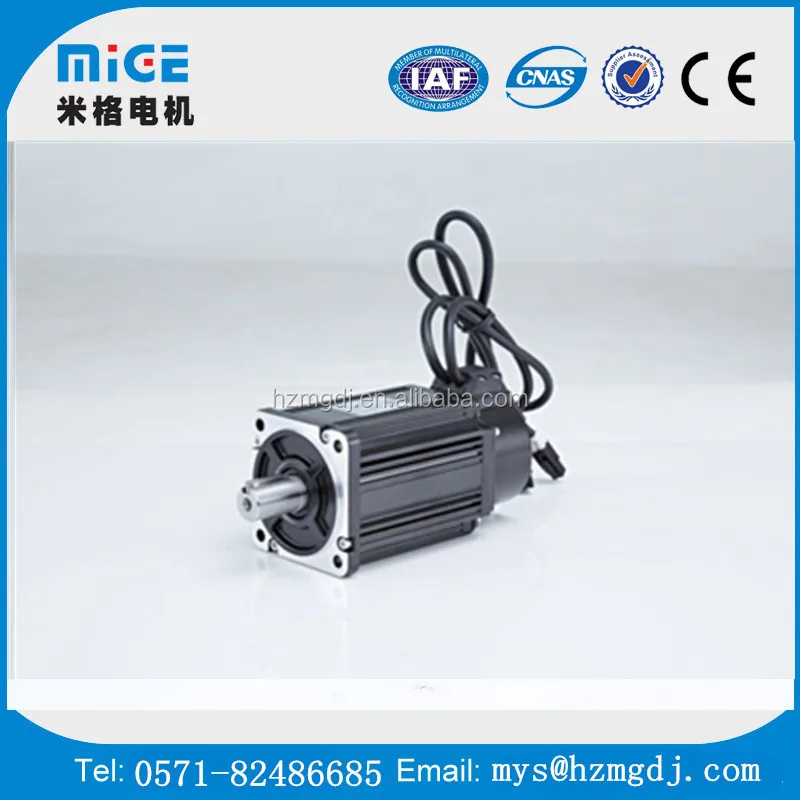

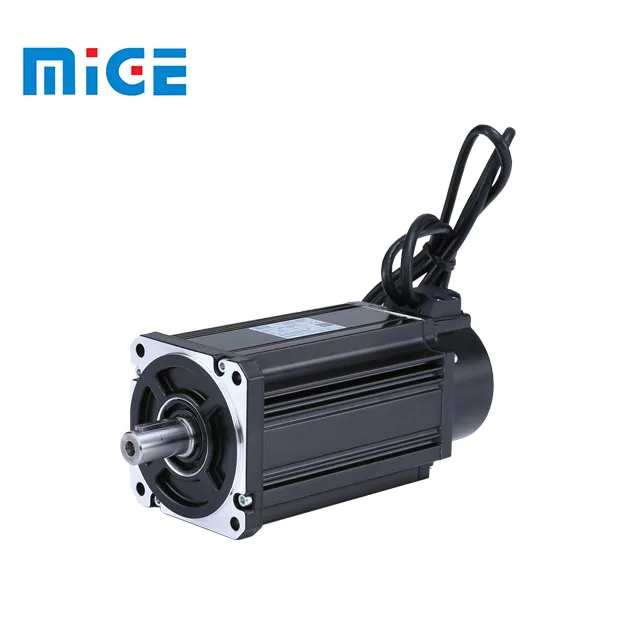

Серводвигатель переменного тока MIGE 80ST-M02430 220 в 3000 об/мин 80 мм 750

Motor Model

80ST-M02430

Rated power   (KW)

0.75

Rated voltage (V)

220

Rated current (A)

3

Rated speed (rpm)

3000

Rated torque (N.m)

2.39

Peak torque (N.m)

7.1

Voltage constant (V/1000r/min)

48

Torque coefficient (N.m/A)

0.8

Rotor inertia (Kg.m2)

1.82*10-4

Line-line Resistance (Ω)

2.88

Line-line Inductance (mH)

6.4

Electrical time-constant (ms)

2.22

Weight (Kg)

2.9

Encoder line (PPR)

2500 P

Insulation class

Class F

Safety class

IP65

The operating

of Environmental Conditions

Temperature: -20℃ ~ +40 ℃

Humidity: Below 90%RH No dewing

Power connector

Signal

U

V

W

PE

Pin No.

2

3

4

1

Encoder connector

Signal

PE

5V

0V

A

B

Z

A-

B-

Z-

U

V

W

U-

V-

W-

Pin No.

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15
