Американский Портативный стакан вязкости/стакан вязкости чернил для
- Категория: Other Flow Meters >>>
- Поставщик: Shantou,Wingtai,Packing,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.95 $* | 0.16 $* |
| Aug-18-2025 | 0.31 $* | 0.27 $* |
| Jul-18-2025 | 0.93 $* | 0.62 $* |
| Jun-18-2025 | 0.14 $* | 0.4 $* |
| May-18-2025 | 0.96 $* | 0.43 $* |
| Apr-18-2025 | 0.95 $* | 0.77 $* |
| Mar-18-2025 | 0.75 $* | 0.31 $* |
| Feb-18-2025 | 0.60 $* | 0.39 $* |
| Jan-18-2025 | 0.23 $* | 0.18 $* |
Характеристики

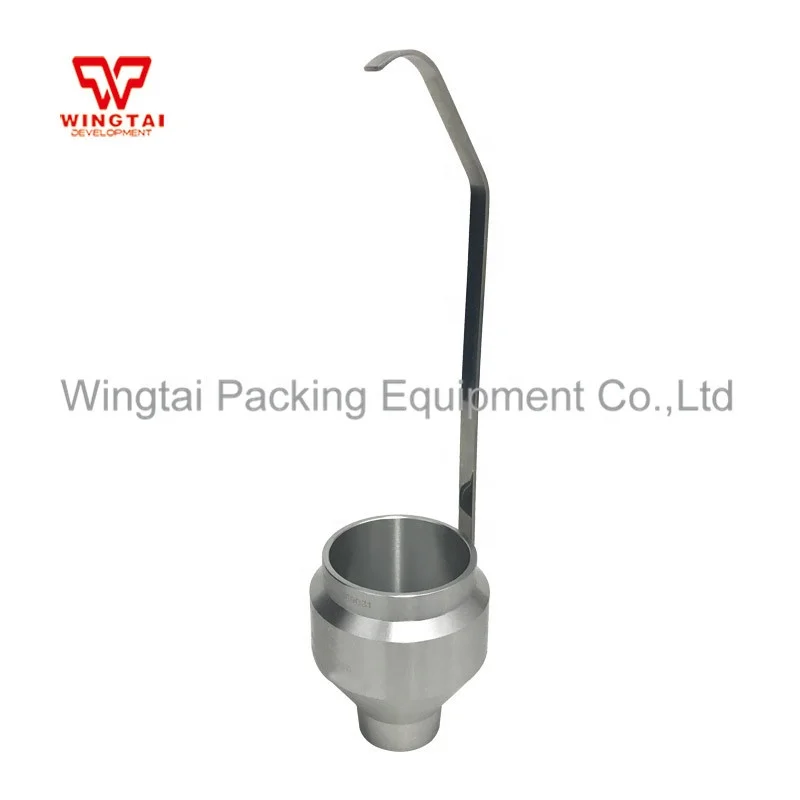

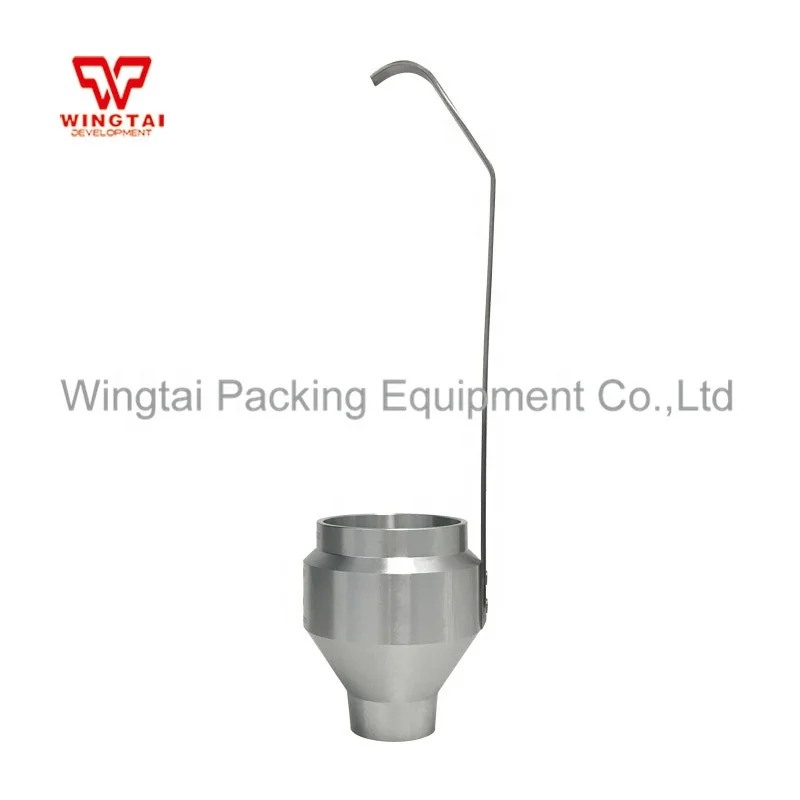

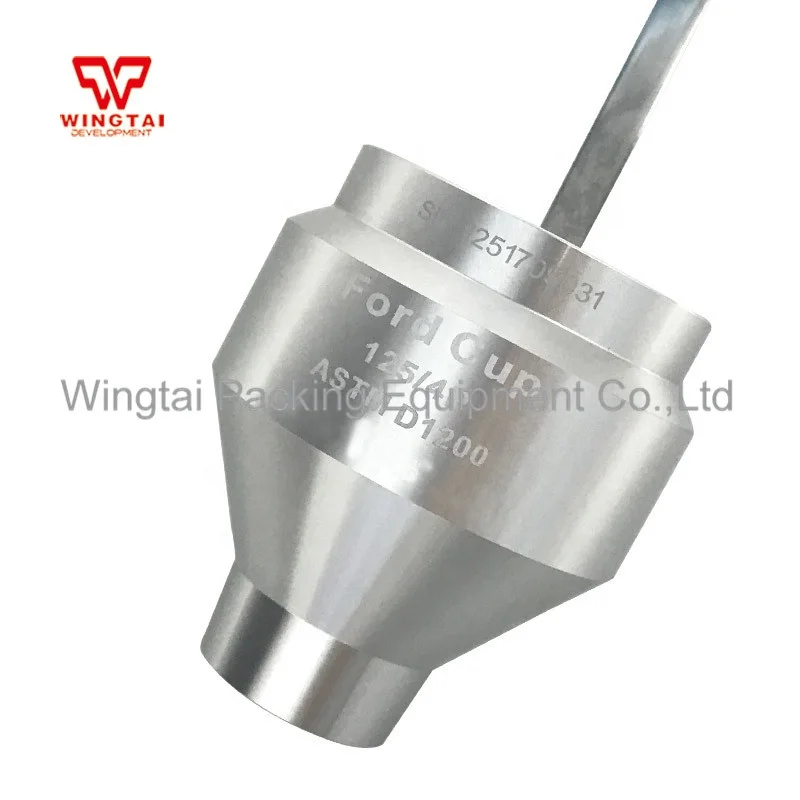

USA Portable Ford Viscosity Cup/ink viscosity cup for paint
Product Description

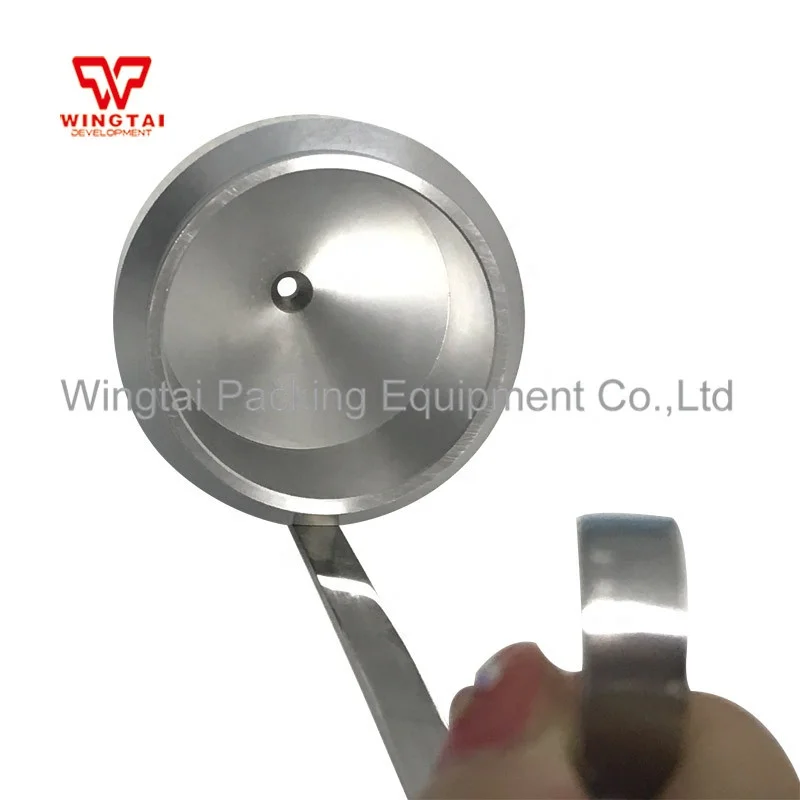

Production of paint and raw materials of the American Society for Testing and Materials standard ASTM D1200, D333, D365 standard provisions used to determine the viscosity of inks, coatings, paints.It is opened by the bottom orifice, the refining capacity of 100ml of high-quality aluminum cup.
Ford cup is to evaluate the viscosity of the material by measuring the time required by the flowing out of the hole in the bottom of a certain volume of the sample of the aluminum cup. Widely used in some countries in Europe and North America.
Technical Data
Functions:
It is suitable for measure the viscosity of paints, inks, lacquers and other liquids.
Product Display
Specification:
Model | Ford Cup 4# |
Internal Vertical Height | 43±0.1mm |
Streaming Exit Aperture (mm) | 4.12mm |
Measuring Range(Centistokes) | 70-370 |
Efflux Time(sec.) +/-0.2 | 20-105 |
The main technical parameters:
- Cup material: Aluminum
- Capacity:100ml.
- Cupinnerdiameter:50±0.05mm
- Cup diameter: 86 ± 0.1mm
- Efflux Aperture Length:10±0.1mm
