Прямая продажа с завода трехфазная защита от проникновения промышленные измерители
- Категория: Счетчики электроэнергии >>>
- Поставщик: Shanghai,Fengyilong,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.74 $* | 0.92 $* |
| Aug-17-2025 | 0.59 $* | 0.94 $* |
| Jul-17-2025 | 0.23 $* | 0.32 $* |
| Jun-17-2025 | 0.99 $* | 0.69 $* |
| May-17-2025 | 0.48 $* | 0.54 $* |
| Apr-17-2025 | 0.76 $* | 0.32 $* |
| Mar-17-2025 | 0.60 $* | 0.47 $* |
| Feb-17-2025 | 0.62 $* | 0.40 $* |
| Jan-17-2025 | 0.8 $* | 0.25 $* |
Характеристики

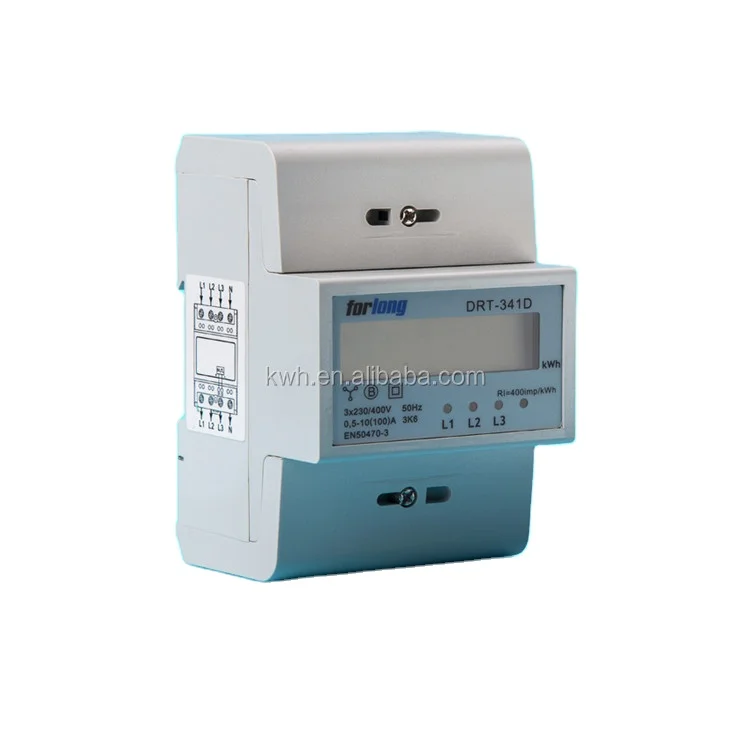

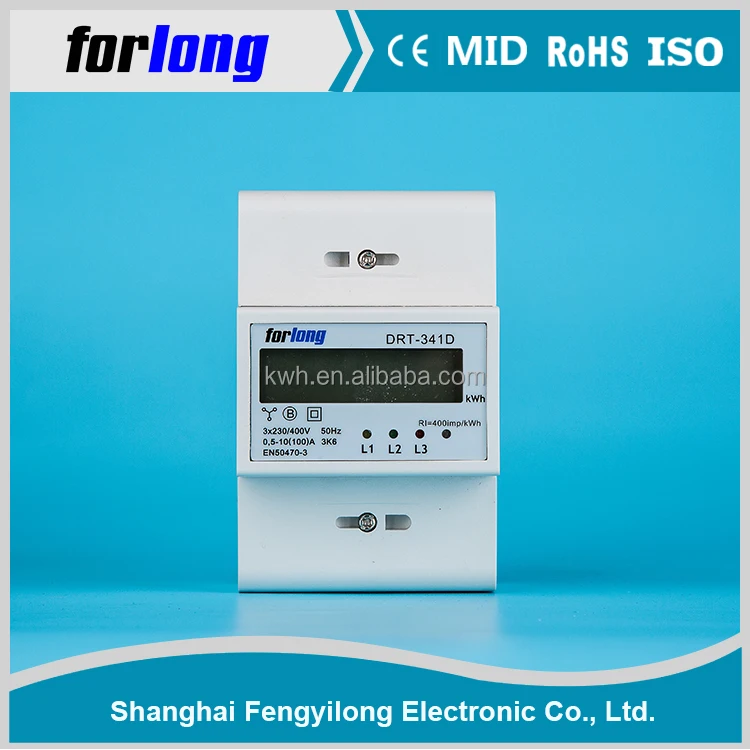

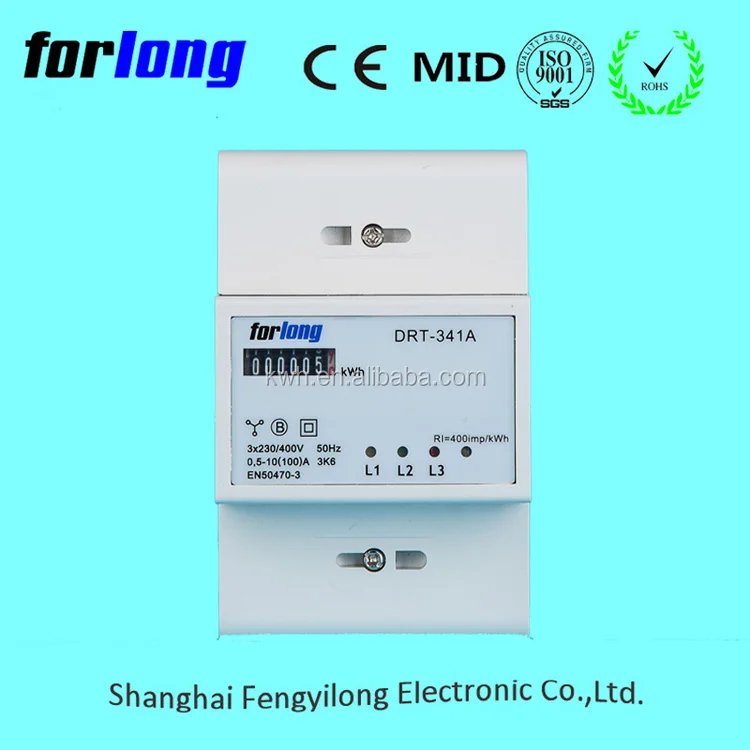

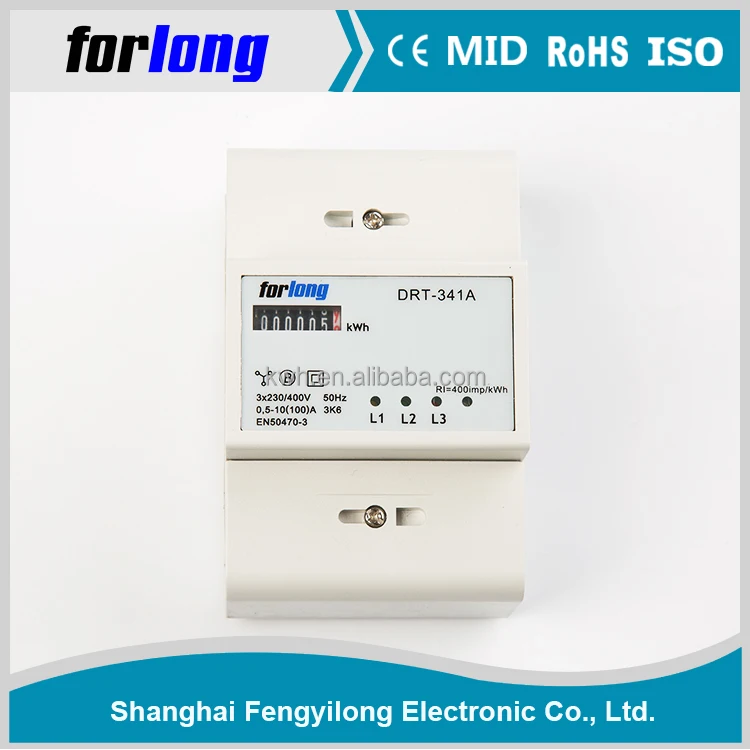

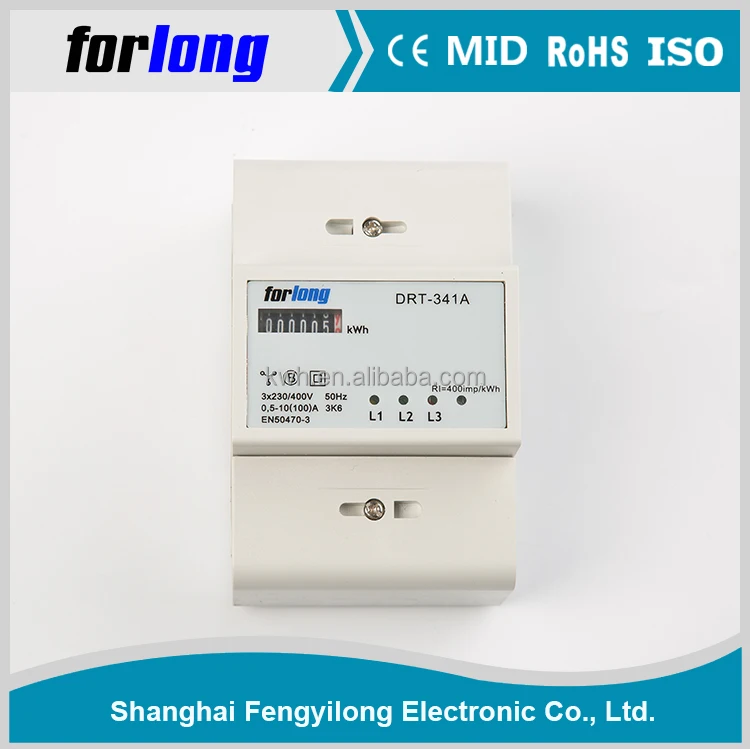

Factory Direct Sale Three Phase Protection against penetration Industrial Energy Monitoring Meters
Meter Type | DRT-341A/D | ||
Voltage (V) | Voltage AC (Un) | 3*230/400 | |
Voltage rang | 3*161/279 to 300/500 | ||
Current (A) | Base (Ib) | 5/10 | |
Max (Imax) | 80/100 | ||
Starting current (mA) | 0.4% of Ib | ||
Power consumption of current | ≤2W /10VA per phase | ||
General data | Frequency(Hz) | 50(±10%) | |
Accuracy | 1.0 | ||
Standards | EN50470-3 | ||
Memory back-up | EEPROM | ||
Enclosure material | Upper | Polycarbonate | |
Lower | Polycarbonate/glass fiber | ||
Temperature range(℃) | Operating | -25℃ to +55℃ | |
Storing | -30℃ to +70℃ | ||
Humidity | Operating | 75% | |
Storing | 95% | ||
Protection | Protection against penetration | ||
Of dust and water | IP51 | ||
insulating encased meter | Of Protective class | II | |
Voltage withstand | AC voltage withstand | 2KV for 1 minute | |
Impulse voltage withstand | 6KV-1.2uS waveform | ||
Current withstand | 30Imax for 0.01s | ||
Pulse output rate | 400/1000imp/kWh | ||
Data stored | More than 20 years when power off | ||
Related Products
Company Profile
Our Advantages
Transportation
1. Q:No light for the consumption indicator
A:Check switch or circuit-breaker and fuse or thermal cut-off.
A2:Reinstall terminal screws on the 1 and 4. Make sure all screws are fixed. Than there should be a 230V 50Hz AC voltage between the terminal screws on the 1 and 4 when power supply is input.
2. Q: No light for the consumption indicator.
A1:Only when load is running, this LED will flash.
A2;If the operating power is too low, the spacing interval of flashing will take some more time, this is why it seems like LED isn’t burning.
A3:Please contact your technical supporter to replace this meter.
3. Q:The register can’t run.
A1: Check that the power supply indicator is burning.
A2: If the operating power is too low, the spacing interval of the pulses will take some more time, this is why it seems like the meter won’t count.
A3: Please contact your technical supporter to replace this meter.
4. Q: No pulse output.
A: Check the external voltage source (Ui) is 5-27V DC.
A2: Check correct connecting:connect 5-27V DC to connector 20 (anode), and the signal wire (S) to connector 21 (cathode).
A3: Please contact your technical supporter to replace this meter.
5. Q: Pulse output rate wrong.
A: Please contact your technical supporter to replace this meter.
