Double-stage vacuum used  transformer oil centrifuging purification filter machine

Application:

It is suitable for maintenance of power facilities higher than 110KV with deeply deteriorated transformer oil, insulation oil, and the insulation oil need recovery of PH value and solute water level or recovery of color.

Generally it is used for vacuum processing of transformer oil, new oil, imported oil, mutual conductor oil, and capacitor oil of power transmission system or refrigerator oil ect.. valuable oil. Also can be used for vacuum filling and drying of transformer.

1.recovery of PH value & color

2.remoove water, imparticles quickly

3.specializing in deeply deteriorated

4.also as vacuum filling and drying of transformer



Advantages:

1. High extraction rate double stage vacuuming system, it is able to utmostly enhance the vacuum environment of internal vacuum tank so as to reach high vacuum, the ultimate vacuum≤5Pa,working vacuum≤35Pa,which make the oil temperature stable in processing to meet the requirement of onsite maintenance of transformer for vacuuming and reduce processing time.
2. After one cycle of processing, the break down voltage can increase 35KV, avoid ageing of oil resulted from repeatedly heating of common purifier.
3. Double stage vacuum separation system and vacuum boosting technology make this type of vacuum separator have higher vacuum degree, which is able to rapidly and reliably remove moisture, gas, oil sludge etc impurity from oil, and reduce dielectric loss, restore PH and water content level, highly enhance flash point and dielectric strength of oil.
4. Special decoloring regeneration system, polymer adsorption material utilized to neutralize acid substance of oil, using micropore to retain the free carbon and small jelly to change the oil color, remove dark color of ageing transformer oil and make it similar to new oil color.
5. Flexible chemical discharging device designed, time less, swift, and consumption low. Decoloring under vacuum is able to highly reduce processing costs, waste residue is harmless.
6. Humanized design, highly automatic, simple operation system and advanced safety system to fully ensure the convenience and safety during operation, it is able to long term online working.
7. Dual-function machine, it is either a purifier, or a vacuum creator, it can be used for vacuum filling of power insulation facilities, reducing transformer maintenance time, improving quality of all sorts of imported oil, new oil.





Technical Specification

Item	Unit		ZJR-30			ZJR-50		ZJR-80	ZJR-100	ZJR-150	ZJR-200	ZJR-300
Flow rate	L/MIN		30			50		80	100	150	200	300
Vacuum degree	MPa		-0.092~-0.099
Working pressure	MPa		≤0.35
Ultimate vacuum	Pa		≤50
Working temperature	°C		45~80
Power supply			380V/50Hz
Noise	dB(A)		≤ 75
Heating power	kW		30			48		72	90	120	180	240
Total power	kW		33			52		77	96	128	188	252
Inlet&outlet size			DN25			DN32		DN32	DN40	DN50	DN65	DN65
Weight	kg		800			1000		1250	1700	2150	2550	2950
Size(mm)	L	mm		1850		1980		2450	2650	3250	3400	3750
	W	mm		1200		1350		1500	1600	1700	1750	1850
	H	mm		1750		1800		1850	1900	2100	2250	2250
Oil index after treatment
Breakdown voltage					kV		≥75
Impurity size					µm		≤3 No free carbon
Dielectric loss					tgδ (90°C)%		≤0.005
Interfacial tension					mN/m		≥40
Water content					ppm		≤ 5
Gas content					%		≤ 0.1

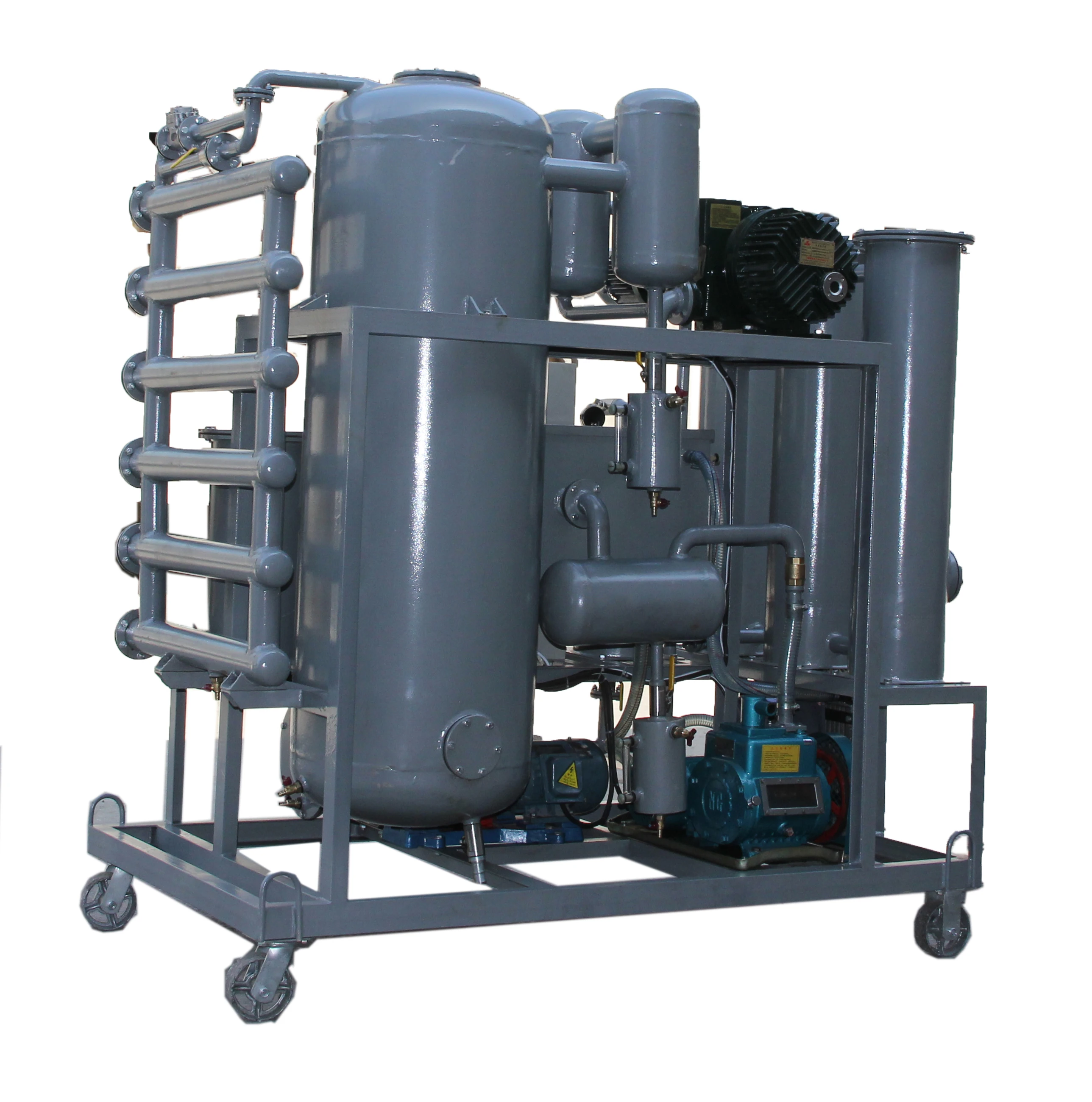

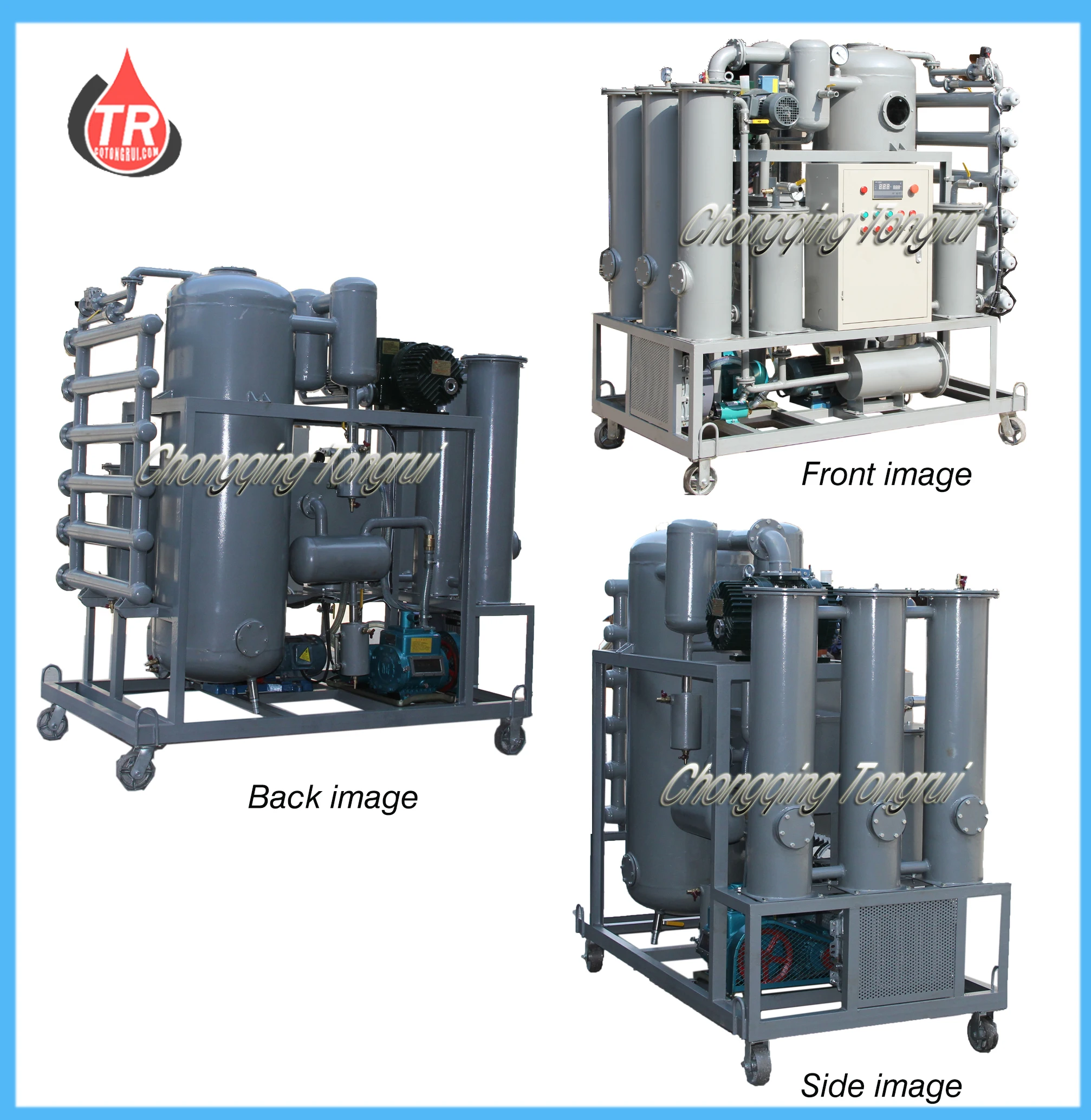

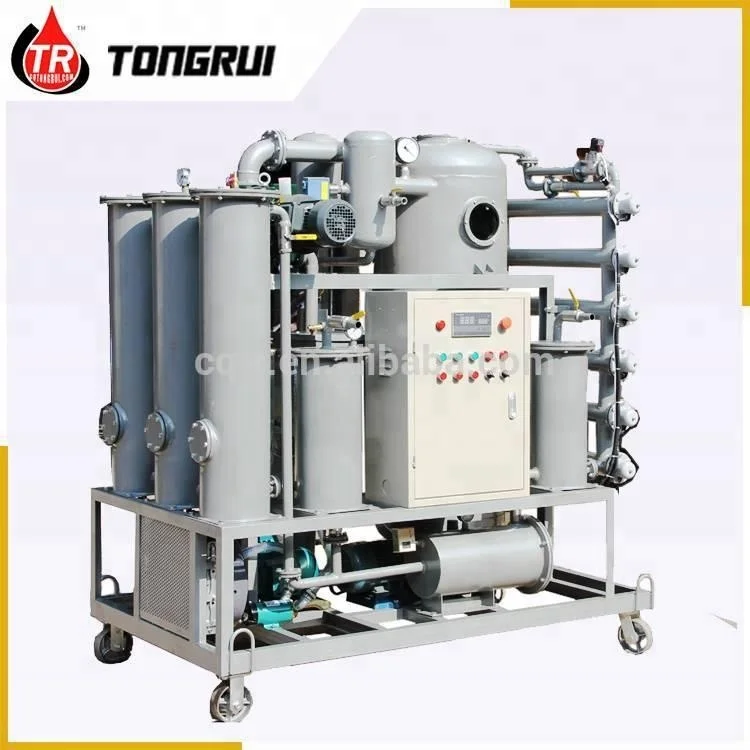

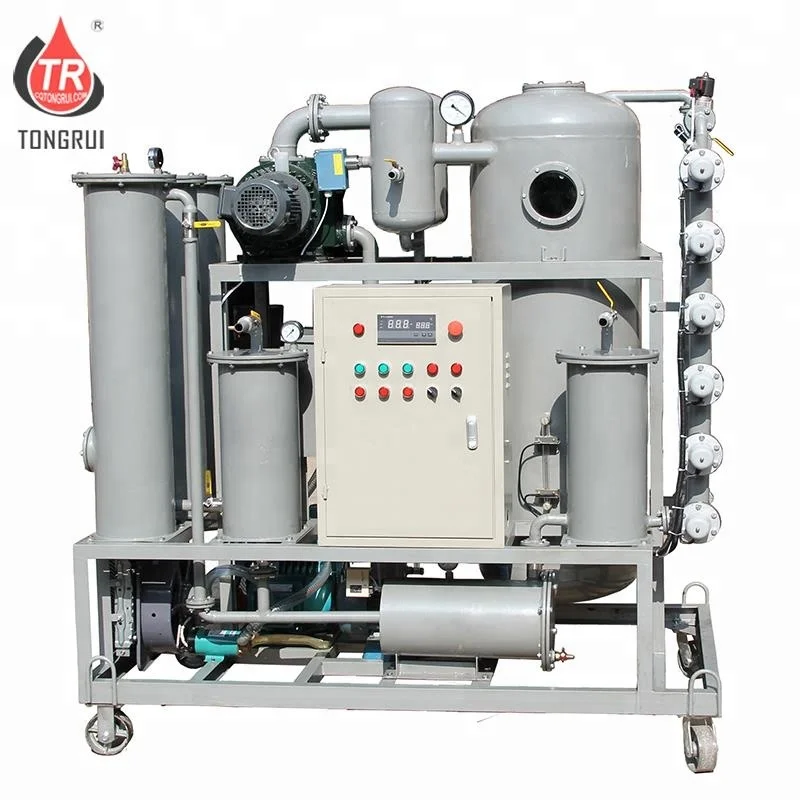

Machine pictures:
