Трехфазный цифровой ЖК-дисплей Электрический измеритель энергии CE ROSH

1.Front panel mounted in 3 points for fixing. The centre-to-centre distance between the top mounting holes and the bottom one is 198 – 212 mm, which the user can select any needed distance, in accordance with Standards BS 7856 and DIN 43857.
2.Can select the step motor impulse register of 6 digits (999999kWh) or 6+1 digits (999999.1kWh) LCD display.
3.Can select the maintenance free lithium battery inside for LCD display to read the meter while the power is cut.
4.Direct connection and CT connection for option.
5.For CT connection meter, it is indirect reading or direct reading for option. For direct reading, there are 27 kinds CT rates to set, after setting CT, we can read the meter directly, no need multiplying the CT rates.
6.The CT direct reading meter is 7 digits LCD display: 5+2 digits (only at CT rate is 5:5A) or 7 integers, which is depended on the setting CT rate.
7.Equipped with a polarity passive energy impulse output terminal, conforming to Standards IEC 62053-31 and DIN 43864.
8.LEDs indicate separately the power state on each phase and the energy impulse signal.
9.Automatic detection for the load current flow direction and will be indicated by LED.
10.Measure the active energy consumption in one direction on three phase, which is not related with the load current flow direction at all, complying with Standards IEC 62053-21.
11.Can select the extended terminal cover or short terminal cover.

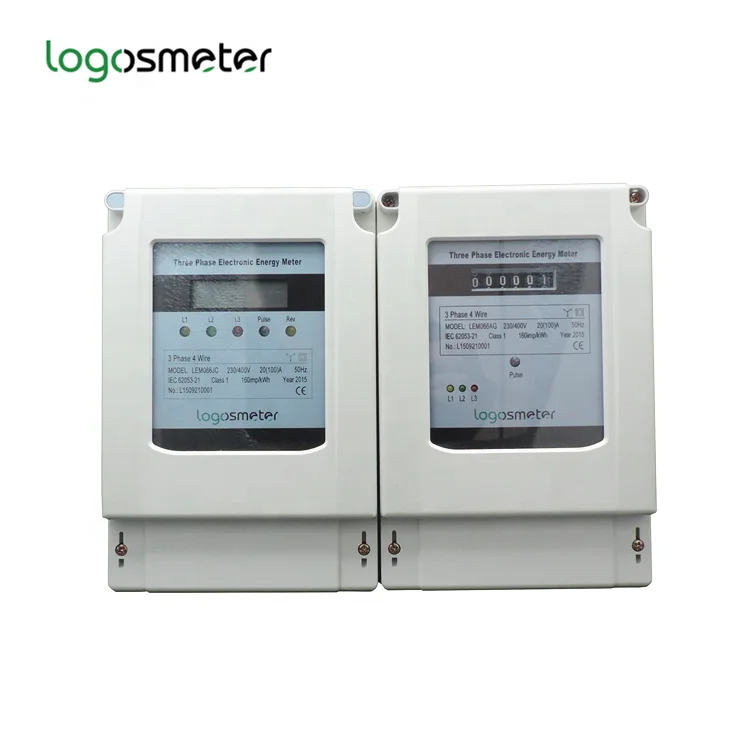

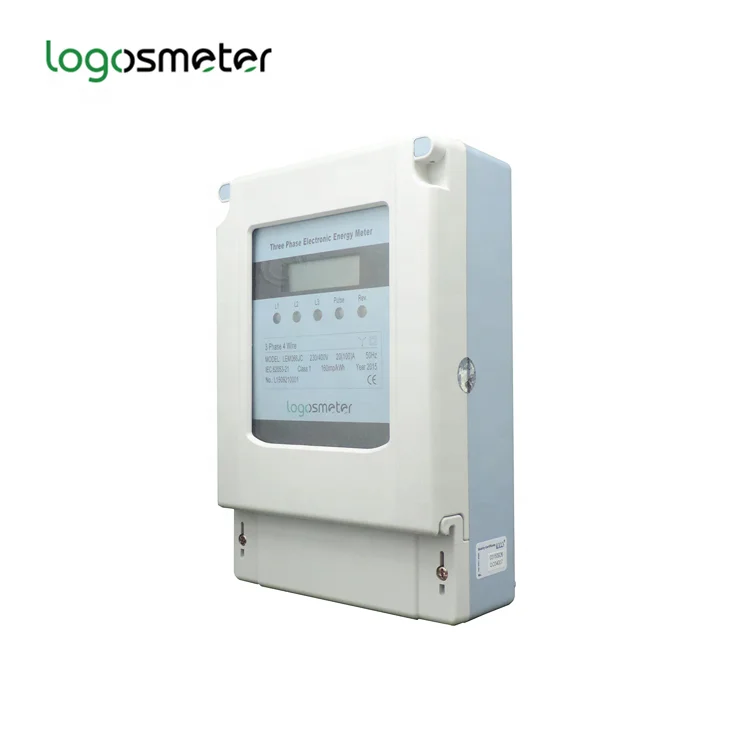

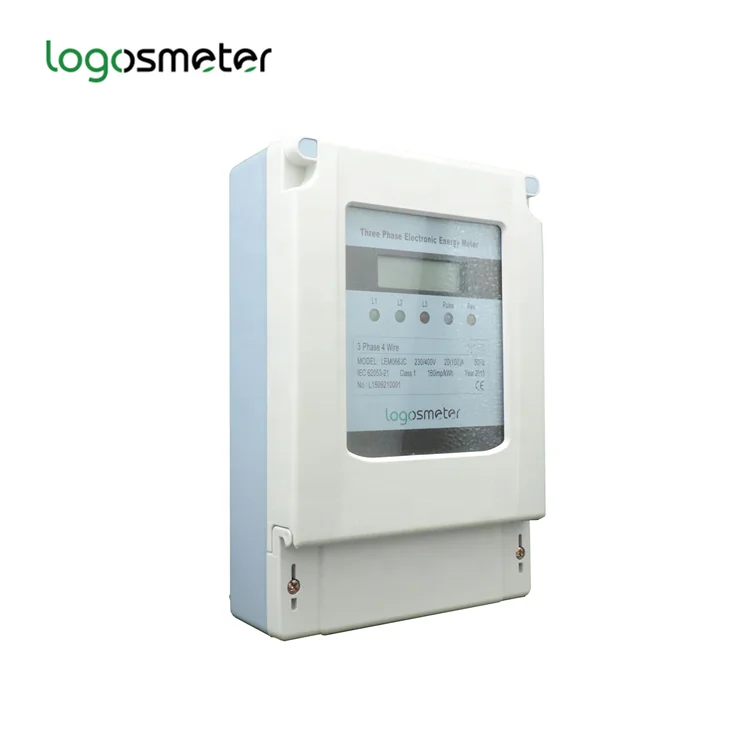

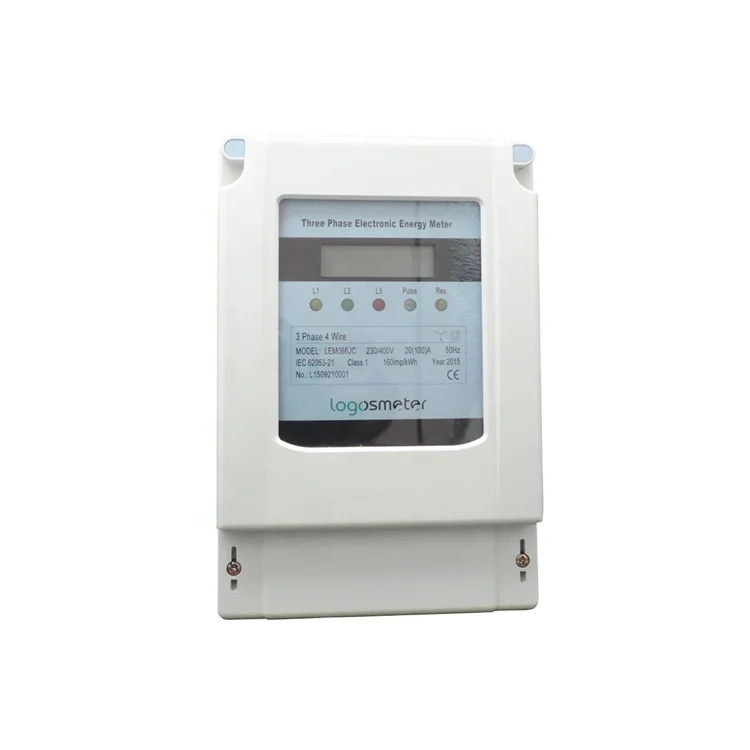

Three Phase front board digital LCD diaplay electrical energy meter CE ROSH LEM066JC

Yueqing Logos Electrical Co., Ltd. is an all-round manufacturer dedicated to research, development, manufacture and sales of top-quality energy meters. Logos furnishes itself with a strongly practical and fully experienced R&D team which is capable of keeping up with the changes of meter industry. Furthermore, Logos has established a whole industrial chain management and an innovation system of integrated organization by combining cooperation of developing the strong cooperative partnerships with the main Electric Power Research Institutes, National Institute of Metrology as well as the world-renowned electrical enterprises both at home and abroad.

Call (Whatsapp/Wechat): 0086-13989776916
Website: http://www.logosmeter.com
Address: Xia'an Village, Beibaixiang Town, Yueqing, Wenzhou, Zhejiang, China (Mainland)

Q1. Are you factory?https://www.alibaba.com/product-detail/Factory-directly-sales-din-rail-electricity_1668808129.html?spm=a2747.manage.0.0.5ef071d29t6Yvd
A: Yes ,our factory is located in Wenzhou,two hours to Ningbo,four hours to Shanghai and two hours to Yiwu by train.Only 40 minutes to Wenzhou international Airport by car.

Q2. Do you offer OEM service?
A: Yes,we have been providing OEM/ODM service to global manufacturers and suppliers for many years.

Q3. What′s your warranty?
A: We offer 2 years warranty.

Q4. Are samples available before order?And do you charge samples?
A: Yes ,samples are normally available in 7-10 days after the receipt of sample payment.But the sample payment will be retuened to you once place an order.

Q5. What′ s material of your product?
A: We ues fire-proof plastic for the frame,red copper and silver for inside compoents.
