Сертифицированный CE адаптер питания переменного тока в постоянный ток 12 В 2

Описание и отзывы

Трекер стоимости

Характеристики

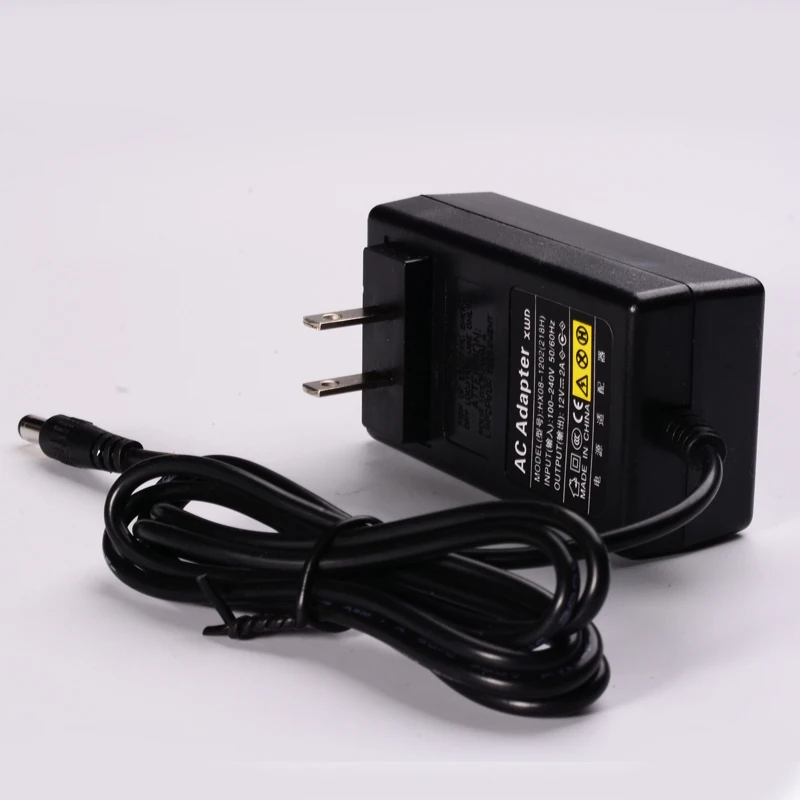

series CE  approvals UK plug ac dc adaptor 12V 2A power adapter

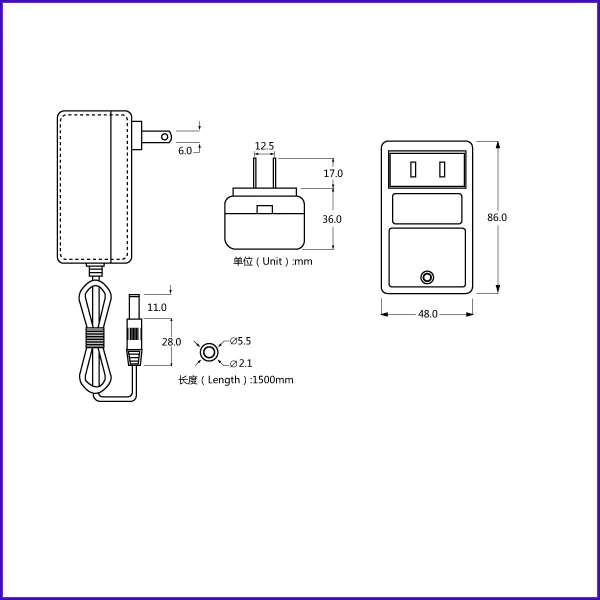

Model	Size	AC Input	DC Output	Amp
HX08-1202(218H)	86*48*36	100-240VAC	12V	2A



1. Warranty: 2 years

2. Plug models: USA plug, EU plug, Australian plug etc.

3. ISO9001:2008 Quality Management system, ensure <1% defectives within 1 year.

3. Low output ripple&noise, Low cost, high stability.

4. Protection: Over current protection, over load protection, over voltage, short circuit protection.

5. Application: Laptop, Desktop, Computer, Camera, CCTV etc.



Quality Assurance:



• Dual transistor forward circuit plan, more stable, more reliable


• Built-in EMI filter circuit, no interference, no blink or slash  phenomenon


• Short circuit, over load & over current protection, safe and secure


• Unique copper slice built-in transformer technology, low temperature & good EMC performance


• The output inductance using alsifer sendust material (Fe-Si-Al Alloy Core), high output efficiency


• Sufficient power output, 100% full load burning test

Universal Wall Plug Adapter Series--Main New Products
Model	Size(mm)	Net weight	Input	Output	Amp
HX08-0503(218H)	86*48*36	120g	100~240VAC	5V	3A
HX08-0902(218H)	86*48*36	120g	100~240VAC	9V	2A
HX08-1202(218H)	86*48*36	120g	100~240VAC	12V	2A
HX08-1801(218H)	86*48*36	120g	100~240VAC	18V	1A
HX08-2401(218H)	86*48*36	120g	100~240VAC	24V	1A
HX08-0501(219)	75*40*30	76g	100~240VAC	5V	1A
HX08-0502(219)	75*40*30	76g	100~240VAC	5V	2A
HX08-0601(219)	75*40*30	76g	100~240VAC	6V	1A
HX08-0602(219)	75*40*30	76g	100~240VAC	6V	2A
HX08-0901(219)	75*40*30	76g	100~240VAC	9V	1A
HX08-1201(219)	75*40*30	76g	100~240VAC	12V	1A
HX08-1201(319)	73*41*28	76g	100~240VAC	12V	1A
HX08-24005(319)	73*41*28	76g	100~240VAC	24	0.5A
HX08-0501(618)	55.5*37*27	25g	100~240VAC	5V	1A
HX08-12005(618)	55.5*37*27	25g	100~240VAC	12V	0.5A



By 6 steps to control quality

  Whoosh Power Supply Certifications:



  FAQ---You may want to know...

1. How's your factory production capacity?

We Whoosh established in 2004 and now we have around 500 workers and 4 production lines; we can   produce 5000pcs per day.

2. How's your power supply and adapter quality?

100% burn-in test, full-round tests. All products are CE approved, some models get TUV, GS, CB, ETL certifications.

3. What's your minimum order quantity?

Most of models have stock. If stock available, 1pc is accepted.

If no stock, for trial order, minimum a carton of 36pcs required.

4. Which payment terms you can accept?

We accept T/T, Western Union, Money Gram, Paypal etc.

5. What's the shipping ways you can provide.

We can ship by air or by sea from Shanghai, Shenzhen, Zhuhai, Guangzhou, Hongkong ports as requested.



   More Related Power Supply Series:

	Feature	Short circuit,overload,over-current protection
	Model Link	Indoor 5V Series	HX-25-5,HX-35-5,HX-60-5,HX-75-5,HX-200A-5,HX-200F-5,HX-300-5,HX-350-5,HX-400-5
		Indoor 12V Series	HX-25-12,HX-60-12,HX-75-12,HX-100-12,HX-120-12,HX-150-12,HX-200-12,HX-250-12,HX-300-12,HX-350-12,HX-400-12,HX-500-12
		Indoor 24V Series	HX-25-24,HX-60-24,HX-75-24,HX-100-24,HX-120-24,HX-150-24,HX-200-24,HX-250-24,HX-300-24,HX-350-24,HX-400-24,HX-500-24
		Outdoor Series	HXF-60,HXF-150,HXF-250,HXF-300,HXF-350,HXF-400,HXF-500,HXF-600
		AC AD Adapter Series	HX08-1201(219), HX08-1201(319), HX08-1202(218H), HX08-1202(2000), HX08-1203(301), HX08-1205(608), HX08-1206-(608)
