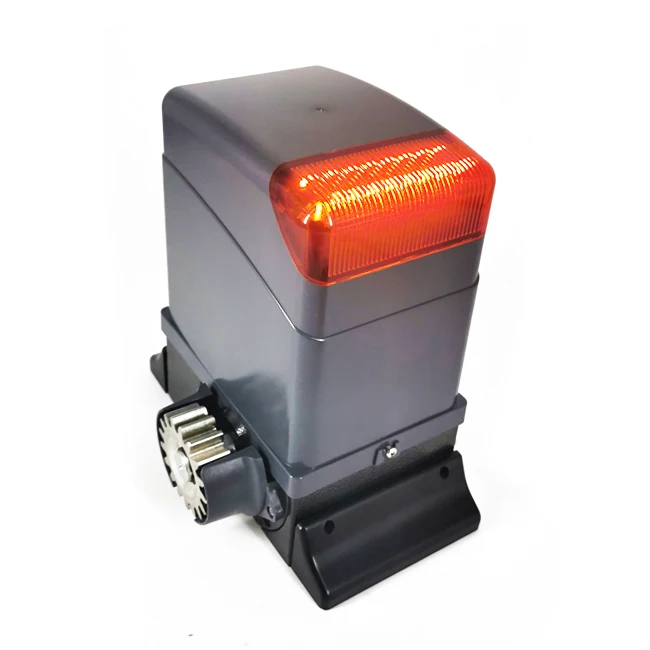

800 кг электрический пульт дистанционного управления раздвижные ворота
- Категория: Door & Window Accessories >>>
- Поставщик: Bisen,Smart,Access,Co.,Ltd.,(Jiangxi)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 131.92 $* | 138.72 $* |
| Aug-18-2025 | 130.23 $* | 137.63 $* |
| Jul-18-2025 | 109.55 $* | 114.73 $* |
| Jun-18-2025 | 128.1 $* | 134.81 $* |
| May-18-2025 | 111.72 $* | 117.53 $* |
| Apr-18-2025 | 125.74 $* | 131.37 $* |
| Mar-18-2025 | 124.29 $* | 130.16 $* |
| Feb-18-2025 | 123.24 $* | 129.98 $* |
| Jan-18-2025 | 122.5 $* | 128.44 $* |
Характеристики
Technical Specifications
Model: | BS-CONCISE-PLUS | |
Motor power: | 220VAC/110V 260W | |
Frequency: | 50Hz | |
W.T(kg) | 16kg | |
Motor rotational speed: | 1400 r/min | |
Output rotational speed: | 46 r/min | |
Gate max weight: | 800kg | |
Gear Box material: | Aluminum alloy |
Features
BS-CONCISE Features
A.Magnetic limit switch .
B.Aluminum alloy Gear Box.
C.Thermal protection at 125℃ built in motor winding.
D.In case of power failure,the gate can be opened and closed manually after release cluth.
E.Built-in control board.
F.Proection class IP55.
G.Operating environment Temperature: -20℃~+50℃
BS-CONCISE Function Introduction
a.Easy to install and maintain.
b.Terminals for Push button,Photocell,Flash lamp.
c.Digital display makes Easy Programming.
d.Electronic soft -start, ensures the motor stars steadily and smoothly.
e.Intelligent terminals for photocell, alarm lamp,external receiver, etc.
f.Optional wire control remote contro
Function Introduction

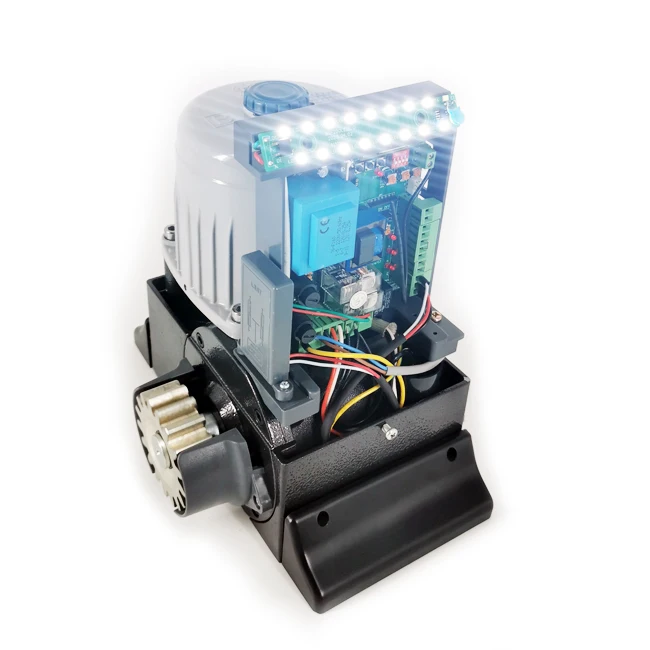

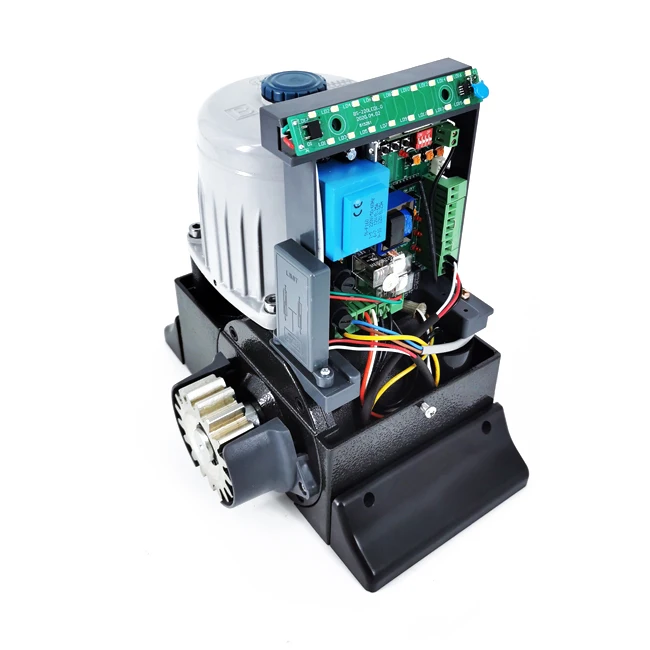

Sliding Gate Operator specification: 1)This type of remote door opener is our new developed product Integrated Mechanical and electrical, ie, with PCB inside and this is an innovative sliding gate operator, which Low stand-by consumption is the best design for solar charging. 2)One touch easy programing,The contronl system learns the open and closing limit automatically. 3)Electronic soft -start, ensures the motor stars steadily and smoothly. 4)Digital display makes Easy Programming. 5)Release key for power failure and looking the operator's cover. 6)Intelligent terminals for photocell, alarm lamp,external receiver, etc. 7)asy to install and maintain,Optional wire control remote control. 8)Mechanical limit switch (spring limit switch) or magnetic limit switch is optional. 9)Release key for power failure. 10)Optional line control or remote control. | ||
Accessories
Trouble shooting
Trouble | Cause | Shooting |
Motor can not work | 1,No power supply 2,Break fuse 3,Surpass load | 1,Check power supply 2,Change fuse 3,Check if any barrier on the track |
Can open but can not close | 1,Photocell is not connected properly 2,Photocell beam is block off 3,Photocell is broken | 1,Connect the photocell 2,Clear out obstacle 3,Change a new device |
Can open (close) but can not close (open) | 1,Position of limit switch is not correct 2,Limit switch is damaged | 1,Adjust position 2,Change limit switch |
Can not locate accurately | 1,Distance of limit switch is too large 2,Limit switch is wrong 3,Magnetic-stell’s position is wrong | 1,Adjust position of limit switch 2,Change limit switch 3,Re-adjust the position |
Release device is doesn’t work | 1,Operating handle is broken 2,Worm gears are jammed | 1,Change the handle 2,Rotate the pinion |
Push the “OPEN” button but the gate close | Push the “OPEN” button but the gate close | Connect correctly according to wiring diagram |
Motor can turn but can not work | 1,Compression spring of clutch is dead 2,Gear box is released | 1,Change the spring 2,Couple the worm gear |
Company Profile
BISEN SMART ACCESS CO,.LTD was established in 1999, located in NanChang, China.
We are the biggest professional manufacturer for parking management system and equipments, gate and door automatic operators in China. more than 70 experienced engineers are engaging in R&D team , and more than 500 employees are working in manufacturer and service. We can provide quality ODM / OEM service for customers.
Our main products: Parking system auto-barrier gate, Sliding gate opener, Swing gate opener, Industrial sectional door opener, anti-terrorism road blocker, Hydraulic bollard, Pedestrian gate, Entrance control system etc.
Exhibition
Certifications
Manufacturing Technique
Testing Equipment
Our Services
1.OEM Manufacturing welcome: Product, Package.
2. MOQ: 1 piece
3. Warranty:1 year
4. We will reply you for your inquiry in 24 hours.
We have our own overseas service department and professional technology team, can meet different requirements of customers in the shortest time and supply the best service when you back home. To solve all the troubles back home and putting customer at first is our principle all the time!
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days, or it is 15-20 days if the quantity is very big. It is according to quantity.
Q: Do you provide samples ? Is it free or extra ?
A: We could offer the sample for charge, freight collect.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
If you have another question, pls feel free to contact us as.
