Тепловые материалы высокая теплопроводность Графитовая фольга/проводящий графитовый


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 0.37 $* 0.18 $*
Aug-16-2025 0.52 $* 0.69 $*
Jul-16-2025 0.95 $* 0.30 $*
Jun-16-2025 0.2 $* 0.31 $*
May-16-2025 0.95 $* 0.42 $*
Apr-16-2025 0.45 $* 0.5 $*
Mar-16-2025 0.10 $* 0.21 $*
Feb-16-2025 0.95 $* 0.65 $*
Jan-16-2025 0.99 $* 0.83 $*

Характеристики

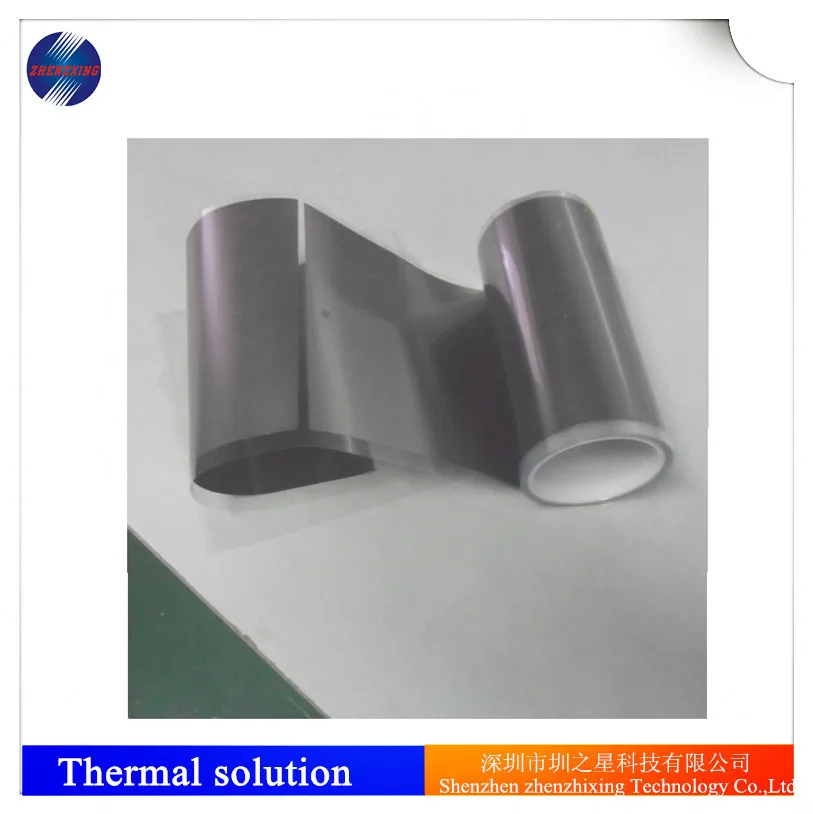

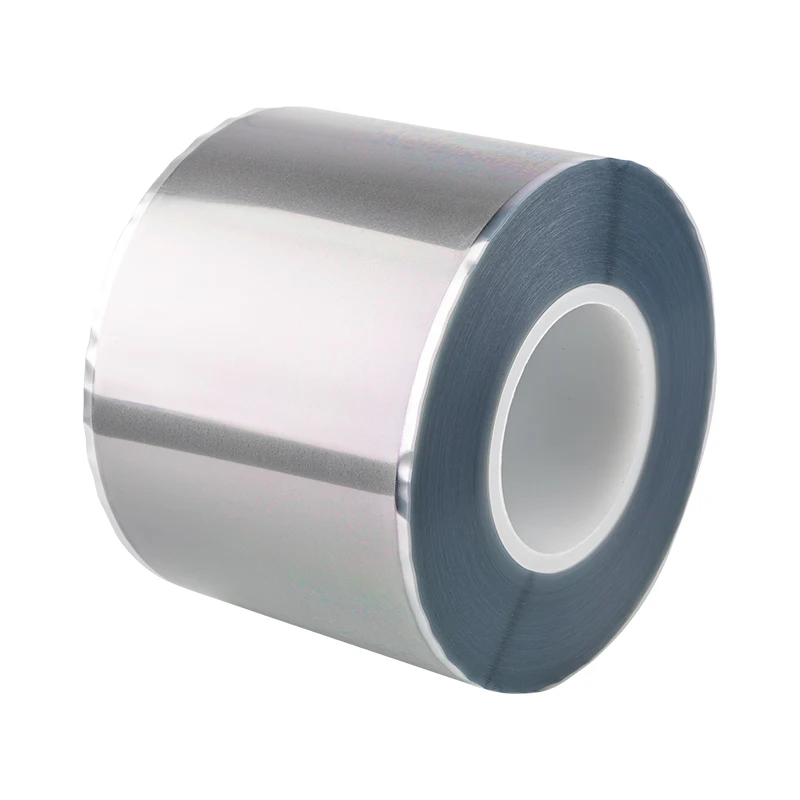

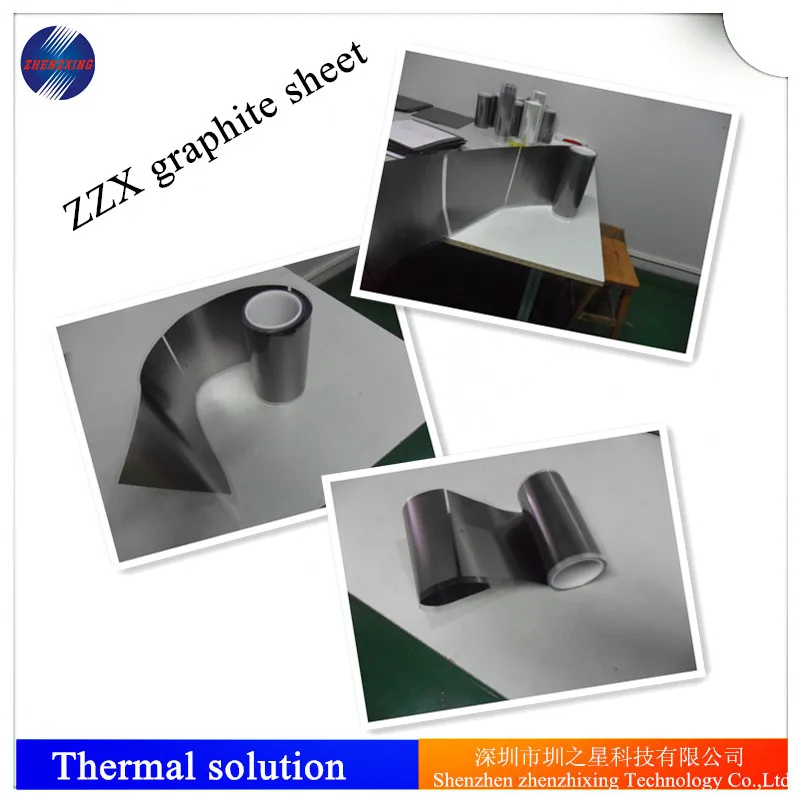

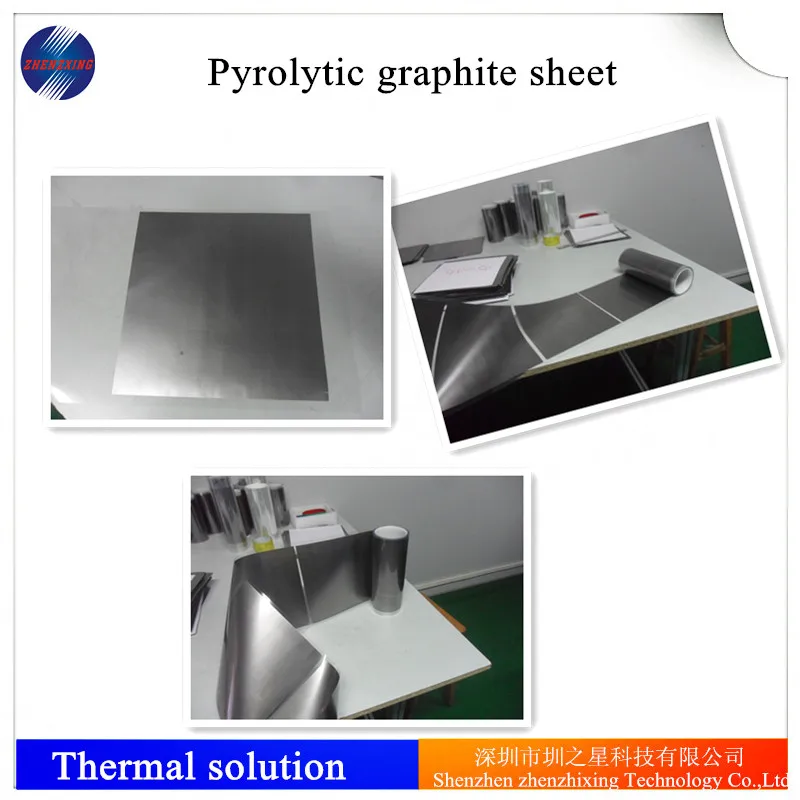

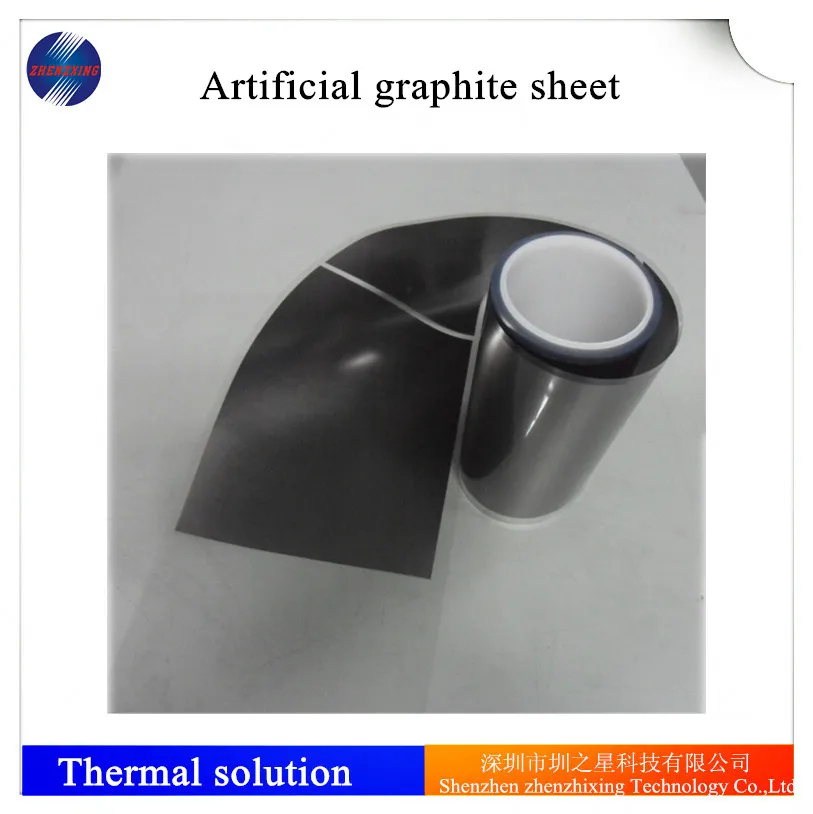

Graphite sheet


High thermal conductivity Graphite Foil/ Conductive graphite sheet





This material is synthetically made of graphite polymer, super thin, high thermal conductive, and flexible. It has been widely used in small high integrated electronic applications. It can be cut into customized size and shape, backed with adhesiveand membrane.It is an ideal material as heat spreader or as heat sink in limited space.








 Thermalconductivity: 600-1800W/m-k                                          Smart phone


 Flexible and customsize .                                                             Blue-rayDVD/DSC/SSD


 Low thermal resistance .                                                              Telecomdevice .


 ROHS  compliance.                                                                      PC/laptop .


                                                                                                      Thermo electric








Part Number Coding Rules:


Example: ZZXGS-17-M1-P1


ZZXGS: Only for PGS


17:Thickness (μm)


M1:One side back adhesive(20μm)                                       M2:Two sides back adhesive


P1:One side back plastic membrane (10μm)                        P2:Two sides back plastic membrane












































































Model NO.ZZXGS-17
Thickness(mm)0.017±0.005
      Thermal Conductivity        (W/M-K)X,Y direction1700-1800
Z direction15
Thermal Diffusivity(cm^2/s)9.39-9.94
Density(g/cc)2.13
Specific Heat(50℃)(J/g.K)0.85
Continuous Temperature Resistance(℃)400
       Extensional Strength      (Mpa)X,Y direction39
Z direction0.1
Bending Test(times)(R5/180°)>10000
Electric Conductivity(S/m)2.0x106



































  RFQ


1: Can I get free sample?


Yes, Zhenzhixing is glad to offer free samples if you are a qualified and returning customer, however,


if the sample is expensive, like large size , Zhenzhixing has to charge some basic cost of the sample.


For the new customer, samples fee will be deducted from the initial bulk order.





2:Does Zhenzhixing accept OEM or Customized production?


 Yes, Zhenzhixing is capable in developing products according to your requirements; quotation will be


 available within 24 hours after getting all the details of desired products.





3: How to customized a sample?


 If you are ordering a unique sample that Zhenzhixing doesn't have in stock, you need to supply all the production detail, it will be better if you can provide a sample for our evaluation and testing. A customized sample maybe requires new molding, which will cost.
