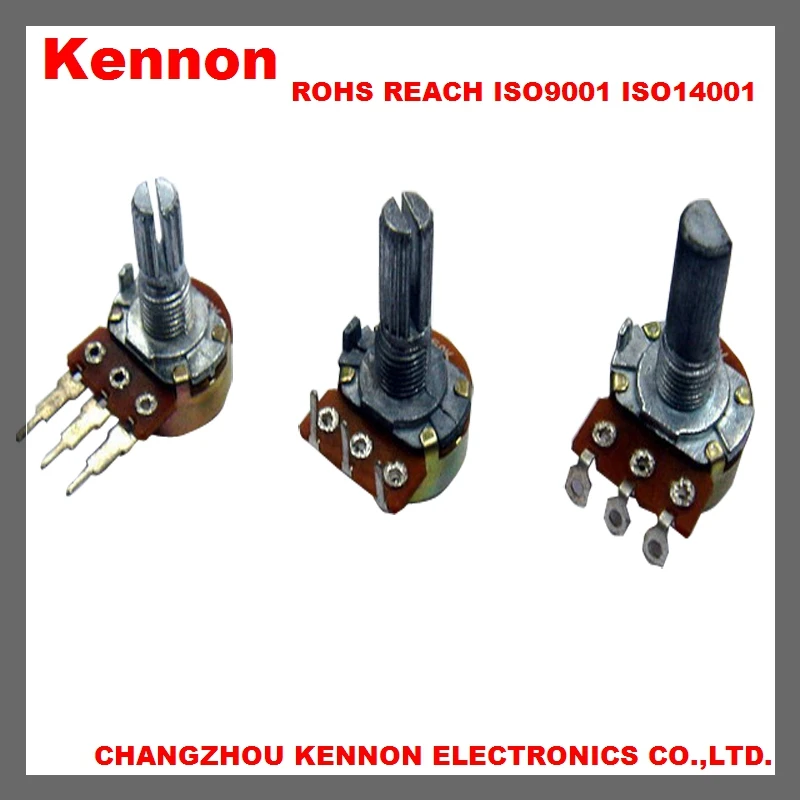

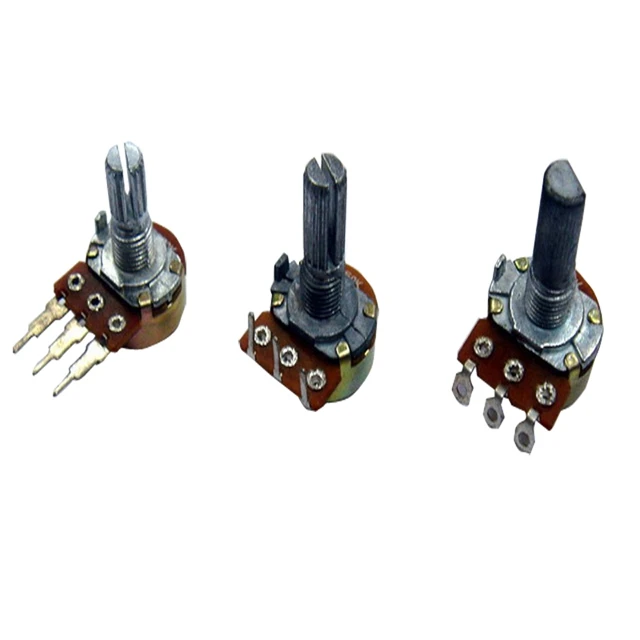

Поворотный потенциометр ALPS b10K b503 радио аудио видео управление громкостью b50k 100k cts alps
- Категория: Потенциометры >>>
- Поставщик: Changzhou,Kennon,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.36 $* | 0.44 $* |
| Aug-18-2025 | 0.24 $* | 0.83 $* |
| Jul-18-2025 | 0.22 $* | 0.82 $* |
| Jun-18-2025 | 0.84 $* | 0.56 $* |
| May-18-2025 | 0.90 $* | 0.65 $* |
| Apr-18-2025 | 0.50 $* | 0.18 $* |
| Mar-18-2025 | 0.2 $* | 0.9 $* |
| Feb-18-2025 | 0.23 $* | 0.46 $* |
| Jan-18-2025 | 0.71 $* | 0.69 $* |
Характеристики
Product Description
Drawing
Specification
项目 ITEM | 规格 SPECIFICATION | ||
电气性能 Electrical Characteristics | 工作温度 Temp Range | -10℃～70℃ | |
额定功率 Rated Power | Curve B:0.125W Other curve B:0.053W | ||
最大工作电压 Max Operation Voltage | Curve B:200V Other curve B:150V | ||
阻值范围 Resistance Range | 1KΩ～2MΩ | ||
阻值允许偏差 Allow Desistance Tolerance | ±20%(1MΩ or more30%) | ||
转动噪声 Rotational Noise | ≤47mV | ||
终端电阻 Terminal Resistance | R≥250KΩ 0.1%R max 250KΩ>R>10KΩ 20Ωmax 10 KΩ≥R 10Ωmax | ||
电阻规律 Resistance Law | A、B、C | ||
抗电强度 Dielectric | AC500V,1minute | ||
绝缘电阻 Insulation Resistance | More than 100MΩ at DC500V | ||
机械性能 Mechanical Characteristics | 旋转力矩 Rotational Torque | 2～20 mN.m（20～200gf.cm） | |
总旋转角度 Total Rotational Angle | 300°±5° | ||
旋转寿命 Rotary life | 10,000 cycles | ||
止挡强度 Shaft Stopper Strength | 6Kgf.cm | ||
轴推拉强度 Push Pull Strength | 60 N | ||
定位位置 Click position | Center detent or 10,20,40 position clicks | ||
焊接Soldering | T≤260ºC，t≤3s | ||
