Welcome to visit our planetary concrete grinding machine



Model:JH600-T1



Main Product Feature

1:Uhandle, which can rotate around 360°, and is safe and reliable with convenient operation conforming to the ergonomics.

2:: Special big multi-functional magnet chassis, which enables the grinding material installation and replacement to be more convenient and quicker, and the high-speed running to be safer.

3:: The central integrated design of the control panel, which can choose the speed specific to different grounds, improve the equipment stability and achieve the low-noise working environment.

4:: The built-in vacuum cleaner connection device, which can achieve the dust-free working environment, thus good for staff’s health and equipment’s maintenance.

5: Easy operation, which enables the staff to easily complete the whole construction process by strictly followig the manual.





Technicial data:





Model	JH600-T1A	JH600-T1A2	JH600-T1B	JH600-T1B2
Voltage	380-440V	380-440V	380-440V	380-440V
Current	24A	26.9A	24A	26.9A
Motor	10HP(7.5KW)	10HP(7.5KW)	15HP(11KW)	15HP(11KW)
Inverter	10HP(7.5KW)	10HP(7.5KW)	15HP(11KW)	15HP(11KW)
Frequency	50/60HZ	50/60HZ	50/60HZ	50/60HZ
Rotating Speed	450-1800RPM	450-1800RPM	450-1800RPM	450-1800RPM
Working Area	600MM	600MM	700MM	700MM
Grinding Disc	300MM*4	300MM*4	370MM*4	370MM*4
Water Tank	30L	30L	30L	30L
Weight	235KGS	235KGS	300KGS	300KGS
Dimension	930MM*600MM*950MM	930MM*600MM*950MM	930MM*700MM*1050MM	930MM*700MM*1050MM

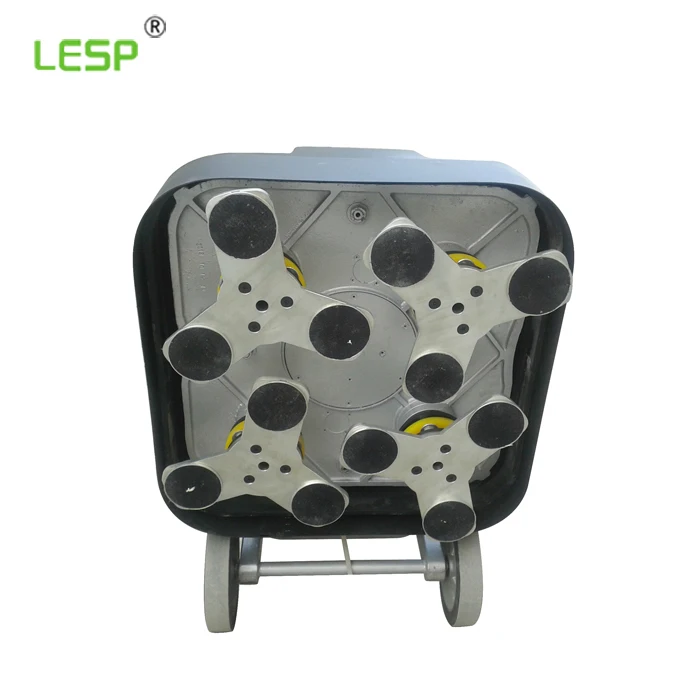

The product picture:

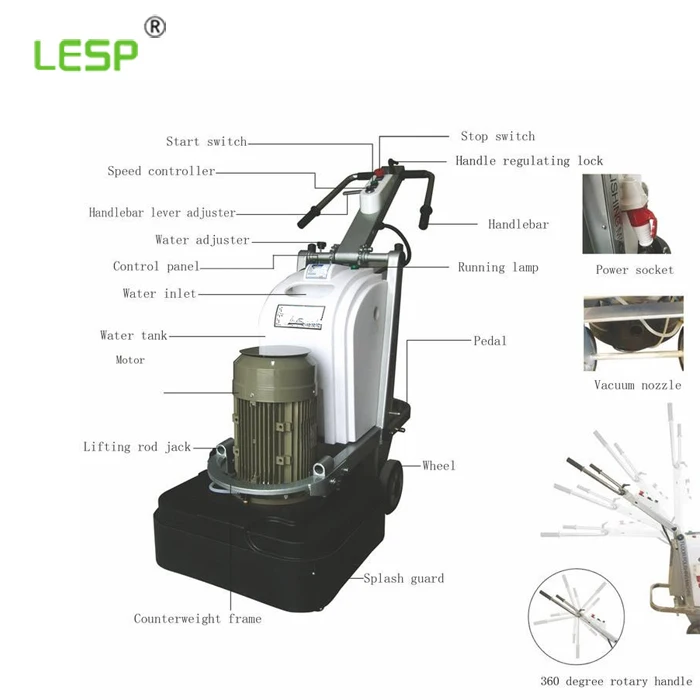

The parts detail information:

 The factory picture:



The certificate:

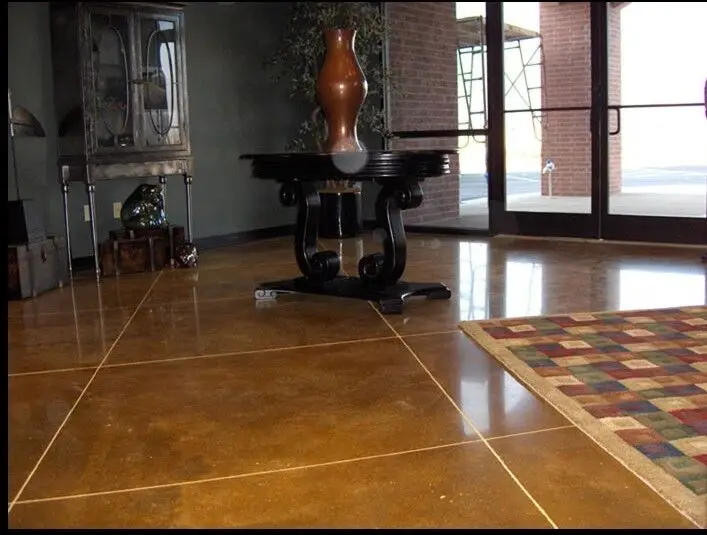

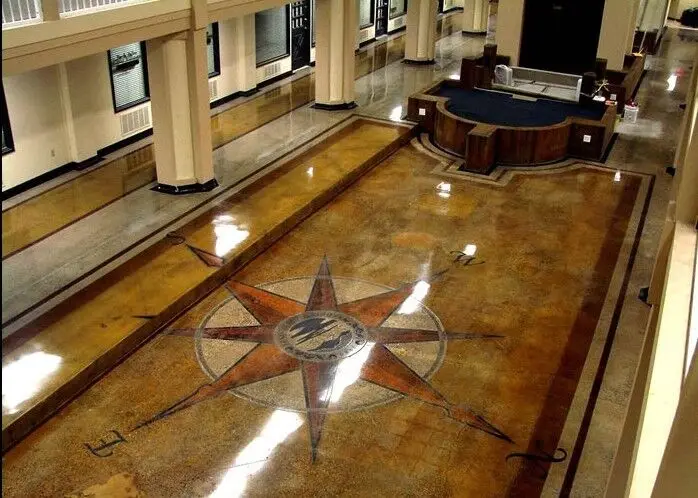

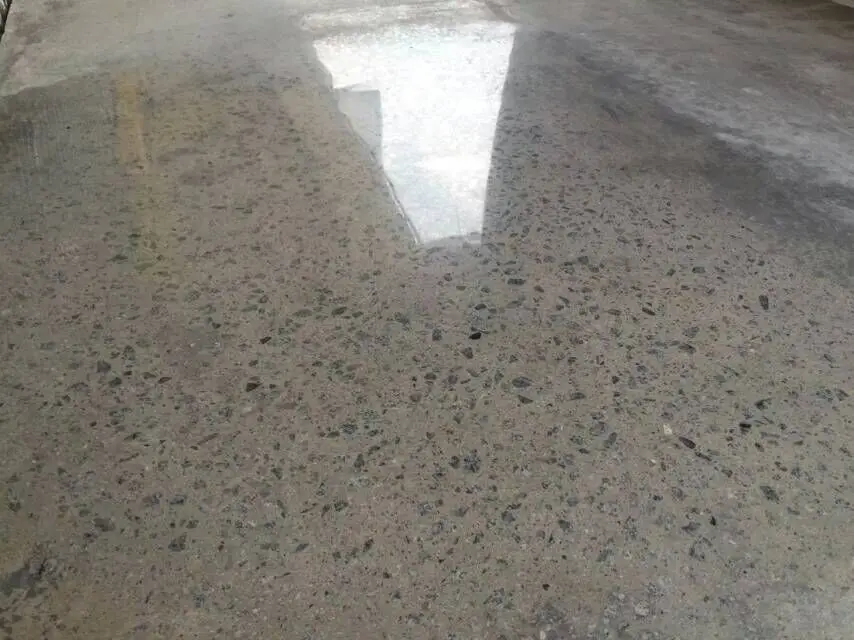

The project:
