Портативный зажим на ультразвуковой расходомер одобренный
- Категория: Расходомер >>>
- Поставщик: Lanry,Instruments,(Shanghai),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.73 $* | 0.90 $* |
| Aug-19-2025 | 0.82 $* | 0.3 $* |
| Jul-19-2025 | 0.95 $* | 0.64 $* |
| Jun-19-2025 | 0.40 $* | 0.14 $* |
| May-19-2025 | 0.87 $* | 0.14 $* |
| Apr-19-2025 | 0.74 $* | 0.61 $* |
| Mar-19-2025 | 0.77 $* | 0.87 $* |
| Feb-19-2025 | 0.98 $* | 0.9 $* |
| Jan-19-2025 | 0.48 $* | 0.54 $* |
Характеристики
Product Description

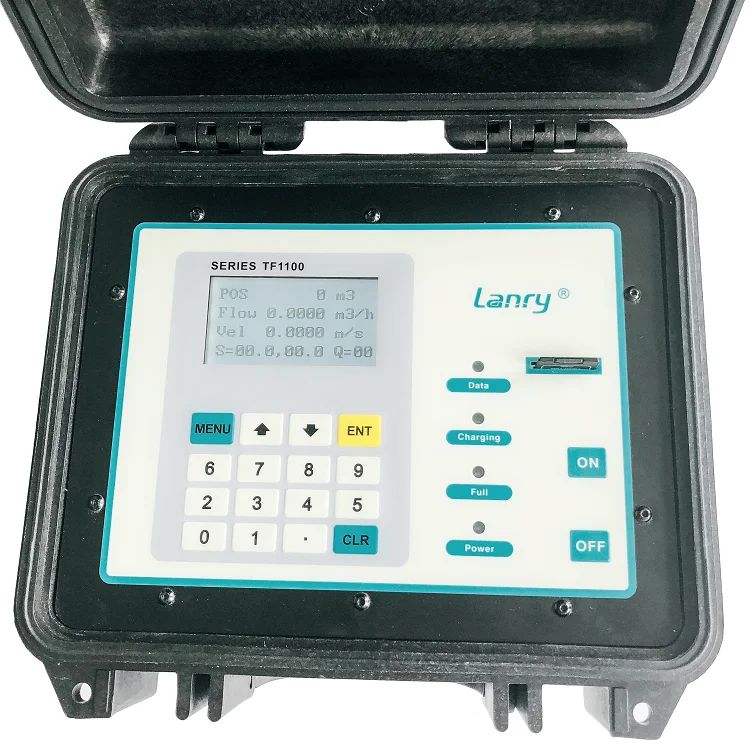

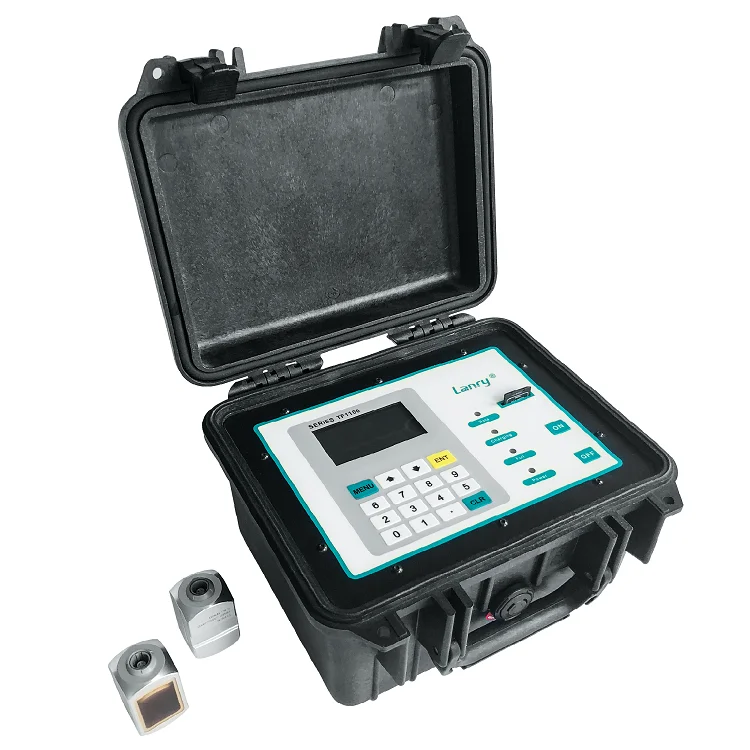

TF1100-EP Portable Clamp On Ultrasonic Flowmeter with CE Approved. The clamp-on ultrasonic transducers (sensors) are mounted on the external surface of the pipe for non-invasive and non-intrusive flow measurement of liquid and liquefied gasses in fully filled pipe. Three pairs of transducers are sufficient to cover the most common pipe diameter ranges. In addition, its optional thermal energy measurement capability makes it possible to carry out a complete analysis of thermal energy usage in any facility.
This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.
This flexible and easy to use flow meter is the ideal tool for the support of service and maintenance activities. It can also be used for the control or even for the temporary replacement of permanently installed meters.
Features
1. Non-invasive transducers are easy to install, cost effective, and require no pipe cutting or processing interrupt.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function.
4. 50 hours battery(rechargeable), back-lit 4 lines display for this Portable ultrasonic flow meter.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.
2. Wide liquid temperature range: -35℃~200℃.
3. Data logger function.
4. 50 hours battery(rechargeable), back-lit 4 lines display for this Portable ultrasonic flow meter.
5. For commonly used pipe materials and diameters from 20mm to over 6.0m.
6. Wide bi-directional flow range of 0.01 m/s to 12 m/s.
7. The heat measurement function by donfiguring with paired temperature sensors.
Application
General
● Service and maintenance
● Replacement of defective devices
● Support of commissioning process and installation
● Performance and efficiency measurement
- Evaluation and assessments
- Capacity measurement of pumps
- Monitoring of regulating valves
● Energy efficiency audits
Water and waste water industry - hot water, cooling water, potable water, sea water etc.)
Petrochemical industry
Chemical industry -chlorine, alcohol, acids, .thermal oils.etc
Refrigeration and air conditioning systems
Food , beverage and pharmaceutical industry
Power supply- nuclear power plants, thermal & hydropower plants), heat energy boiler feed water.etc
Metallurgy and mining applications
Mechanical engineering and plant engineering-pipeline leak detection, inspection, tracking and collection.
Specifications :Transmitter
Specifications :Transmitter

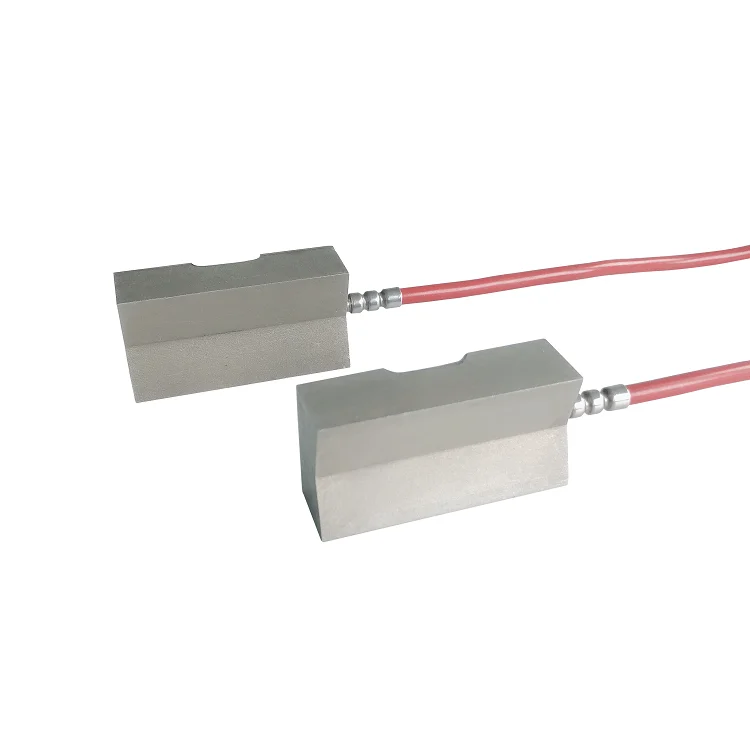

Diamensional Sketches:
S 48(h)*28(w)*28(d)mm
M 60(h)*34(w)*32(d)mm
L 80(h)*40(w)*42(d)mm
Factory Equipment
Customer Visiting
Previous Exhibition
Certificate
Packing & Delivery
Packing
Portable Clamp On Ultrasonic Flowmeter with CE Approved
With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.With years of export experience along with excellent quality, advanced services and competitive prices, Kingnod has won numerous customers' trust and support.
Delivery
Portable Clamp On Ultrasonic Flowmeter with CE Approved standard meter: 3-7 days
Special meter: pls contact us
Express, by air, by sea can be optional.
