Характеристики
iBeacon Feature
Ble Low Energy Eddystone Url Beacon 100m Long Range Waterproof iBeacon
Chipset: Nordic nrf52832
Battery type: Panasonic CR2450 battery
Ble range: 100 meters in open air
Battery life: 24 months based on broadcasting rate 1s
Sensor: null
Buzzer: Optional
-With our app for android and iOS, it’s quite easy to configure UUID(UID for Eddystone), Major, Minor, Broadcasting Power,
Broadcasting Interval, Eddystone URL, etc
iBeacon Parameters
Item | Test Data | Remarks |
Chip | NRF52832 | 512K |
Battery model | CR2450 | Null |
Operation Voltage | 1.8-3.6V | DC |
Operation Frequency | 2400-2483.5MHz | Programmable |
Frequency Error | +/- 20KHz | Null |
Modulation | Q-QPSK | Null |
Standby current | 12uA | Null |
Output Power | 4 dBm - -40dBm | Programmable |
Receiving Sensitivity | -93dBm | High gain mode |
Transmission distance | 75m | BER<0.1%, Open space |
Antenna | 50ohm | Onboard |
Detailed Images
Certifications
Our Company
Other Models
H1
Chipset: N52832 512K
Ble range: 50m in open air
Battery type: Rechargeable battery
Working time: 1 month based on broadcasting rate 1s every charge
With Vibrator、Buzzer and LED
Color: black, blue, orange, red, etc.

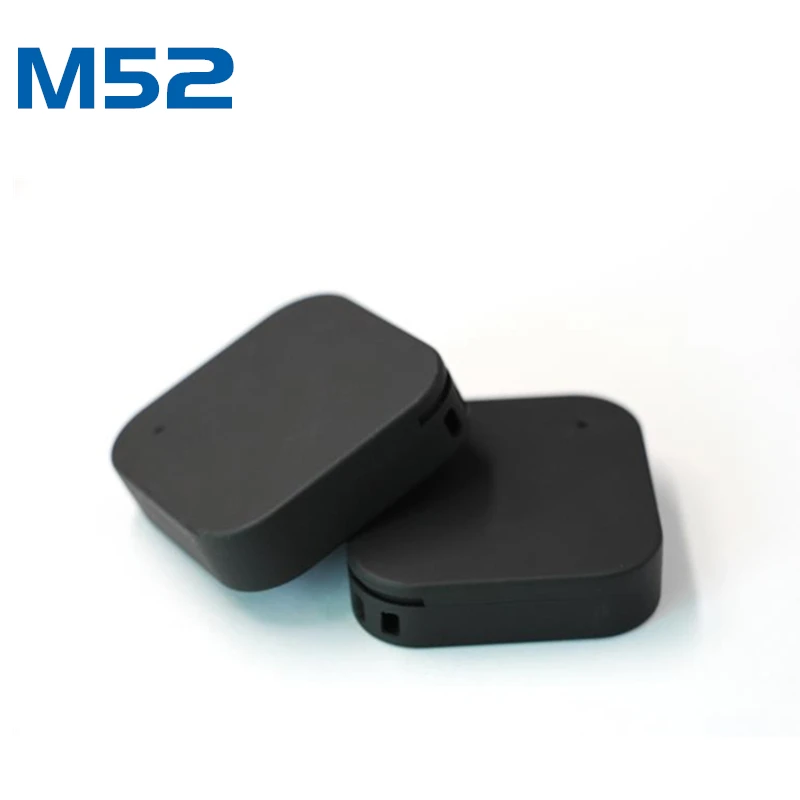

M52 SA PLUS
Ble range: 100m
Battery type: CR2477
Sensor: Humidity, Temperature, Accelerometer.
Working time: 24 months based on broadcasting rate 1second

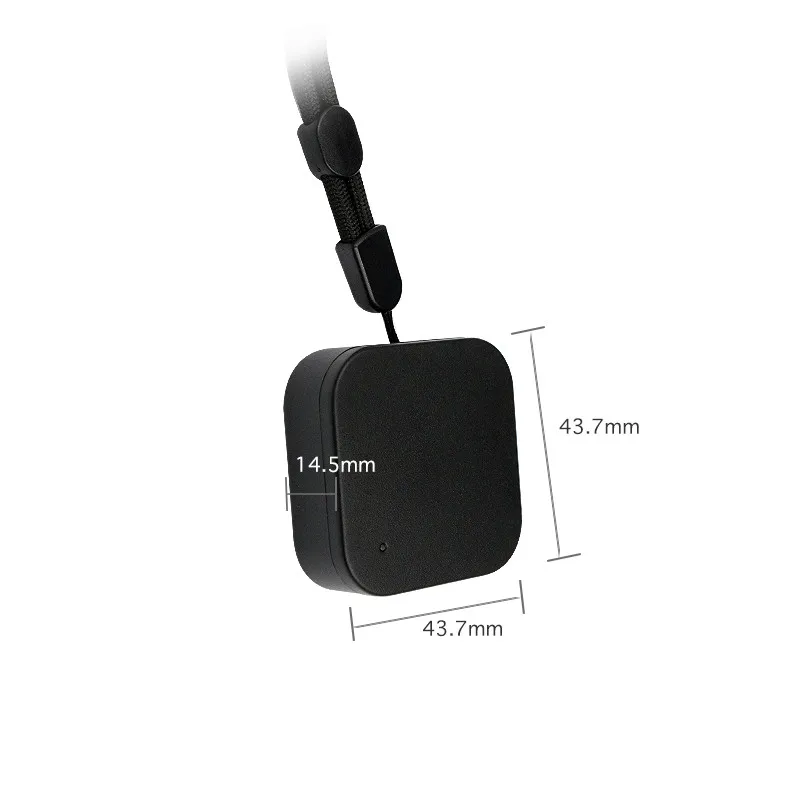

Size: 43.7mm x 43.7mm x 14.5mm
Chipset: N52832 512K
iB005N
Ble range: 50m
Powered by: USB adapter
Size: 19*14.7*6.3mm
Chipset: N52810 192K
W1 2.4ghz Gateway
Ble range: 100m
Power supply: USB cable.
Size: 75*59*12mm
Chipset: N52832
M52 PLUS
Ble range: 100m
Battery type: CR2477
Working time: 36months based on broadcasting rate 1second
Size: 43.7*43.7*14.5mm
Chipset: N52832 512K
U1
Ble range: 70m
Battery type: CR2032
Working time: 12 months based on broadcasting rate 1second
Size: 45*25.5*4.8mm
Chipset: N52810 192K
Our Service
Case customization
We have a professional engineer team that can provide the complete design for software, hardware, Related SDK and configuration app(iOS&Android) also.
Logo printing customization
We provide private label solution which allows you to buy beacons With Your Logo, meanwhile variety of color is also applied in our customization.
Firmware customization
We provide the firmware customization. You can change the UUID, major, minor and other parameters. With our app for android and iOS, it’s quite easy to configure UUID(UID for Eddystone), Major, Minor, Broadcasting Power, Broadcasting Interval, Eddystone URL, etc
