Плоский хлопковый ремень передачи 32
- Категория: Rubber Belts >>>
- Поставщик: Zhejiang,Fuda,Rubber,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.90 $* | 0.69 $* |
| Aug-17-2025 | 0.43 $* | 0.24 $* |
| Jul-17-2025 | 0.81 $* | 0.7 $* |
| Jun-17-2025 | 0.93 $* | 0.57 $* |
| May-17-2025 | 0.4 $* | 0.66 $* |
| Apr-17-2025 | 0.52 $* | 0.48 $* |
| Mar-17-2025 | 0.99 $* | 0.42 $* |
| Feb-17-2025 | 0.87 $* | 0.22 $* |
| Jan-17-2025 | 0.79 $* | 0.86 $* |
Характеристики
Specifications
1.flat transmission belt,cotton flat belt
2.used in power transmitting equipment
3.Cut/Round Edge
4.28/32/34/36OZ
5.all color
| With(mm) | Plies | Width tolerance(mm) |
| 20.25.30.40.45.50.55.60 | 3-4 | ±2 |
| 65.70.75.80.90.100.125 | 3-6 | ±3 |
| 140.160.180.200.224.225 | 4-6 | ±4 |
| 288.300.315.350.400.450.550.600 | 4-10 | ±5 |
1. Information
Flat transmission belt is a common flat rubber belt, also called transmission belt, usually uses high-quality cotton canvas as its skeleton layers.It is mainly used in factories, mines, docks, metallurgical industry, ordinary mechanical power transmission, great power processing of grains like rice and wheat, irrigation equipment, wood cutting and other power transmitting equipment for industry.
2. Constructional Features of Rubber Transmission Belts
Width : 25mm to 1500 mm
Length : 100 mtr. Roll length
Fabrics : Hard cotton ducks/soft cotton
Plies : 2 plies to 10 plies
Type of edges : Cut edges and round/ folded
Colours : Beige, Grey, Camel, Yellow, Black ,or as per customer requirement
Category : 28 OZ(ounce) , 32 OZ(ounce) and 36OZ
3. Characteristic
. Uniformity in Thickness & Width
. Higher longitudinal & transverse strengths
. Higher levels of adhesion
. Controlled elongation
. Lighter in weight thus consuming less power
. Improved resistance to flex fatigue test.
4.Physical property
Overall thickness tensile strength of flat transmission belt
Tensile strength specification | Overall thickness tensile strength | Reference number of canvas layers | |
| Vertical minimum | Horizontal minimum | ||
| 190 | 190 | 75 | 3 |
| 240 | 240 | 95 | 4 |
| 290 | 290 | 115 | 5 |
| 340 | 340 | 130 | 6 |
| 385 | 385 | 225 | 7 |
| 425 | 425 | 250 | 8 |
| 450 | 450 | / | 9 |
| 500 | 500 | / | 10 |
Elongation at break,in vertical tensile test,the elongation at break should not exceed 20%.
Adhesion strength,adhesion between flat belt layers is no less than 3.0KN/M.

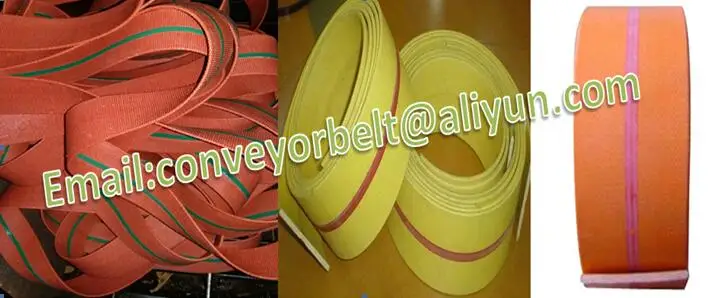

5.Flat transmission belt /flat belt /cotton flat transmission belt pictures
6.Flat transmission belt package
