Сосуды высокого давления для воды
- Категория: Pressure Vessels >>>
- Поставщик: Environmental,World,Products,(China),Inc.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.81 $* | 0.37 $* |
| Aug-16-2025 | 0.18 $* | 0.46 $* |
| Jul-16-2025 | 0.36 $* | 0.63 $* |
| Jun-16-2025 | 0.49 $* | 0.90 $* |
| May-16-2025 | 0.50 $* | 0.48 $* |
| Apr-16-2025 | 0.0 $* | 0.92 $* |
| Mar-16-2025 | 0.83 $* | 0.49 $* |
| Feb-16-2025 | 0.45 $* | 0.18 $* |
| Jan-16-2025 | 0.88 $* | 0.2 $* |
Характеристики
Products Description
Features
1. Pressure tanks are made of high performance Composite material with FRP filament winding. All pressure tanks are 100%
corrosion resistant.

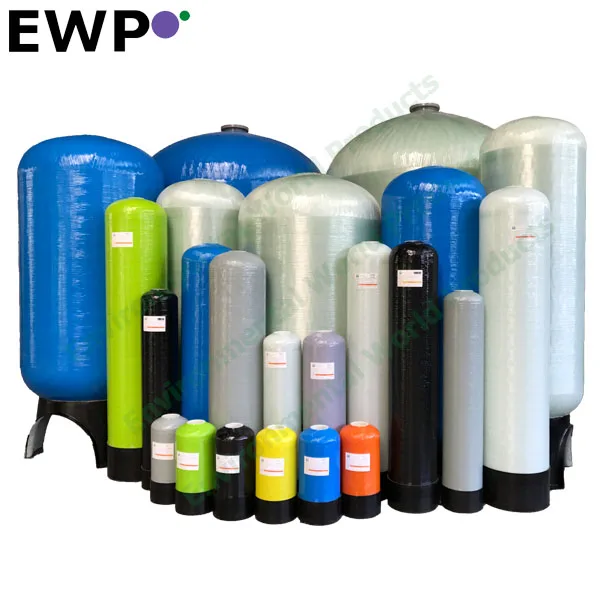

2. Full line of pressure tanks from 6” to 63” in diameter and from 10” to 86” in height.
3. Liner wall thickness available from 0.15” (3.0 mm) to 0.3” (7.6 mm) corresponding to the tank diameter.Certifications: NSF-61 listed sealing gasket ISO-9001 certified quality Testing: 100% hydraulic tests before delivery
corrosion resistant.
2. Full line of pressure tanks from 6” to 63” in diameter and from 10” to 86” in height.
3. Liner wall thickness available from 0.15” (3.0 mm) to 0.3” (7.6 mm) corresponding to the tank diameter.Certifications: NSF-61 listed sealing gasket ISO-9001 certified quality Testing: 100% hydraulic tests before delivery
Operating Condition:
Operating Pressure: 150psi (10.5 bars) Operating Temperature: 120.F (49°C), 50.F(65°C) for Flange Tanks
Certificate:
NSF and CE listed
Operating Pressure: 150psi (10.5 bars) Operating Temperature: 120.F (49°C), 50.F(65°C) for Flange Tanks
Certificate:
NSF and CE listed
Detailed Images
Tank Size | Volume | Opening | Base | Color | ||
(Liters) | Top | Bottom | ||||
7*13 | 6.3 | 2.5" | Standard | Natural/blue/grey etc. | ||
7*17 | 8.5 | 2.5" | Standard | Natural/blue/grey etc. | ||
7*35 | 19.1 | 2.5" | Standard | Natural/blue/grey etc. | ||
7*44 | 24.3 | 2.5" | Standard | Natural/blue/grey etc. | ||
8*17 | 10.5 | 2.5" | Standard | Natural/blue/grey etc. | ||
8*35 | 23.6 | 2.5" | Standard | Natural/blue/grey etc. | ||
8*44 | 31.3 | 2.5" | Standard | Natural/blue/grey etc. | ||
9*17 | 13.2 | 2.5" | Standard | Natural/blue/grey etc. | ||
9*35 | 31.6 | 2.5" | Standard | Natural/blue/grey etc. | ||
9*42 | 38.5 | 2.5" | Standard | Natural/blue/grey etc. | ||
9*48 | 44.6 | 2.5" | Standard | Natural/blue/grey etc. | ||
10*17 | 16.5 | 2.5" | Standard | Natural/blue/grey etc. | ||
10*35 | 38.3 | 2.5" | Standard | Natural/blue/grey etc. | ||
10*44 | 49.5 | 2.5" | Standard | Natural/blue/grey etc. | ||
10*54 | 61.9 | 2.5" | Standard | Natural/blue/grey etc. | ||
12*48 | 77.3 | 2.5" | Standard | Natural/blue/grey etc. | ||
12*52 | 84.8 | 2.5" | Standard | Natural/blue/grey etc. | ||
13*54 | 103.6 | 2.5" | Standard | Natural/blue/grey etc. | ||
14*65 | 145.6 | 2.5" | Standard | Natural/blue/grey etc. | ||
14*65 | 145.6 | 4" | Standard | Natural/blue/grey etc. | ||
16*65 | 187.7 | 2.5" | Standard | Natural/blue/grey etc. | ||
16*65 | 187.7 | 4" | Standard | Natural/blue/grey etc. | ||
16*65 | 187.7 | 4" | 4" | Tripod | Natural/blue/grey etc. | |
18*65 | 249 | 4" | Standard | Natural/blue/grey etc. | ||
18*65 | 249 | 4" | 4" | Tripod | Natural/blue/grey etc. | |
21*62 | 326 | 4" | Standard | Natural/blue/grey etc. | ||
21*62 | 326 | 4" | 4" | Tripod | Natural/blue/grey etc. | |
24*72 | 471 | 4" | Standard | Natural/blue/grey etc. | ||
24*72 | 471 | 4" | 4" | Tripod | Natural/blue/grey etc. | |
30*72 | 758 | 4" | Standard | Natural/blue/grey etc. | ||
30*72 | 758 | 4" | 4" | Tripod | Natural/blue/grey etc. | |
30*72 | 717 | 6" | 6" | Tripod | Natural/blue/grey etc. | |
36*72 | 1023 | 6" | 6" | Tripod | Natural/blue/grey etc. | |
42*72 | 1389 | 6" | 6" | Tripod | Natural/blue/grey etc. | |
48*72 | 1743 | 6" | 6" | Tripod | Natural/blue/grey etc. | |
63*70 | 2580 | 6" | 6" | Tripod | Natural/blue/grey etc. | |
63*83 | 3150 | 6" | 6" | Tripod | Natural/blue/grey etc. | |

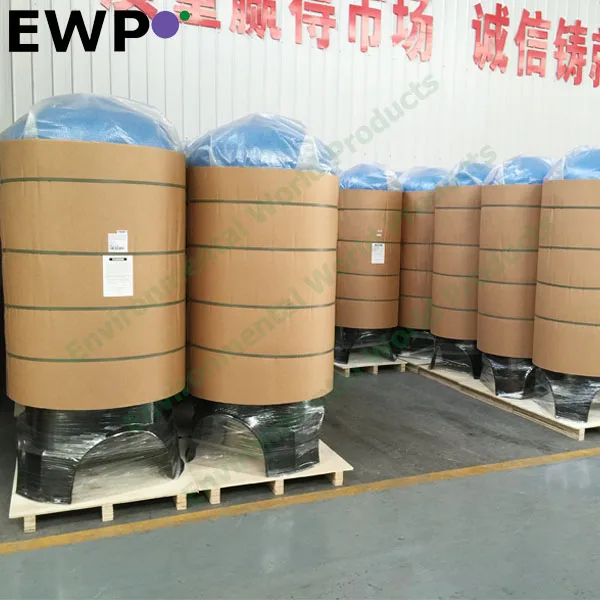

Packing and Delivery

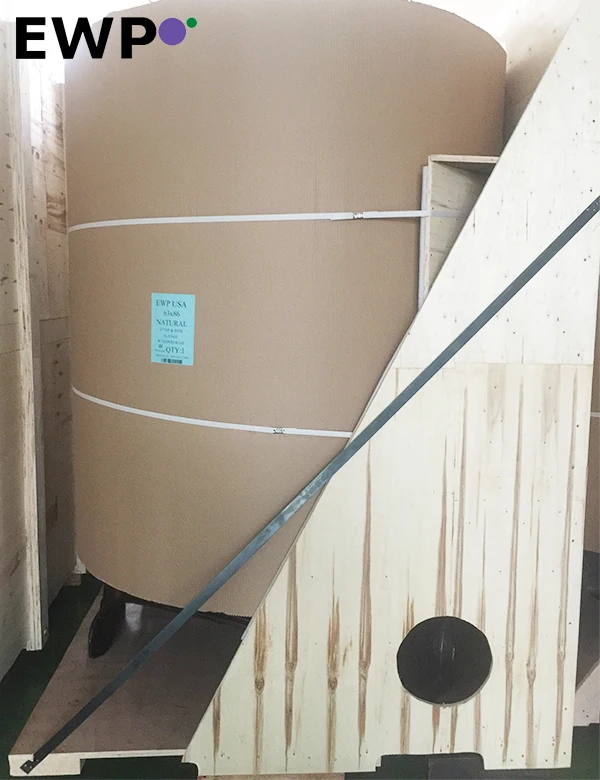

Solid Packing

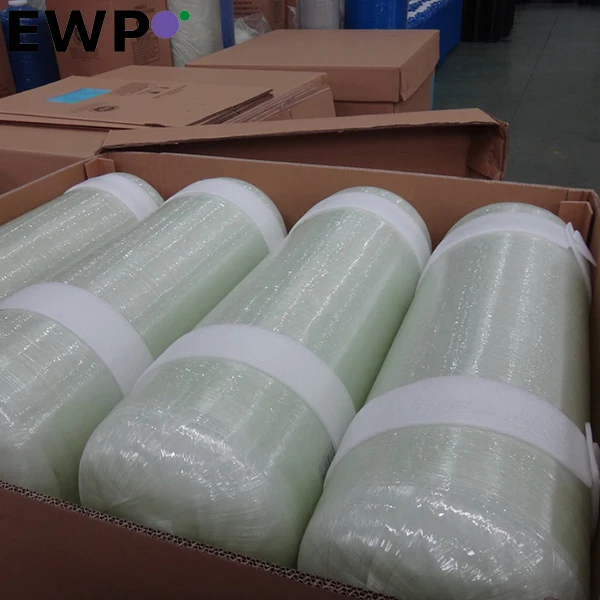

Small FRP tanks will be packed in individual cartons, and bigger size will be held on a pallets.
Packing will be enhanced for international shipping.
Packing will be enhanced for international shipping.
We will mark each carton or pallet for easy identification.
Application Industry
Company Profile
Environmental World Products
Founded in 2004, EWP is an international group with diversified cultures. We have members in USA, South Africa, Nigeria, Malaysia and China.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Through international networks around the world, we are able to provide a variety of water treatment products from residential, commercial and industrial components as well as systems.
EWP is aimed at a better quality standard environment by supplying water treatment-related products. EWP hopes to establish a better living standard for the present and in the future.
Your ONE source for ALL standard and custom water treatment components and systems with a global sales network and services.
Our Advantages
Our Values
* always provide exceptional value.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
* always provide outstanding service.
* always promote technological innovation.
* always act ethically and lawfully.
* always act environmentally responsible.
* always act socially responsible.
* always build relationships based on mutual respect.
Our Strength
EWP’s engineering team possesses technology and experience to assemble RO systems for over 20 years, and with degree in electrical, structural, mechanical and hydraulic.
Our engineering team focuses on providing the best quality and continuously improving products made by EWP.
Our Services
-Software: Solidworks, ROSA, AutoCAD, CAD 3d Plant
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other documents upon requests.
-Licensed welding etc.
-Technical drawings: 3-dimensional drawing, electrical wiring diagram, P&ID drawings, flow chart, instruction manual and other documents upon requests.
Recommend Products
FAQ
Q: Are you trading company or manufacturer?
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years. EWP is a leading water treatment components wholesaler.
Q: What's the information you need to know before order?
A: The material, pressure rating and quantity.
B: What's the piping standard?
Q: How long is your delivery time for the water treatment components?
A: Depend on different products. Some are in stock while some are not. Feel free to contact us for more details.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards. We provide top-notch components and some of them are NSF/ CE listed.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty for machine is 1 year. Different components have different warranty period.
A: Yes, we are a manufacturer with designing, manufacturing, marketing and exporting.We have experience over 20 years. EWP is a leading water treatment components wholesaler.
Q: What's the information you need to know before order?
A: The material, pressure rating and quantity.
B: What's the piping standard?
Q: How long is your delivery time for the water treatment components?
A: Depend on different products. Some are in stock while some are not. Feel free to contact us for more details.
Q: How can you control the quality and delivery?
A: Production strictly according to CE / ISO standards. We provide top-notch components and some of them are NSF/ CE listed.
B: All our machines will be 100% tested before delivery. Wooden package is strong and safety for long delivery.
Q: What’s your warranty?
A: Our warranty for machine is 1 year. Different components have different warranty period.
