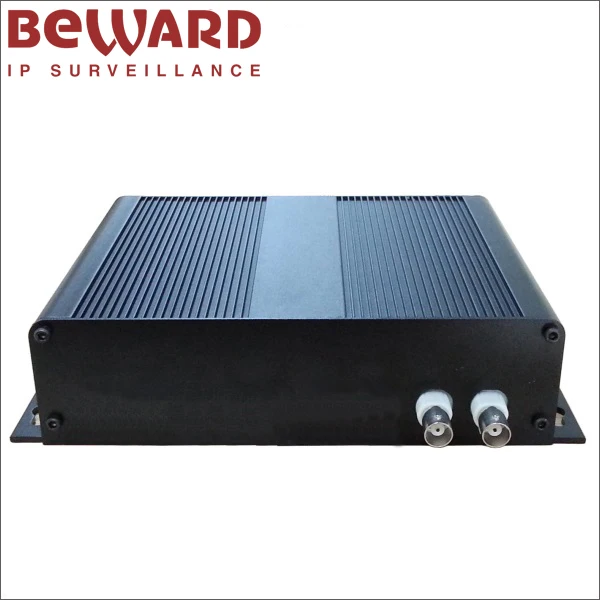

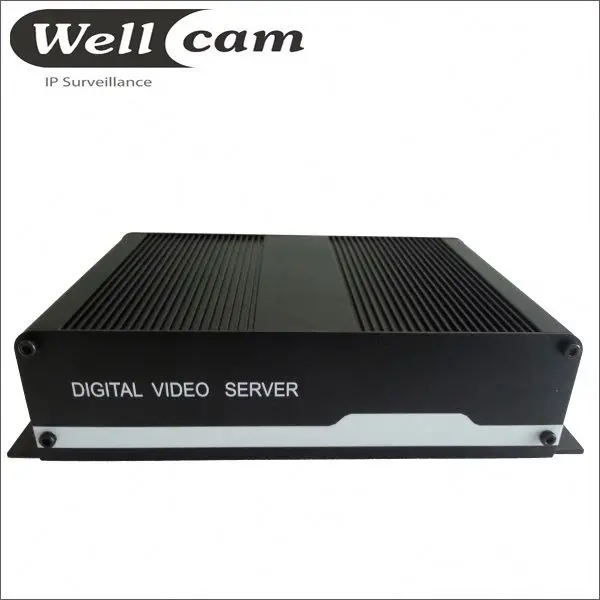

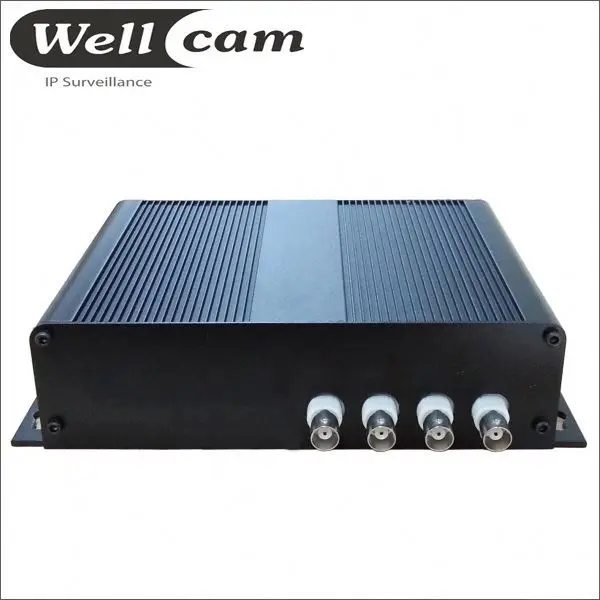

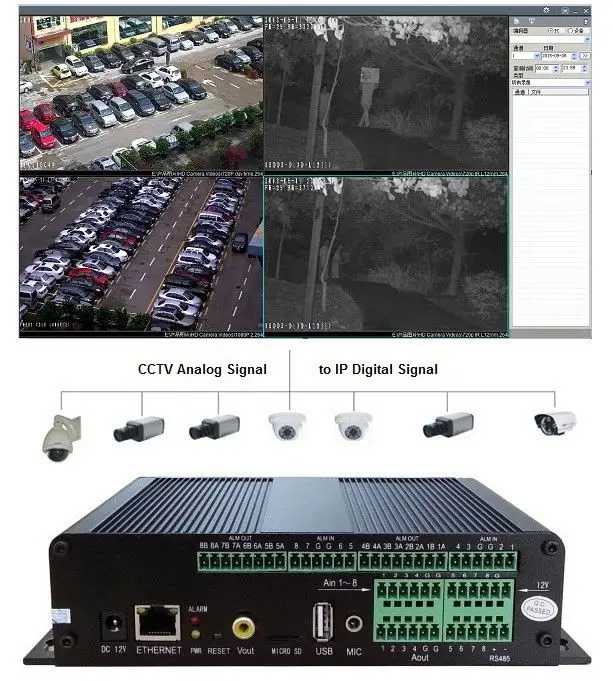

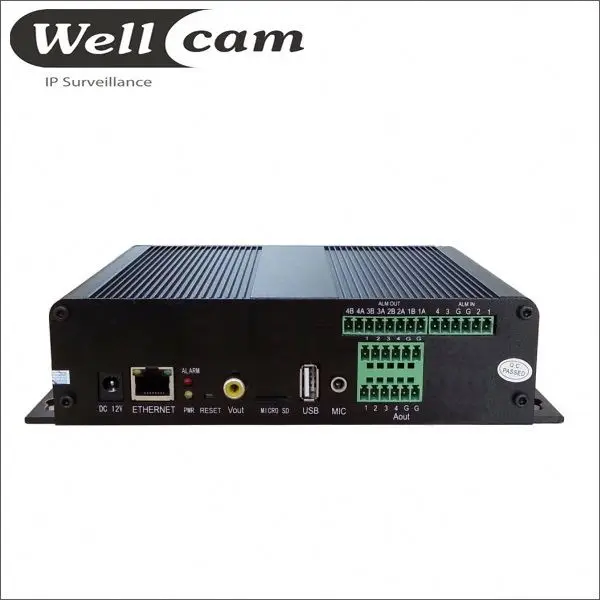

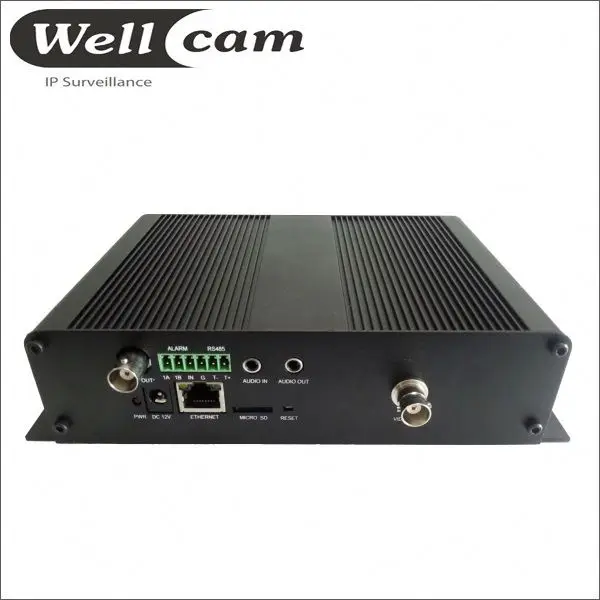

Передача аналоговых сетевых камер видеонаблюдения на

Описание и отзывы

Трекер стоимости

Характеристики



Main Features :

  Built-in Web server

  Built-in SD card slot for recording on device.

  Four channel video input.

  Processor with ARM9+DSP.

  H.264 Main Profile@Level 3 compression algorithm.

  960H definition, compatible with Full D1, D1, CIF and QCIF.

  PAL/NTSC for options.

  Support FTP upload image

  Support dynamic IP, ADSL and DDNS.

  Support image masking, video loss alarm, motion detection, email alarm.

  Support image viewing on mobile phone



Processor	Hi3520
Video Compression	H.264 Main Profile@Level 3.0 / MJPEG
Video Compression	PAL: Main Stream: 960x576, 720x576, 704x576;    Sub Stream: 704x576, 704x288, 352x288, 172x144 NTSC: Main Stream: 960x480, 720x480;   Sub Stream: 704x480, 704x240, 352x240, 172x112
Dual Stream	Support
Video Input		2 channel		4 channel	Refer to standard model parameters
Definition		D1		D1	Refer to standard model parameters
Video Frame Rate		real time		real time	Refer to standard model parameters
Video Bitrate	32Kbps~16Mbps
Audio Compression	G.726, G.711A, G.711U
Audio Input	2 channel	2 channel	4 channel	4 channel	Refer to standard model parameters
Audio Talkback	Hi3520
Audio Output	1 channel RCA interface, linear output
Title OSD	Supports channel name, date, and video stream information overlay; OSD location is adjustable
SD Card	SD card can be built in, supports Viedo storage and image snapping; SD2.0 standard, maximum storage 32G
Hard Disk Interface	Supports SATA hard disk interface, 1 SATA hard disk can be built in
Control Interface	1 RS232 and 1 RS485 Interface
Alarm Input	4-channel input, Normally Open/Normally Close modes adjustable
Alarm Output	4-channel output, 120VAC 1A/24VDC 1A
E-mail Alarm	Support
FTP Protocol	Support
RTSP Protocol	Support
Mobile Monitor	Support Windows Mobile, Symbian, iPhone platform smart mobile monitor
WiFi Network	Not supportive				Low-power WiFi: supports 802.11b/g protocol, 2.4GHZ, maximum wireless distance can be 100 meters	Not supportive
Wireless Encryption	None				Supports WEP,WPA,WPA2	None
3G Network	Not supportive					Built-in EVDO 3G module	Built-in WCDMA 3G module	Built-in TD-SCDMA 3G module
Working Temperature	-10°C ~ +55 °C
Working Humidity	10 ~ 85%
Power Input	DC12V / 3.0A
Power Consumption	< 15W				< 16W	< 18W
Dimension	330mm * 45mm * 195mm







Our Advantage :

Make the reliable IP Cameras for professional surveillance project use.

1. Sagacity R&D engineer team, we aiming developed with Hisilicon Chipset IP Products for 8 years.
(http://www.hisilicon.com ),like HI3518 & HI3520,HI3516 Chipset, skilled in Hardware PCB Detail Layout in China.

2. Adopt using IMX Cmos Sensor IMX Exmor series

3. We'd like to support related SDK/API Tool synchronize your CMS Server and integrate
    Aptitude design edition , and make customized housing case hardware parts.

4. IP Camera is compatible with  2.4.1 support, can work with Software Milestones,Exacq,Axxonsoft,Nuuo...
   (http://www..org/ );

support remote viedo surveillance CMS by IE 11 /Firefox/Chrome browser /App Mobile etc.

Meanwhile we would like to offer you few samples for your available to do real evaluation test &
Welcome to visit China/Shenzhen city to check our factory works……



   Wellcam Co., LTD is the factory of Beward Co., LTD( http://www.beward.ru );

    Famous Brand Ranking Third in Russian Market.

Wellcam Be specialized in R&D for design and manufacturer IP Surveillance Products with high performance since 2007.
We coorporate IP Network Surveillance OEM project installer from world-wide many years like Everfocus Electronics





-"What's your CMS?"



Xcenter is designed to realize integrated surveillance,storage,management and control of all IP Cameras.The capacity of this management software can handle up to 1728 channels network camera,It can control local devices and remote devices to operate all settings.It supports 1/4/9/16/25/36 displays in one screen.It provides main functions like record,snapshot,playback,talk-back,full screen,camera set and so on.There are many hoht-keys for easy operation and nice interface.



-" What's your Quality Control Management?  "



please see our attached company manufacturer quality control management.



If you have any questions, please feel free to contact with me.
