HDC-HE-024-TE-BK зджхк автомобильной 24 Pin HDC разъема для тяжелых условий винт и обжимных клемм

Описание и отзывы

Трекер стоимости

Характеристики

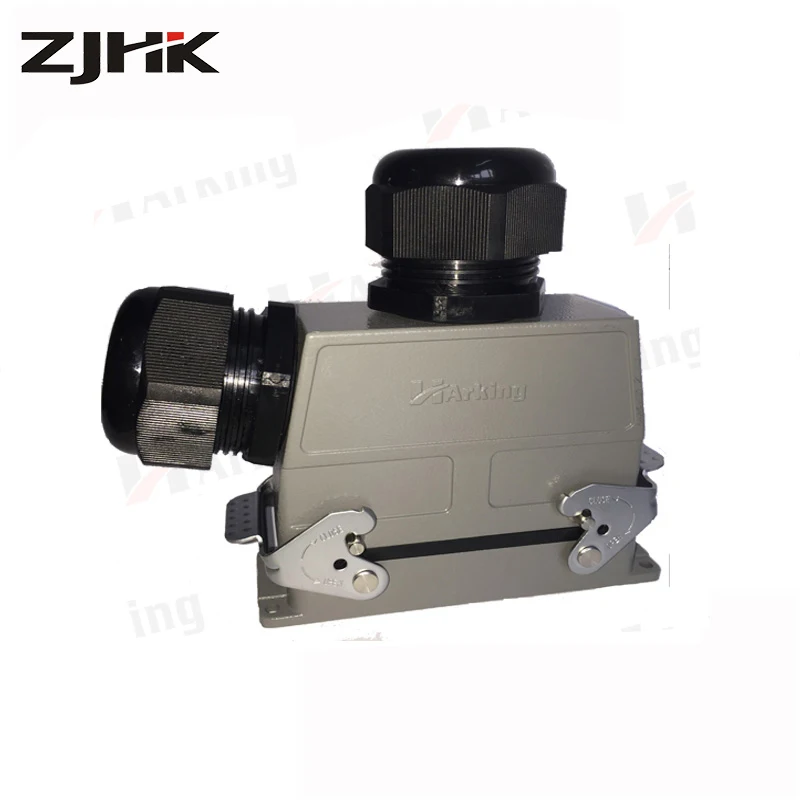

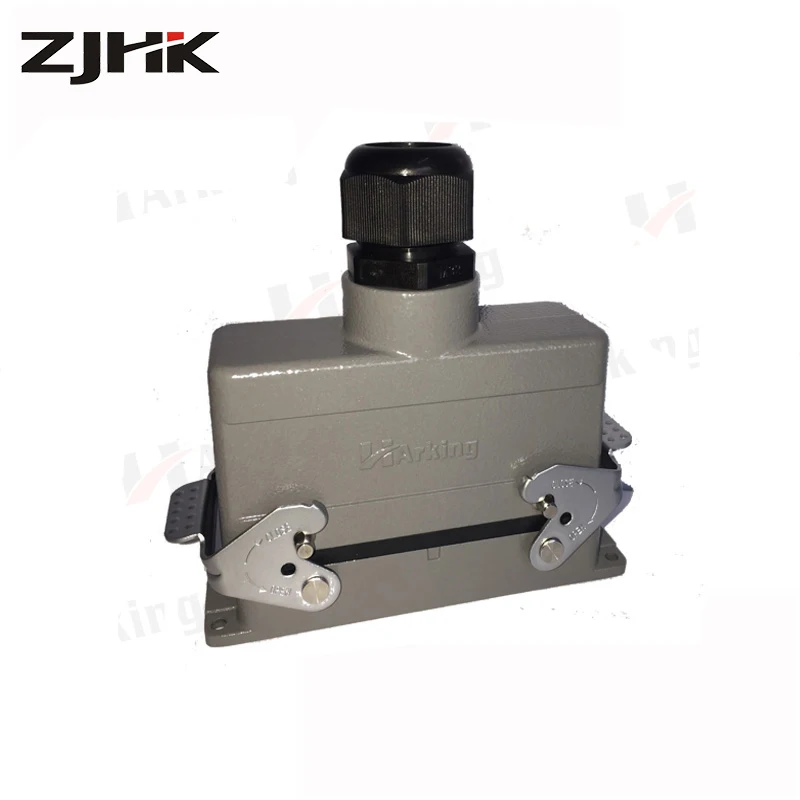

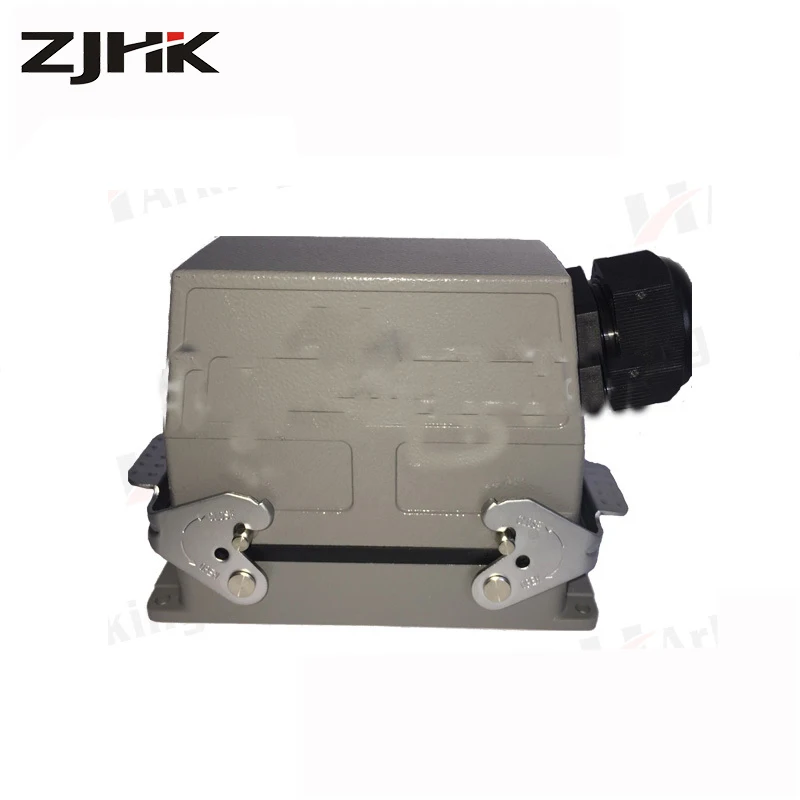

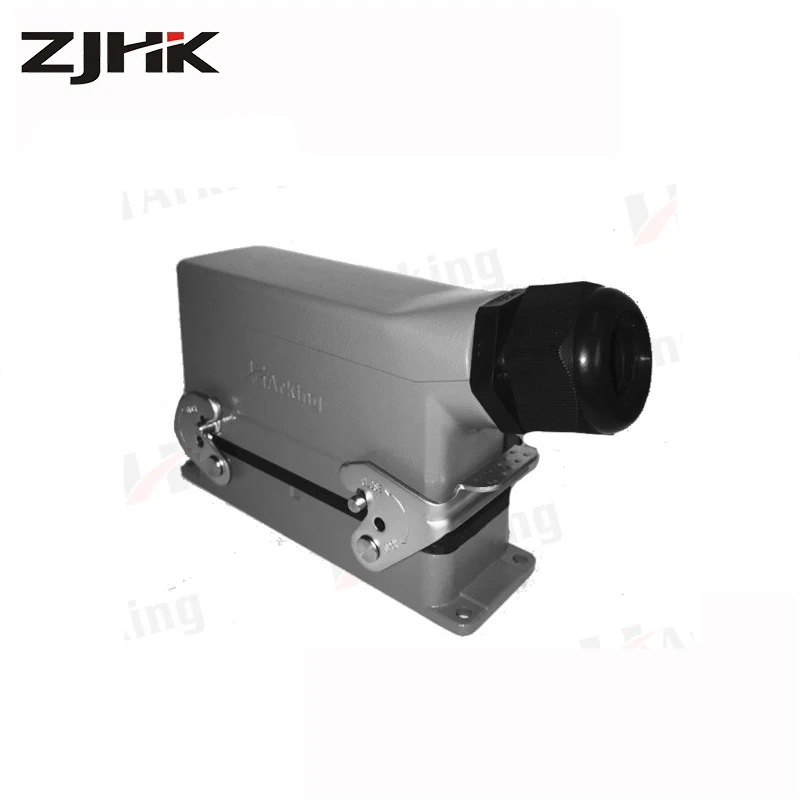

^{HDC-HE-024-TE-BK ZJHK Automotive 24 Pin HDC Heavy Duty Connector, Screw And Crimp Terminal  Connector /}



Brand:ZJHK        Name:Heavy duty connector        Model: HDC-HTE-HE-024-TE-BK        Rated Voltage:500V        Rated Current:16A        Material:polycarbonate        Pollution Degree:3        Contacts Material:Copper Alloy





Heavy Duty Connector Application



   ZJHK heavy duty connector are extensively used in quipment that requires  electrical and signal connections,such as mold,machinery,construction machinery, textile machinery,transportation technology,electric energy,electric locomotives and so on various need electrical  and petrochemical electrical equipment.



   This new interface is generally regarded as the "industrial connector", its application is not only limited to manufacturing,.The connector is designed to withstand the test of the worst industrial environment.The traditional connection to the user equipment in a typical office environment provides years of service guarantees









Model Number	HDC-HTE-HE-024-TE-BK
Specification	DIN EN60 664/61 984
Rated Current	16A
Rated voltage	500V
Rated Impulse Voltage	6KV
Rated Pollution Degree	3
Pollution Degree 2 Also	16A 400/690V 6KV 2
Number Of Contacts	3,6,10,16,24,32,(2*16),48,(2*24)+PE
Rated voltage Acc.To UI Csa	600V
Material	Polycarbonate
Limiting temperatures	-40℃...+125℃
Flammability Acc To UI94	V0
MecHEnical working Life-mating cycles	≥500





 Contacts Specification(SCREW TERMINAL)





Material	Copper Alloy
Surface	Hard-gold plated/Hard-silver Plated(most of products are silver
Which Type	Screw Terminal
Wire Gauge   AWG   Tightening Torque	0.14--2.5mm2   26-12   0.5Nm
Stripping length	7.0mm





Parameters diagram
