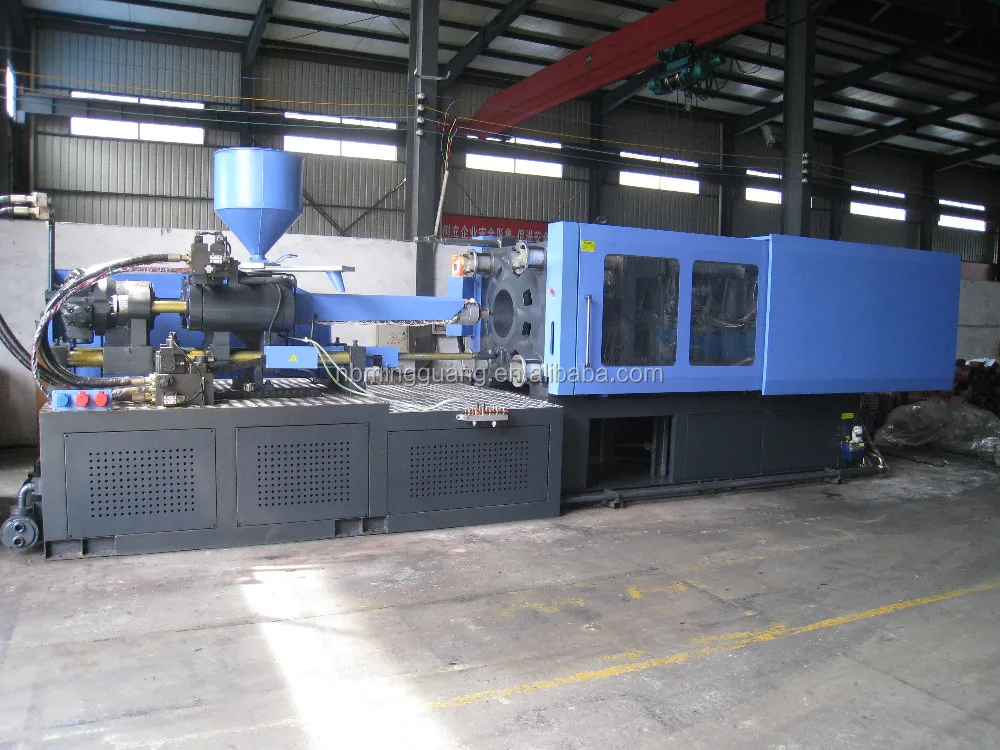

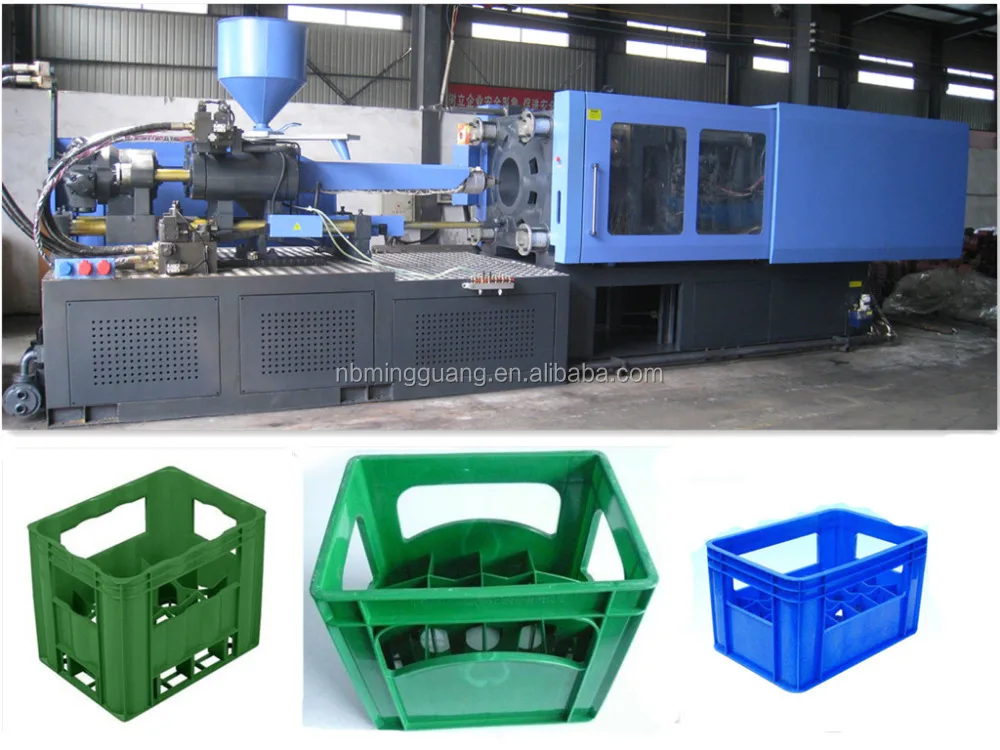

500 тонн пластиковая пивная машина для литья

Описание и отзывы

Трекер стоимости

Характеристики

NINGBO MINGGUANG WEIYE MACHINERY CO.,LTD

SUPPLY INJECTION MOLDING MACHINE, HIGH SPEED MACHINE, PET PREFORM MAKING MACHINE AND MACHINE UNIT,MOLDS...... AND SO ON.

IF YOU ARE INTERESTED IN IT. KINDLY PLEASE CONTACT WITH ME.

 PP PE PVC PET PS PC PPR...... injection moulding machine



We are prefessional production base specialized in designing and manufacturing plastic injection machines from 50 to 2200ton, enjoy high reputation in the Plastic machinery industry.

 Welcome contact us for more details and professional services.

 Parameter:

SPECIFICATION		XY5000-2
		A	B	C	D
INJECTION UNIT
SCREW DIAMETER	mm	75	80	85	90
SCREW L/D RATIO	L/D	22.7	21	20	18.9
SHOT VOLUME(THEORETICAL)	cm3	1727	1965	2218	2487
INJECTION WEIGHT(PS)	g	1560	1788	2018	2266
INJECTION RATE	g/s	386	442	499	560
INJECTION PRESSURE	MPa	191	168	148	132
SCREW SPEED	rpm	130
CLAMPING UNIT
CLAMP FORCE	KN	5000
OPEN STROKE	mm	770
SPACE BETWEEN TIE BARS(W*H)	mm	830x830
MAX.MOULD HEIGHT	mm	810
MIN.MOULD HEIGHT	mm	330
EJECTOR STROKE	mm	240
EJECTOR FORCE	KN	150
OTHER
MAX.PUMP PRESSURE	MPa	16
PUMP MOTOR POWER	kW	55
HEATING POWER	kW	31.4
MACHINE DIMENSION(L*W*H)	m	8.4x1.92 x 2.76
OILTANK CUBAGE	L	900
MACHINE WEIGHT	t	21

 Injection Unit

1. Screw with optimum design enjoys features of good plasticity, high efficiency;

2. Big L/D ratio of plasticizing screw;

3. Adjustable back pressure control and melt decompression device;

4. Duel carriage cylinder to maintain consistent nozzle to platen alignment and nozzle pressure, precision and consistency;

5. Injection screw directly driven by a low speed high torque hydraulic motor is suitable for processing various plastics. The left diagram is to inject the sketch map.

 Clamping Unit

1. Optimize designed five fulcrums and double inclined toggles clamping unit has functions such as big force enlarge rate, high speed placid movement and large mould-open distance;

2. Having hard chromed on the surface, the tie bars is corrosion-resistant and wear resistant;

3. Mechanical and hydraulic eject device with one time or multiple changing processes;

4. Hydraulic motor driven mould adjustment accelerates mould-changing process;

 Hydraulic And Control Unit

1. Easy operated  CPU multi-function computer;

2. LCD display panel, clear simple control makes it easy to operate;

3. Alarm message with using statement, easy to troubleshooting;

4. Chinese/English language toggle mode, input and output use photo-coupler to protect damage from out-side votary;

5. 50 sets mould data storage;

6. Close-loop PID tech, is used in temperature control with the advantage of high precision;

 Agent wanted

In order to bring our machines to more customer worldwidely, we are sincerely to invite distributors to get exclusive agency agreement from us, we promise to provide you the competitive price with good services.

What we request you is to have a robust sales and maintetance team for customer end machine instalaltion and debugging, provide on time aftersales service to customers, to make our brand known in your market.

Welcome your join-in.

 How to select a suitable machine?

If you don't know how to choose the best machine for yourself, please give us below informations, we will recommend the most suitable machine for you?

1.Product size and weight;

2.Raw material to be used;

3.Mold cavities or mold size;

4.Hourly capacity requirements.

 5.plastic product pictures,drawing or samples

we will try to give you a good solution way.also we have a good workteam to help you to design the machine .
