GS-MI/D средней интенсивности двойной цвет авиация непроходимость свет
US $450.00-$480.00
Лампа Heliport для прицела/освещение
- Категория: LED Aviation Obstruction Lights >>>
- Поставщик: Shenzhen,Green,Source,Light,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 202.73 $* | 212.32 $* |
| Aug-17-2025 | 201.61 $* | 211.99 $* |
| Jul-17-2025 | 168.11 $* | 176.37 $* |
| Jun-17-2025 | 197.6 $* | 207.74 $* |
| May-17-2025 | 172.36 $* | 181.97 $* |
| Apr-17-2025 | 194.14 $* | 204.26 $* |
| Mar-17-2025 | 192.26 $* | 202.38 $* |
| Feb-17-2025 | 190.41 $* | 200.60 $* |
| Jan-17-2025 | 189.30 $* | 198.63 $* |
Характеристики
Product Description
Product Details

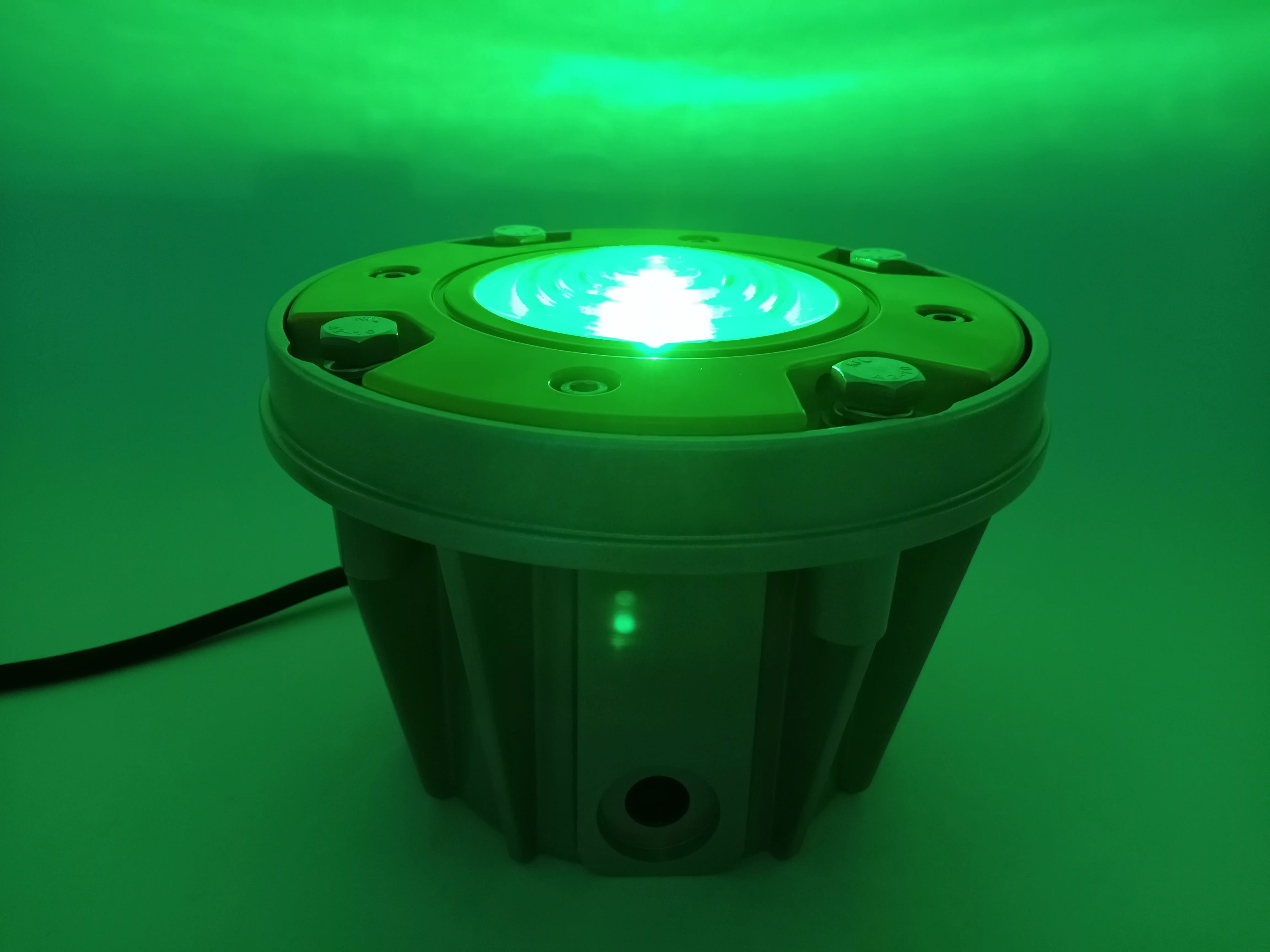

Heliport aim point light,Adopts aluminum gravity casting, it's good at water proof and heat dissipation. Its inner adopt LED light resource and cooperate with advanced optical glass design, emitting angle meet FAA standard. The product can send out white steady burning light signal at night or during low visibility weather. Usually, at least six lights can provide an accurate landing and lift -off position for helicopters.
Specification
Name | Inser Helipad Led Aiming Light |
Model | GS-HP/A |
Standard | FAA |
Light Intensity | ≥100cd |
Working Mode | Steady Burning |
Light Source | LED |
Service Life Of LED | ≥100,000 Hours |
Operating Voltage | AC220V (Optional: DC48V, 6.6A, AC120V) |
Power Consumption | ≤10W |
Overall Size | 196mm (D) ×140mm (H) |
Installation Size | 206mm×145mm |
Material | Base: Die-casting Aluminum |
Weight | 4.5Kg |
Emitting Color | White |
Ambient Temperature | -55℃~85℃ |
Protection Standard | IP68 |
Features
Adopt the superior thermal performance of aviation aluminum weight casting, provides excellent cooling environment for LED light source.
With work stability, strong anti-interference ability and shock resistance.
Full sealed structure base, with superior waterproof performance.
With storm surge protection device.
Shielding sealed power supply, with excellent waterproof and anti-jamming.
Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.
With work stability, strong anti-interference ability and shock resistance.
Full sealed structure base, with superior waterproof performance.
With storm surge protection device.
Shielding sealed power supply, with excellent waterproof and anti-jamming.
Adopt independent encapsulation of high-power LED light source,which has the specific of high light brightness, and long service life.

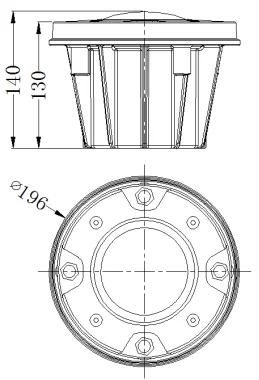

Structure Drawing

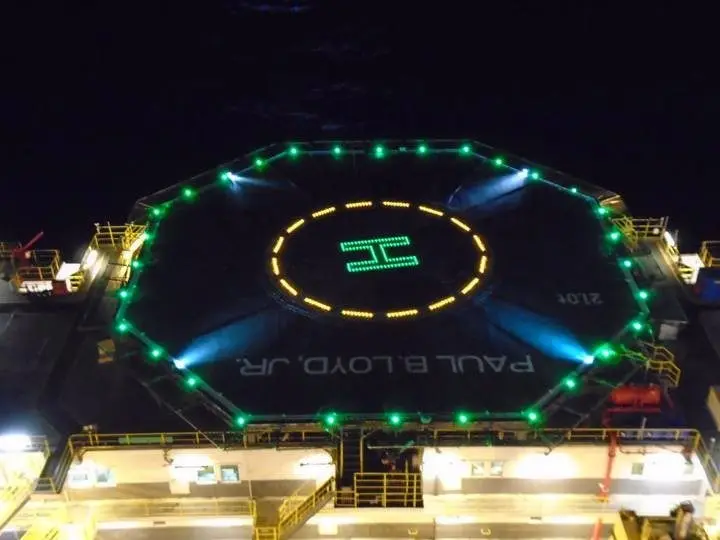

Applications
Related Products
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 3-5 days, mass production time needs 1-2 weeks for order quantity more than.
Q3. Do you have any MOQ limit for led light order?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly let us know your requirements or application.
Secondly We quote according to your requirements or our suggestions.
Thirdly customer confirms the samples and places deposit for formal order.
Fourthly We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 2-5 years warranty to our products.
Q8: How to deal with the faulty?
A: Firstly, Our products are produced in strict quality control system and the defective rate will be less
than 0.2%.
Secondly, during the guarantee period, we will send new lights with new order for small quantity. For
defective batch products, we will repair them and resend them to you or we can discuss the solution including re-call according to real situation.
