Egg Shell Thickness Measuring Gauge with High Resolution Egg Tester
Product Description

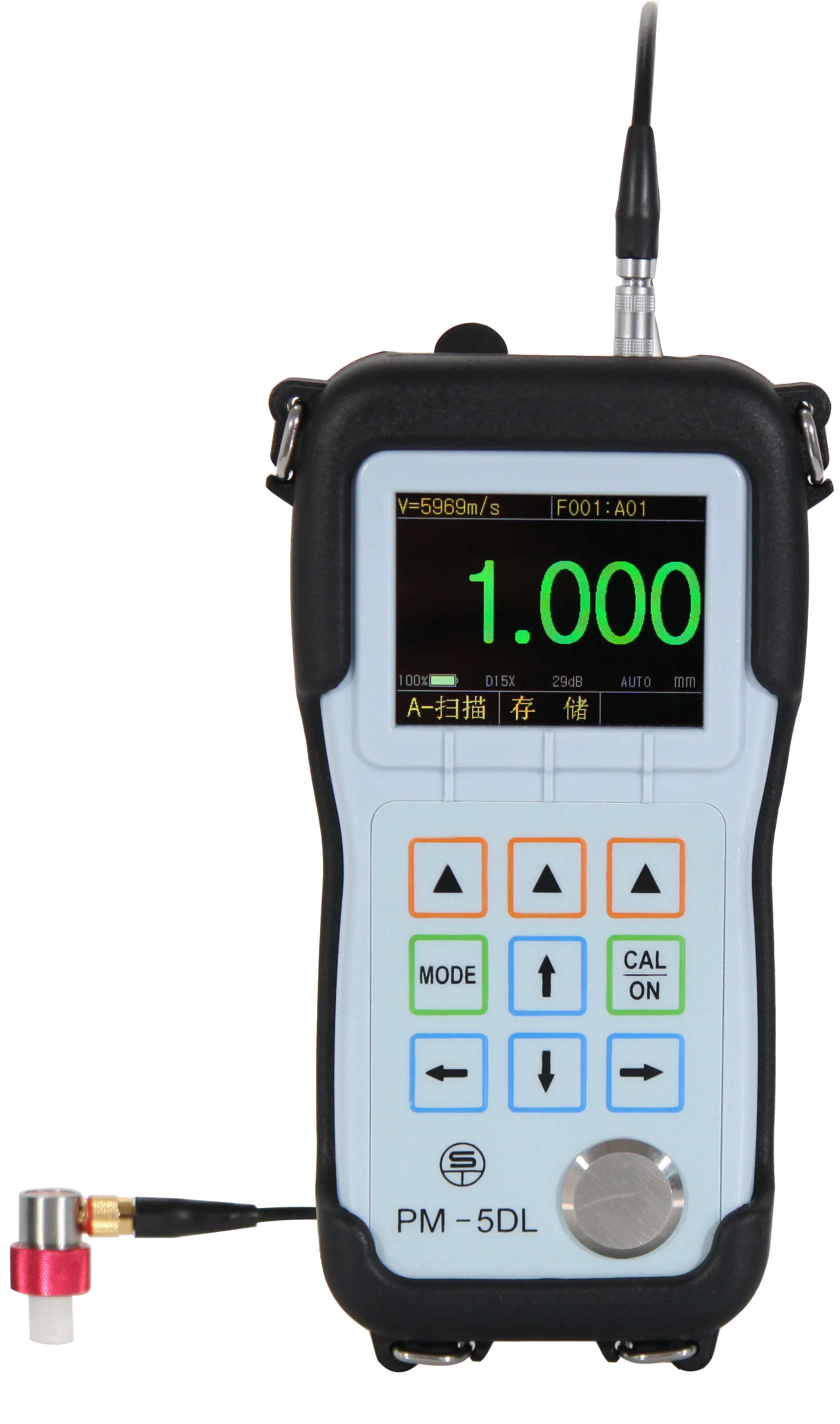

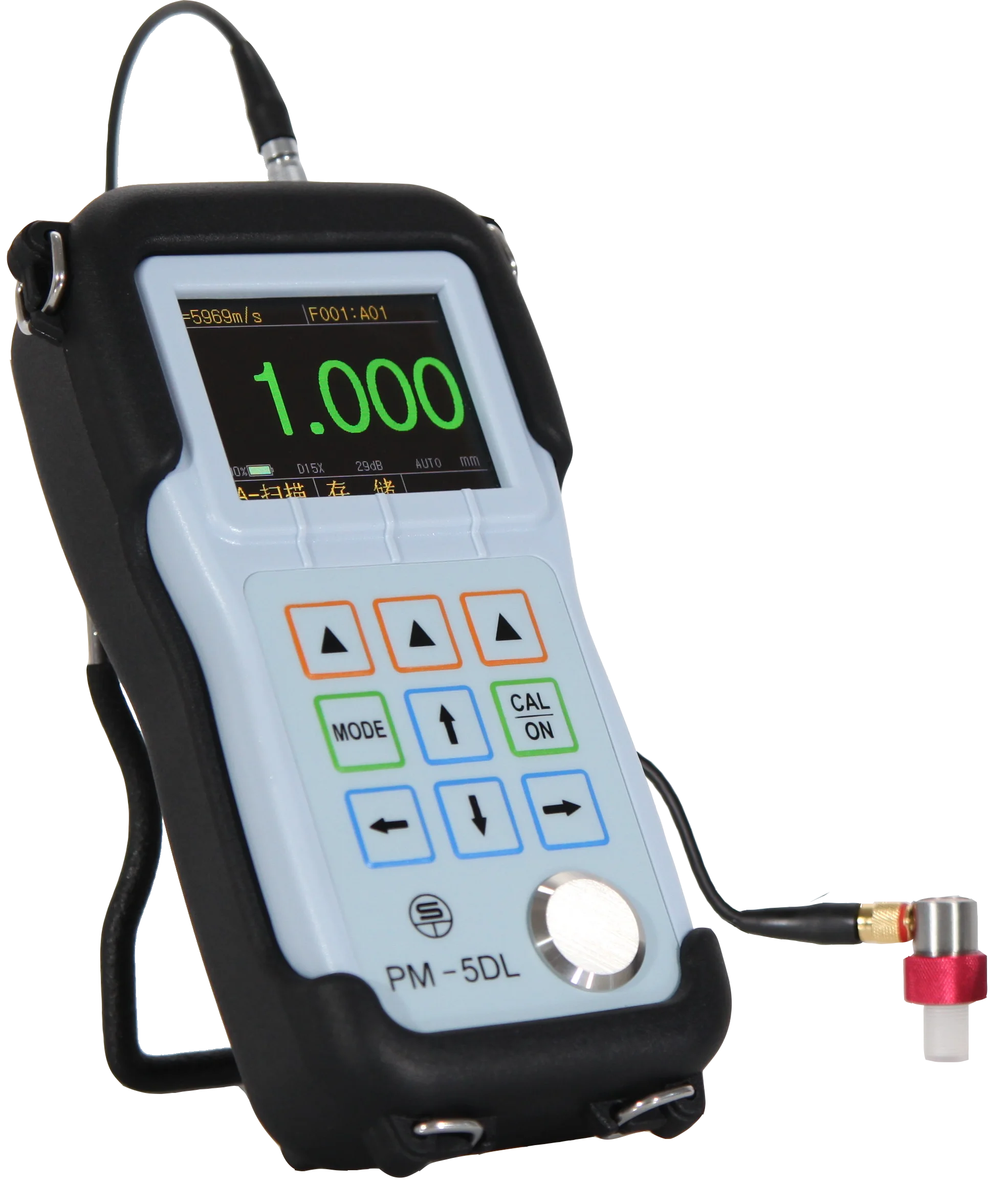

PM-5DL High Precision Ultrasonic Thickness Gauge
PM-5 Series Ultrasonic Thickness Gauge Especially Suitable for Thin-Wall Materials, e.g. Car Body Sheet, Fire/Security Doors and Extinguisher,etc.
Features of PM-5DL Ultrasonic Thckness Gauge
♦ High Precision, 0.001mm Resolution.
♦ Real Time A-Scan with Adjustable Gain, Range, Blanking, etc.
♦ Especially Fits for Ultra Thin Workpiece, Can Accurately and Reliably Measure Down to 0.2mm.
♦Through Coating Measurement, e.g. Painting on the Substrate, the Net Thickness of the Substrate Can Be Measured without Removing Paintings.
♦Unique Multiple-Wave Verify Mode, All the Thickness Values Have Been Checked Through 3 to 9 Times of Echos, Which Makes the Result More Reliable and Accurate.
Varieties of Measuring Interface:
A-Scan, B-Scan, Big Thickness Value Display, Difference/Thickness Thinning Rate and Min./Max.Capture
PM-5DL in Practical Applications

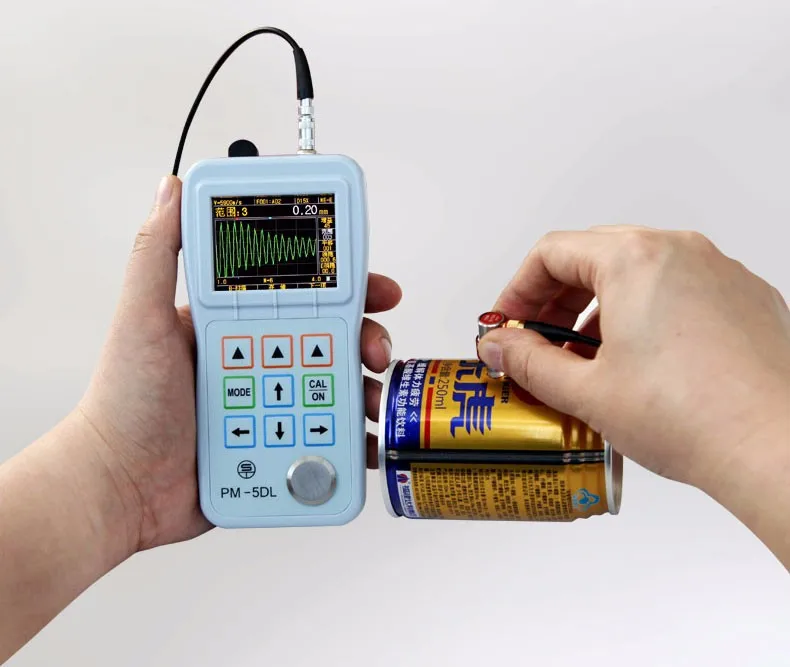

Measuring 0.2mm Aluminium Cans' Thickness:

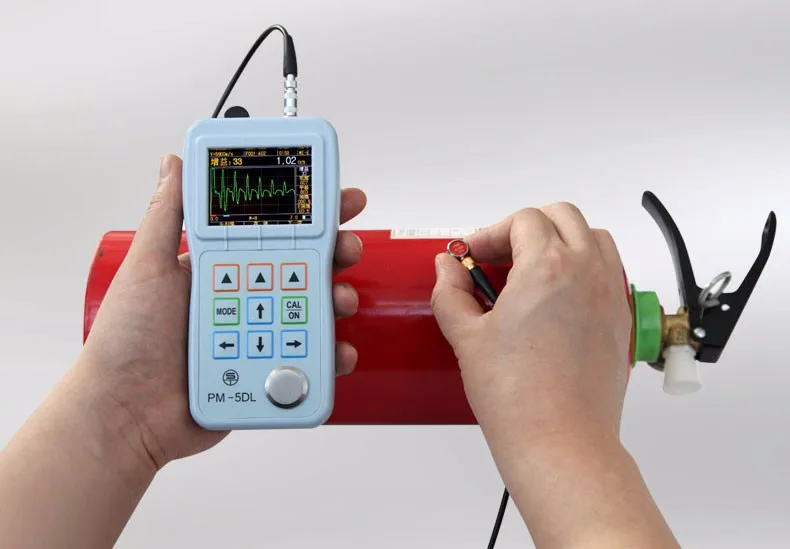

Through Coating Measuring 1mm Extinguisher's Net Thickness:

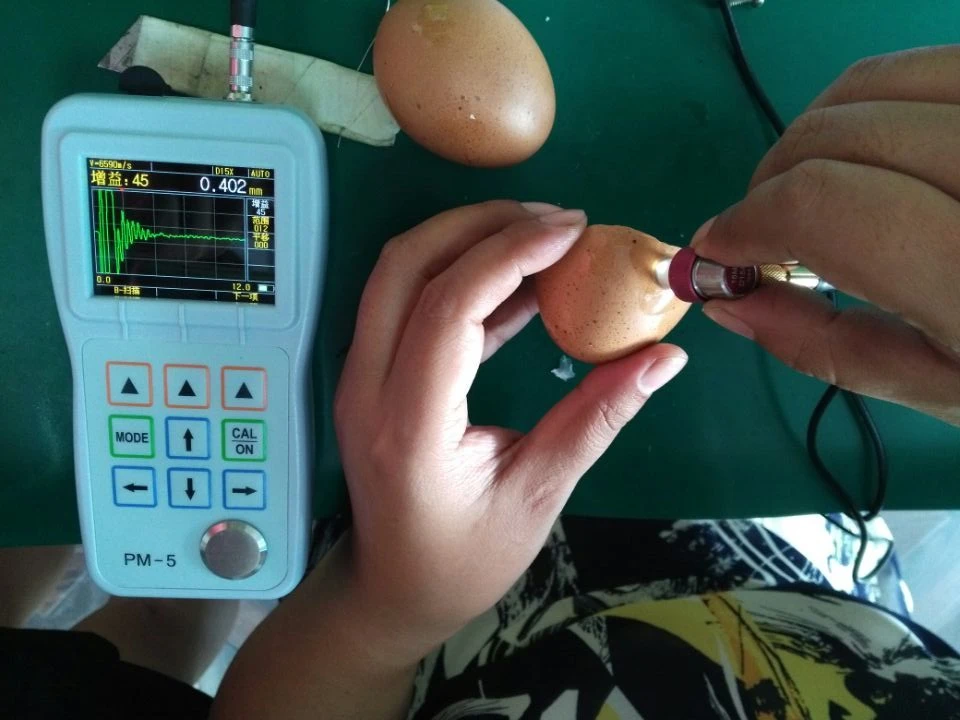

PM-5DL Ultrasonic Thickness Gauge Measure Thickness of Egg Shell
Memory Function of PM-5DL Ultrasonic Thickness Gauge
DataView Statistics and Management Software
Data Recorder
| Capacity | 400 Files, 100,000 Thickness Values and 1000 Groups of Waveforms |
| File Structure | Grid File |
| Line Number * Column Number | 21*12 |
| Communication Connector | USB 2.0 Full Speed Connector |
| Communication Software | Data View Software |
Specifications of PM-5DL Ultrasonic Thickness Gauge
| Display | 2.4QVGA(320×240)true color OLED screen, contrast 10000:1 |
| Measuring Modes | Interface-Echo Mode( I-E):for thick material |
| Echo-Echo Mode (E-E): for the thin material and measure through the coating | |
| Multiple Echo Verify Mode (ME-E): All the thickness values have been checked through 3 to 9 times of echos, which makes the result more reliable and accurate | |
| Auto Mode:The instrument select the measuring mode automatically according to the different material being tested | |
| Measuring Range( Steel) | Interface-Echo Mode: 1.5mm-27mm |
| Echo-Echo Mode: 0.25mm-13.5mm | |
| Multiple Echo Verify Mode: 0.25mm-9mm | |
| Auto Mode: 0.25mm-27mm | |
| Display Mode | A-SCAN: Displays the whole RF echo or half-waveform after rectified |
| B-SCAN: Real time B-Scan, displays the profile of the workpiece | |
| Big Thickness Value: The conventional display of the thickness value | |
| Difference/Thickness thinning rate: Display the difference between the real thickness value and the preset thickness value, and the percentage of the thinning value | |
| Min./Max. Capture: Display the current thickness value, Min. value and Max. value at the same time | |
| Gain | Real time continuously adjustable, adjustable range 41dB |
| Measuring Resolution | 0.001 mm or 0.01mm (0.0001 in or 0.001 in) |
| Material Velocity Range | 500-9999m/s,0.0197-0.3937in/us |
| Alarm Setting | Dynamically change the color of thickness value when the measuring value exceeds the upper limit or lower limit of preset |
| Units | Inch or Millimeter |
| Language | Chinese, English, French, Germany, Japanese |
| Power | 2 AA size batteries, Operating time is more than 35 hours |
| Instrument Shut-off | Selectable ALWAYS ON or AUTO OFF after 5, 10 or 20 minutes of inactivity |
| Working Temperature | -10℃ ~+50℃ |
| Size | 153mm × 76mm ×37mm(H ×W ×D) |
| Weight | 280g including batteries |
Demension and Weight of PM-5DL Ultrasonic Thickness Gauge
Standard Delivery of PM-5DL Ultrasonic Thickness Gauge
| NO. | Item | Quantity |
| 1 | Ultrasonic Thickness Gauge | 1 |
| 2 | Probe | 1 |
| 3 | Probe Cable | 1 |
| 4 | Communication Cable | 1 |

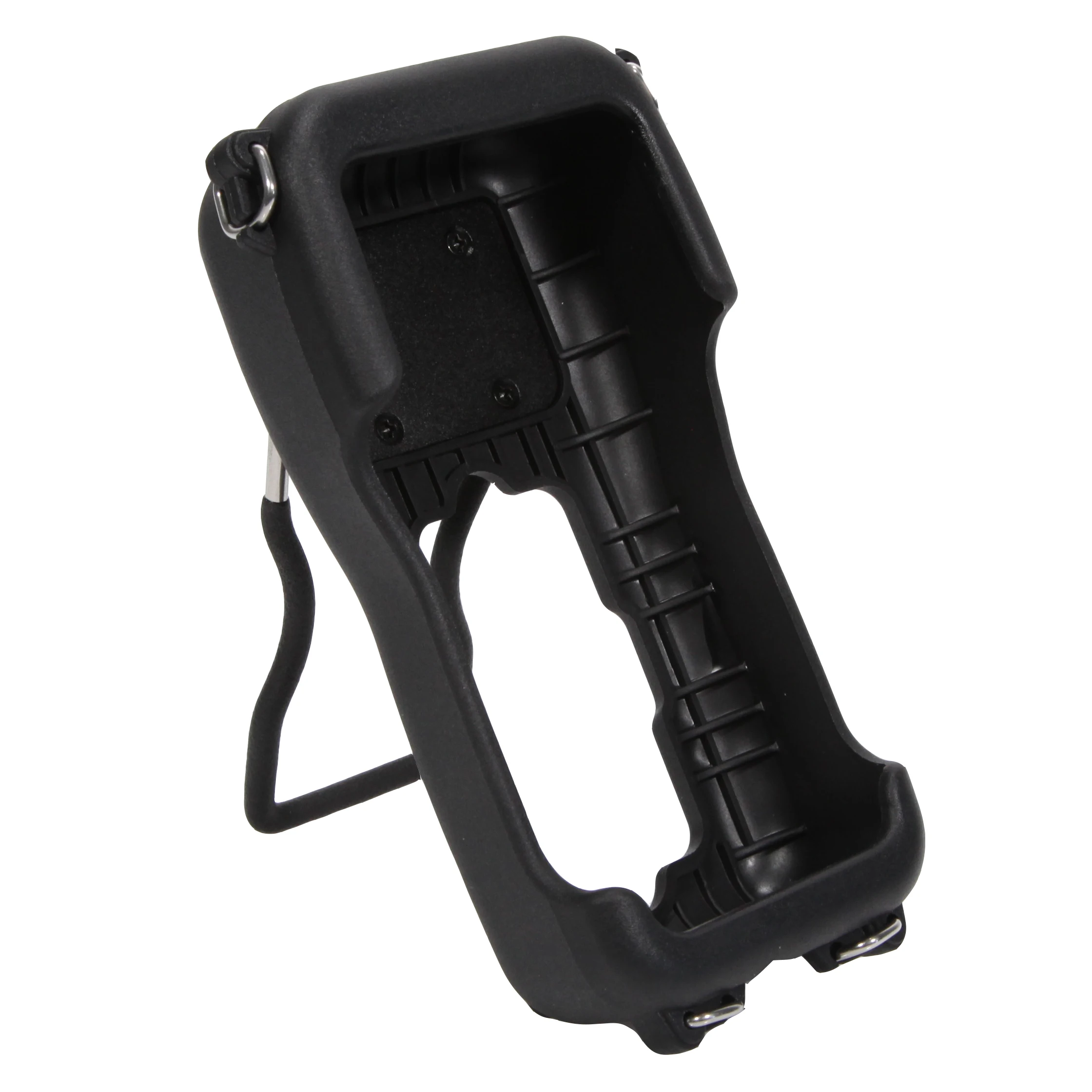

| 5 | Instrument Case | 1 |
| 6 | Couplant | 1 |
| 7 | Alkaline Battery | 2 |
| 8 | Data Communication Software | 1 |
| 9 | User Manual, Packing List, Warranty Card | 1 |
