Inflation slide marine evacuation system CCS certificate



1. Standard and application of marine evacuation system
Marine evacuation system are in accordance with SOLAS (74/96), MSC,(LSA) and applicable in ships on category I voyage area(Ocean voyage area); They can be divi-ded into vertical escape and inclined slide Max height of Stow-age is 22m and the evacuation capacity from 250 pers to 700 pers in 30 Min.

2. General Specifcation of marine evacuation system

Type	Model	Stowage Height(m)	Capacity Of Evacuation	Capacity Of Platform	Weight	Packing Size
Vertical Evacuation System	YL-MES-S	10--19	250P	50	1500	1400*850*2200
	YL-MES-D	10--19	500P	75	1980	2000*950*2200
	YL-MES-S(II)	10--20	330P	50	1560	1200*1850*2500
	YL-MES-D(II)	10--20	660P	100	2000	1200*2600*2500
Inclined Evacuation System	YL-MES-I	4.5--12	350P	50	1500	1600*1800*2020
	YL-MES-2I	4.5--12	700P	100	1980	1800*1800*2500

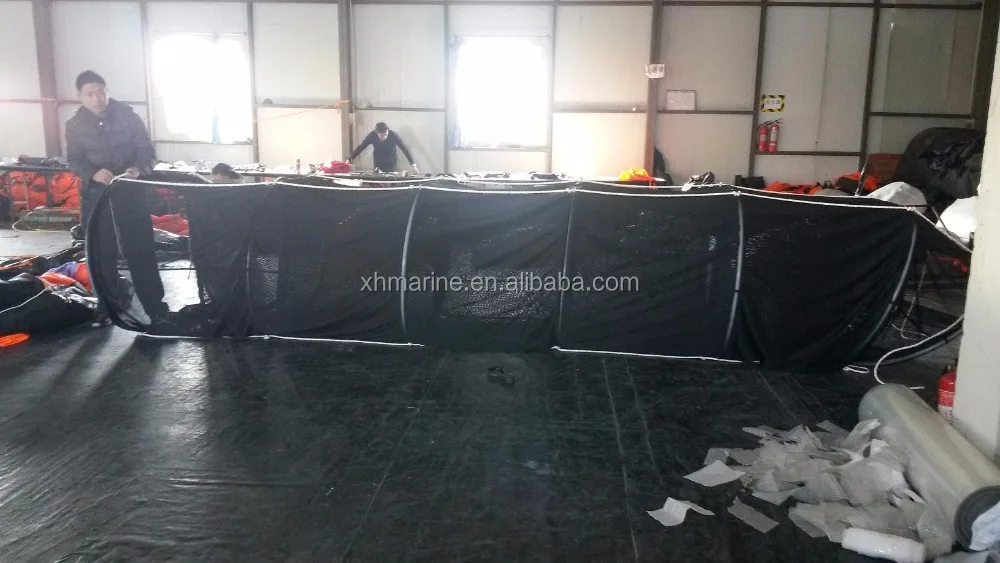

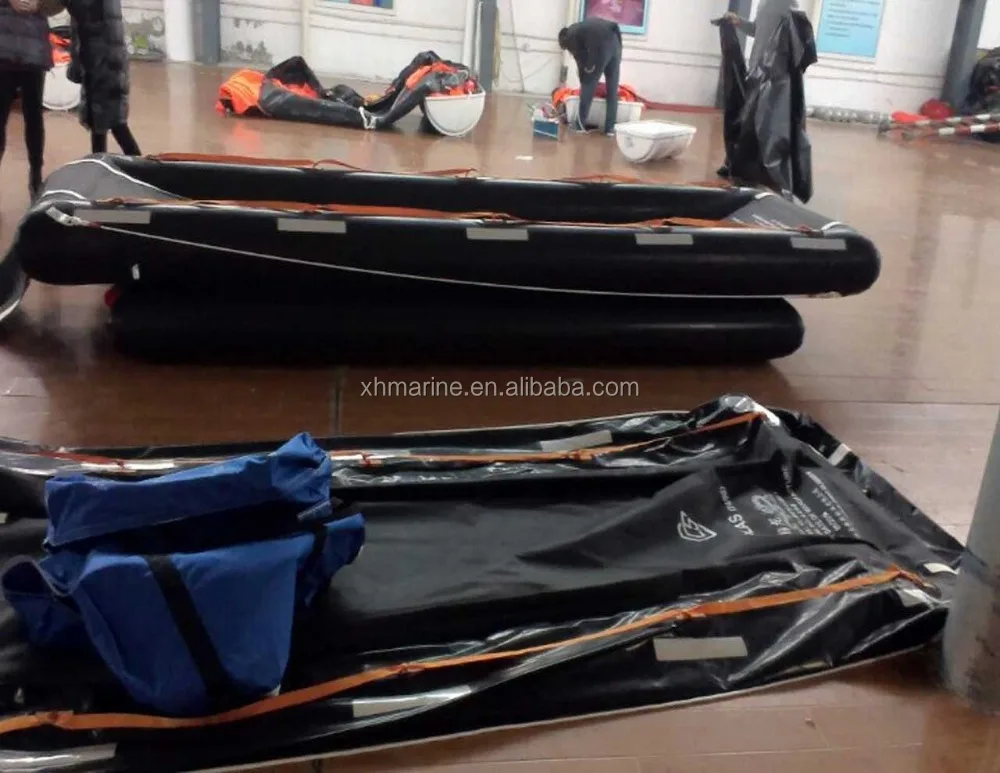

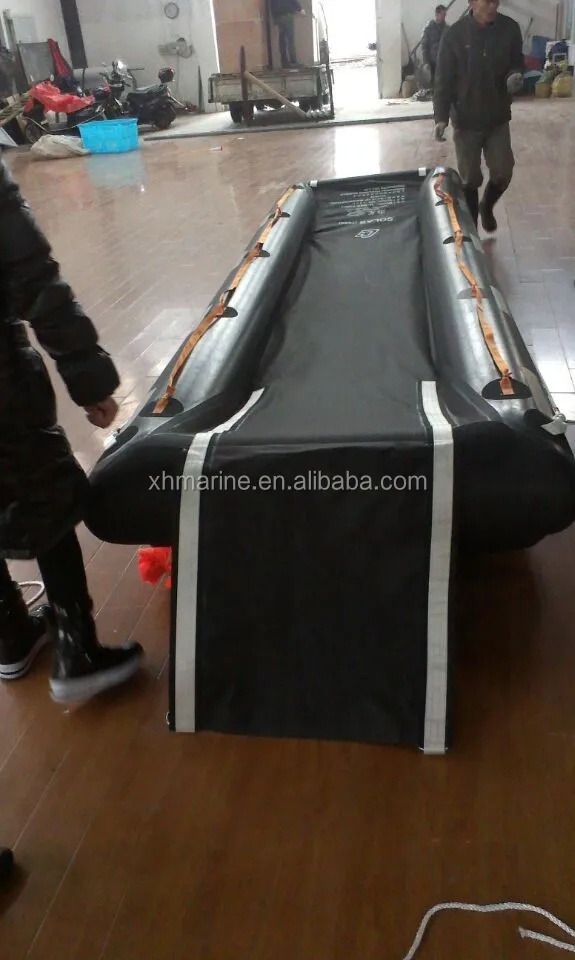

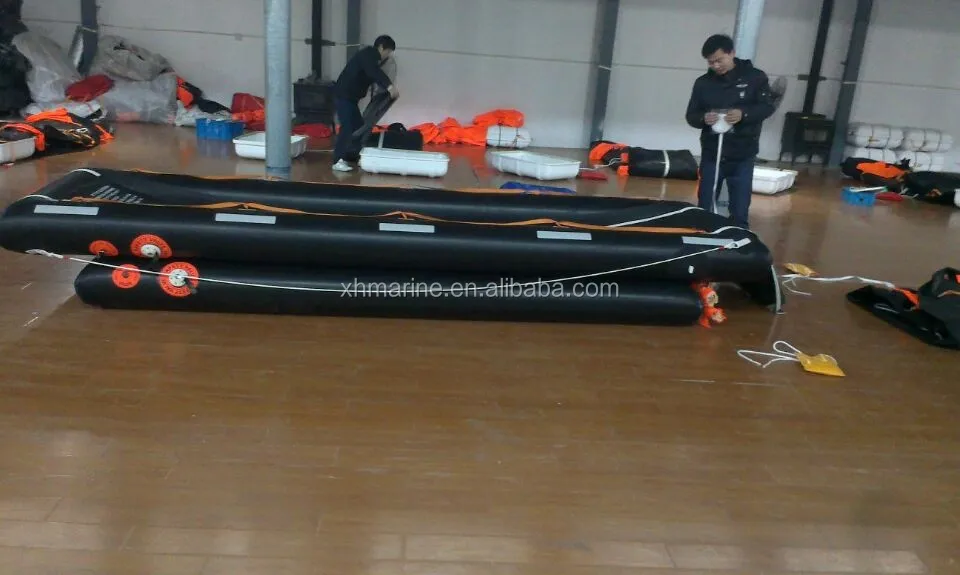

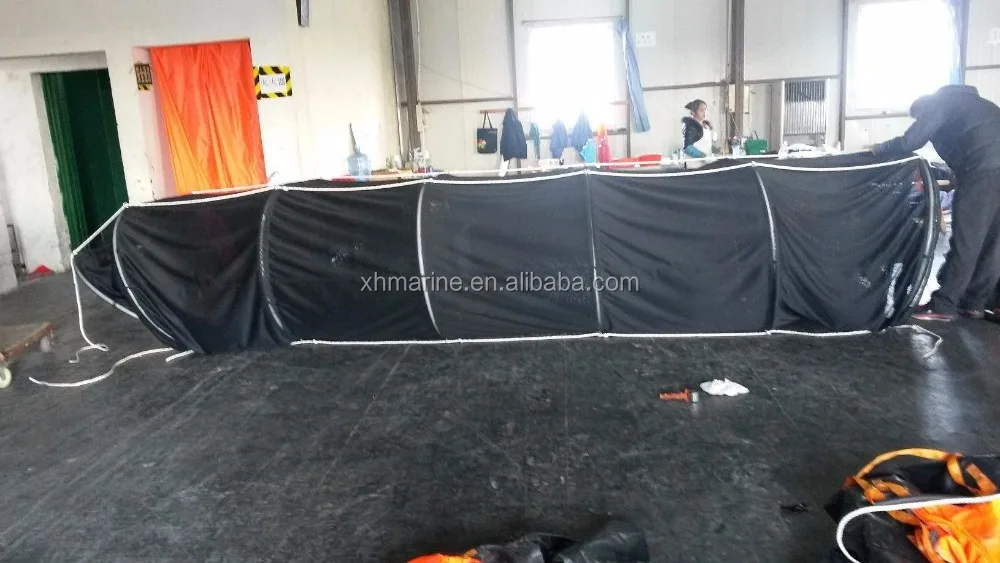

3. Pictures of Marine Evacuation System
