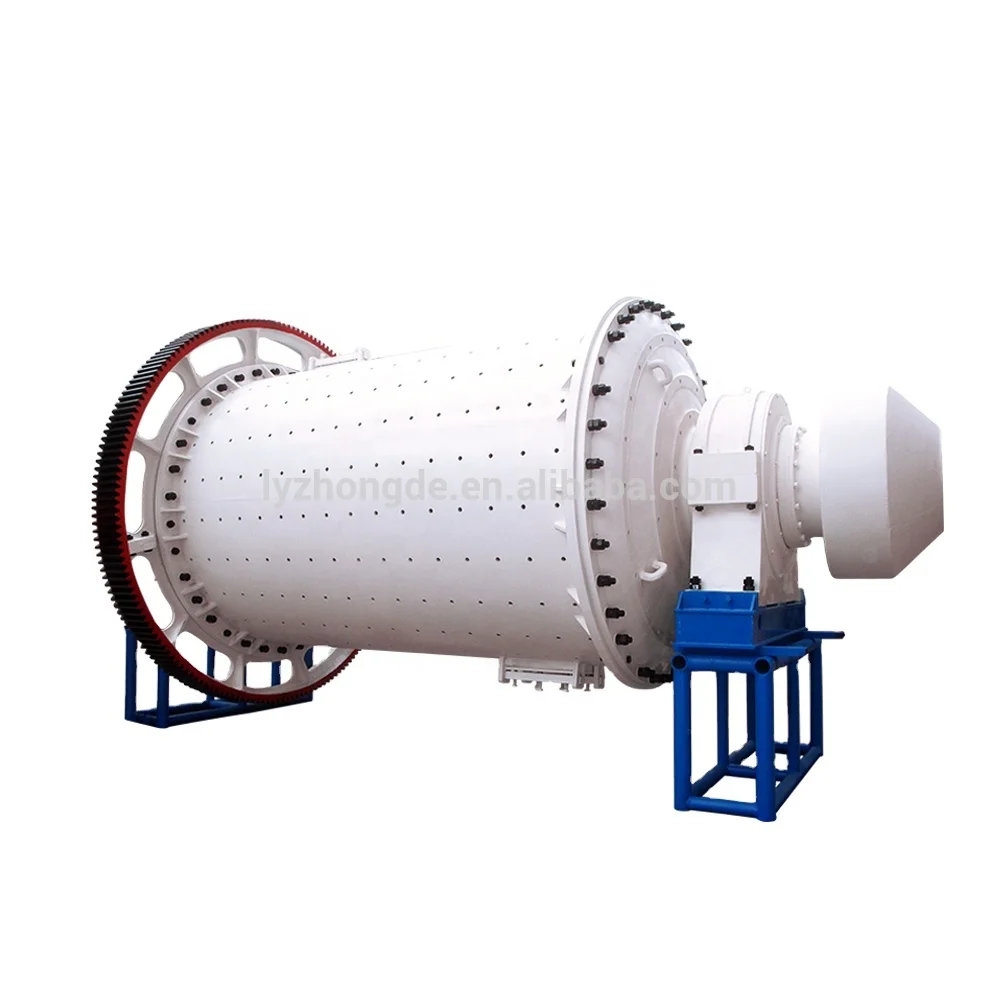

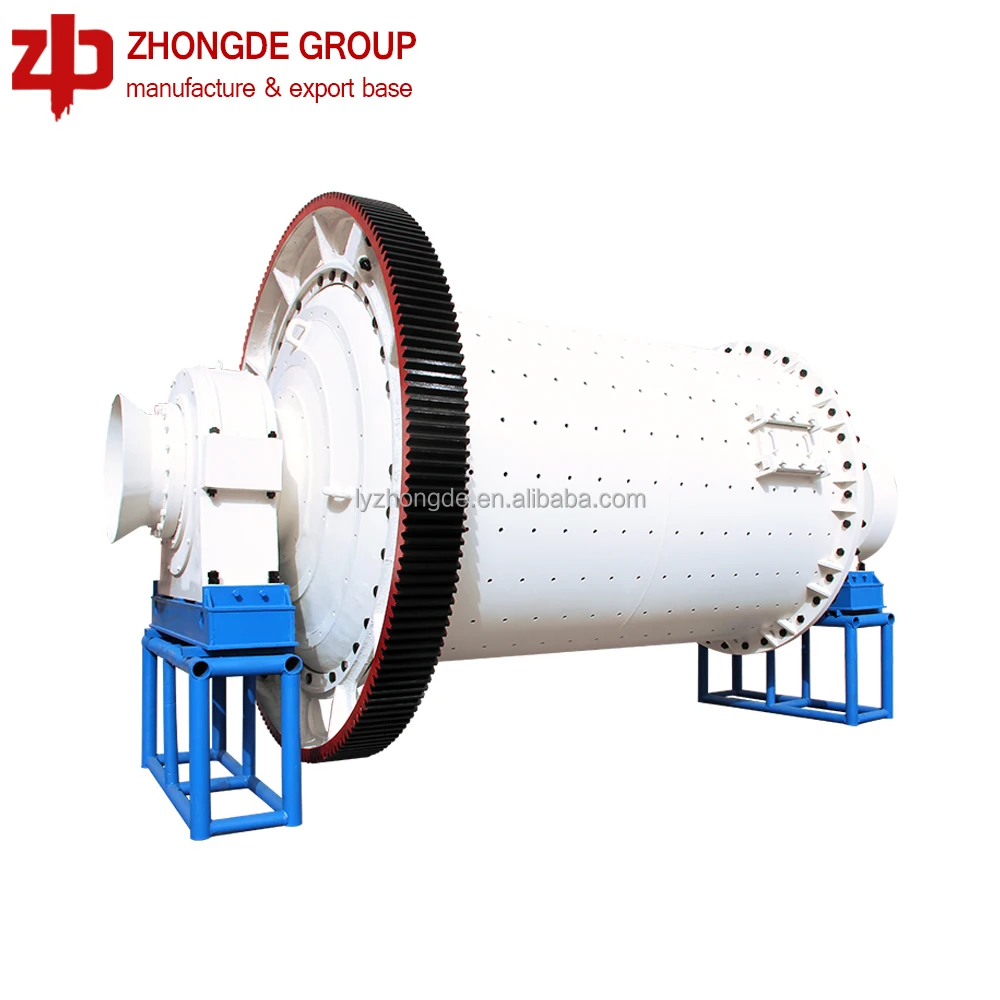

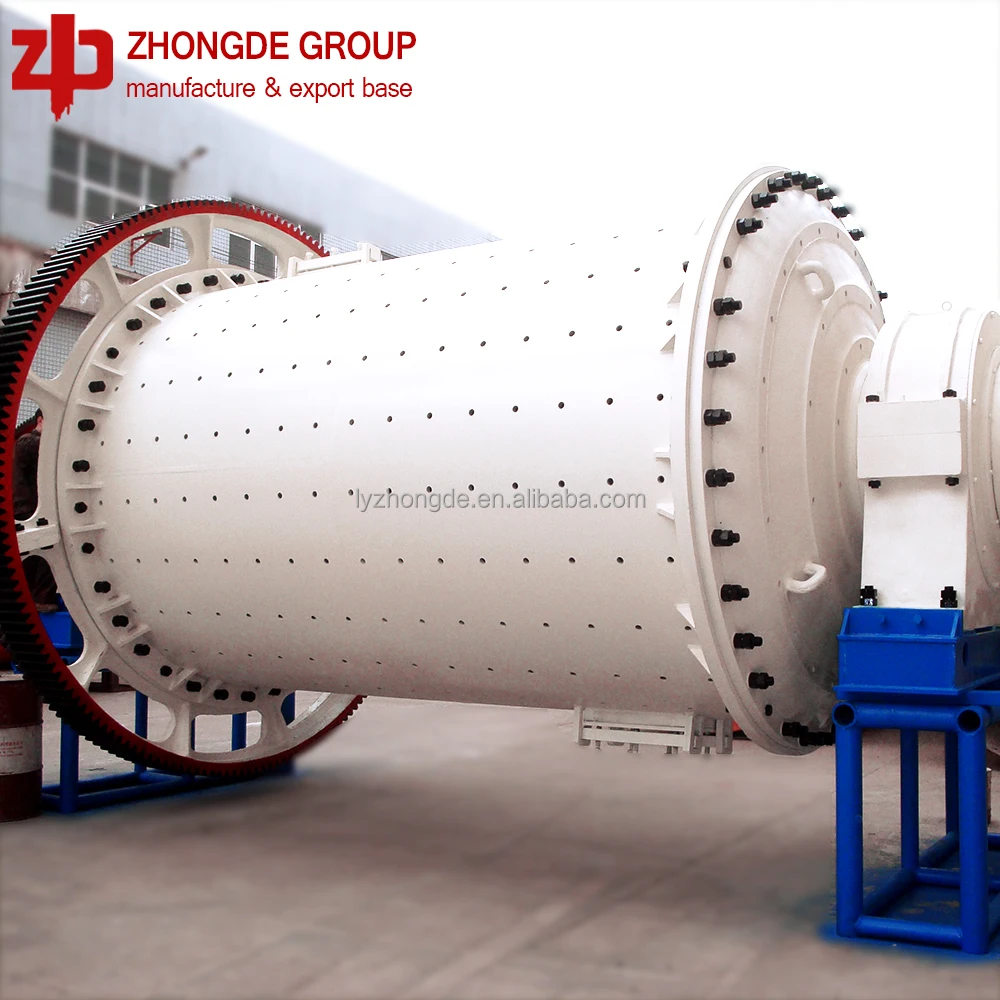

Structure of Ball Mill in cement plant



Raw ore mill is formed by feeding part, discharging part, turning part and driving part (reducer, small driving gear, motor and electric control). The quill shaft is cast steel, the liner is detachable. The turning gearwheel adopts casting hobbing process and the drum is equipped with wear-resistant liner.Moreover, according to different materials and discharging methods, there are dry ball mills and wet ball mills for choice.

Ball mill capacity chart



Model	Cylinder		Effective volume(m3)	Max.ball loading(t)	Speed(r/min)	Capacity(t/h)	Discharging size(mm)	Main motor(KW)
	Diameter (mm)	Length (mm)
MQY-1530	1500	3000	4.5	8	30	6.3~2.8	0.3~0.074	90
MQY-1545	1500	4500	6.7	12	30	9~3.8	0.3~0.074	132
MQY-1830	1830	3000	6.7	12	26.6	12.5~4.5	0.3~0.074	130
MQY-1845	1830	4500	10.5	19	26.8	15.5~6	0.3~0.074	180
MQY-2130	2100	3000	9.2	16	23.8	18~5.8	0.3~0.074	210
MQY-2136	2100	3600	11	20	23.8	22~6.8	0.3~0.074	210
MQY-2145	2100	4500	13.8	25	23.9	25~8	0.3~0.074	280
MQY-2230	2200	3000	10	18.5	21.3	23~6.9	0.3~0.074	210
MQY-2245	2200	4500	15.2	28	21.3	26.8~8.5	0.3~0.074	280
MQY-2430	2400	3000	12	22	21.3	26~7	0.3~0.074	245
MQY-2436	2400	3600	14	26	21.3	33.5~8.8	0.3~0.074	280
MQY-2445	2400	4500	17.8	30	21.6	42~11	0.3~0.074	320
MQY-2460	2400	6000	24	44	21.7	56~14.5	0.3~0.074	480
MQY-2736	2700	3600	18	33	20.7	54~11.7	0.3~0.074	400
MQY-2740	2700	4000	20.6	38	20.7	60~13	0.3~0.074	400
MQY-2745	2700	4500	23.2	43	20.7	67.5~14.5	0.3~0.074	480
MQY-2750	2700	5000	25.8	48	20.6	75~16	0.3~0.074	500
MQY-2760	2700	6000	31	57	20.6	90~19.5	0.3~0.074	630
MQY-3040	3000	4000	25.7	47	19	78~16.5	0.3~0.074	500
MQY-3064	3000	6400	40.2	74	19	125~26	0.3~0.074	800
MQY-3245	3200	4500	32	59	18.2	95~21.6	0.3~0.074	630
MQY-3254	3200	5400	38	73	18.2	114~25.9	0.3~0.074	800
MQY-3270	3200	7000	50.6	93	18.2	148~30.2	0.3~0.074	1250
MQY-3645	3600	4500	40	75	18	136~24.3	0.3~0.074	1000
MQY-3650	3600	5000	46	86	18	151~28.1	0.3~0.074	1250
MQY-3660	3600	6000	54	102	18	181~32.4	0.3~0.074	1250
MQY-3685	3600	8500	79	131	18	256~45.8	0.3~0.074	1800
MQY-4060	4000	6000	70	126	16.9	226~40.5	0.3~0.074	1500
MQY-4067	4000	6700	78	136	16.9	252~45	0.3~0.074	1600
MQY-4361	4270	6100	80	144	15.7	258~46	0.3~0.074	1850
MQY-4564	4500	6400	95	172	15.6	306~54	0.3~0.074	2000
MQY-5064	5030	6400	120	216	14.4	386~68	0.3~0.074	2600
MQY-5083	5030	8300	152	266	14.4	500~88	0.3~0.074	3300
MQY-5585	5500	8500	187	338	13.8	615~108	0.3~0.074	4500



Application

A ball mill grinds ores and other materials to a typical product size of 35 mesh or finer.

The feed to a ball mill is prepared by:

• Single or multistage crushing and grinding


• Crushing, screening, and/or rod milling


• Primary crushing and autogenous/semiautogenous grinding

Normal feed sizes:

• 80% passing 1/4 "(6mm or finer) for hard ores


• 80% passing 1 "(25mm or finer) for soft ores


• (Larger feed sizes can be tolerated depending)

The length to diameter ratio of cylindrical mills is range from 1 to 1 to 3 to 1. When the L/D ratio is 2 to 1 or greater, we refer to the mill as a Tube Mill.



Building on over 50 years of engineering passion and pioneering innovations, Zhongde is professional manufacturer of mining equipment for aggregate, mining, and cement industries.



Since 1959, Zhongde has been providing customers worldwide with the latest technology incorporated into every quality Zhongde product. Throughout the years, Zhongde's product line has grown to include Stone Crushers, Classifiers, Flotation Machines, Grinding Mills, Quick Lime Systems, Rotary Kiln,Rotary Dryers, and Thickeners.

Zhongde has equipment installed throughout the world in areas such as Russia,Uzbekistan ,Thailand, Sri Lanka, Laos, Saudi Arabia, Chile, Brazile, Peru, Africa, Europe, Australia, and the United States.

Zhongde's commitment to excellence has established it as a leader in the supply of quality machinery at the most reasonable prices available.



Covering an area of 98,000 square meters, Zhongde well-organized workshop own over 600 sets of heavy processing equipments. most of them are among the mos advanced technology on current market.



These strong facilities enable Zhongde a leader in mining machinery industry.

• We are top 10 of China’s most professional mining machine manufacturer.


• We provide customers with products of high quality and reasonable price, advanced technology, warmhearted pre-sale and after-sale services.


• We have customers and cooperative partners all over the world,they are mainly from Asia, Africa, Europe, South & North America.

1. Pre-sale service

Provide you with project and process design, formulate the plan for purchasing, design and manufacture the products according to your special requirements and train your operators.
