waterjet cutting machine machine waterjet cutting machine price

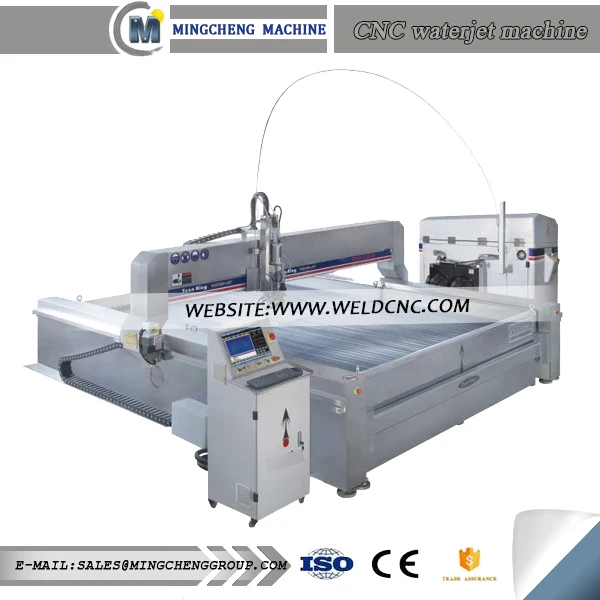

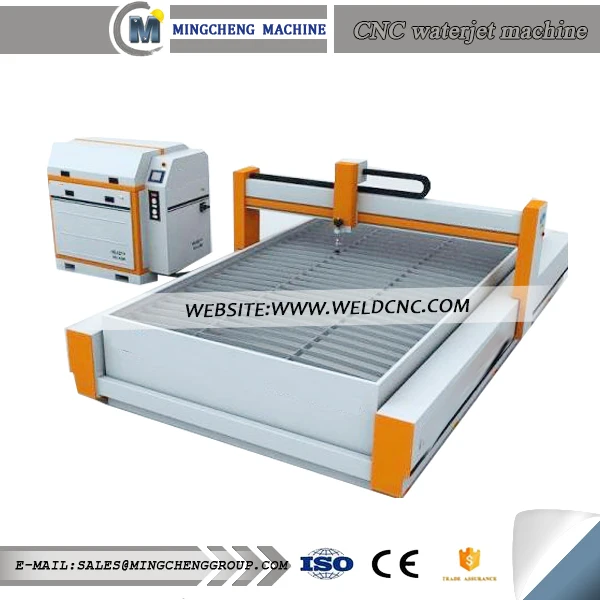

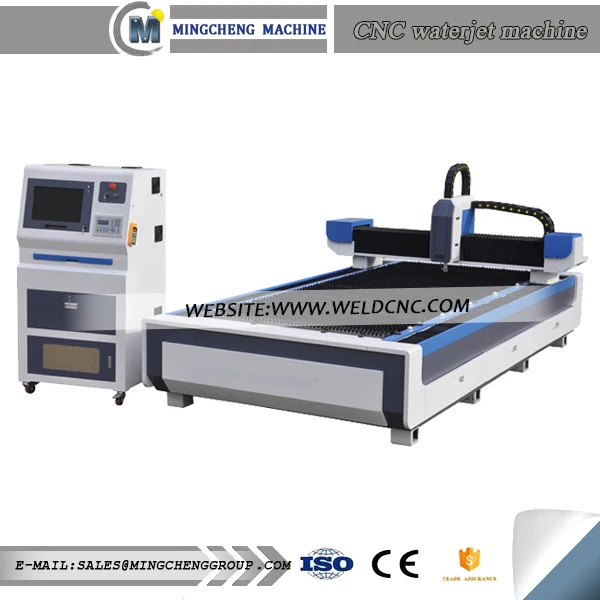

Characteristics of Px water jet cutting platform

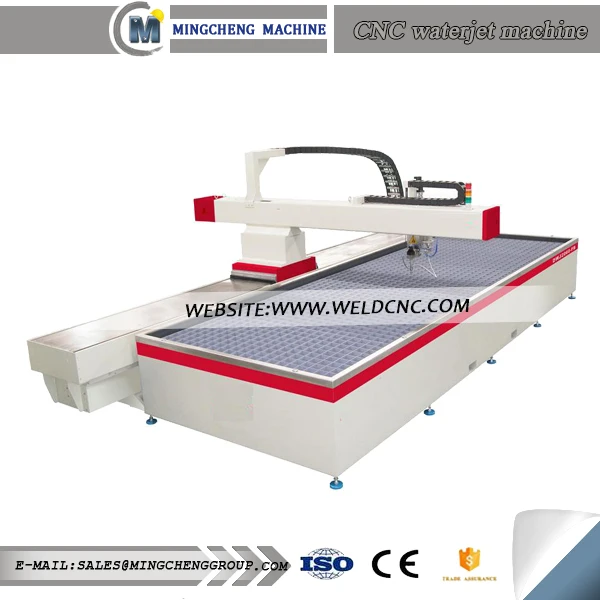

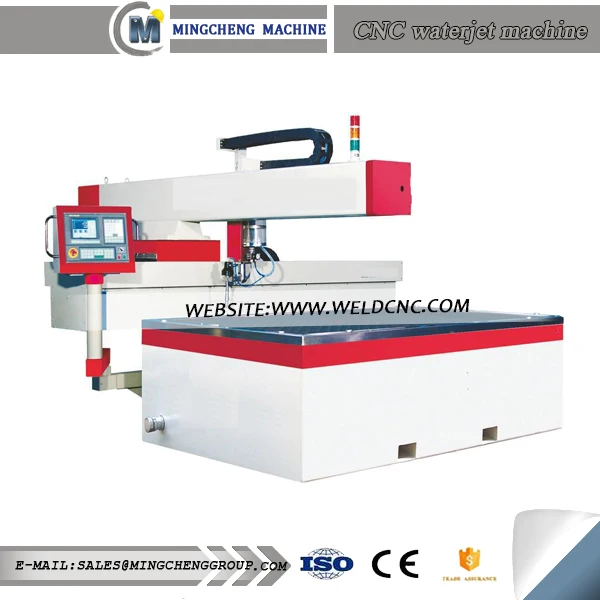

Cantilever structure occupy less area and easy to use.
The structure is strong and stable.
The cutting platform uses high-quality liner guiding rail and rolling lead screw.
Adopt servo-control system which makes the operation more stable.
Centralized automatic lubrication system, humanization design, automatic equipment maintenance.

Px380 direct drive pump

Simple, efficient, energy-saving.
The high pressure system is equipped with high pressure safety valve,which helps to achieve the
infinitely adjustment in high and low pressure condition and the overload protection. It is also equipped with frequency changer which makes the perforating in the low pressure condition and cutting in the high pressure condition possible .
Automatic cooling system, which is no need extra energy, can keep the machine working in 24 hours .
The temperature controlling system helps to check the operation condition of the machine.



Px420 hydraulic oil pump drive

Delivery pressure: 60. OOOpsi
Cooling system:automatic circulating cooling system.
Hydraulic pump:It uses the international high-end variable displacement plunger pump.
Water filter:three-layer filtering system.
Safety protection system:protection system of oil temperature, water pressure and oil pressure
Booster pump:It has the 60.000psi supercharger, powerful accumulator, high pressure water switch and pipeline system.

Parameter

Maximum cutting range(mm)	3000x2000	2500x1500	2000x1500	1500x1500	1500x1000
The turret trip(mm)	0-200
Driveing speed /servo motor(mm/min)	0-10000
Cutting precision(mm)	0.2
Control precision(mm)	0.05
Worktable motor	Fuji
Air compressor pressure(mpa)	0.6-0.8
Abrasive	Garnet
Grit size	600-100
Software	CNC

This is our standard type,we can provide so many types

Water jet cutting software

International advanced level water jet cutting dedicated software.

Processing program synchronizes with graphics simulation which can help to avoid processing error.
Automatically display cutting length of each part to make calculation convenient for customers.
It can set X,Yaxis stroke soft limit to prevent the cutting head from going beyond the limit.
Combine with graph of AUTO CAD drawing software.
Automatically generate the NC programming.

Automatic sand feeding system

Labor saving
It can control the amount of sand
It can store 150 kilograms sand for once
It can serve for two machines simultaneously.

Roll-over worktable

The roll-over table can turn over 85 degree angles.
It makes the material getting on and off the worktable more convenient and reliable.
Adopt high-power hydraulic station which can bear 600kg materials.
Customers can handle the operation directly on the worktable.
