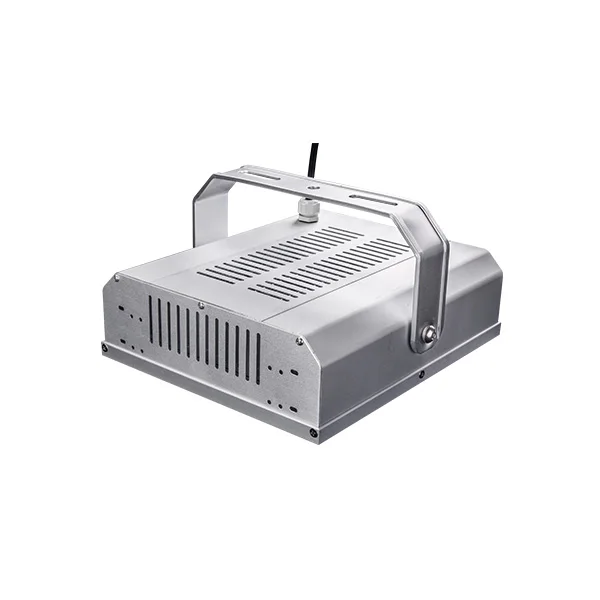

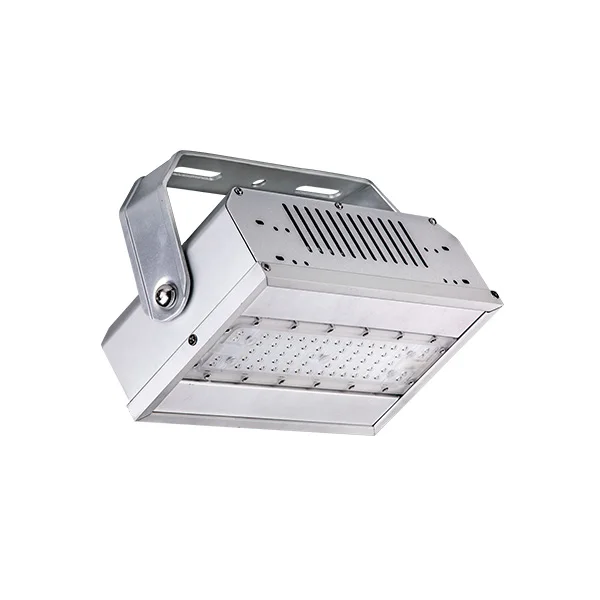

CE RoHS Apprpoved 100W LED Tunnel Lights with MeanWell Driver



1. Spec.

Specifications
Model	ZGSM-SDD100H5
LED Brand	Lumileds 3030

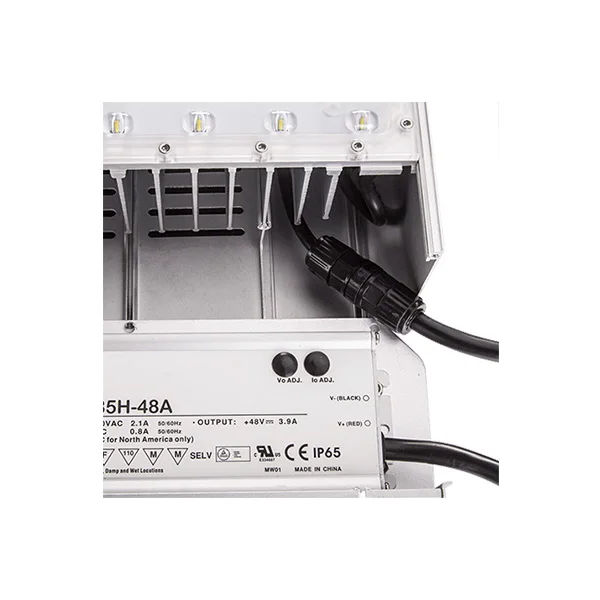

Driver Brand	Meanwell
Norminal Wattage	100W
LED Module Quantity	2 modules
Input Voltage	100-240/277VAC
Power Efficiency	>90%
Power Factor	>0.95
Lamp Rated Luminous Efficiency	>115 lm/w
Lamp Rated Lumen output	11,500 lm (Lumen tolerance +/- 5%)
Color Rendering Index	Ra>70
Color Temperature	3000K, 4000K, 5000K or 5700K
Optic	TypeI, Medium; TypeII, Medium; TypeIII, Medium; TypeV, Short
Optimal Operating Temperature	25℃
Storage Temperatures	‘-40℃~+70℃
Working Environment	Between-40°C~+50°C, 10%~90%RH
Total Harmonic Distortion	< 10%
Lumen Maintenance	> 75,000 hours -L70, @25 ºC (77 ºF)

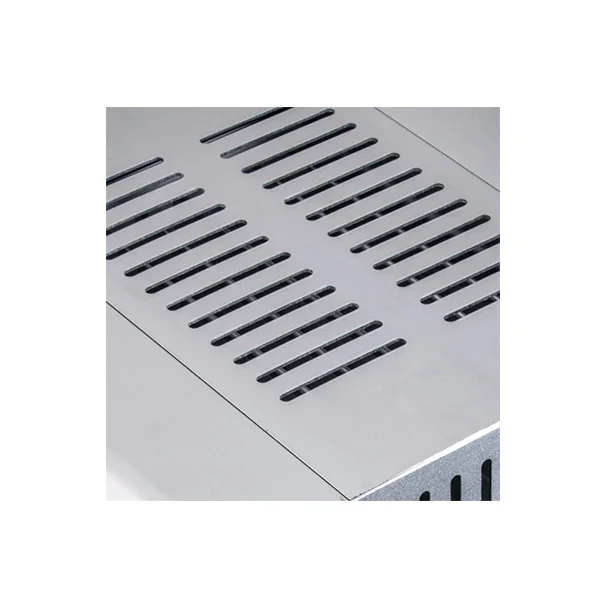

Materials	Housing: Die-cast aluminum; Heat sink: Stretched Aluminium Alloy; Lens: PC
IP Rating	IP66 with test report
IK Rating	IK10 with test report
Certification	CE, ROHS, IOS9001, ISO14001, LM80
Dimming	1-10V, PWM, Resistance, Timer
Accessories (Optional)	Motion sensor
Warranty	5 years
Packing Details
Fixture Dimension	239 x270 x165 mm
Fixture Weight	3.5 kg /7.7 lbs
Packing Dimension	355 x370 x200 mm
Packing Weight	4.3 kg /9.5 lbs









2. Spectrum option





3. Packing info.:







Contact Info.:

Skype ID: ren-rain

Mobile Phone & WhatApp & Wechat : +86 182 571 67 671



4. Application projects
