1 в 4 выхода HDMI Сплиттер порта аудио видео сплиттер усилитель
- Категория: >>>
- Поставщик: Shenzhen,Gaia,Vision,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.38 $* | 0.96 $* |
| Aug-15-2025 | 0.57 $* | 0.92 $* |
| Jul-15-2025 | 0.86 $* | 0.68 $* |
| Jun-15-2025 | 0.72 $* | 0.37 $* |
| May-15-2025 | 0.95 $* | 0.20 $* |
| Apr-15-2025 | 0.77 $* | 0.79 $* |
| Mar-15-2025 | 0.29 $* | 0.59 $* |
| Feb-15-2025 | 0.23 $* | 0.39 $* |
| Jan-15-2025 | 0.42 $* | 0.33 $* |
Характеристики
Product Description

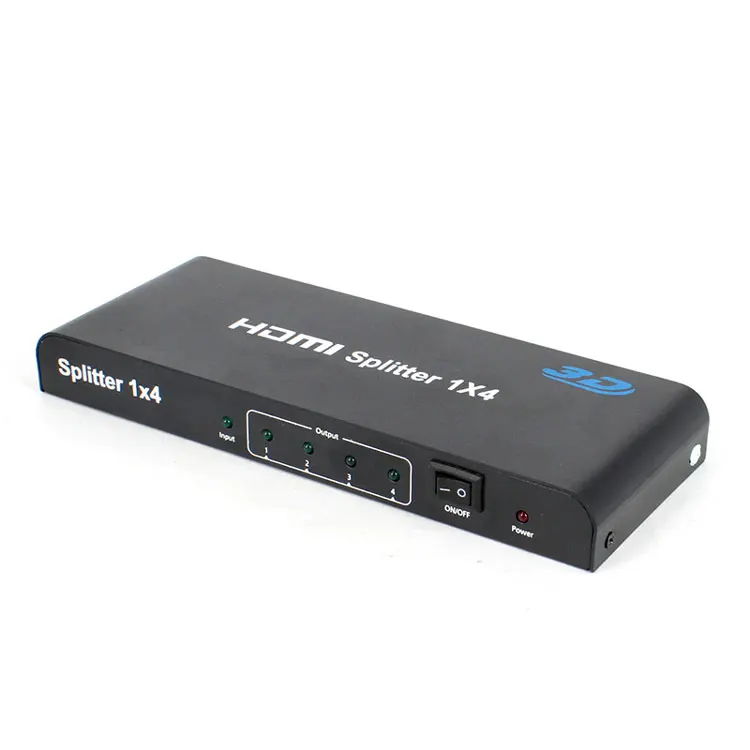

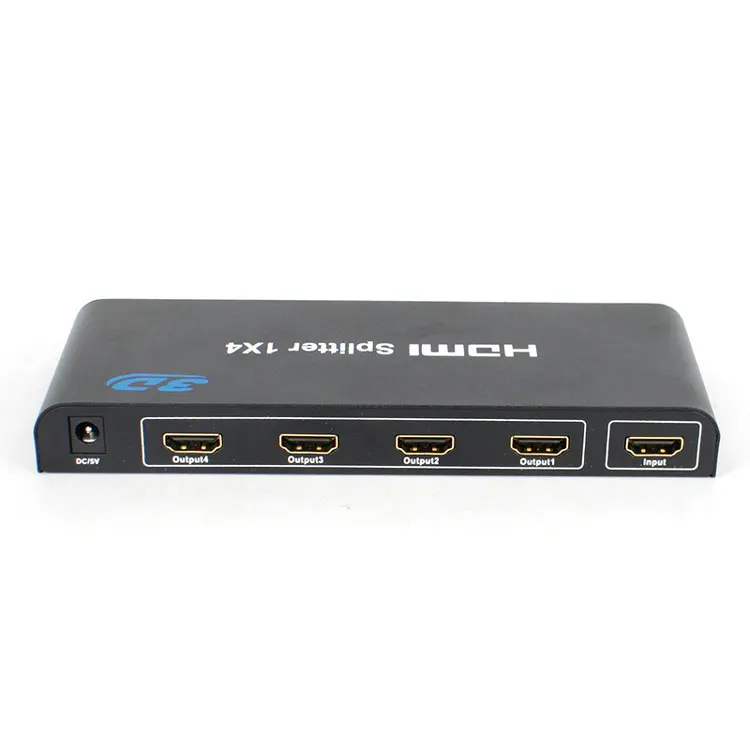

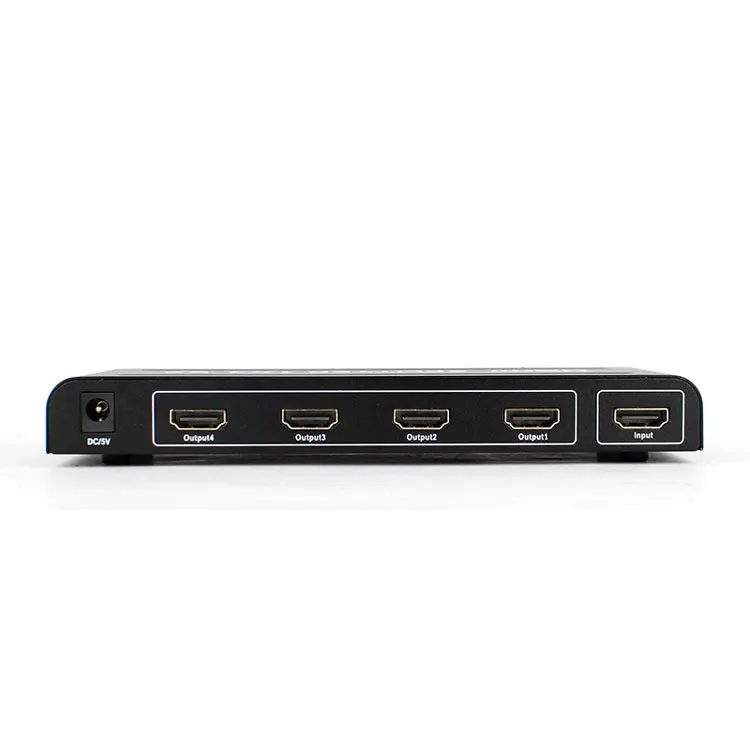

1 in 4out HDMI splitter 4 port HDMI Audio Video Splitter Multiplier Box
Product Description
FEATURES:
1. One HDMI 1.3 input signal split to four HDMI 1.3 sink devices
2. Support 3D
3. Support 1080P resolution
4. Support CEC
5. Support deep color 30bit, 36bit, 48bit
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7. Digital audio format - DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
8. Support signal retiming
9. Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
10. No loss of quality.
11. Installs in minutes.
Need DC5V/3A power supply.
SPECIFICATIONS:
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit
Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….………………………….340MHz
Max baudrate…………………….………………….………………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………...………….≤15m HDMI AWG26
Output cable distance…………………………….……….…...≤25m AWG26 HDMI standard cable
Max working current………………………………..……………………………………….....1200mA
Power adapter format..Input: ……………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)
Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………………….. 115X61X25(mm)
Weight…..………………………………………………………..…….…………………..………190g
FEATURES:
1. One HDMI 1.3 input signal split to four HDMI 1.3 sink devices
2. Support 3D
3. Support 1080P resolution
4. Support CEC
5. Support deep color 30bit, 36bit, 48bit
6. Support Blue-Ray 24/50/60fs/HD-DVD/xvYCC
7. Digital audio format - DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD/HD(HBR)
8. Support signal retiming
9. Support input up to 15metres AWG26 HDMI standard cable length, output up to 20metres AWG26 cable length
10. No loss of quality.
11. Installs in minutes.
Need DC5V/3A power supply.
SPECIFICATIONS:
HDMI resolution ……………………………....24/50/60fs/1080p/1080i/720p/576p/576i/480p/480i
Support video color format ……………………...……..….……..24bit/deep color 30bit,36bit, 48bit
Support audio format……..….DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)
Max bandwidth……………………………………………………….………………………….340MHz
Max baudrate…………………….………………….………………………………………..10.2Gbps
Input/Output TMDS signal ………….…………………………..………... …..0.5~1.5Volts p-p(TTL)
Input/Output DDC signal ……………………………………………..……...……… 5Volts p-p (TTL)
Input cable distance..…... ……………………….…………………...………….≤15m HDMI AWG26
Output cable distance…………………………….……….…...≤25m AWG26 HDMI standard cable
Max working current………………………………..……………………………………….....1200mA
Power adapter format..Input: ……………….....AC (50HZ, 60HZ) 100V-240V; Output: DC5V/1A
Operating Temperature range……..…………….……………………………….…… (-15 to +55℃)
Operating Humidity range………………………….….…………..5 to 90%RH (No Condensation)
Dimension (L x W x H) ……………………………….………………………….. 115X61X25(mm)
Weight…..………………………………………………………..…….…………………..………190g
Company Information
Certifications
Packaging & Shipping
Shipping:
1. UPS / DHL / FEDEX /EMS / TNT and so on express(door to door)
2. For Air Shipment, Please choose your favorite, shipping method according your detail requirement
3. The shipping discount is different in different seasons and depend different weight, we will choose the cheapest and safest way according your detail quantities
4. Normally, it will take around 3-7days from China to destination country. Please note that some remote place will need 1-3 days more.
Delivery:
1. Sample within 1-3 days
2. Wholesales Orders : 5-10 days according various quantities
3. OEM 10-20 days after receiving your sample confirmation and payment.
Warranty:
1. One year warranty.
2. Please send back the defective goods which are within the warranty period, we will repair them or send you new one for free.
3. If it is the sample or only few pcs accessories (the fee is less or around shipping fee) are damaged, please send us some pictures and video about it need to confirm your problem, then we will send you free new goods instead.
Why us
- Certificated products and Competitive price
- Customer reference
- Medium-sized enterprises, more cost-efficient
- Assistance for saving costs and improving your profit margin
- Good after-sales service
