Плата контроллера ЖК-дисплея FHD AV USB Type C
US $50.00-$99.00

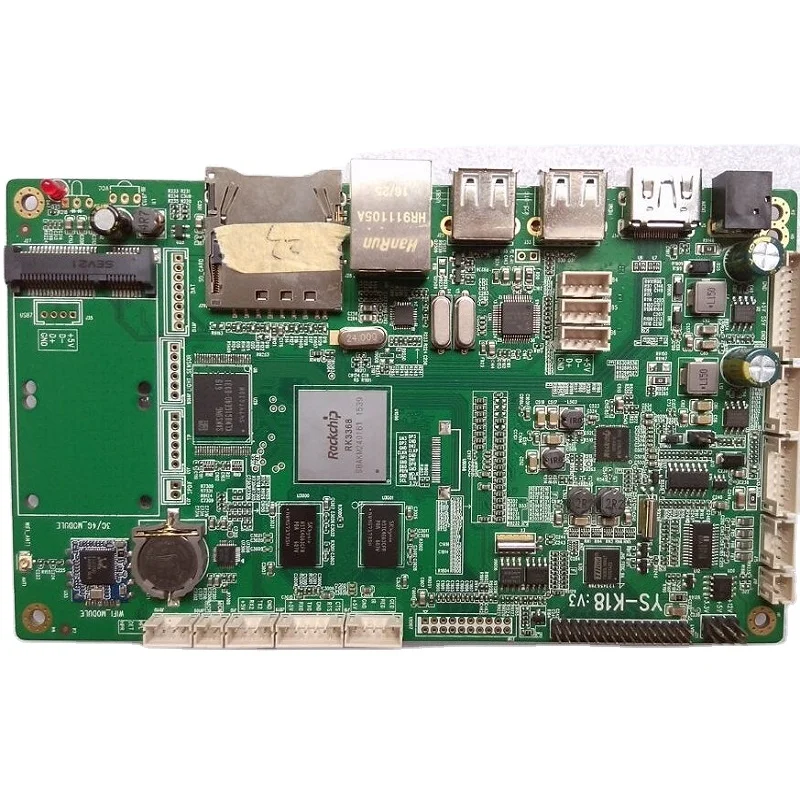

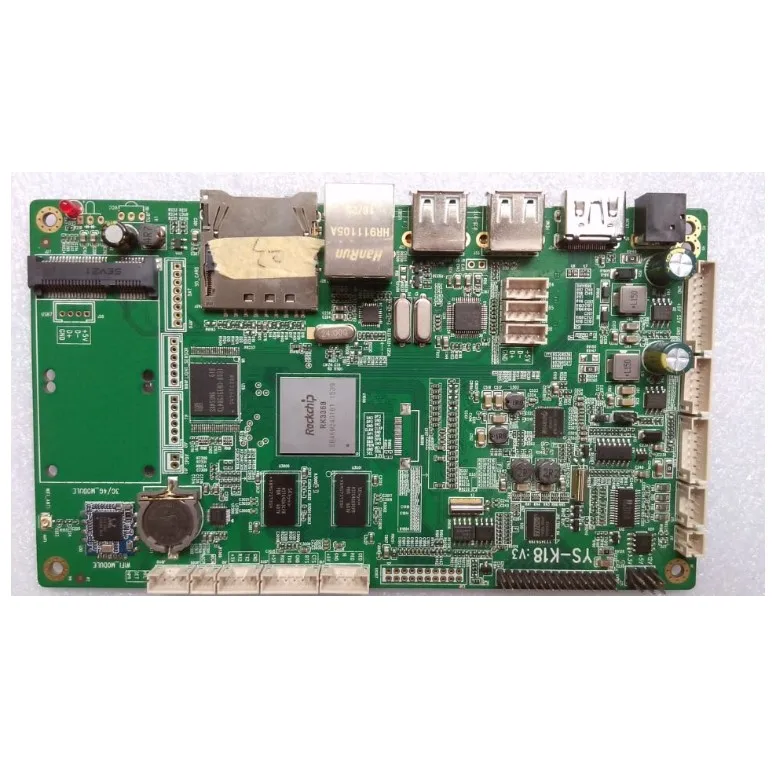

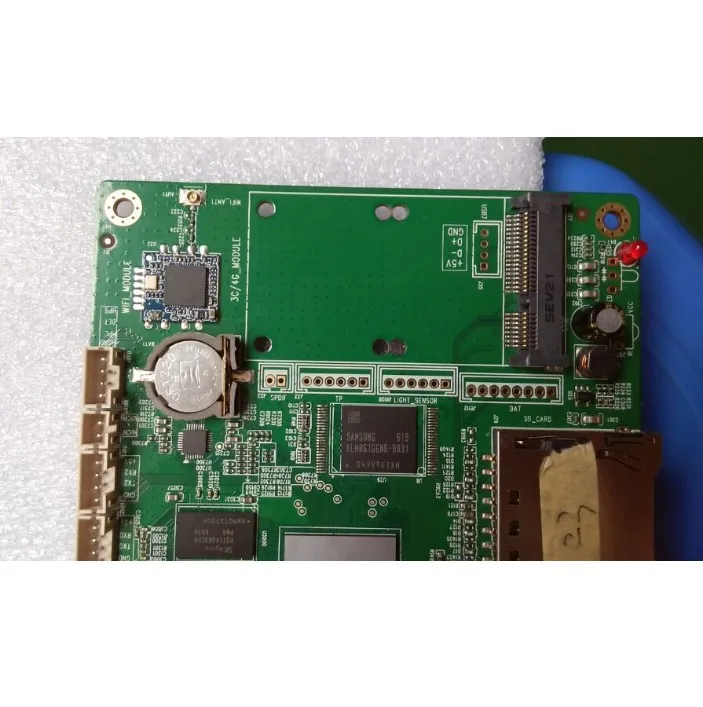

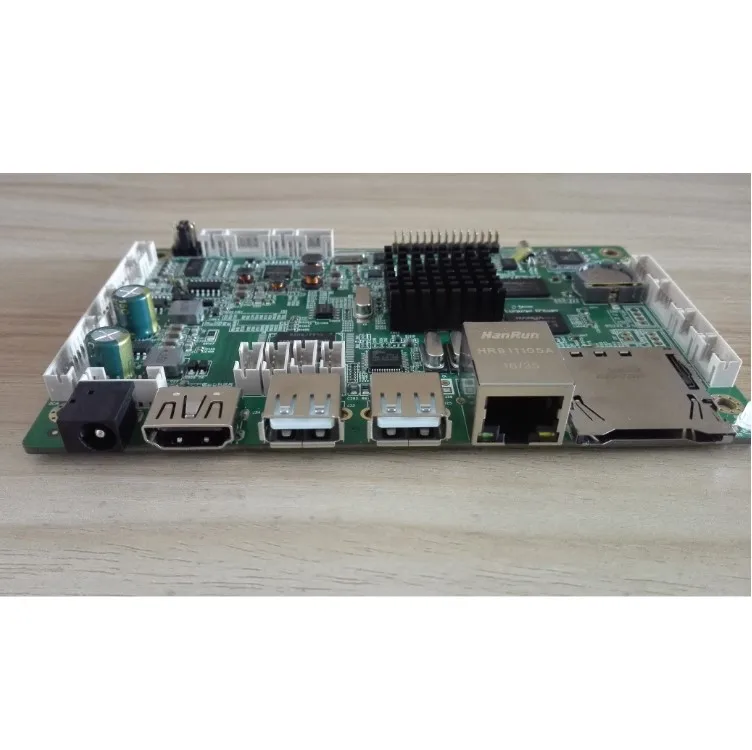

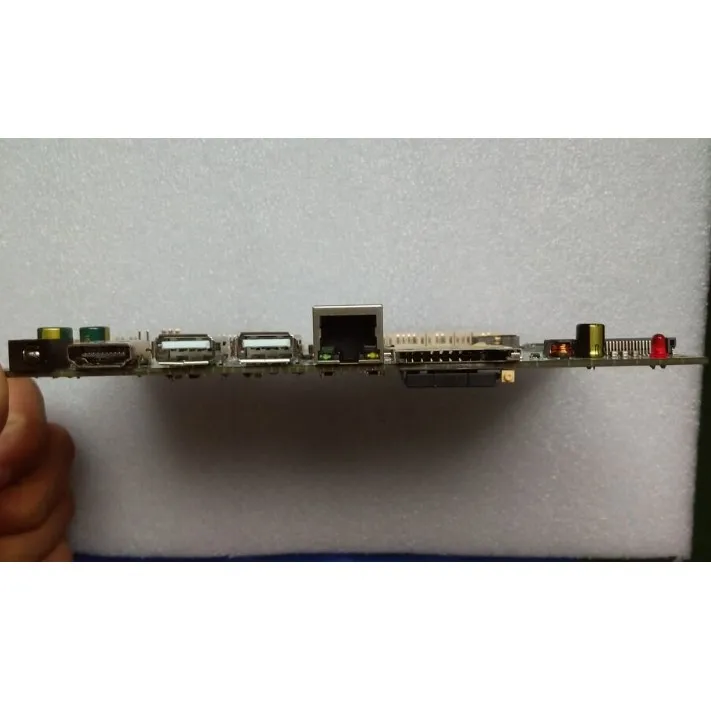

ЖК светодиодные модули rk3368 rockchip octa-core 2k ЖК-контроллер плата электронная pcba с сетевыми
- Категория: LCD Boards & Accessories >>>
- Поставщик: Clientop,Technology,Co.,Ltd.,(Shenzhen)
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-16-2025 | 121.22 $* | 123.76 $* |
| Jul-16-2025 | 98.67 $* | 100.97 $* |
| Jun-16-2025 | 119.15 $* | 121.98 $* |
| May-16-2025 | 118.85 $* | 120.52 $* |
| Apr-16-2025 | 94.64 $* | 96.10 $* |
| Mar-16-2025 | 116.87 $* | 118.14 $* |
| Feb-16-2025 | 115.66 $* | 117.98 $* |
| Jan-16-2025 | 114.67 $* | 116.4 $* |
Характеристики
Product Description
The PCBA software is pre-build Android OS 5.1.1, with Rockchip RK3368 which is Octa-Core and
1.5GHz, with 10 seconds to achieve ultra-fast start-up and 4K Ultra HD decoding
1.5GHz, with 10 seconds to achieve ultra-fast start-up and 4K Ultra HD decoding
With small size, high effective, low consumption,low price cost.
Platform support 2160P Full HD display,
Support LVDS connect to monitor, support HDMI 2.0 output,
support 3G/4G network, support infrared remote control,
support touch screen, keyboard, mouse etc.
To help user support the advertising application.
Specification
CPU | rk3368 chipset,octa core,1.5Ghz |
RAM | 2GB DDR3 |
Internal storage | 8GB emmc flash(extensible) |
Decoding ability | Max.2160p |
OS | Android 5.1.1 |
Network | Support Ethernet,wifi,3g/4g |
HDM* | HDM* OUTPUT |
Features
1.Use Rockchip RK3368 processor, platform use Android5.1.1 version; it can replace a desktop PC
entertainment platform with standardized, open to the advantage.
2.Hardware platform:ARM Cortex-A53 1.5GHZ Octa-Core; RAM: 2GB FLASH(EMMC):8GB;
3.DC voltage input:DC+12V, working:<4.5W,standby:<1.0W;
4.Vedioformat:RMVB,FLV,MPEG1/2/4,AVI,DIVX,XDIV,WMV9,H.264@30FPS,H.265@60FPS,VC-1,MOV,M
KV,MP4,TS,M2T,VOB;
entertainment platform with standardized, open to the advantage.
2.Hardware platform:ARM Cortex-A53 1.5GHZ Octa-Core; RAM: 2GB FLASH(EMMC):8GB;
3.DC voltage input:DC+12V, working:<4.5W,standby:<1.0W;
4.Vedioformat:RMVB,FLV,MPEG1/2/4,AVI,DIVX,XDIV,WMV9,H.264@30FPS,H.265@60FPS,VC-1,MOV,M
KV,MP4,TS,M2T,VOB;
5.Multi-Audioformat:MP3,WMA,WAV,EAAC+,MP2dec,Vorbis(Ogg),AC3,FLAC,APE,BSAC;
6.Image format,BMP/PNG/GIF/JPEG（8K*4K）;
7.Multi method input: A.Support multi touchscreen( infrared touch, capacitive touch, resistance
touch,with calibration function; B.Support remote control function; C.Support USB mouse and keyboard input;
8.Timing function: save the power consumption and the lifetime;
9.RTC: RTC IC inside,will get connection and synchronous with Internet and adjust by itself.
10.Multi network connection: Support Ethernet/Wifi;
7.Multi method input: A.Support multi touchscreen( infrared touch, capacitive touch, resistance
touch,with calibration function; B.Support remote control function; C.Support USB mouse and keyboard input;
8.Timing function: save the power consumption and the lifetime;
9.RTC: RTC IC inside,will get connection and synchronous with Internet and adjust by itself.
10.Multi network connection: Support Ethernet/Wifi;
Packing & Delivery
Packing
Standard export package: Bubble bag+hard paper carton
Delivery
3 days after the payment.The transport mode base on customer's requirment
Standard export package: Bubble bag+hard paper carton
Delivery
3 days after the payment.The transport mode base on customer's requirment
Certificate
Company Profile
Clientop Industrial Co.,Ltd ,
a company with full experience in producing LCD advertising products and LCD kits.also a leading company of this line for more than 10year,with good quality and competitive price as well as very good service.
In order to make sure clients can receive qualified iterm, we do 100%product test before shippment.
We provide wholelife professional after-sale technical support as well whose purpose is try our best to provide best shopping experience for you!
In order to make sure clients can receive qualified iterm, we do 100%product test before shippment.
We provide wholelife professional after-sale technical support as well whose purpose is try our best to provide best shopping experience for you!
FAQ
1 . About the quality
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to us .
We will be willing to deal with your problem at the first time .
2. About the payment
Sample order :A Aliexpress B Paypal C Union Western
Large order: HSBC bank (Company account)
3. About warranty and Return
We offer one year warranty for most of our products and professional technical support .
Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
-- 1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
-- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
All of our product will be testing before shipping . So you can be assured the quality of our products .
However, If you found any problem after received the goods , Please feel free contact to us .
We will be willing to deal with your problem at the first time .
2. About the payment
Sample order :A Aliexpress B Paypal C Union Western
Large order: HSBC bank (Company account)
3. About warranty and Return
We offer one year warranty for most of our products and professional technical support .
Please contact us if there are any problems and we will do my best to fix it out. Here is our misrepresented & unsatisfied merchandise policy.
-- 1. We accept returns for replacement or refund within 5 days after receipt of item(s). Items MUST be in their original condition, not worn or altered.
-- 2. We do not reimburse the return shipping charge. Refunds will be for the original price paid, and will be issued within 7 business days after receipt of the return.
