Многофункциональный экструзионный
- Категория: Экстрактор >>>
- Поставщик: Shanghai,Chengdong,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.43 $* | 0.89 $* |
| Aug-19-2025 | 0.78 $* | 0.47 $* |
| Jul-19-2025 | 0.76 $* | 0.2 $* |
| Jun-19-2025 | 0.11 $* | 0.19 $* |
| May-19-2025 | 0.37 $* | 0.89 $* |
| Apr-19-2025 | 0.4 $* | 0.70 $* |
| Mar-19-2025 | 0.28 $* | 0.83 $* |
| Feb-19-2025 | 0.14 $* | 0.90 $* |
| Jan-19-2025 | 0.37 $* | 0.43 $* |
Характеристики
Multi Functional Extracting Tank
Use
Multi Functional Extracting Tank applies to technology operations such as normal pressure, pressurized water decoction, warm dip, heat reflux, forced circulation, percolation, aromatic oils and organic solvent recovery and so on for Chinese medicine, plants, animals, food, chemical industries, particularly the effect will be better if use dynamic extraction or reflux extraction, short time, high liquid content.
Feature
- The slag door structure of Multi Functional Extracting Tank is using our own patented technology, the main air cylinder closed slag door, two air cylinders in the sides push to make ring rotating, the unique similar screw structure of ring make the multi-stage wedge-shaped blocks drive slag door lock, slag door and tank flange pressed close and sealed well, has high safety factor.
- The liquid pipe of Herbal Multi function Extraction Machine adopts stainless steel tube, the liquid joint is sealed and reliable, avoid to frequent damage leakage problems that the metal hoses are vulnerable to fatigue effectively.
- Matching tank top pneumatic pressing device (patent), to meet the needs low density materials are easily floating and effect extraction.
- The occasion needs rapid filter, can be considered to adopt patent structure of bottom wall filter out the liquid.
- Pot/Tank could be built with different shapes such as Straight Canister with Changing Diameter, Straight Canister Series, Regular Cone Series and Inverted Cone Series as per customer's requirement.
- Meet GMP standards.

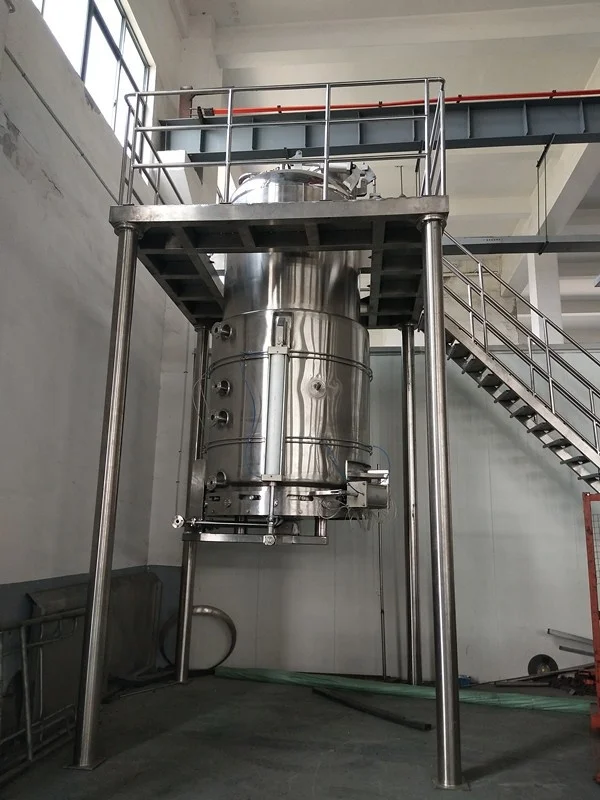

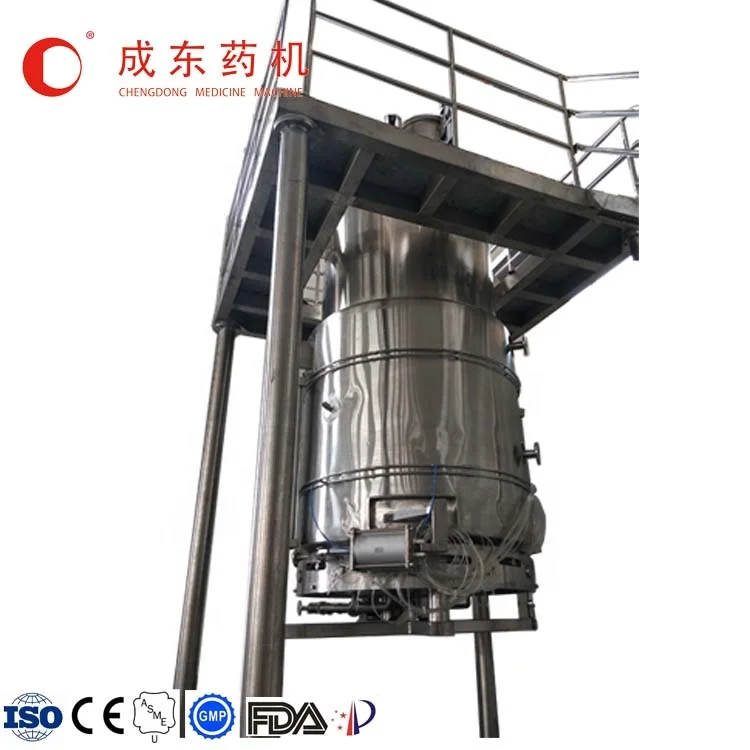

Herbal Extraction Machine

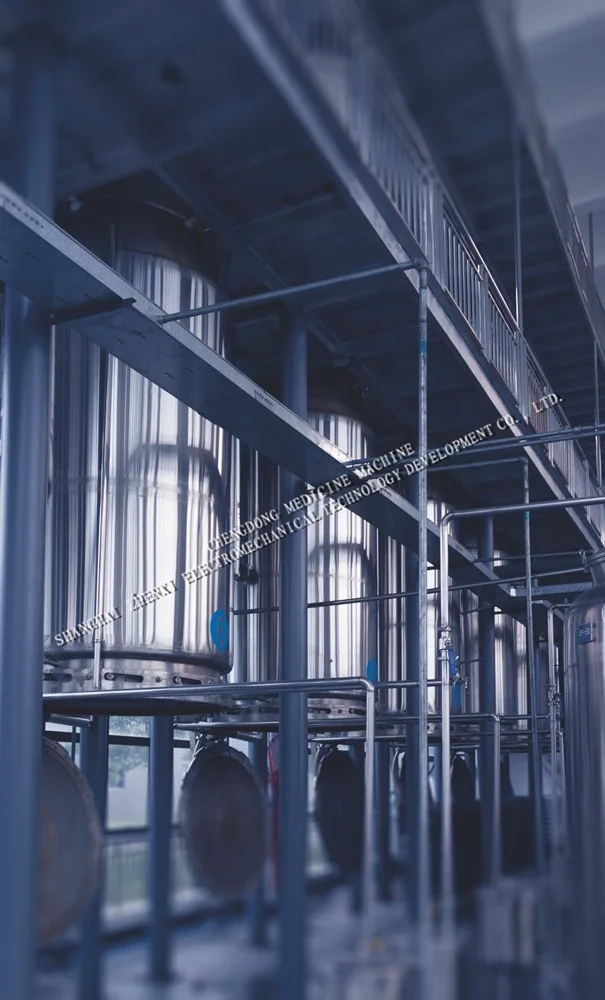

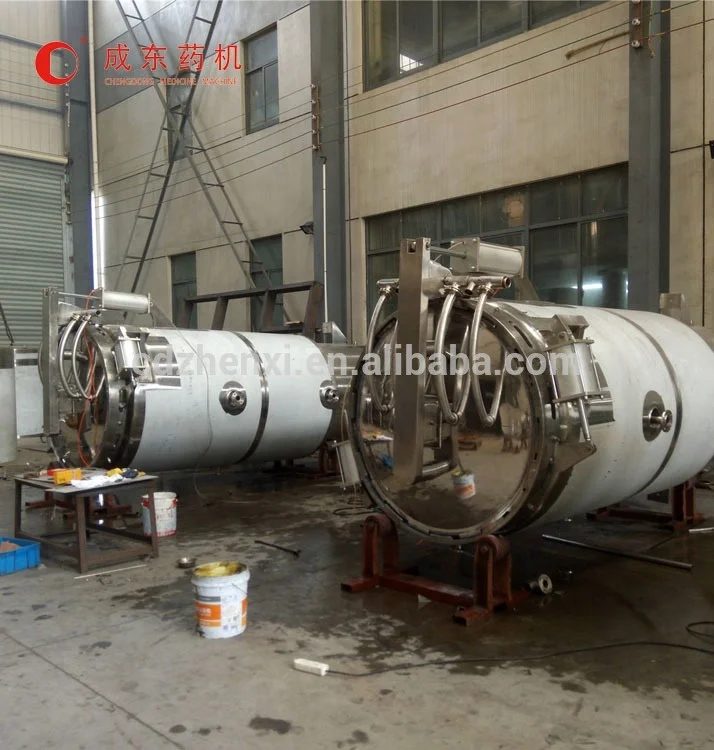

Herbal Extraction Machine under Production

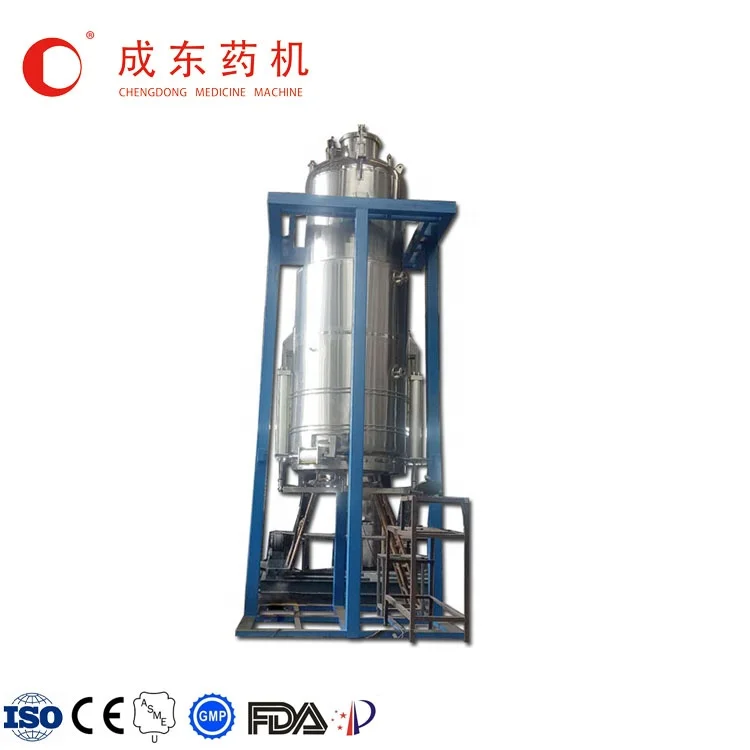

Percolation Herbal Extraction Machine
Technology Parameter
| Specification | DT-1m ³ | DT-2m ³ | DT-3m ³ | DT-6m ³ | DT-8m ³ | DT-10m ³ |
| Volume | 1200 | 2300 | 3300 | 6600 | 8800 | 11000 |
| Tank design Pressure(Mpa) | Standard Pressure | |||||
| Jacket design pressure(Mpa) | 0.35 | |||||
| Compressed air pressure(Mpa) | 0.6~0.7 | |||||
| Heating area(m ²) | 3.5 | 5.5 | 7.5 | 12 | 16 | 19 |
| Condensation area(m ²) | 5 | 8 | 11 | 15 | 18 | 22 |
| Cooling area (m ²) | 1 | 1 | 1.5 | 2 | 2 | 2 |
| Feeding hole diameter(mm) | 350 | 400 | 400 | 500 | 500 | 500 |
| Slagging door diameter(mm) | 600~1000 | 1000~1400 | 1400~1600 | |||
| Stirring speed(rpm) | 25 | |||||
| Mixing motor power(kw) | 3 | 4 | 5.5 | 7.5 | 11 | 15 |
| Equipment weight(kg) | 1800 | 2050 | 2400 | 3200 | 4030 | 6500 |
Structure of Multi Functional Extracting Tank

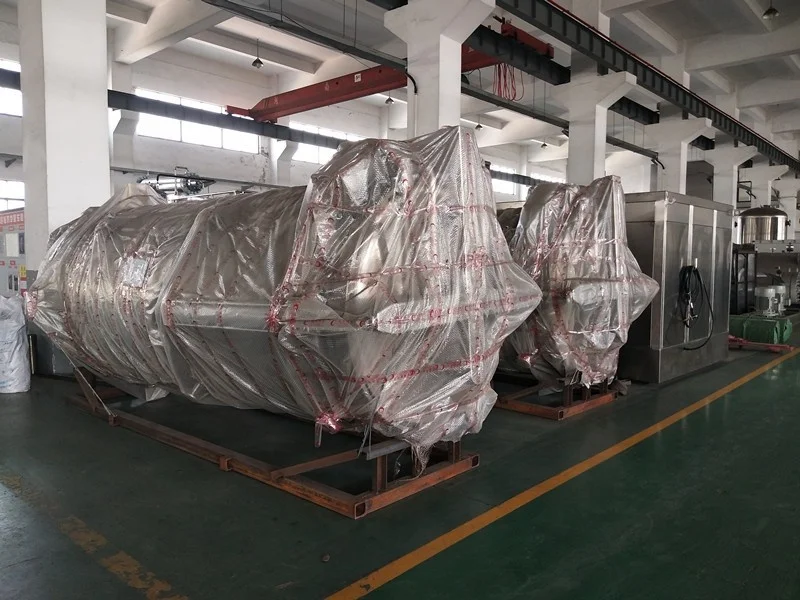

Packaging & Shipping
