Характеристики
Products Description
Title goes here.

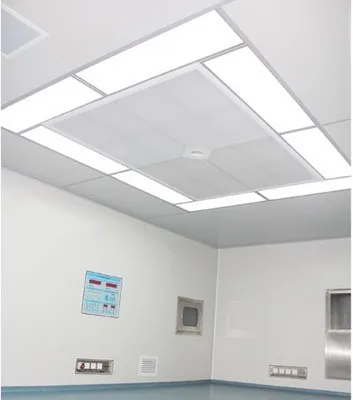

lLaminar air flow ceilings ensures efficient protection against contamination which can occur during invasive acts and caused by airborne dead or living particles.
The ceilings are available in square or rectangular shapes in order to suit any room layout and answer specific requirements to create a clean zone around the patient, medical staff and medical devices.
Aerobiologically, the things that generate most airborne contamination in an operating theatre are the staff. The most common unit of contamination (colony forming unit – “cfu”) is a microcolony on an airborne skin scale. That microcolony will contain between 1and 1,000 bacteria. (Microbial numbers are a critical factor in initiation of infection).
A significant purpose of operating theatre ventilation is to prevent airborne bacteria from settling-out in « the wound ».
Our laminar flow ceilings are mainly used with our Clinicair Air Handling Unit, but can be also adapted to any type of products
from a different brand. This system is dedicated to operating theatres in order to meet ISO 5 standard (complying with EN ISO
14644-1 ) as well as to pharmaceutical industry. It helps fight cross contamination and hospital borne infections.
The ceilings are available in square or rectangular shapes in order to suit any room layout and answer specific requirements to create a clean zone around the patient, medical staff and medical devices.
Aerobiologically, the things that generate most airborne contamination in an operating theatre are the staff. The most common unit of contamination (colony forming unit – “cfu”) is a microcolony on an airborne skin scale. That microcolony will contain between 1and 1,000 bacteria. (Microbial numbers are a critical factor in initiation of infection).
A significant purpose of operating theatre ventilation is to prevent airborne bacteria from settling-out in « the wound ».
Our laminar flow ceilings are mainly used with our Clinicair Air Handling Unit, but can be also adapted to any type of products
from a different brand. This system is dedicated to operating theatres in order to meet ISO 5 standard (complying with EN ISO
14644-1 ) as well as to pharmaceutical industry. It helps fight cross contamination and hospital borne infections.
CURRENT MAIN REQUIREMENTS FOR LTF CEILING SYSTEMS
Reduction of the germ load of indoor air
Surgical smoke removal in the protected area
Occupational safety and protection of the surgical staff
Compliance with the required air cleanliness class in the protected area
Discharge of cooling loads
Maintenance of the required room pressure (protective pressure
maintenance)
Compliance with the ventilation comfort parameters such as air speed,
temperature, degree of turbulence, humidity and sound pressure level
Adherence to the defined illuminance of the priming illumination
in LTF ceilings
Complete ceiling solution for jointless connection to the rest of the
ceiling and integration of the room lighting and optionally the ceiling
pendants or media bridges
The effectiveness and functionality of LTF ceiling systems have
meanwhile been proved by numerous studies and confirmed by independent hospital hygiene committees!
Reduction of the germ load of indoor air
Surgical smoke removal in the protected area
Occupational safety and protection of the surgical staff
Compliance with the required air cleanliness class in the protected area
Discharge of cooling loads
Maintenance of the required room pressure (protective pressure
maintenance)
Compliance with the ventilation comfort parameters such as air speed,
temperature, degree of turbulence, humidity and sound pressure level
Adherence to the defined illuminance of the priming illumination
in LTF ceilings
Complete ceiling solution for jointless connection to the rest of the
ceiling and integration of the room lighting and optionally the ceiling
pendants or media bridges
The effectiveness and functionality of LTF ceiling systems have
meanwhile been proved by numerous studies and confirmed by independent hospital hygiene committees!
Clean operating room grade standard
Cleanliness | Maximum average concentration of bacteria by sedimentation method (plankton method) | Air cleanliness level | Reference surgery | ||||
Operation Area | Around area | Reference surgery | Around area | ||||
I | 0. 2cfu/30min φ90 (5cfu/m³) | 0.4 cfu /30min φ90 (10cfu/m³) | 5 | 6 | Prosthesis implants, certain large organ transplants, surgical site infections can directly endanger life and quality of life and other operations | ||
II | 0. 75cfu/30min φ90 (25cfu/m³) | 1. 5cfu/30min φ90 (50cfu/m³) | 6 | 7 | Major surgery involving deep tissues and major organs of life | ||
III | 2. 0cfu/30min φ90 (75cfu/m³) | 4. 0cfu/30min φ90 (150cfu/m³) | 7 | 8 | Other surgical procedures | ||
IV | 6. 0cfu/30min φ90 | 8.5 | Infection and severe contamination surgery | ||||
