20 feet lubricating oil tank container with insulation

20 feet lubricating oil tank container with insulation

Категория: Tank Containers >>>
Поставщик: Shenzhen,Standard,Automobile,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-16-2025	0.44 $*	0.27 $*
Aug-16-2025	0.42 $*	0.27 $*
Jul-16-2025	0.19 $*	0.76 $*
Jun-16-2025	0.76 $*	0.10 $*
May-16-2025	0.10 $*	0.33 $*
Apr-16-2025	0.46 $*	0.74 $*
Mar-16-2025	0.45 $*	0.59 $*
Feb-16-2025	0.9 $*	0.7 $*
Jan-16-2025	0.22 $*	0.4 $*

Характеристики

20 feet lubricating oil tank container with insulation layer

Product Description

Carbon Steel Tank Container Product Description

Specification
1. Design standard	IMDG-CODE, GB150-98
2. Recognized register	CCS
3. Tank shape	Column shape, horizontal
4. Size	20/40 feet, tank type
5. Dimension	6058 x 2438 x 2591 mm; 12192 x 2438 x 2591 mm
6. Capacity	25000/44500 liters
7. Loading medium	Gasoline, diesel or lubricating oil
8. Tare weight	3600/6200 kg
9. Payload	32400/43600 kg
10. Gross weight	36000/49800 kg
Standard Configuration
1. Design pressure	0.3 Mpa
2. Working pressure	0.2 Mpa
3. Test pressure	0.3 Mpa, hydraulic pressure test
4. Gastight test pressure	0.22 Mpa
5. Vacuum test pressure	0.041 Mpa
6. Design temperature	-40 to 130 celsius
7. Working temperature	-40 to 130 celsius
8. Corrosion degree	0
9. Welding joint efficiency	1.0
10. Radiographic inspection	100% X-RAY
11. Tank material	Q235, 5 mm
12. End enclosure	6 mm
13. Washplate	4 mm, 2/4 compartments, 1 bin
14. Compound manhole	DN500
15. Safety valve	DN80, FORTVALE
16. Gas phase valve	DN25, FORTVALE
17. Inlet and discharge valve	DN80, FORTVALE
18. Vapour return	DN80
19. Thermometer	-40 to 160 celsius, 1 pc
20. Exterior paneling	0.6 mm, sandwich steel plate plus stainless baling strip with waterproof sealing
21. Guardrail of ladder	W = 400 mm
22. Allowable stacking weight	192000 kg
Optional Configurations
1. Recognized register	BV or LR
2. Heating system
3. Insulated layer	50 mm rock wool

Detailed Images

Carbon Steel Tank Container Detailed Images

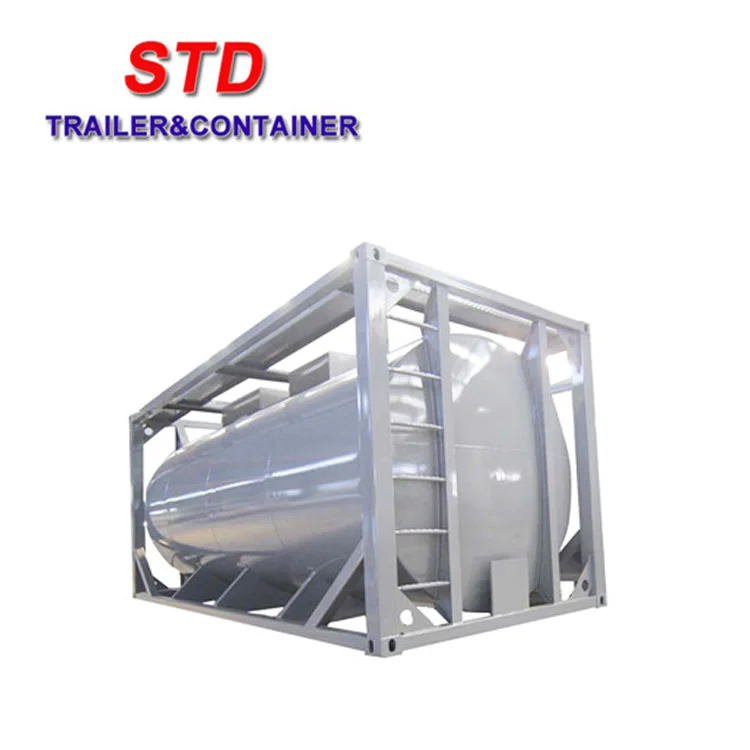

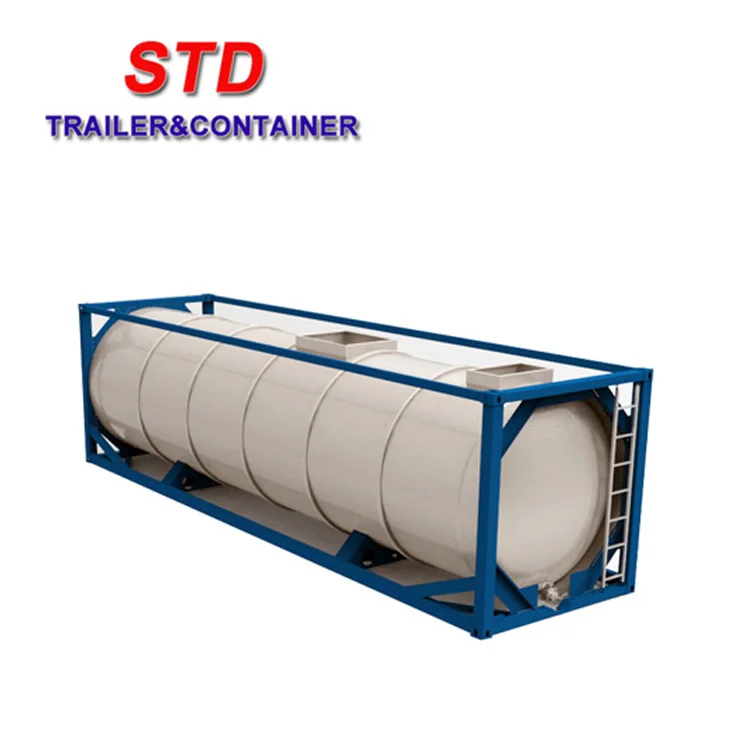

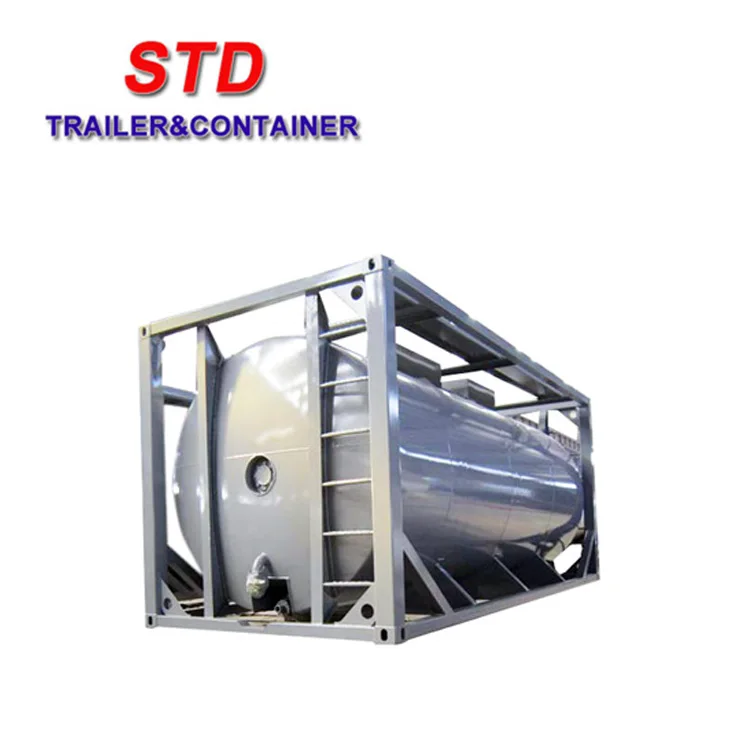

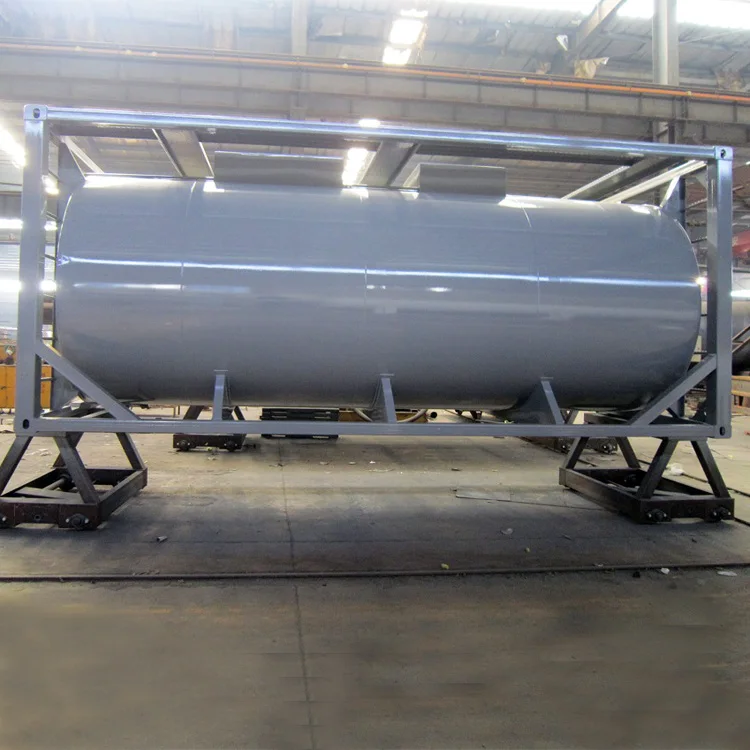

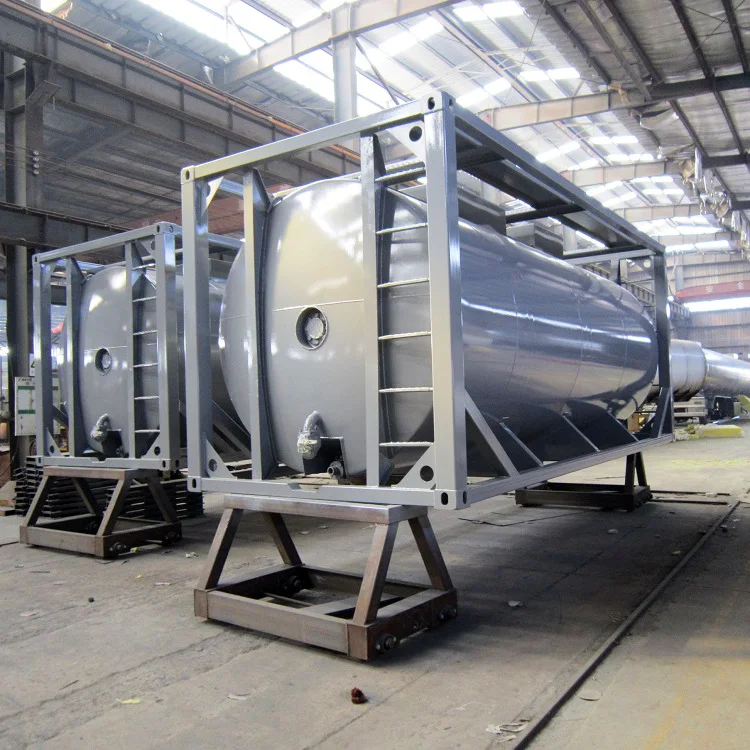

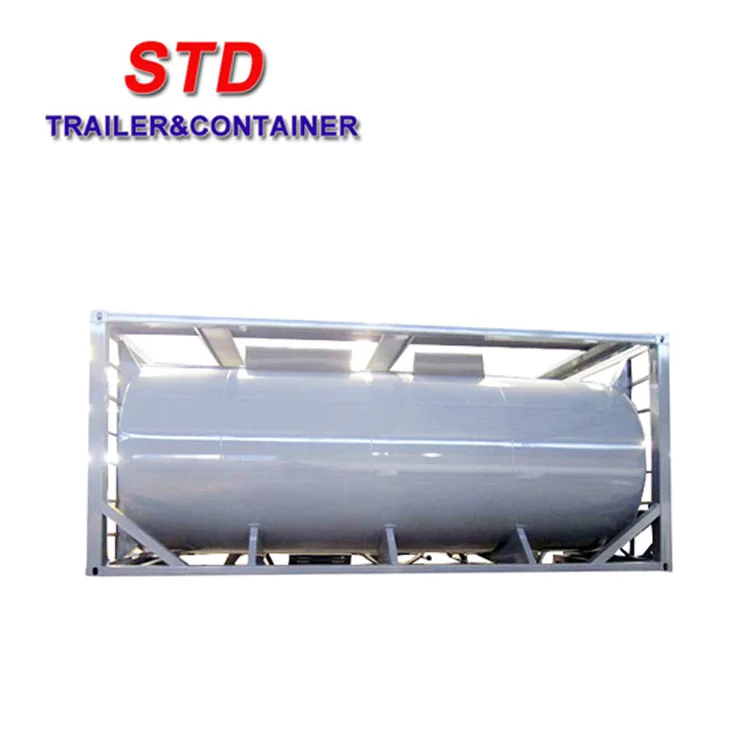

STDCSTC-5

STDCSTC-6

STDCSTC-7

STDCSTC-8

STDCSTC-9

Company Information

Company Information

About Us: Shenzhen Standard Automobile Co., Ltd (STD)

Shenzhen Standard Automobile Co., Ltd (STD) is established in 2012. An enterprise who perfectly combined design, manufacture and business trading. We focus on design and research of semi trailer

and shipping container, also supply with customized service.

Company is located in Shenzhen where is one of China's reform and opening-up city. We own a technical team who has engaged in semi trailer, shipping container and related fields for long time and best market team. we are mainly in charge with design, certificate, market and after-sales service. Our manufacturing base is located in Foshan, Guangdong province, covers area of 15,000 square meters which including 6000 square meters production department, dedicated to produce many kinds of semi trailer and special shipping container.

STD have much cooperation with the management department of China special vehicle industry, research institutes and large factories. We can offer full life-cycle solution from design, production, delivery to after-sales service. And also supply technical support for big customer.

Our main product including Container Trailer, Flatbed Trailer, Lowbed Trailer, Customized Trailer, Shipping Container, Reefer Container, Tank Container and Special Container totally eight series. STD's markets mainly including North America, West Europe, Southeast Asia, Middle East and Africa.
