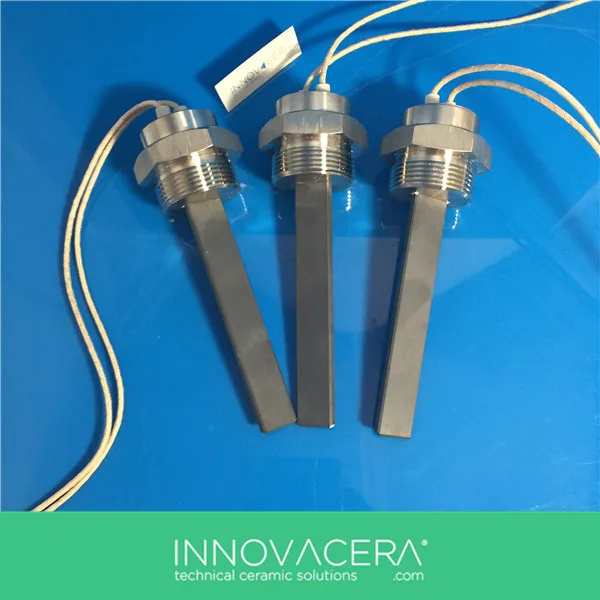

12v Silicon Nitride Hot Surface Igniter/Innovacera





Si₃N₄ Ceramic Air Heating Element uses high-performance silicon nitride ceramic (Si₃N₄) as the substrate, has excellent properties such as: high mechanical strength at high temperatures, high thermal shock resistance, acid corrosion resistance, high electric insulation and thermal conductivity. Due to its special formula and the hot pressing manufacturing technology, this product has the following features in applications:

• High electric insulation strength: No breakdown for 1 minute, at 2500V, 50Hz, and room temperature

• High application temperature: maximum 1200 ⁰C in air

• High power at unit surface, up to 25 W/cm²

• Small thermal inertia and fast heating

• Acid and alkali corrosion resistance

• Small size

• Long life

• Die heater

• Packaging machinery heater

• Tobacco equipment heater

• Industrial heating equipment

• Hot and cold drink machine heater

• Burner appliance ignition system

• Welding furnace heating

• Petrochemical industry heater

• High temperature ignition



Silicon Nitride, Hot Pressed Properties
Mechanical	SI/Metric (Imperial)	SI/Metric	(Imperial)
Density	gm/cc (lb/ft3)	3.29	-205.4
Porosity	% (%)	0	0
Color	—	black	—
Flexural Strength	MPa (lb/in2x103)	830	-120.4
Elastic Modulus	GPa (lb/in2x106)	310	-45
Shear Modulus	GPa (lb/in2x106)	—	—
Bulk Modulus	GPa (lb/in2x106)	—	—
Poisson’s Ratio	—	0.27	-0.27
Compressive Strength	MPa (lb/in2x103)	—	—
Hardness	Kg/mm2	1580	—
Fracture Toughness KIC	MPa•m1/2	6.1	—
Maximum Use Temperature	°C (°F)	1000	-1830
(no load)
Thermal
Thermal Conductivity	W/m•°K (BTU•in/ft2•hr•°F)	30	-208
Coefficient of Thermal Expansion	10–6/°C (10–6/°F)	3.3	-1.8
Specific Heat	J/Kg•°K (Btu/lb•°F)	—	—
Electrical
Dielectric Strength	ac-kv/mm (volts/mil)	—	—
Dielectric Constant	—	—	—
Dissipation Factor	—	—	—
Silicon Nitride, Pressureless Sintered Properties
Mechanical	SI/Metric (Imperial)	SI/Metric	(Imperial)
Density	gm/cc (lb/ft3)	3.27	-204
Porosity	% (%)	0	0
Color	—	black	—
Flexural Strength	MPa (lb/in2x103)	689	-100
Elastic Modulus	GPa (lb/in2x106)	310	-45
Shear Modulus	GPa (lb/in2x106)	—	—
Bulk Modulus	GPa (lb/in2x106)	—	—
Poisson’s Ratio	—	0.24	-0.24
Compressive Strength	MPa (lb/in2x103)	—	—
Hardness	Kg/mm2	1450	—
Fracture Toughness KIC	MPa•m1/2	5.7	—
Maximum Use Temperature	°C (°F)	1000	-1830
(no load)
Thermal
Thermal Conductivity	W/m•°K (BTU•in/ft2•hr•°F)	29	-201
Coefficient of Thermal Expansion	10–6/°C (10–6/°F)	3.3	-1.8
Specific Heat	J/Kg•°K (Btu/lb•°F)	—	—
Electrical
Dielectric Strength	ac-kv/mm (volts/mil)	—	—
Dielectric Constant	—	—	—
