Китайская фабрика двухслойная металлическая стеновая панель стальная кровля jch машина для формовки гофрированных


Поделиться:


Цена:10 800,00 $ - 12 800,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-16-2025 12852.50 $* 13495.94 $*
Aug-16-2025 12744.47 $* 13381.97 $*
Jul-16-2025 10692.86 $* 11227.28 $*
Jun-16-2025 12528.46 $* 13154.42 $*
May-16-2025 10908.19 $* 11453.56 $*
Apr-16-2025 12312.36 $* 12928.5 $*
Mar-16-2025 12204.98 $* 12814.8 $*
Feb-16-2025 12096.47 $* 12701.38 $*
Jan-16-2025 11988.80 $* 12587.38 $*

Характеристики


Product Description

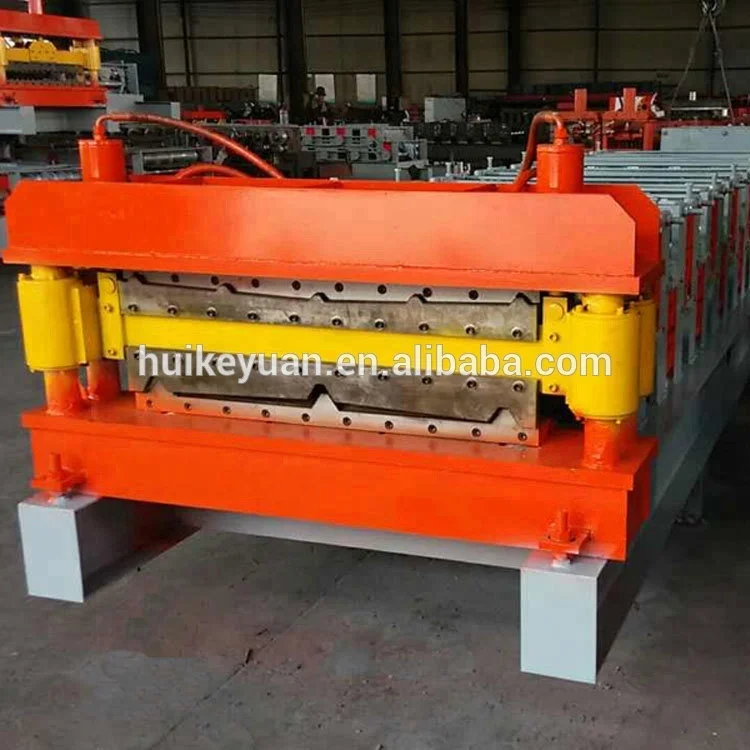

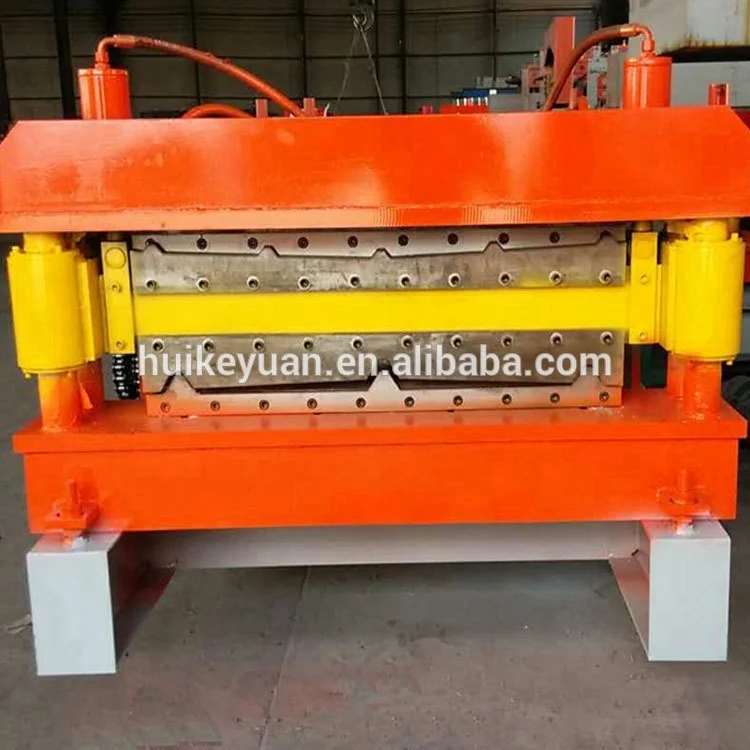

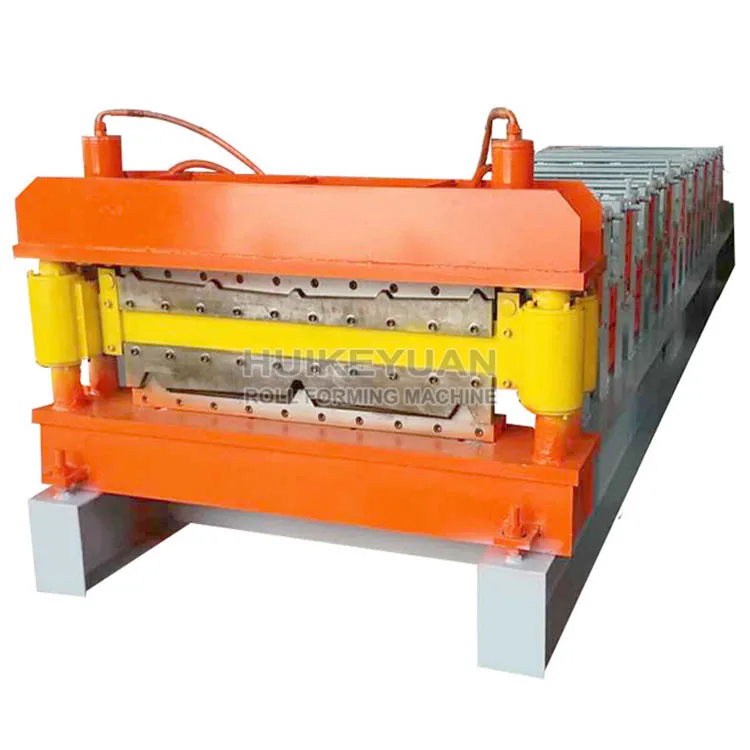

China Factory Making Building Material Double Layer Wall Panel Metal and jch steel Roofing Corrugated Tile Roll Forming Machine with the capable of forming a limited site area in two sections, and can quickly transform products, affordable, can be the perfect combination of the two models of devices into one, two plate replacement time becomes shorter, and also improve the rate of output.

\t
Manual Un-coiler
\t
◊ Max Capacity: 5000kgs
◊ Inner diameter of coil: 400-600mm
◊ Manual with brake
\t
Leveling Device
\t
◊ Ensure the material level and straight
◊ The width can be adjusted
\t

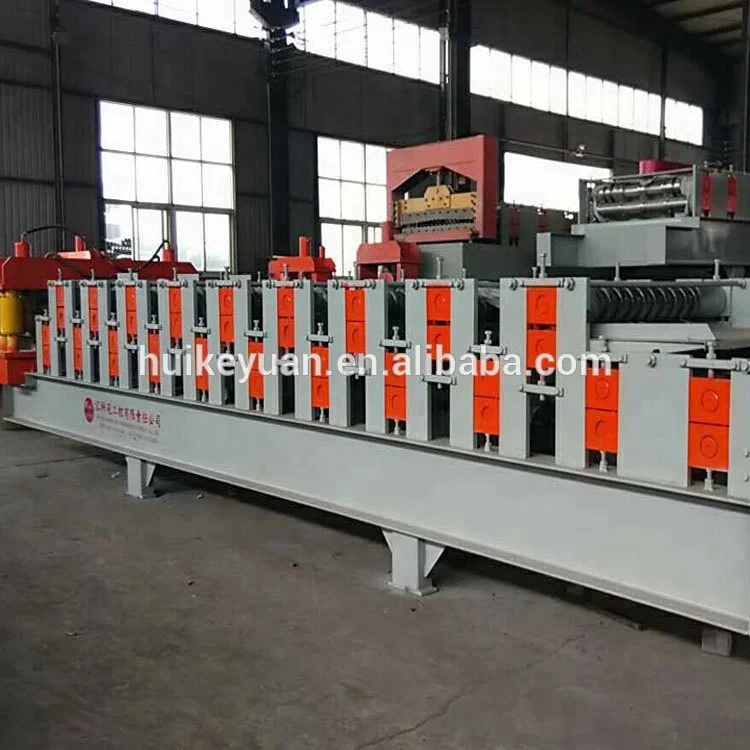

Auto Main Forming System
\t
◊ Max Feeding width:1220 mm

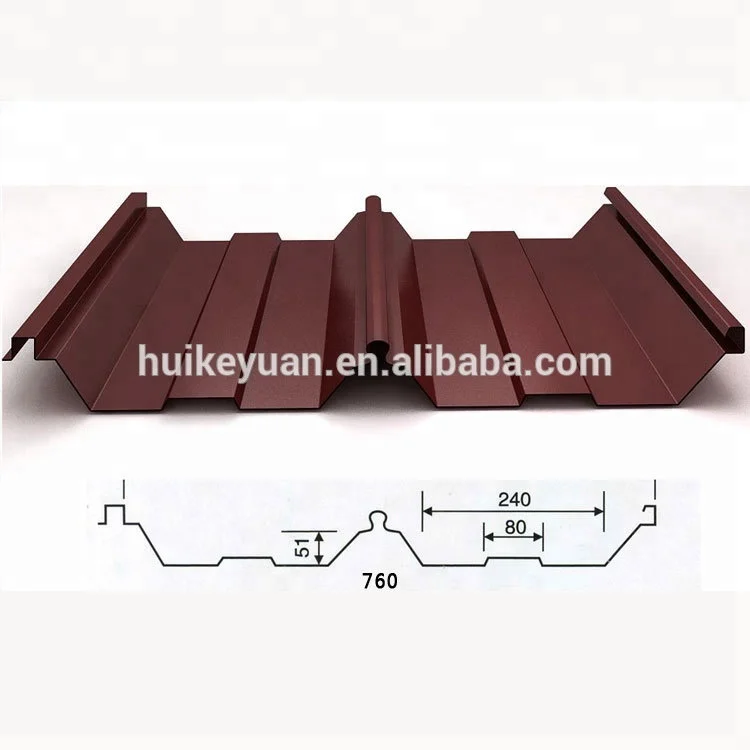

◊ Product width: 1000 & 1020 mm
◊ Thickness of sheet: 0.2-1.0mm
◊ Motor Power: 5.5 kw forming system
◊ Roller material: C45 steel
◊ Diameter of shaft: Upper level 95 mm Down level 95 mm

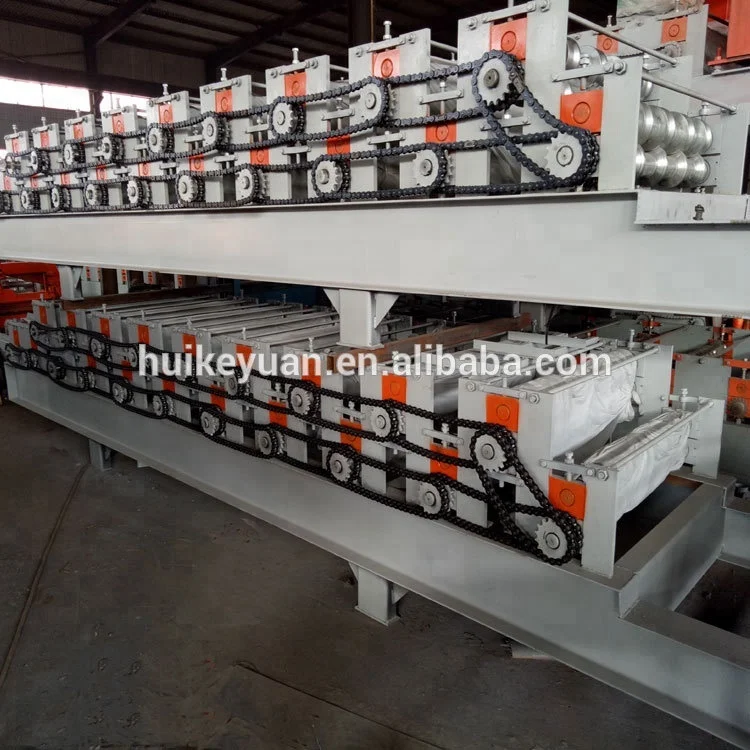

◊ Forming station: Upper level 12 stations. Down level 12 stations.
◊ Base Frame: 360 H steel welded..
\t
Hydraulic Cutting Device
\t
◊ Cutting way: pause to cut.
◊ Oil pump station 1set.
◊ Hydraulic power: 4 kw hydraulic system.
◊ Blade Material: CR12 with heat treatment HRC60-62.
\t
Electrical System
\t
◊ Control system: HMI & PLC control panel.
◊ Power: 440V 50Hz (as per local requirement)
\t
Run-out Table
\t
◊ Frame: 8# steel groove welded
◊ Roller type.
◊ Quantity: 1 pc
Products Show
Packing & Delivery

1. Shock bubble film

2. Suitable carton size

3. Shock bubble film

> Plastic Packing / Common Packing. Water-proof, Rust Prevention and Dust Prevention.

>By sea or other ways. In general, by sea, the port of loading is XINGANG PORT. It is only need 2 hours from our Company and Factory to Xingang Port, Tianjin City.

Our Company

Our Factory

Our Exhibition Hall

Our Reception


Our Workshop


Botou Huikeyuan Engineering Control Co.,Ltd was founded in 1989 and has become a recognized leader in the manufacture of Cold Roll forming machines and equipments

Our excellent reputation for sound and innovative engineering and 20 years of experience have brought us recognition for offering our customers the ultimate in efficiency for roll forming equipments and toolings


Why choose us?
1.We can make and design all kinds of roll forming machine according to customer's requests.
2.This is a very perfect and durable equipment. We have more than 13 years experiences.
3.This kind of machine has the best quality and the best price. It has accurate measurement and easy operating.
4.We can design and manufacture the special type machine according to the customers' requirement and we could provide technical guiding, production, installation, debugging and maintenance service to all customers.
5. Our product has been exported to many regions and won high reputation because of the high quality and reasonable price.

Our Certifications
Our customers
FAQ

Q: How can I contact you?

A: Please look at my contact card. You can talk to me anytime. Or send me enquiry email, I will reply you in 24 hours and offer the optimum solution to you

Q: What is the status of After-sale Services for customers and machineries?

A: Engineers available to service machinery overseas. But the customers/buyer should pay for installation and commissioning fee 100$/day to our point account. We will provide the technical support for the whole life of the equipment and free training.

Q: How to visit our company?

A: 1.Fly to Beijing airport: By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

2.Fly to Shanghai Airport: By high speed train From Shanghai Hongqiao to Cangzhou Xi(4.5 hours),then we can pick up you.
3.Fly to Guangzhou aiport: By air From Guangzhou to Beijing airtpot; By high speed train From Beijing Nan to Cangzhou Xi (1 hour),then we can pick up you.

Q: How many years since you have been in this field?

A: Our company has been producing roll forming machines for almost 20years.We have rich experience for manufacturing and designing the machine.

Our Service

> Warranty: 2 Years.
During the warranty period, it covers all spare parts of machines, if you find some spare parts were damaged,
those new spare parts will be supplied free by us, but normal wear and tear excepted. And the freight should be bore equally by both parties.
> We could provide technical guiding, production, installation, debugging and maintenance service to all customers. After the end of the warranty period, it's not free.
> We will provide the technical support for the whole life of the equipment.


Contact me
Lisa Yang (Sales Manager)
BOTOU HUIKEYUAN ENGINEERING CONTROL CO.,LTD.
Add: Fuzhuang Development Zone Botou City, Hebei, China
http://www.hkyformingmachine.com
Skype: lisayang213
Fax: +86-317-3087243
Cel: +86-15612755608/18660770108

we warmly weclome you to visit our facory!
