RINGDER LC-813 LCD Инфракрасный паровой термостат для сауны

Описание и отзывы

Трекер стоимости

Характеристики

Model: LC-813

Especially Design for High-end Sauna Room

1. Colorful LCD display (main difference with LC-812)
2. USB port for MP3
3. FM radio
4. Bluetooth module (optional)
5. Power down memory function (optional)
6. Dual panels: indoor display and operation panel and outdoor display and operation panel
7. Multi functions: heat, mp3, FM, inside and outside light, Color Therapy LED board, fan, AUX(UV/Oxygen bar etc.)

1. Temperature measuring range: 0~110°C
2. Temperature controlling range: 18~110°C
3. Resolution: 0.1°C
4. Accuracy: ±1°C
5. Power Supply: 220VAC±10%, or 110VAC±10% 50HZ/60HZ
6. Input: 1 NTC sensor(wire: 1m for standard, can be customized)
7. Inside lamp/outside lamp: 12VDC/2A
8. Loudspeaker: 12VDC, Speaker Impedance≥4Ω
9. Output: two 30A relay parallel outputs control heating; Fan: 10A relay; AUX output (colorful LED, or UV lamp or oxygen bar etc.):10A
10. Heat output: resistive load max. 3300W/220V, 1650W/110V(If you want to connect bigger load, please buy AC contactor on your local market, and connect AC contactor before using.)
11. Consumption: ≤3 w
12. Panel: 194×124(mm)
13. Ambient requirements: temperature: -10~60°C; humidity: 20~85% (No condensate)

Functions Menu:

Functions	Setting Range	Default	Adjusting Step	Unit
Temp. Setting	18~110	60	1	°C
Time Setting	1~99	30	1	Minute



Output Explanation:

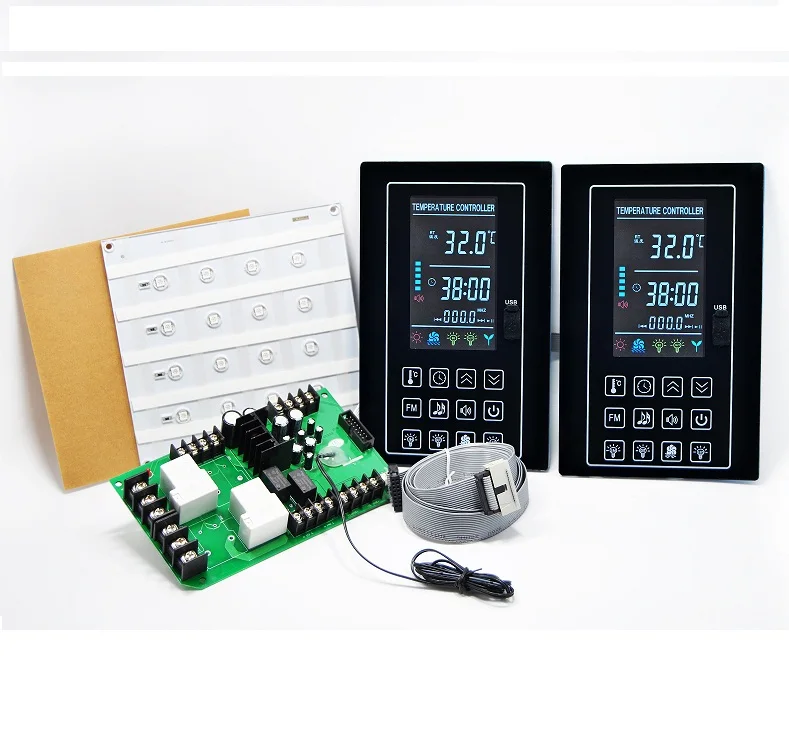

Packing List(please refer to the picture):

1.  Display unit x 2pcs(main display & deputy display)

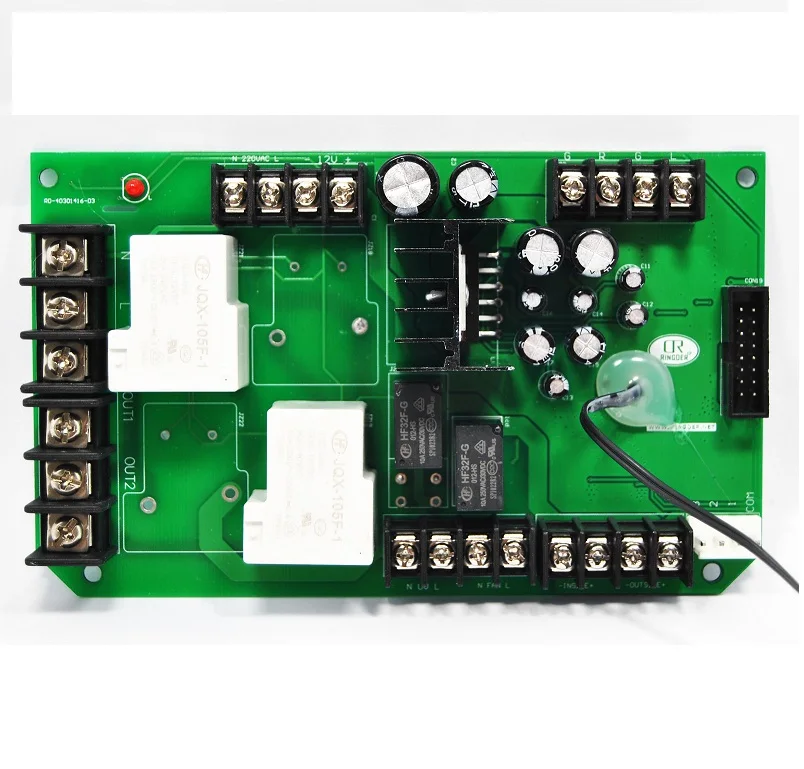

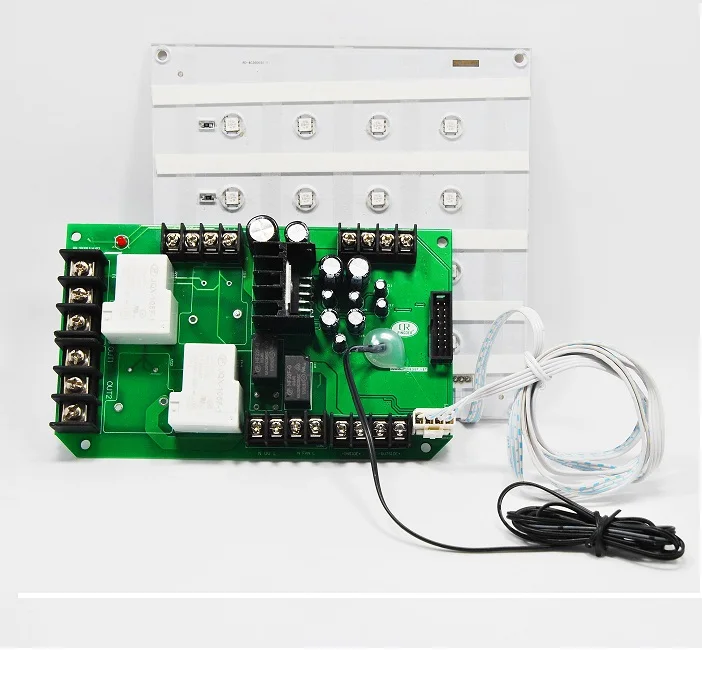

2.  Main board(control board) x 1pc

3.  Cable that connects main board and main display x 1pc (total 1.4m)

4.  Cable that connects main display and deputy display x 1pc

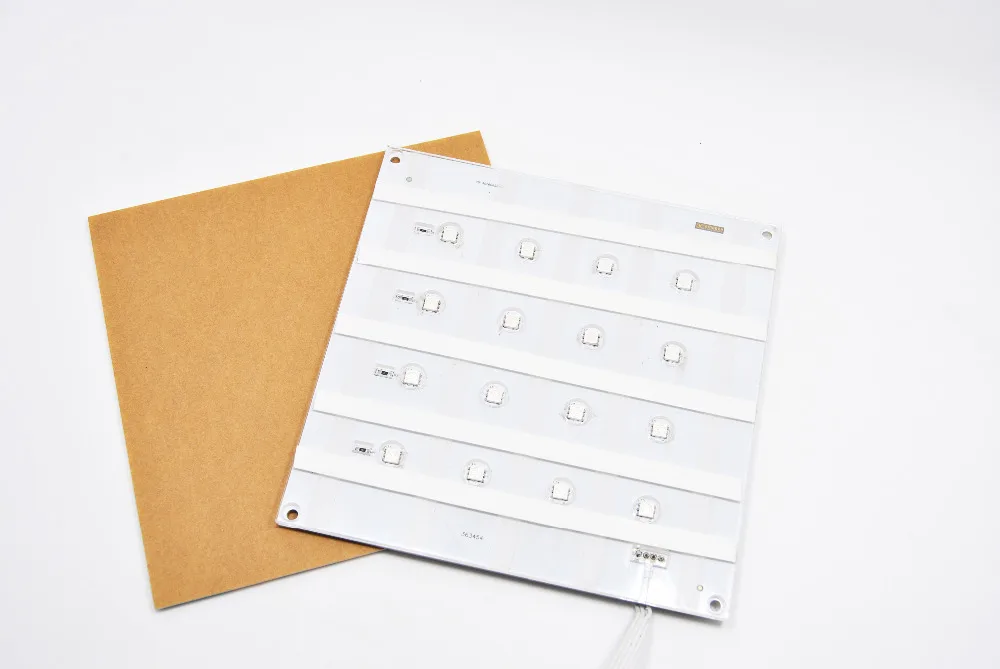

5.  LED board with cable x 1pc (as gift for free)

6.  User manual x 1

7.  Switching power supply(optional)
