Портативный металлографический микроскоп

Портативный металлографический микроскоп

Категория: Microscopes >>>
Поставщик: Ningbo,Haishu,Honyu,Opto-Electro,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-15-2025	0.98 $*	0.65 $*
Aug-15-2025	0.26 $*	0.7 $*
Jul-15-2025	0.73 $*	0.64 $*
Jun-15-2025	0.67 $*	0.83 $*
May-15-2025	0.4 $*	0.15 $*
Apr-15-2025	0.40 $*	0.78 $*
Mar-15-2025	0.42 $*	0.3 $*
Feb-15-2025	0.9 $*	0.56 $*
Jan-15-2025	0.46 $*	0.74 $*

Характеристики

Product Description

100X-500X Portable Metallographic Microscope MTL.24.01

Description

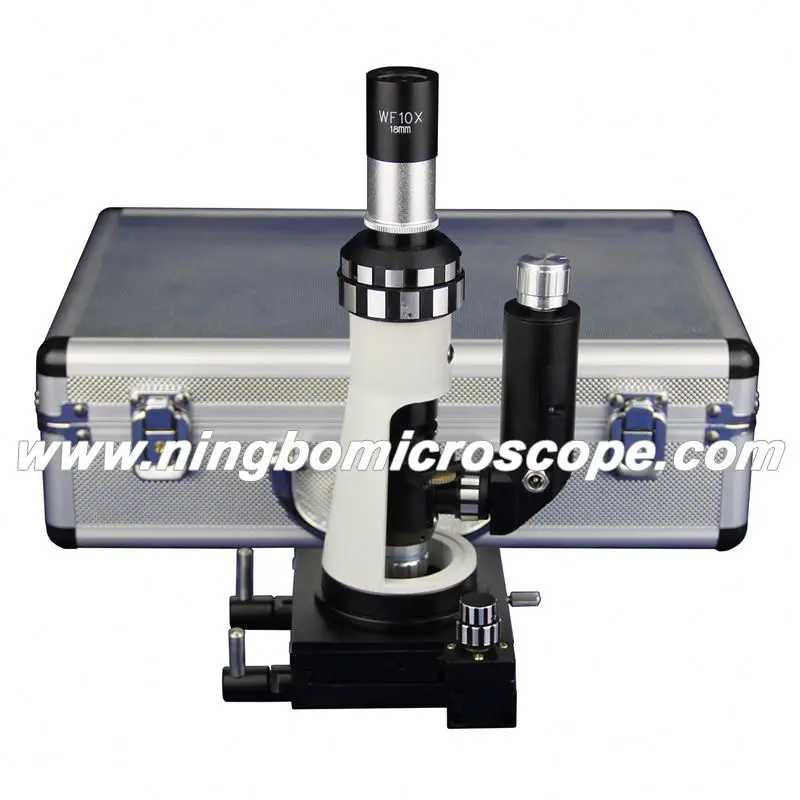

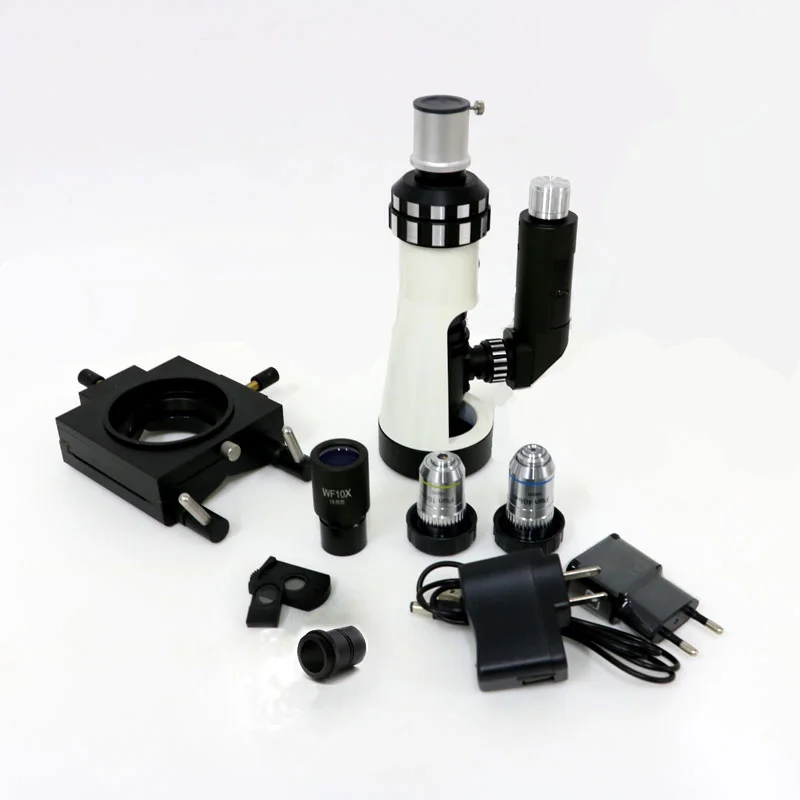

MTL.24.01 is a Portable Handheld Metallurgical Microscope. It has a standard magnification range of 10X-500X. It comes with a handheld metallurgical microscope body, one piece of wide field eyepiece, two long working distance Plan Metallurgical objectives, one set of polarizing kits, built-in rechargeable LED illumination. It is an ideal microscope for viewing opaque or metallurgical specimens or larger specimens that cannot be sampled or inspected on a standard microscope stage.

Features

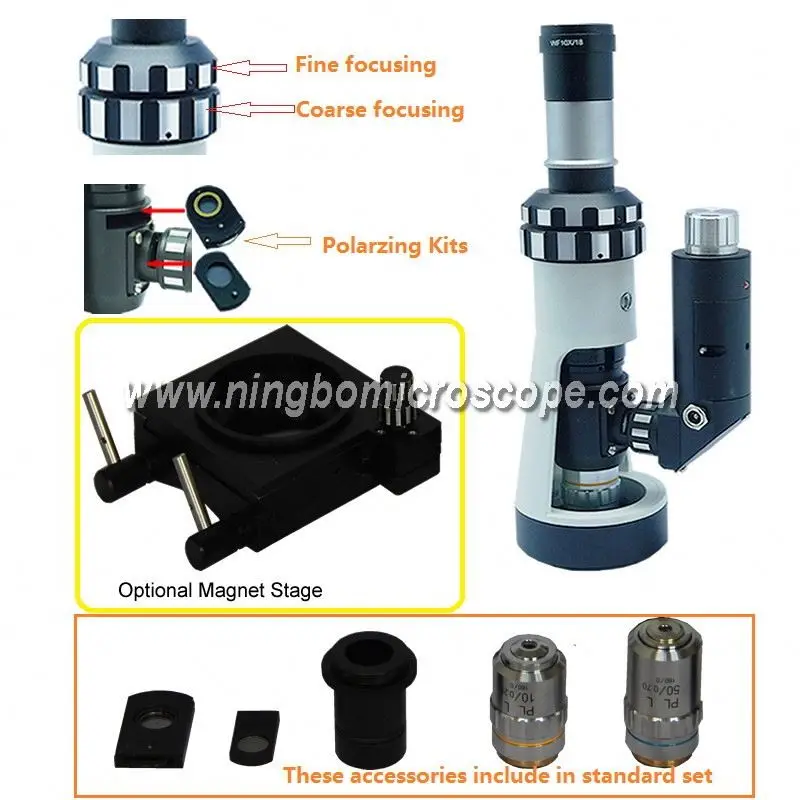

• Portable handheld design offering much inspection accessibility

• 100x-500x Microscope with Carrying Box(1000x reachable)

• Built-in rechargeable and adjustable LED illumination

• Magnetic base(Optional) for attaching to pipes, machinery, and other metal surfaces

Specification

Eyepiece	WF10X/FN18, Dia. 23.2
LWD Plan Objective (no cover glass)	PLL 10X/0.25 WD=7.3mm
LWD Plan Objective (no cover glass)	PLL 50X/0.65 WD=0.5mm
Adapter	C-mount adapter (for connecting C-mount cameras)
Mechanical Tube Length	160mm
Focusing	Coaxial coarse/fine focus system, range:36mm
Polarizing Kits	Polarizer and Analyzer
Light Source	Coaxial illumination, build-in LED rechargeable, brightness adjustable

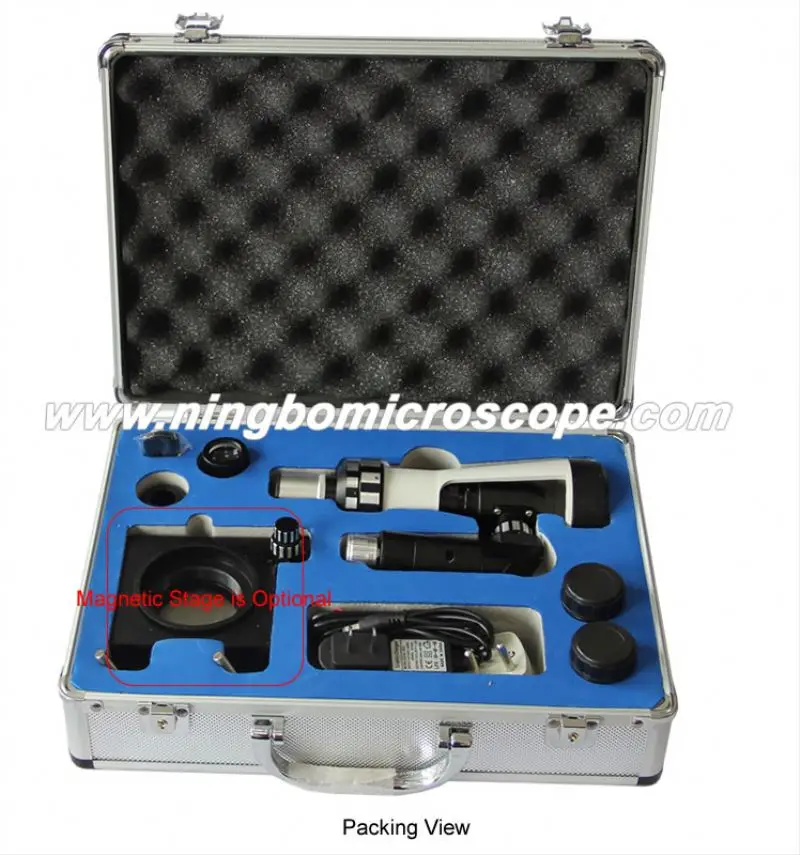

Packing info	Portable aluminium case

Optional Accessory

Parts Name	Specification	Order No.
Metal Specimen	50 Types Metal Specimen for Option ( MOQ 25pcs for one set)	SLD.28.MTL

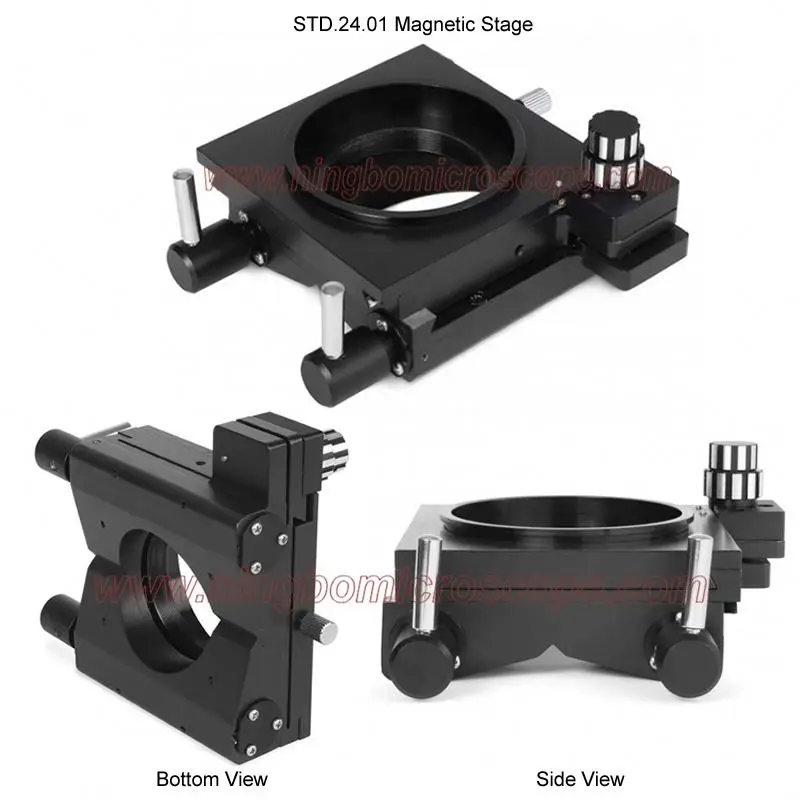

Magnet Stage	Magnetic stage, which can be stick on metal samples, make observation easier	STD.24.01

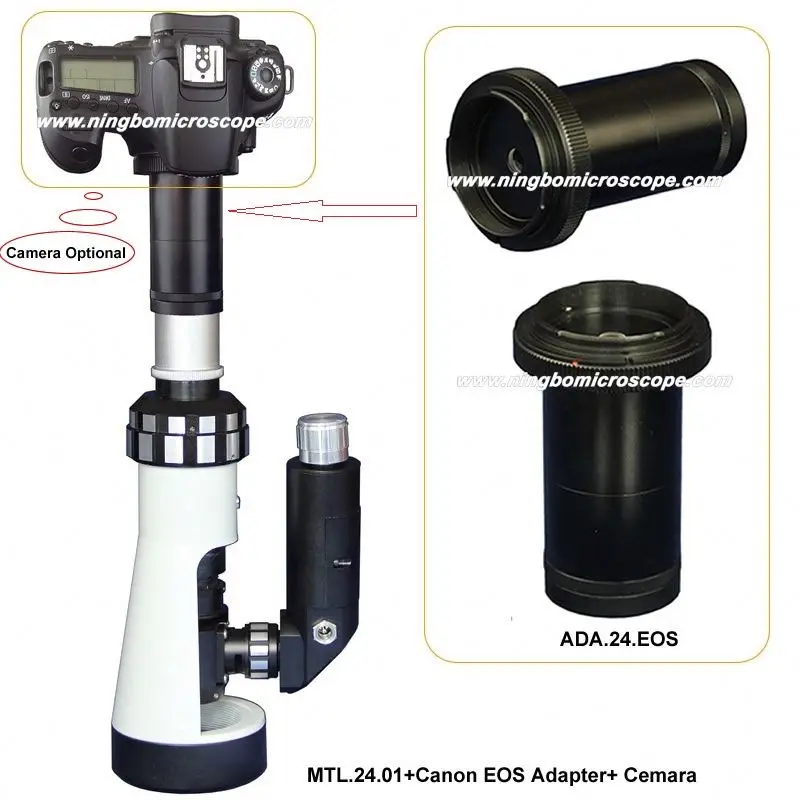

Digital Adapter	For Canon EOS Digital Camera	ADA.24.EOS
LWD Plan Objective Non-cover glass	PLL20 WD=8.6mm	OBJ.24.PLL20
	PLL60 WD=1.34mm	OBJ.24.PLL60
	PLL80 WD=0.96mm	OBJ.24.PLL80
	PLL100 WD=0.4mm	OBJ.24.PLL100
