Product Description









About Product V10-3188KCN



1. 16mm/AHD23mm/AHD29mm/AHD40mm CCD camera/AHD50mm CCD camera
2. 10 inch IPS lcd screen, 1280*720 resolution

3. DVR control box with audio ,video recording and photography function

4.20m Dia.5.2mm fiberglass copper axis cable, it can make good camera
image for long cable .

5. USB bluetooth keyboard to typewrite the words

6. Camera video resolution is 720P

7. Built in 8800mA li-ion battery inside ,support uint working more than 6 hours

8. Digital meter counter function, error is less than 1%

9.Built-in WIFI transmitter



Applications of Waterproof drain inspection camera



1.  WATER SUPPLY

2.  WASTER WATER

3.  ELECTRICAL AIR CONDITIONER

4.  CABLE DUCTING

5.  DUCTED VACuUM SYSTEMS

6.  PLUMBING

7.  IN BUILDING









Detailed Images







Camera Diameter	Φ29 x 57mm for pipe Φ30 to 200mm
Camera housing material	Stainless Steel
Lens window	sapphire glass
Sensor	700TVL 1/4'' CMOS camera
View angle	90 degree
LED lights	15 high light LED (adjustable)
Waterproof	IP68







Monitor Size	10"HD IPS LCD Screen
Pixels	1280X720 resolution
Display model	4:3
OSD language	English
Sun shield and remote control included
HD DVR SYSTEM with recording 720P video, auido and photography function
USB bluetooth Keyboard real time typewriting
Microphone Operation: Press down the button, the microphone is working
HAND SHANK: HAND SHANK 5 core Signal input
ENCODER: Meter counter 8 core Signal input
Video input jack 2 options (CAM1,CAM2_PT)
Built-in WIFI transmitter
Using intelligent terminals as display and recording device
Transmitter distance 30m
Through WIFI wireless transmit video to Android, Apply OS or MID terminal
Non-interference for 2.4G wireless remote control

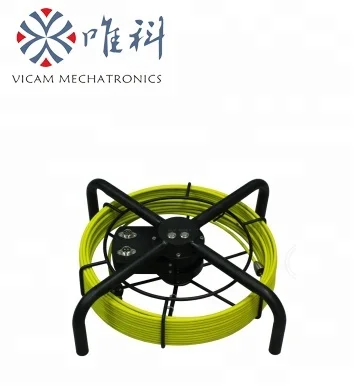

Cable Reel size	Φ320x110mm
Cable material	Fiberglass Rod
Cable length	20m(standard)/30m/40m/50m
Cable diameter	5.2mm
Push rod cable reel with meter counter









Battery pack

On/off knob on the side of the box

8800mA rechargeable Li-ion Battery Pack

Battery level indicator

AC100V-240V 3A power charger, DC12.5V  5%

Charging time 6 hours, working time 8-10 hours



Packing & Delivery







ABS carrying case size		520*435*200mm
1pcs/ctn	Carton box size	520*450*205mm
2pcs/ctn	Carton box size	538*438*480m





Our Service



♦ Your satisfaction is more than your order to us.



♦ Offer you quality products and meet you demands is our always goal



♦ Any of your inquiry or suggestions will catch our great attention



♦ OEM / ODM Services are available



Certifications







Company Information



Vicam Mechatronics Co., Ltd is located at Shangxue Industrial Park in Shenzhen, South of China. Specialising in the design, manufacture and assembly of video inspection systems, we have introduced the international advanced technology, designed and produced various video inspection cameras. Most of our products sold to Europe, America, Australia, Middle East, South Africa and South America market. In the process of Vicam growing up, we have got very important technical support from CYBERIA SAS, and Shenzhen Institutes of Advanced Technology.



Our main product range include portable pipeline video inspection system, industrial and city underground pipe video inspection system, special video inspection cameras and CCTV robots for complex applications and hazardous area rated environment.



The Vicam tenet is to rely on the advanced technology, meet the global market demand, provide good quality products and good service to all our customers!
