Характеристики
Products Description
* This line array speaker is perfectly combined with 1pcs 15" subwoofer unit and 24pcs 2" full frequency neodymium unit (TS-15A02)
This line array speaker is perfectly combined with 1pcs 15” subwoofer unit and 12pcs 3” full-frequency neodymium units. (TS-15A03)
* Low frequency speaker used large area of inverter hole design, reduce the distortion degree effectively.
* Full frequency speakers use stitching speaker design, with less speaker realize a wider range sound field covering. It is
compact high-performance line array system which can realize perfect voice transmission even in complex acoustic environment.
* Low-frequency speakers built-in 2 channel independent output amplifier, one channel drives bass unit , another channel drives full frequency speaker.
* Adopted PWM power amplifier, nonlinear distortion;Has the characteristics of current mode power amplifier, automatically recycling speaker reverse electromotive force.
* Built-in 2 input 2 output professional audio processor, the processor uses 96 KHZ sampling, 24 bit quantitative, 110 dB SNR.
* Audio processor and power amplifier interact perfectly, power amplifier state signal dynamic control processor compensation; Processors provide reference clock for the power amplifier, the power amplifier synchtonized with the processor instructions.
* Processor built-in equalizer, frequency divider, channel routing, decelerator, pressure limit, the noise gate and other signal
professing function.
* Using bipolar orthogonal type power supply, continue to provide energy in big dynamic, fixed frequency switch regulated power supply, reduce frequency drift beat signal interference with audio channel.
* Used loop which can meet the feature of audio power amplifier, it can speed up the power, ensure enough energy supply even quickly switch between no load and full load.
* The machine precision design of crossover point optimize the power response and vocals high-fidelity reduction; perfect
protection, short circuit protection, over current protection, over temperature protection, under-voltage protection.
* Low-frequency loudspeaker box made of 18mm plywood, it is light, wear-resisting spray paint processing, anti-dust mesh cotton is stuck outside, line array full frequency speaker box body made of 3mm aluminum and resistant paint processing.
* Whole speaker use removable combination design, at the top of low frequency speaker has screw thread hole, can be installed full frequency speaker with thread.
This line array speaker is perfectly combined with 1pcs 15” subwoofer unit and 12pcs 3” full-frequency neodymium units. (TS-15A03)
* Low frequency speaker used large area of inverter hole design, reduce the distortion degree effectively.
* Full frequency speakers use stitching speaker design, with less speaker realize a wider range sound field covering. It is
compact high-performance line array system which can realize perfect voice transmission even in complex acoustic environment.
* Low-frequency speakers built-in 2 channel independent output amplifier, one channel drives bass unit , another channel drives full frequency speaker.
* Adopted PWM power amplifier, nonlinear distortion;Has the characteristics of current mode power amplifier, automatically recycling speaker reverse electromotive force.
* Built-in 2 input 2 output professional audio processor, the processor uses 96 KHZ sampling, 24 bit quantitative, 110 dB SNR.
* Audio processor and power amplifier interact perfectly, power amplifier state signal dynamic control processor compensation; Processors provide reference clock for the power amplifier, the power amplifier synchtonized with the processor instructions.
* Processor built-in equalizer, frequency divider, channel routing, decelerator, pressure limit, the noise gate and other signal
professing function.
* Using bipolar orthogonal type power supply, continue to provide energy in big dynamic, fixed frequency switch regulated power supply, reduce frequency drift beat signal interference with audio channel.
* Used loop which can meet the feature of audio power amplifier, it can speed up the power, ensure enough energy supply even quickly switch between no load and full load.
* The machine precision design of crossover point optimize the power response and vocals high-fidelity reduction; perfect
protection, short circuit protection, over current protection, over temperature protection, under-voltage protection.
* Low-frequency loudspeaker box made of 18mm plywood, it is light, wear-resisting spray paint processing, anti-dust mesh cotton is stuck outside, line array full frequency speaker box body made of 3mm aluminum and resistant paint processing.
* Whole speaker use removable combination design, at the top of low frequency speaker has screw thread hole, can be installed full frequency speaker with thread.
Application
Suitable for medium and large conference room, banquet halls, multi-function room, large auditorium, lecture halls and other sound reinforcement places.
Specification
Model | TS-15A02 | TS-15A03 |
Impedance | Bass 4Ω+full range 4Ω | Bass 4Ω+ Full Range 8Ω |
Frequency Response | 40Hz-20KHz | 40Hz~20KHz |
Rated Power | Bass 500W+full range 500W | Bass 500W + Full Range 400W |
Peak Power | 4000W | 3600W |
Sensitivity | 99dB/W/M | 99dB/W/M |
Line Input Sensitivity | 0dB | 0dB |
Max SPL (Rated/Peak) | 129dB/135dB | 129dB/135dB |
Unit | 15"bass ×1+2"full frequency ×24 | 15" Bass x 1 + 3" Full frequency×12 |
Subwoofer Dimension (H×W×D) | H 580×L 440×D 525 mm | 580×440×525mm |
Full-range Speaker Dimension (H×W×D) | H 2100×L 63×D 80 mm | 1110×105×98mm |
Total weight | 46Kg | 43Kg |
Recommend Products
Company Profile
About ITC
Guangzhou Baolun Electronic Co.,Ltd (ITC) was founded in 1993,with more than 500 professional engineers for different systems in R&D center and more than 3.000 staffs in total. We are professional manufacturer for audiovisual (PA system, speaker, amplifiers,
LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.
LED screen, Conference system and etc.) & lighting products. ITC has strict quality control, SMT production lines and imported raw materials from international brands, products comes with CE,RoHs,EN54,ISO,CCC certificates, meet Europe standard. Our products are exported to all over the world with good reputation. ITC successful cases exceed 1,000,000 all over the world.
Certifications
ITC Factory
ITC has 5 manufacturing centers,2 R&D centers and 1 logistics center.Cause of the strong R&D ability and production capabilities, we provide customers with reliable products with excellent quality and timely delivery.In addition,we can also provide the trade, OEM and ODM service.
Factory Overview

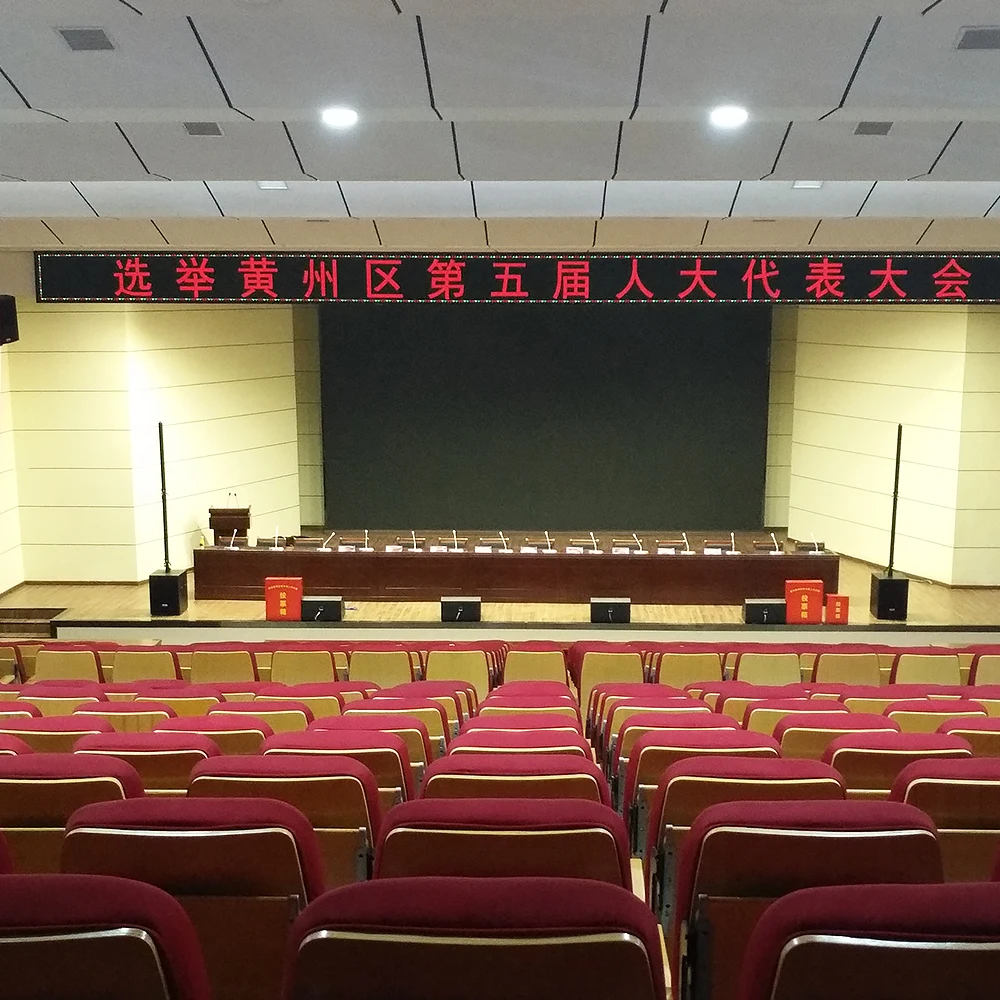

Our Cases&Exhibition
