Fuyuang двойной выход 30V 3A ac dc источник
- Категория: Switching Power Supply >>>
- Поставщик: Dongguan,Fuyuan,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.59 $* | 0.53 $* |
| Aug-18-2025 | 0.28 $* | 0.44 $* |
| Jul-18-2025 | 0.25 $* | 0.52 $* |
| Jun-18-2025 | 0.85 $* | 0.58 $* |
| May-18-2025 | 0.9 $* | 0.64 $* |
| Apr-18-2025 | 0.77 $* | 0.61 $* |
| Mar-18-2025 | 0.96 $* | 0.75 $* |
| Feb-18-2025 | 0.8 $* | 0.3 $* |
| Jan-18-2025 | 0.97 $* | 0.8 $* |
Характеристики
Fuyuang dual output 30V 3A ac dc power supply
Product Description
Advantage :
*Global certificates: CE,GS,CB,UL,CUL,FCC,PSE,SAA,C-TICK,RCM,KC,CCC,ROSH,REACH,ERP,MEPS,NRcan.
*All power supply,battery chargers and power adapters are 100% burn-in tested and inspected with automatic test equipmrnt(ATE).
*100% inspection: no load voltage, load voltage,short circuit, OCP,OVP, Ripple Voltage, Primary, HIPOT test and general appearance.
*Safety standard: UL60950,EN55022,EN55015,EN61547,EN61000,EN60335,EN61558,EN61347-1,EN61347-2 -13,EN62233,EN60529,GB4943.1,GB9254,GB17625,J60950,J55022,J3000,J61347-1,J61347-2-13,J55015,J55014,J61558,K00022,K00024.
*We back our items with three-year guarantees.
*Key components made by ourselves, such as Transformer, case, and DC cord.
*Lead by general engineer of 25 years experience.
*Both OEM and ODM are vailable
Parameter:
| Item | Parameter |
| Part name: | Fuyuang dual output 30V 3A ac dc power supply |
| Model No. | FY3003000 |
| AC Input: | 100-240V,50/60HZ |
| Max charging voltage: | 30V |
| Max charging current: | 3A |
| Inrush current: | Limited 15A when cold starting |
| Protection: | short circuit, over current and over voltage protection. |
| Efficiency: | 88% |
| Power factor: | 0.89 |
| HIPOT testing: | 3000-3700V |
| Drop testing: | meet UL standard. |
| Temperature: | Case 65 ºC Max. |
| Operating temperature | -29ºC~ +45.5ºC |
| Storage temperature: | -40ºC~ +75ºC |
| MTBF: | 30000 hours full rated load at 25ºC |
| Energy Efficiency: | Level VI( DOE or COC) |
| AQL: | MIL-STD-105E II CRI 0; MAJ 0.25; NIN 1.0 |

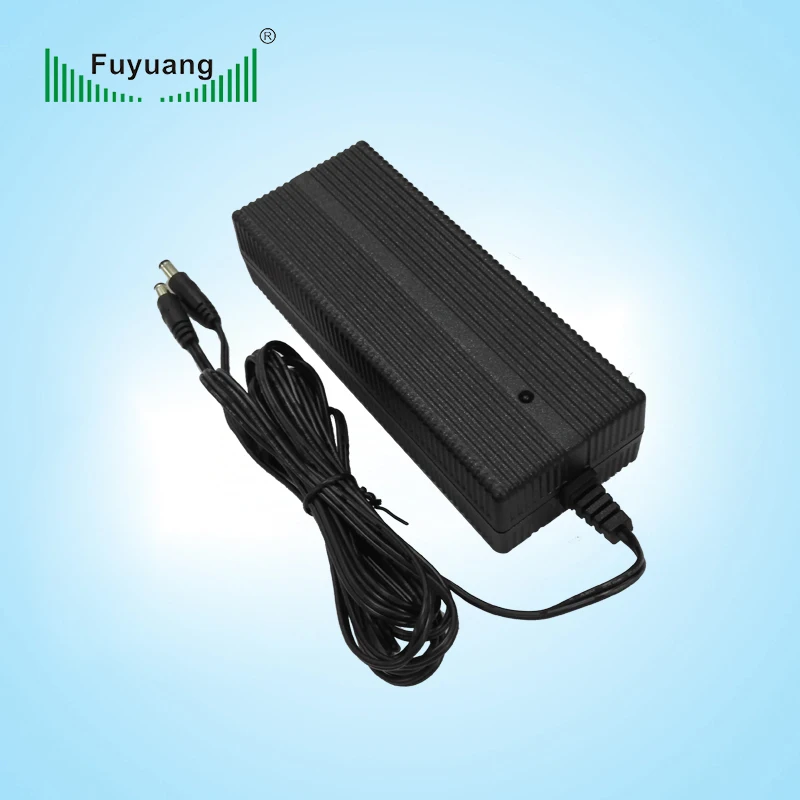

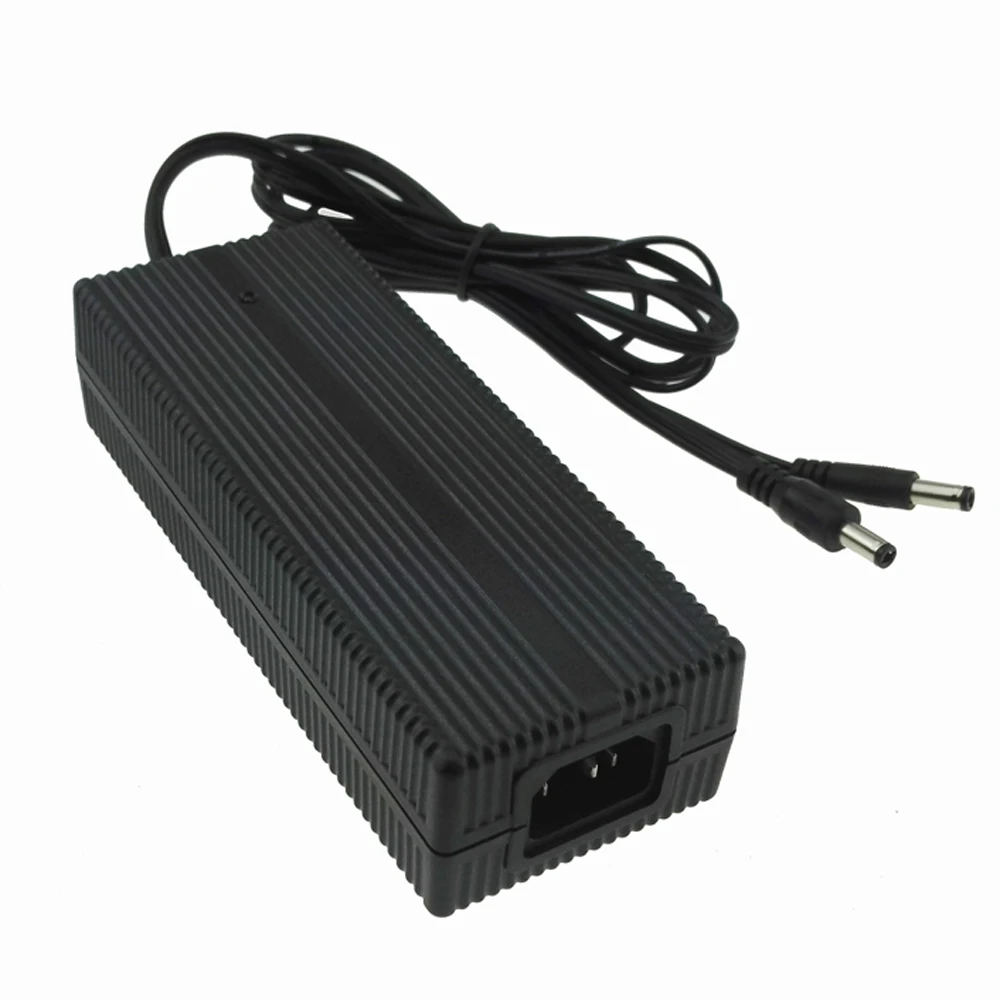

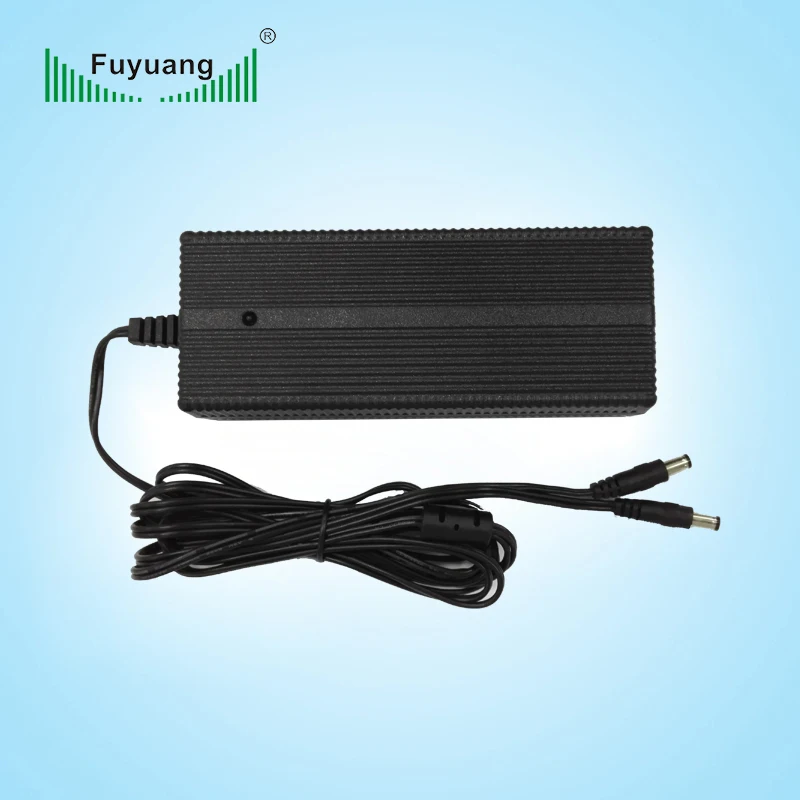

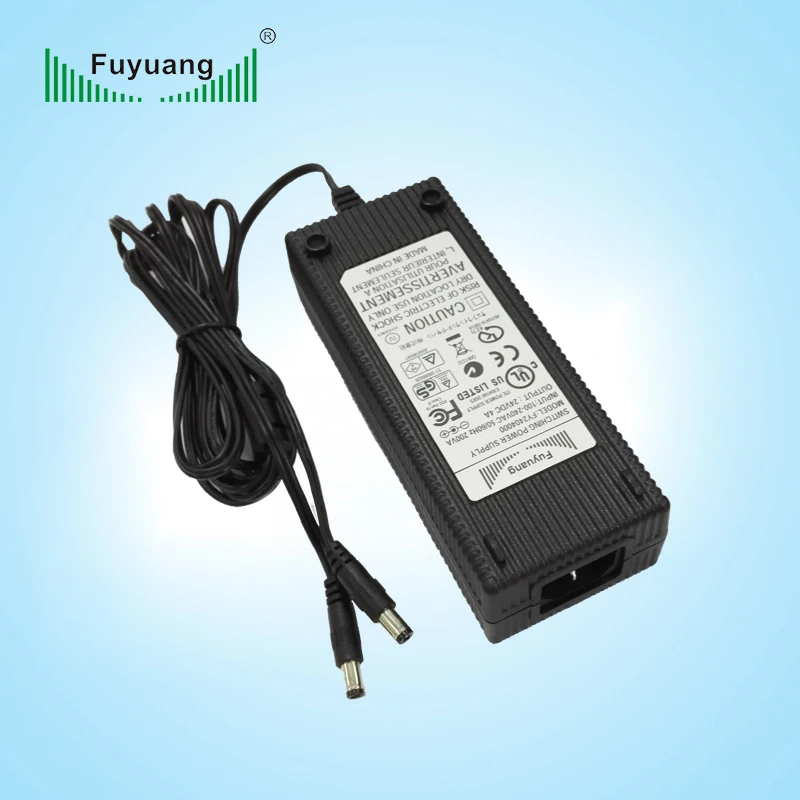

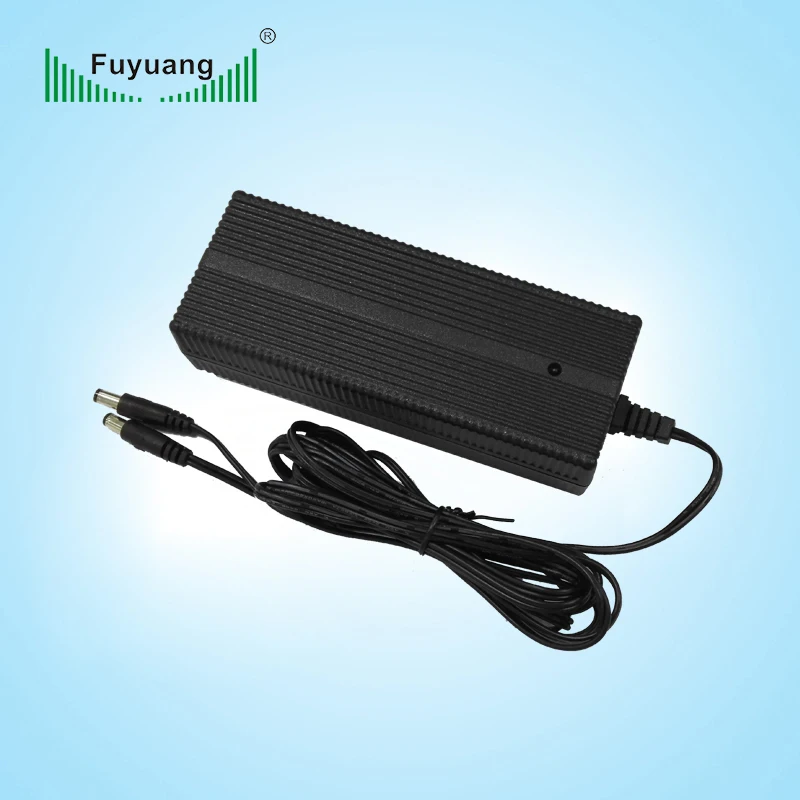

More Pictures:
Application:
Based on 25 years' engineering experience, we specialized in 60-500W high-power power supply products. Our power adapter,battery charger and LED power supply are widely used in battery pack (Lithium battery, LifePO4 battery, Lead acid battery, Ni-MH battery), iRobot Scooba, Roomba Vacuum Cleaner, E-bike, Electric Golf Cart, Electric Vehicle, Electric Toys, Power tools, Motor, Massage Equipment, Monitoring System, Beauty instruments, medical instruments, Safety Security Products, Humidifier, Water-pump, Wheel Chair, Self-balance Scoober, Air Cleaner, Print Device, Precise Digital Measuring Apparatus, Audio Amplifier, LED Lighting, Digital Communication Products, LCD, LED Display ,etc
Production Capability:
Certifications File No:
- UL file No.:Power Supply: E304160 ; Waterproof LED driver -E343215 Check here:www.ul.com
- TUV/GS file No.:S1 50224721& S150205925 & S150203696 & S1 50272098& S1 50278124& S1 50270517 Check here:www.tuv.com
- SAA file No.:ESO110651(replace of Q061232)& SAA131909EA & SAA130561 & EAE1308371 Check here https://equipment.erac.gov.au/Public/
- C-tick file No.:N17653 & N136, Check here: http://www.cotek.sg/approval.html
- PSE file No.:JD50195547 & JD50248227 & JD 50287481 Check here: http://www.certipedia.com
- EK file No.:HU10419-7001A Check here: www.ktc.re.kr,
- KC file No.:HU10419-9002A Check here: www.ktc.re.kr
- CE file No.:E0604412-01&S1403017 Check here:www.usai.cn
- RoHS file No.:CANEC1313005401 Check here: http://rsts.cn.sgs.com/zh-cn/cheres_cn.asp
- CCC file No.:2014010907681379 Check here: http://www.cnca.gov.cn
- CB Certification No.:JPTUV-042130&JPTUV-037849&DE 2-014922&DE 2-017489 Check here:www.tuv.com
Packaging & Shipping
