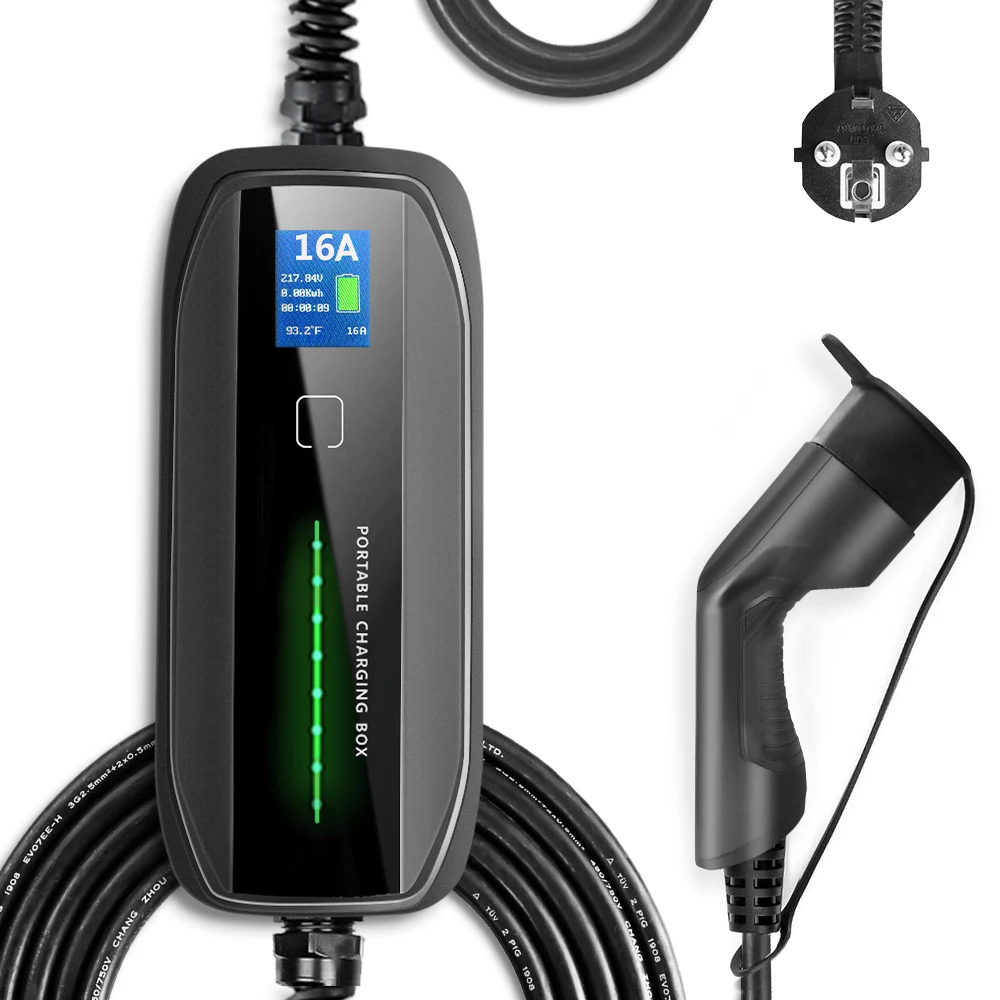

10 а/16 А Регулируемая портативная зарядная станция IEC 62196-2 EV с штепсельной вилкой
- Категория: Автомобильная электроника >>>
- Поставщик: Besen,International,Group,(Nanjing),Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 129.74 $* | 135.26 $* |
| Aug-16-2025 | 127.64 $* | 133.57 $* |
| Jul-16-2025 | 107.88 $* | 112.47 $* |
| Jun-16-2025 | 125.26 $* | 131.50 $* |
| May-16-2025 | 109.5 $* | 114.71 $* |
| Apr-16-2025 | 123.9 $* | 129.31 $* |
| Mar-16-2025 | 122.82 $* | 128.83 $* |
| Feb-16-2025 | 121.99 $* | 127.51 $* |
| Jan-16-2025 | 120.82 $* | 126.99 $* |
Характеристики
Product Description
Input & Output | ||||||
Input voltage/Output voltage | 100~250V AC | Max. output current | 16A | |||
Input frequency | 47~63Hz | Charging interface type | IEC 62196-2 | |||
Max. output power | 3.6KW | |||||
Protection | ||||||
Over voltage protection | yes | Earth leakage protection | yes | |||
Under voltage protection | yes | Over-temp protection | yes | |||
Over load protection | yes | Lightning protection | yes | |||
Short circuit protection | yes | |||||
Function and Accessory | ||||||
Ethernet/WIFI/4G | No | LED Indicator light | Rolling | |||
LCD | 1.8-inch color display | Intelligent power adjustment | yes | |||
RCD | Type A | RFID | No | |||
Working environment | ||||||
Protection degree | IP67 | Maximum altitude | <2000m | |||
Environment temperature | -40℃ ~ +50℃ | Cooling | Natural air cooling | |||
Relative humidity | 0-95% non-condensing | Standby power consumpiton | <8W | |||
Package | ||||||
Dimension (W/H/D) | 249/104/48mm | Weight | 3KG | |||
Certificate | CE, FCC, IK10, IP65 | |||||
Detailed Images
CAUTION:
1. Don't submerge the ev charging box in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A scoket. It is suggested taht the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this ev charging box when the cable is damaged.
9. The ev charging box is only for ev charging using.
10. Don't use this device with an extension cord or adaptor.
1. Don't submerge the ev charging box in water.
2. Don't step on, fold or knot the cable.
3. Don't drop the EV charging box or place a heavy object on it.
4. Don't place the charging cable near high temperature object when charging.
5. Don't operate the EVSE in temperatures beyond its operating range of -25°C to 55°C.
6. Power-supply side input cable should be at least 3*2.5mm (recommended 3*4mm), with a standard 16A scoket. It is suggested taht the power distribution is done by the professionals.
7. Don't put fingers into the charging connector when the power plug is still connecting to the power.
8. Don't use this ev charging box when the cable is damaged.
9. The ev charging box is only for ev charging using.
10. Don't use this device with an extension cord or adaptor.
Our Company
BESEN
BESEN is a manufacturer specializing in EV Charging products. Additionally to the production, our company has Design and R&D departments. Our main products are EV charging stations, EV cables and EV connectors. Along with the regular products we also offer product customization service upon the request in order to meet the local market preferences and needs.
We strive to provide constantly updated products, perfect project solutions and efficient after-sales service toensure our customers rank top in the market. We are committed to become the most professional EV chargingequipment manufacturer in China and will keep working hard for it.
We strive to provide constantly updated products, perfect project solutions and efficient after-sales service toensure our customers rank top in the market. We are committed to become the most professional EV chargingequipment manufacturer in China and will keep working hard for it.
We have abundant experience of EV charging products. Our products have been successfully applied in most of countries all over the world. From cold Norway to hot Saudi Arabia, you can see form of our products. We provide the most professional products and the best quality service to each of our customers.
ev charging box
We pay more attention to handle the detailed part of our products, hope to provide with our customers safety, difficult to damage and convenient operation in use.
