Оптоволоконный Сварочный Аппарат Sumitomo для термического сращивания/ftth оптический сварочный аппарат сращивания

Оптоволоконный Сварочный Аппарат Sumitomo для термического сращивания/ftth оптический сварочный аппарат сращивания

Цена:500,00 $ - 550,00 $*

Количество:

Fiber Optical Sumitomo Fusion Splicer/ftth optical splicer machine hot fiber fusion splicing machine

Features:

u Compact & Light weight

u Fully Automatic Operation

u 5000m altitude ensures Splice Quality

u SYSTEM TEST ensures the best working condition

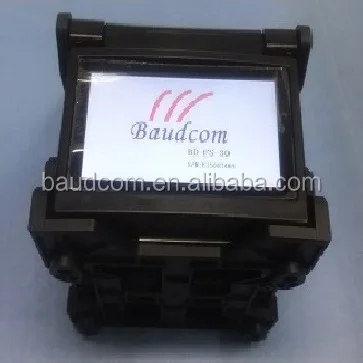

u Color LCD monitor

u Pause function, convenient for scientific research

u Store 8000 groups of splice results

u USB&DC interface

u High battery capacity, up to 260 times of continuous splice and heat

740 IMG_20151103_103000-M

Specifications:

Applicable Fibers	SM, MM, DS, NZDS, G655,G657 and others
Fiber Diameter	Cladding Diameter: 80-150 um; Coating Diameter: 100~1000 um
Fiber Cleaved Length	8-22mm
Typical Splicing Time	8 seconds
Tube Heating Time	30 seconds
Splice Loss	MM: 0.01dB; SM: 0.02dB; DS: 0.04dB; NZDS: 0.04dB
Return Loss	60dB
Tension Test	2.0N
Sleeve Length	25mm, 40mm, 50mm
Splicing Program	Automatic Setting
Storage Memory	10000
Language	English, Chinese
Alignment	Core Alignment(PAS Technology)
Splice method	Arc splicing
Fiber holder	Replaceable and Suitable for the Splice of bare fiber ,pigtail ,patch cord, optical fiber drop cable and SC,FC,LC connector
Interface	USB, suitable for data download and software update
Electrode Span	At least 5000 times
Operating Temp.	-18°C~50°C
Storage Temp.	-40°C~80°C
Operating Altitude	0~5,000m
Humidity	0~95%RH
Wind Protection	max. wind velocity of 15m/s
Power Supply	AC adaptor: 85~260V input voltage; internal battery: 12V & 10A; DC adaptor: 12V/2A Power for external heater, light or hot jacket stripper
Battery Capacity	up to 200 times of splices and heats
Dimension	122(D)122(W)130(H)mm
Weight	1.8kg(Include battery)

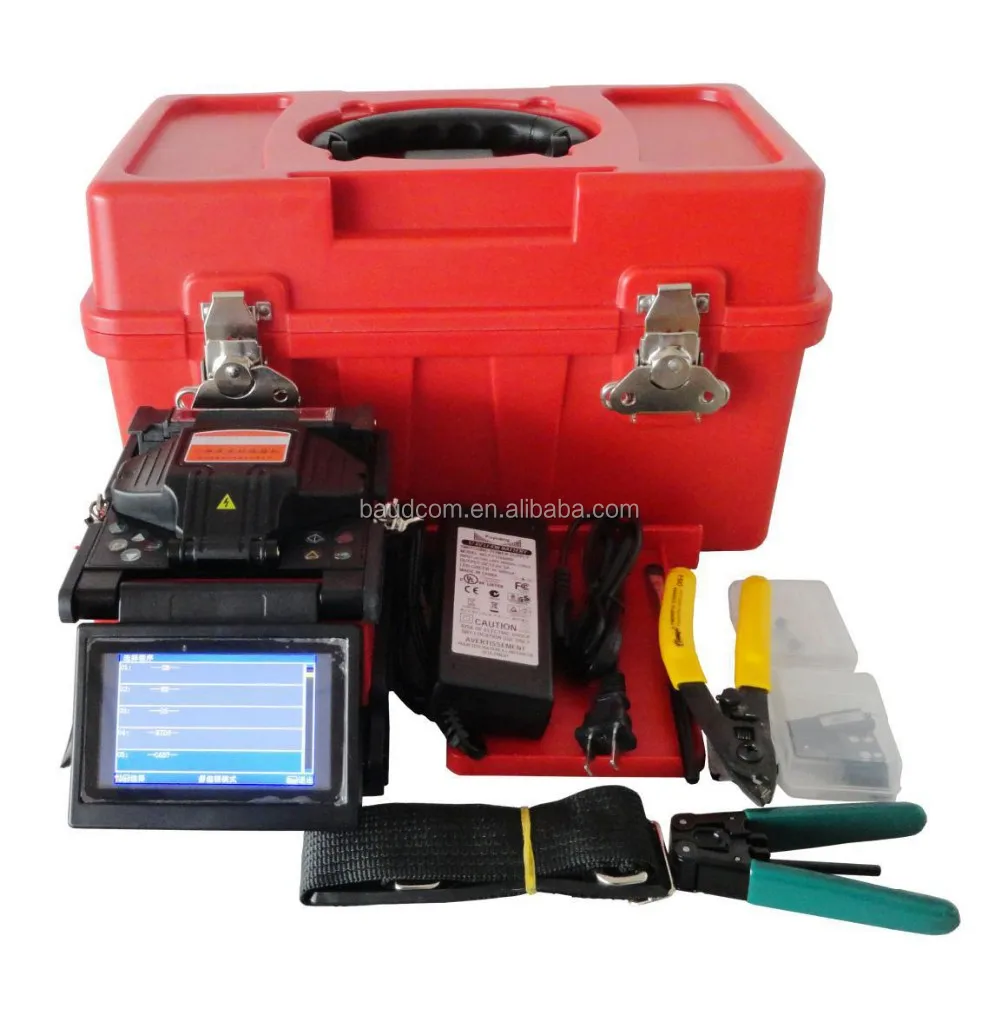

Standard Package:

Model	Name
BD-FS-40	Fusion Splicer’s main body
BC5	fiber cleaver
BD-FS-40-IB	internal battery
BD-FS-40-C	charger
BD-FS-40-SE	spare electrode
BD-FS-40-ACA	AC adaptor
BD-FS-40-ACPC	AC power cord
BD-FS-40-CLS	Clauss CFS-2 fiber optic stripper
BD-FS-40-ST	cooling tray
BD-FS-40-M	manual
BD-FS-40-CS	carry case
