50 мм 400 бар манометр для регулятора

Описание и отзывы

Трекер стоимости

Характеристики

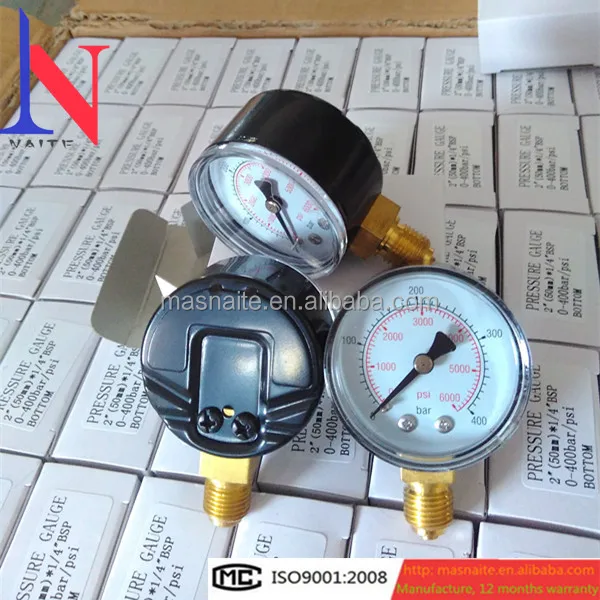

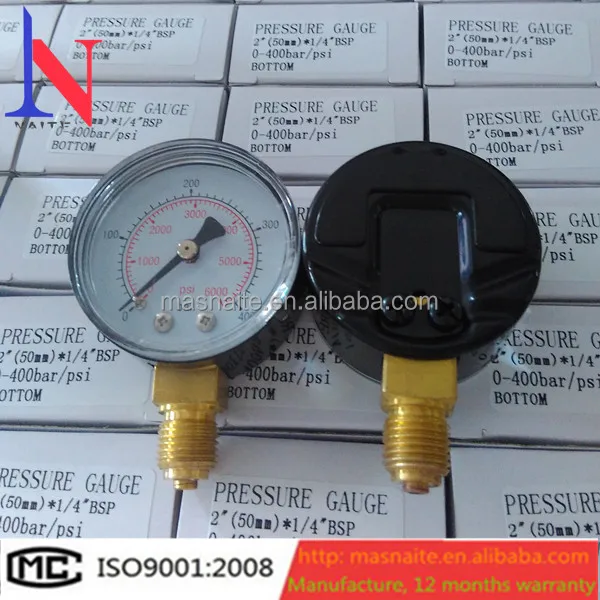

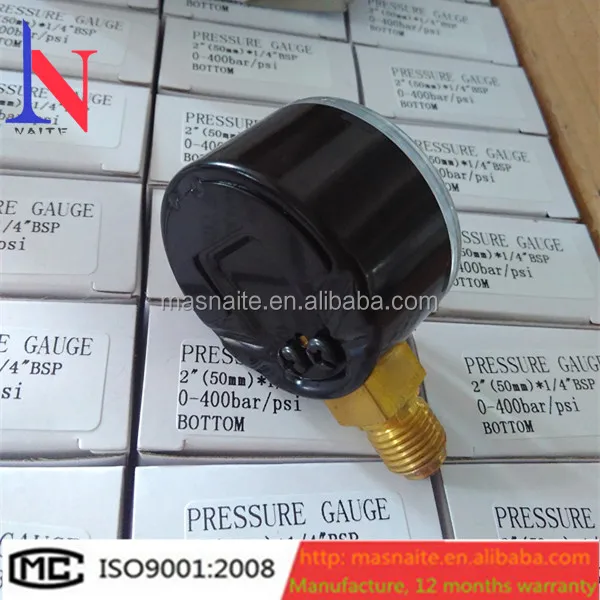

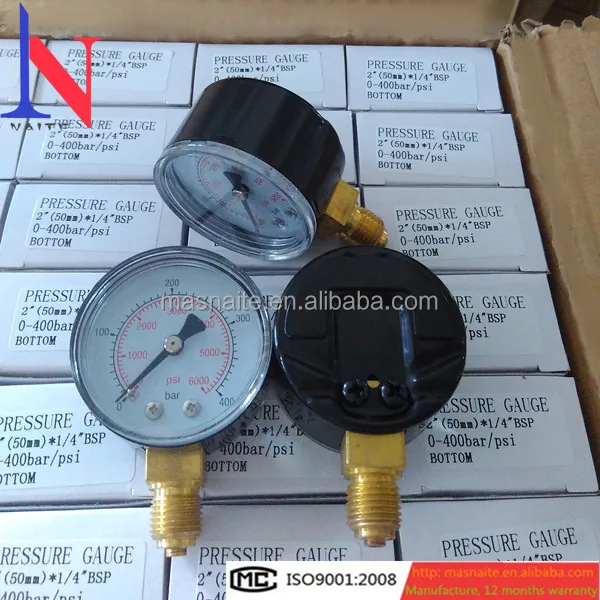

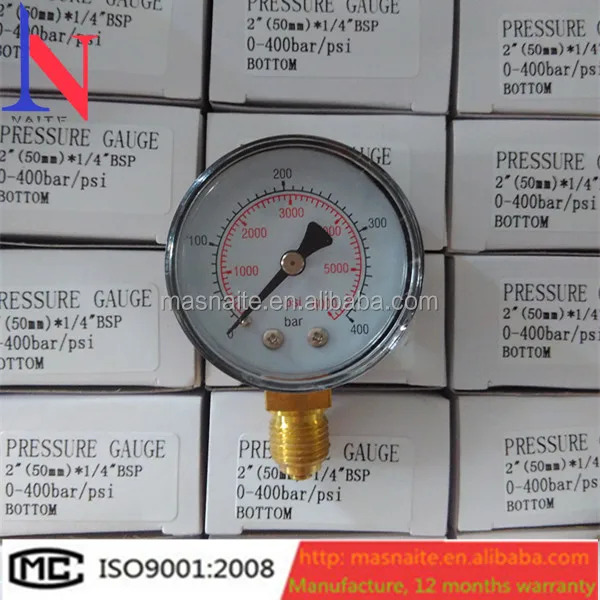

50mm 400 bar pressure gauge for pressure regulator


Applications

.    Hydraulic and pneumatic systems

  .  Pumps, compressors,water systems, regulators water systems, regulators

 .  Suitable for all media that will not obstruct the pressure system or attack copper alloy parts

Standard Features

Size: 2"/50,,

Case/ring: Black or chrome painted steel

Wetted Parts: Copper alloy

Window: Glass

Dial/pointer: aluminum

Accuracy: ± 2.5% of full scale

Connection: Lower or back mount



Available Options

.  Pressure range : from -1 to 400bar

.  Oil pressure gauge model

.  Other diameter 1.5", 2.5" or 4"



Pressure Gauge Basic Specification



Diameter Size	1, 1.5, 2, 2.5, 3,  4, 6, 8 and 10 inches
Pressure range	- 0.1 - 0 -100Mpa
Case	stainless steel, plastic , forged brass and steel
Ring	stainless steel, steel or wihtout
Movement	stainless steel, brass
Socket	stainless steel, brass
Connection sizes	1/8, 1/4, 3/8 and 1/2 inches
Connection threads	NPT, BSP (G, PF), BSPT (ZG, PT)
Connection mounting	bottom, top, left, right and center back
Bourdon tube	stainless steel, phosphor bronze
Dial and pointer	aluminum
Dial plate	single and dual scale (psi, kpa,mpa, bar, kg/cm2 avaible)
Window	polycarbonate, glass, tempered glass, safety glass
Accuracy range	1%, 1.6%, 2.5% full scale
Working temperture	-20℃- 70℃
Filled medium	glycerine,silicone
Filling cap	neoprene or silica gel

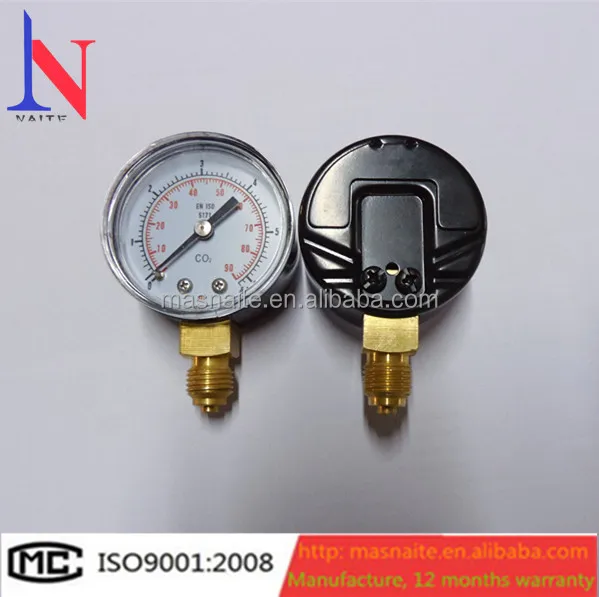

 More models





Our Factory





The Process of Bourdon Tube Pressure Gauge









FAQ

Q1:  Are you factory?

A1: Yes, we are a pressure gauge factory with 10 years experience.



Q2: What's your MOQ?

A2: There's no MOQ limits, 1 piece for test at first is acceptable.



Q3: Can you provide sample?

A3: Yes, we can provide 1pc free sample for evaluation at customer's courier account.



Q4: Can we print our logo on the gauge?

A4: Yes, we can print logo as customer requirement.



Q5: What about your quality?

A5: We guarantee that our pressure gauges are 100% inspection before ship to our client.



Q6: What is your production capacity ?

A6: Our production capacity is about 100,000 pieces per month.



Q7: What's delivery way?

A7: We suggest to send by sea for large quanitity order, but for less 1 pallet order, courier is best choice.



Q8: What's your payment terms?

A8:  Our acceptable payment is TT, Western Union, Paypal, LC(large order)
