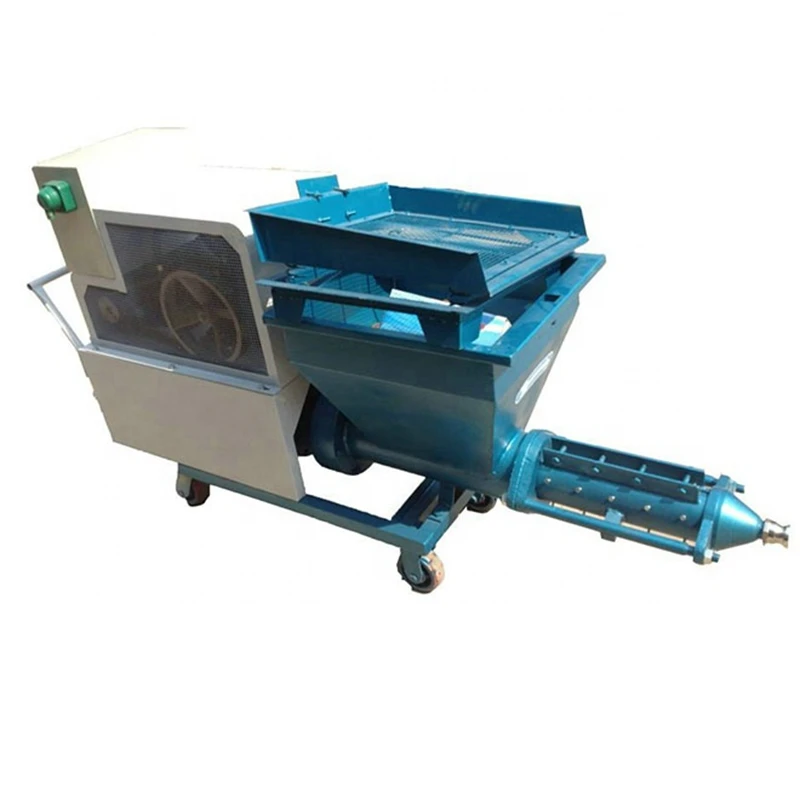

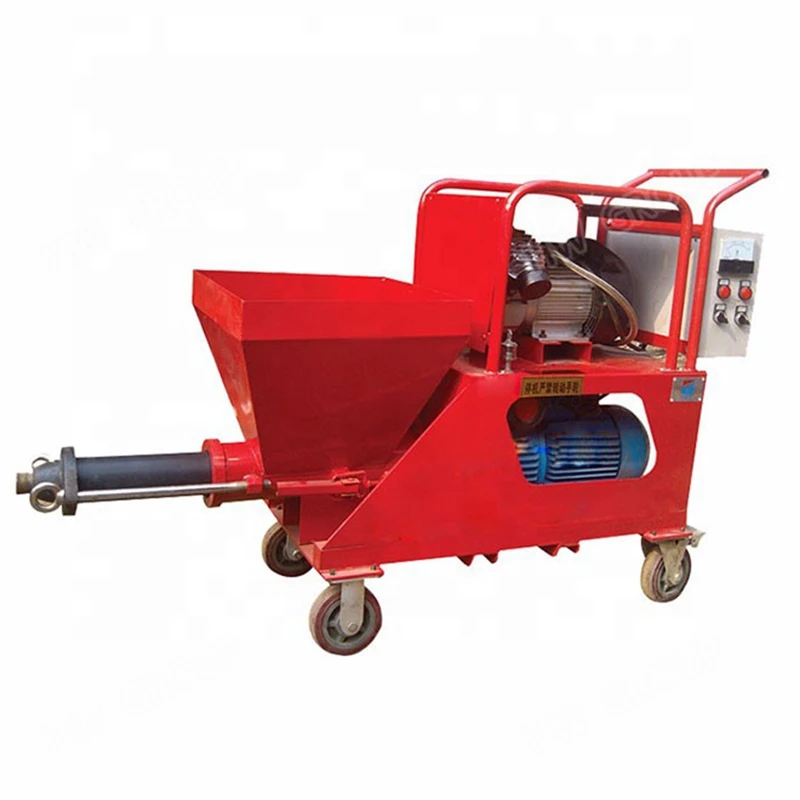

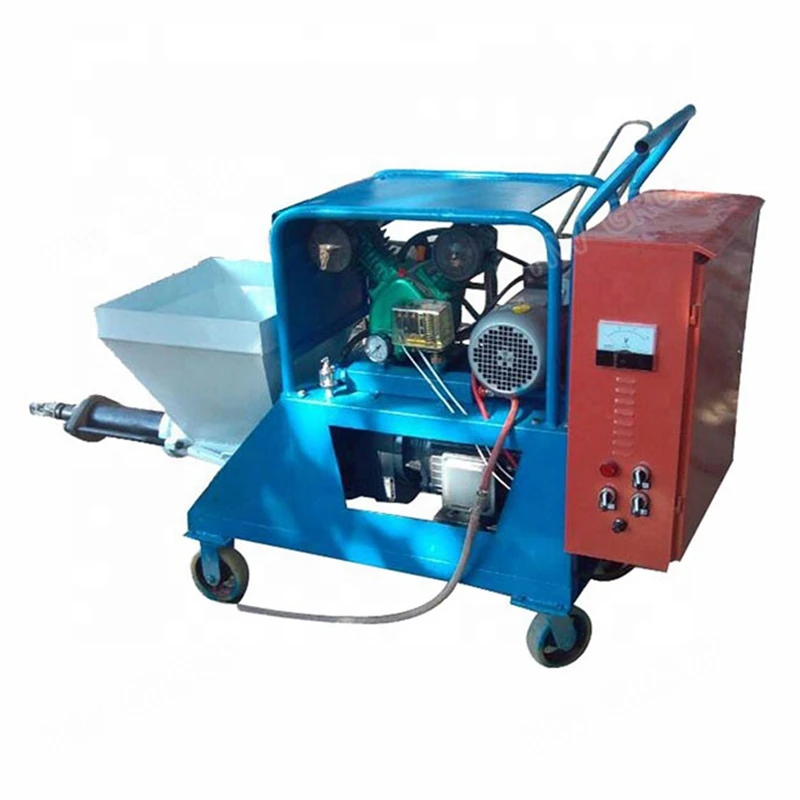

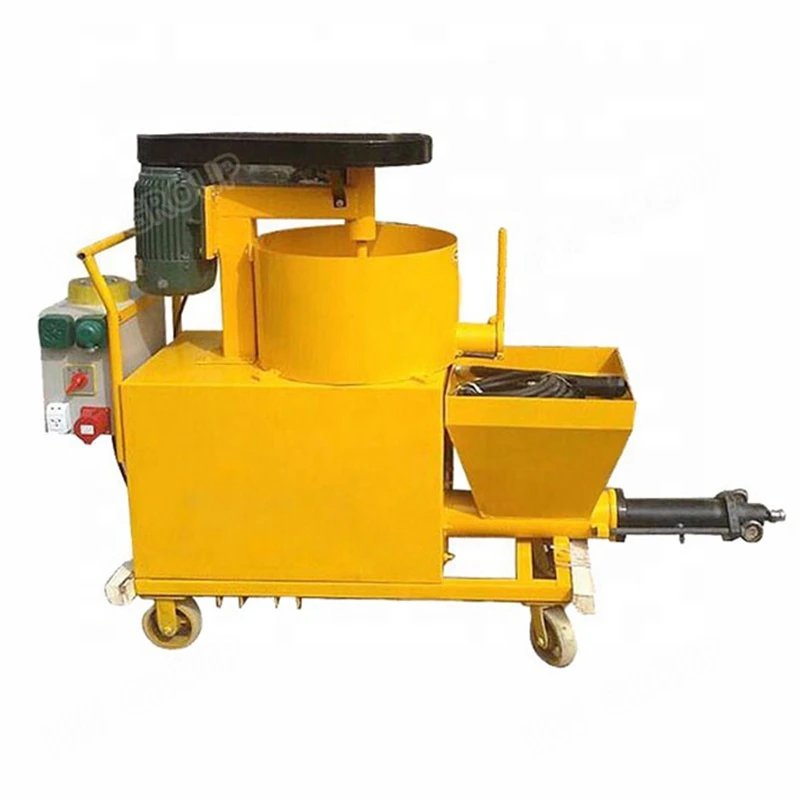

 Cement Mortar Spraying Machine Introduction

1, reasonable design, integration of pump and compressor, easy to move.

2, feeding smoothly , no pulse phenomenon;

3, wide applicability, can spray powder, mortar, can also spray mortar;

4, coating uniformity, strong adhesion;

5, complete functions, can spray can coating;

6, can change the connection direction of the spray gun and nozzle, easy to operate.

 Mainly used in the construction, spraying cement mortar on the internal wall, and spraying heat insulating material, fireproof materials no the external wall.

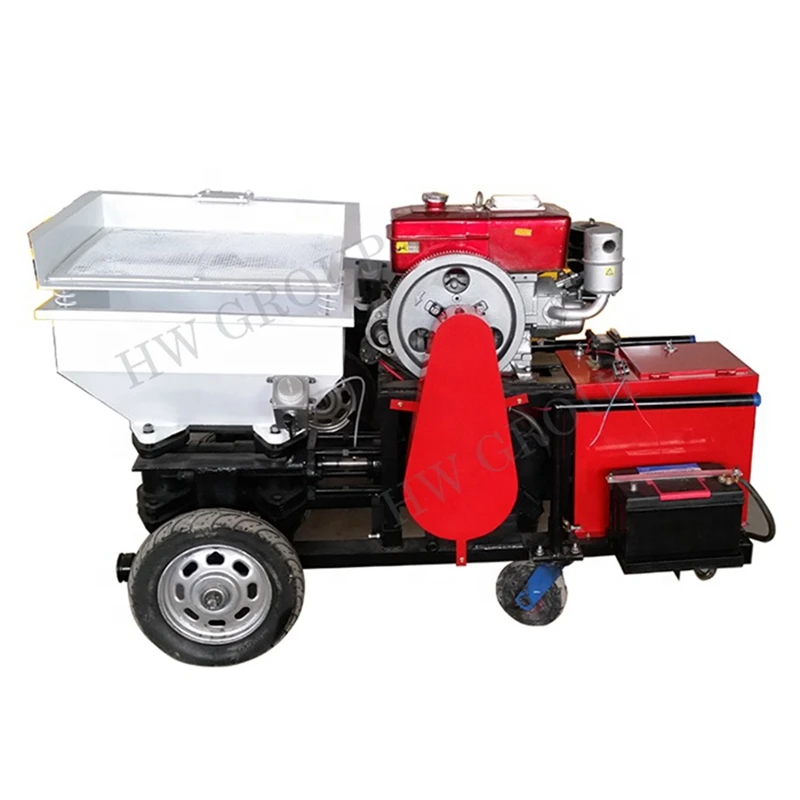

Product Features of Diesel spray gun cement machine :
1.Application spraying materials: putty powder, paint, latex paint, real stone paint, cement mortar, dry mortar, insulation mortar, waterproof material, fire prevention materials, insulation materials, sound-absorbing materials and some other water soluble materials.
2.By adjusting the amount of flow, spraying out the best effect.
3.Except the electric control box , it equipped with remote control to switch spraying.
4.The connection of the spray gun and the feeding tube can be rotated, so it is easy to operate.
5 High efficiency of the construction, and good spraying quality.
6.The volume is small, easy to on-site transport, low cost accessories, and simple repair.
7.Using easily, fast speed, saving materials, labour and money, a machine needs only three people, 150 square / hour (thickness 2cm).
8.Material proportion. cement : mortar, 0.7 : 3

Model:HWE20

Delivery pressure:2.5Mpa
Transport height:10~15m
Transport distance:30m

 Conveying height: 30M

Through the particle size :<1CM
Delivery flow: 3-5M³ / H
Gray: Sand :1: 3
Hopper volume :90L
Machine weight :320KG
Matching nozzle wall :38MM
