Нагревательный саморегулирующийся подземный нагревательный

100 meters per roll or as customers' requirements package the goods.

Description:  Panshine selforegulating cable provides safe, reliable heating tracing for   freeze  protection of pipes, values, tanks and similar applications. Low watt density  electrical heaters designed to be cut to the desired lengths in the field, eliminating  the need for prefabricate costs. No special training is required.

Application:  Pipelines

                       Drains

                       Water Lines

                       Safety showers

                       Sprinkler systems

                       Freeze Protection

                       Viscosity control

                       Low to high temperature maintenance

                       Ordinary locations

                       Hazardous locations

                       Heat Tracing Applications

                       Temperature Raise

                       Tank Heating

                       Roof and gutter de-icing and driveway snow melting

                       Hot water systems

Technical Data:

1.SSR

 Output wattage:35,45,60(w/m)

 Maximum maintain temperature:110℃

 Maximum exposure temperature:205℃

 Minimum installation temperature:-40℃

 Work voltage:110v-120v /220-240v

 2.MSR

 Output wattage:10,17,25(w/m)

 Maximum maintain temperature:65℃

 Maximum exposure temperature:85℃

 Minimum installation temperature:-40℃

 Work voltage: 110v-120v /220-240v

 3.LSR

 Output wattage:10,15,25,30,40(w/m)

 Maximum maintain temperature:65℃

 Maximum exposure temperature:85℃

 Minimum installation temperature:-40℃

 Work voltage: 110v-120v /220-240v

Advantage:

• Safe, no need thermostat


• Energy efficient


• Easy to install, cut to length at the job site


• Can be overlapped


• Automatically temperature control ed


• Eco-friendly, no emissions

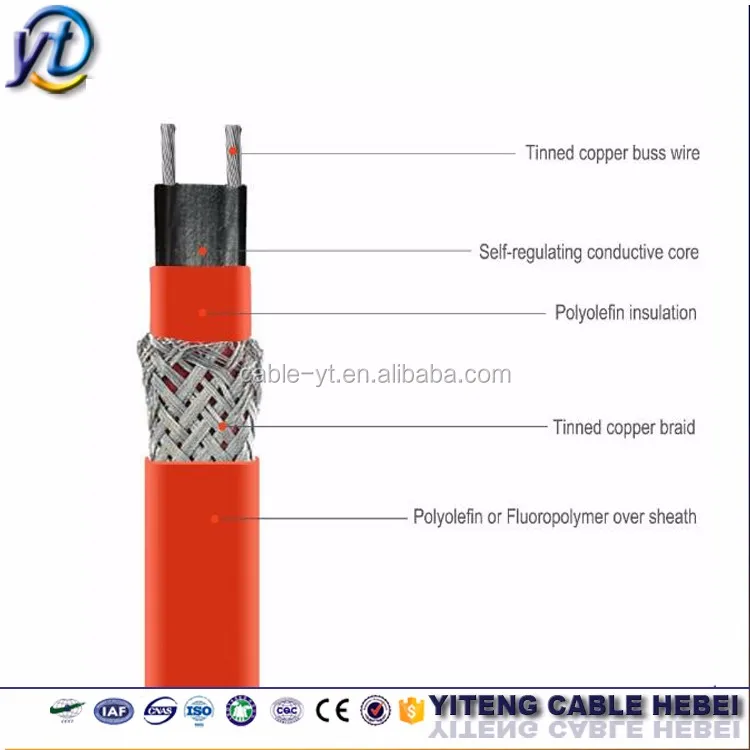

Product Construction:

self-regulating:Self-Regulating / Self-Limiting: Automatically adjusts heat

output based on surface temperature. Ideal for freeze protection and low

temperature process maintenance.

constant wattage:Provides precise and constant temperatures up to 500 oF (260 °C ).

Ideal for a wide range of applications.

Our main products:

Aluminum Alloy Cable with or without Armor and Interlock

Control Cable with Multi-Cores, Computer Cable with Individual and General Shileding and PE/ PVC/ XLPE Insulation

Shielded Cable or Screened Cable

ABC Cable in Aluminum for Overhead Application

ACRS Cable

Power Cable with PE/PVC/XLPE Insulation and PVC Sheath and Armour

Rubber Cable for General Purposes, Welding Machines or for Mining

Armoured Cable with Steel Tape or Steel Wire Armoured

PVC Cable with PVC Insulation and PVC Sheath

Low Voltage Power Cable

Medium Voltage Power Cable

High Voltage Power Cable

LOSH Fire Resistant Cable and Flame Retardant Cable

Cathodic protection cable

High Temperature Cable

silicone rubber insulated cable and Teflon insulated cable

Solar cable

Self-regulated heating cable

Enameled wire

Spiral Spring cable

Marine cable

Besides, Yiteng Cable also produce cables, wires and conductors as per customers' special requirement.

At present, our cables and wires have spread through many provinces of China and have also exported successfully to

overseas countries, like Korea, Singapore, Philippine, Sudan, South Africa, Angola, Nigeria, India, Pakistan, Turkey,

Sri Lanka, Myanmar, Thailand, Vietnam, Oman, Iraq, Iran, U.A.E., Chile, Brazil and so on. All of our cables to these

countries have earned great pulic praise from customers.

Factory is founded in 1990 years.We have the rich experience,technology and research to produce cables.

Good after- sales service.

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How long is your delivery time?

A: Generally it is 3-5 days if the goods are in stock. or it is 7-15 days if the goods

are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the free samples but you should pay the cost of freight by yourself.

Q: What is your terms of payment ?

A:T/T,L/C,D/P,D/A,W/U.

For the FOB,100% t/t in advance before shipments,for CFR or CIF,we can do the 50% t/t in advance,50% t/t against the copy of B/L.
Q:What's the MOQ(Minimum Order Quantity)?

A: According to different types often  500 meters-1000meters
