Оригинальный производитель XCMG DG53C Новый
- Категория: Emergency Vehicles >>>
- Поставщик: Xuzhou,Construction,Machinery,Group,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 11900.73 $* | 12495.34 $* |
| Aug-18-2025 | 11800.80 $* | 12390.51 $* |
| Jul-18-2025 | 9900.16 $* | 10395.51 $* |
| Jun-18-2025 | 11600.38 $* | 12180.98 $* |
| May-18-2025 | 10100.12 $* | 10605.97 $* |
| Apr-18-2025 | 11400.93 $* | 11970.27 $* |
| Mar-18-2025 | 11300.31 $* | 11865.14 $* |
| Feb-18-2025 | 11200.62 $* | 11760.79 $* |
| Jan-18-2025 | 11100.12 $* | 11655.33 $* |
Характеристики
Products Description

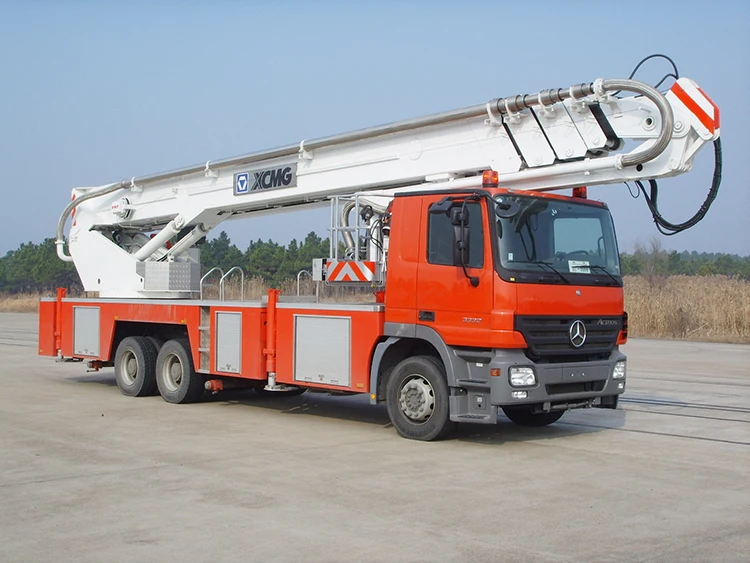

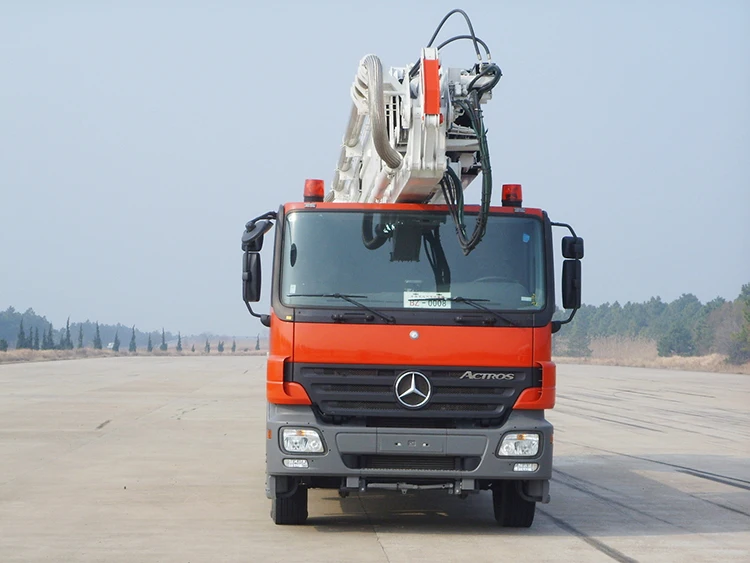

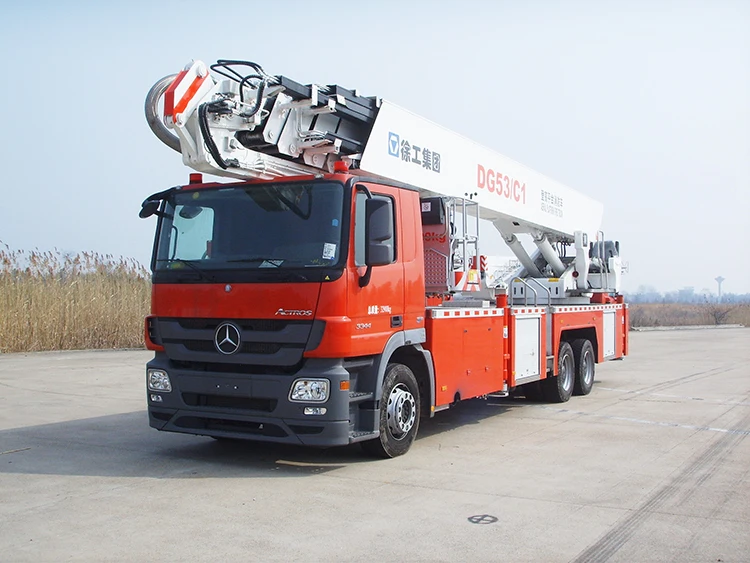

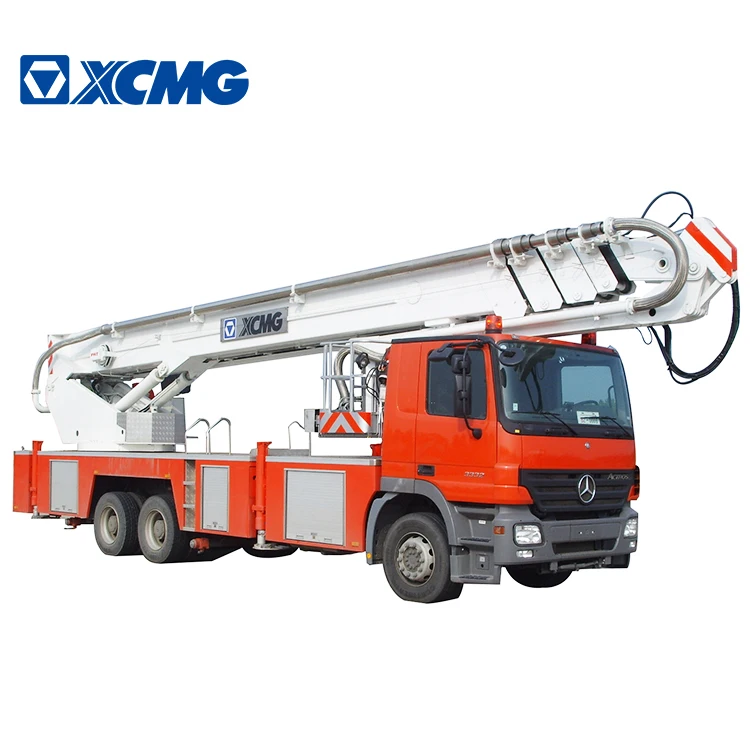

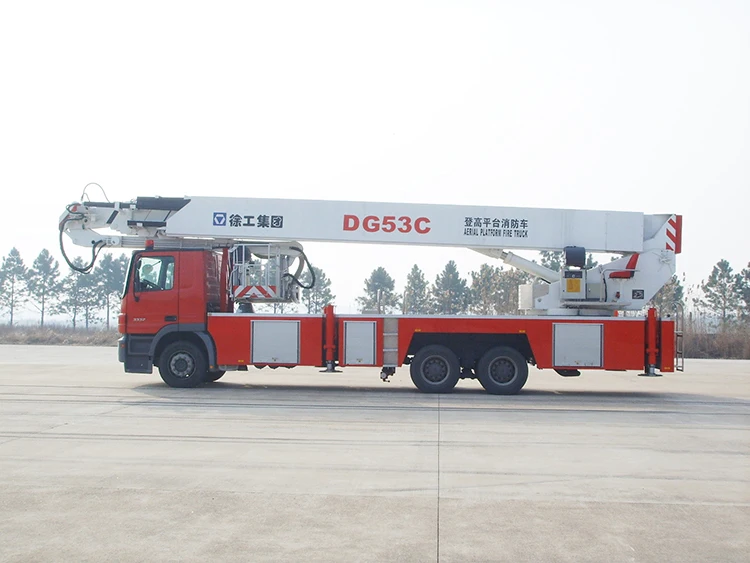

XCMG original manufacturer DG53C brand new fire fighting truck
DG53C Aerial Platform Fire Truck is the main battle vehicle integrates functions of hydraumatic drive, full slewing, telescopic boom and folding boom, which is widely applied in fire fighting and rescue operation in cities and towns, mine, oil field and plant as well as other middle-high buildings. In addition, it also can be the first choice for medium and high-rise building fires, rescue of persons in distress and properties.
* The machine has the function of high platform fire truck and high spray car, which can not only rescue the emergency, but also put out the fire (with water pump and water gun).
* The machine is advanced in technology and reliable in quality, and its main safety performance reaches (or exceeds) the level of similar products abroad.
* The whole machine adopts electro-hydraulic proportional control, with hydraulic transmission, has stable and reliable operation, and is easy to operate.
Product Paramenters
Main Performance Parameters of Vehicle | ||||
Boundary dimension: (Length × width × height) | 13430×2500×3990mm | |||
Full mass | 32900kg | |||
Maximum speed | ≥85km/h (electric speed limit) | |||
Minimum turning diameter | ≤24m | |||
Approach angle | ≥16° | |||
Departure angle | ≥9° | |||
Maximum gradeability | ≥25% | |||
Outrigger span | Longitudinal span | 6450mm | ||
Horizontal span | 6000mm | |||
Work platform load | 400kg | |||
Maximum working height | 53m | |||
Maximum working radius | 17m | |||
Elevating angle of boom | The elevating angle of telescopic boom is -3°~80° The elevating angle of folding boom and telescopic boom is 0°-175° | |||
Rotation scope | 360° full-rotation | |||
Spread time of outrigger | ≤30s | |||
Time for lifting the boom to rated height and rotating 90° | ≤180s | |||
Maximum slewing speed | 0.5~1r/min | |||
FIRE FIGHTING PUMP | Rated flow | ≥65 L/s | ||
Rated pressure | ≥1.0MPa | |||
Fire fighting gun | Model | PSKY50+akron1000-5055 | ||
Rated flow | 50 L/s | |||
Rated pressure | 1.0MPa | |||
Range | 65m | |||
