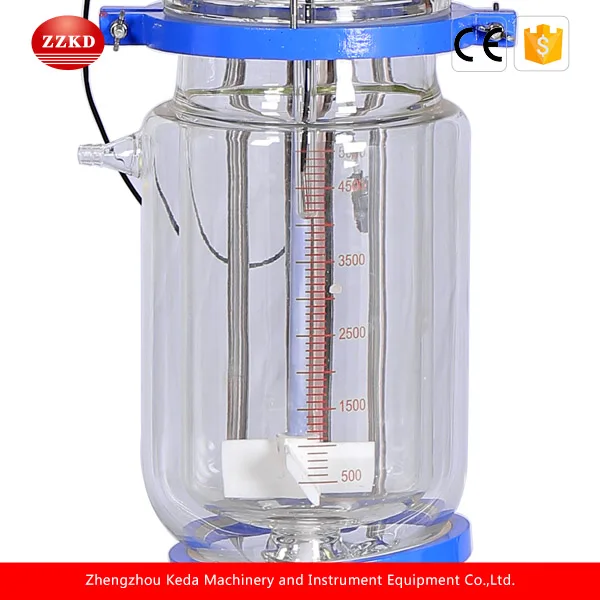

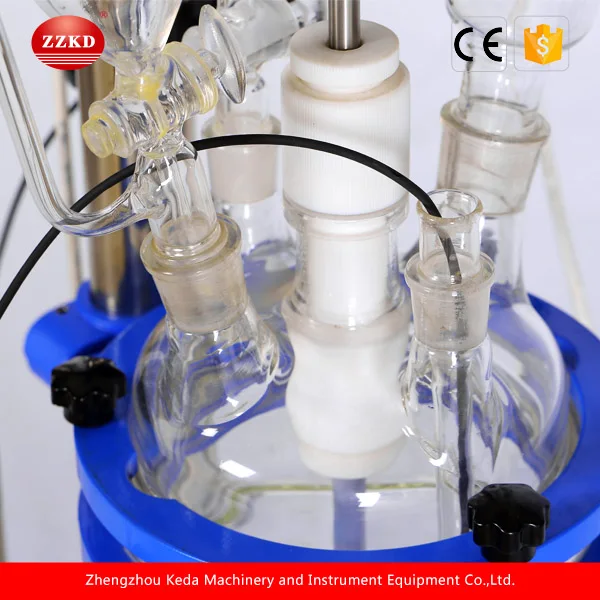

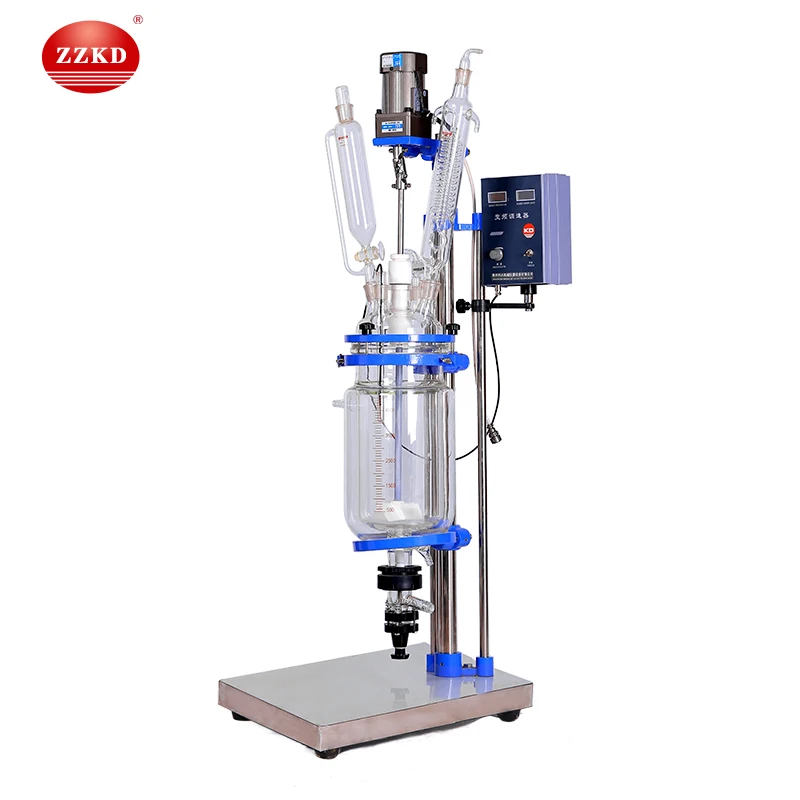

Laboratory Chemicals Lab Jacketed Glass Reactor Vessel Price
Product Description
Features of laboratory jacketed glass reactor vessel:
1. GG17 high-borosilicate glass with nice physical-chemical properties; experiment temperature -100 to 400 degree C;Resistant to strong acidic properties of materials; only touching with glass parts & PTFE,
no cross-contamination.
2. Double cylinder; kettle cover is separated from kettle body. It is convenient to disassemble, clean and install.
3. Stirring adopts to mechanical sealing, it keeps higher vacuum degree among the same products in the market. It also keeps high vacuum degree when stirring.
4. Glass (PTFE)discharge valve, non-dead angle mixing, fast emptying, no residue.

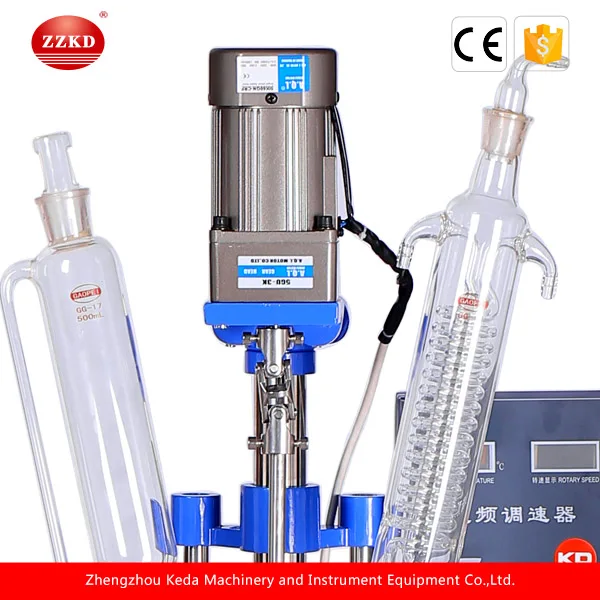

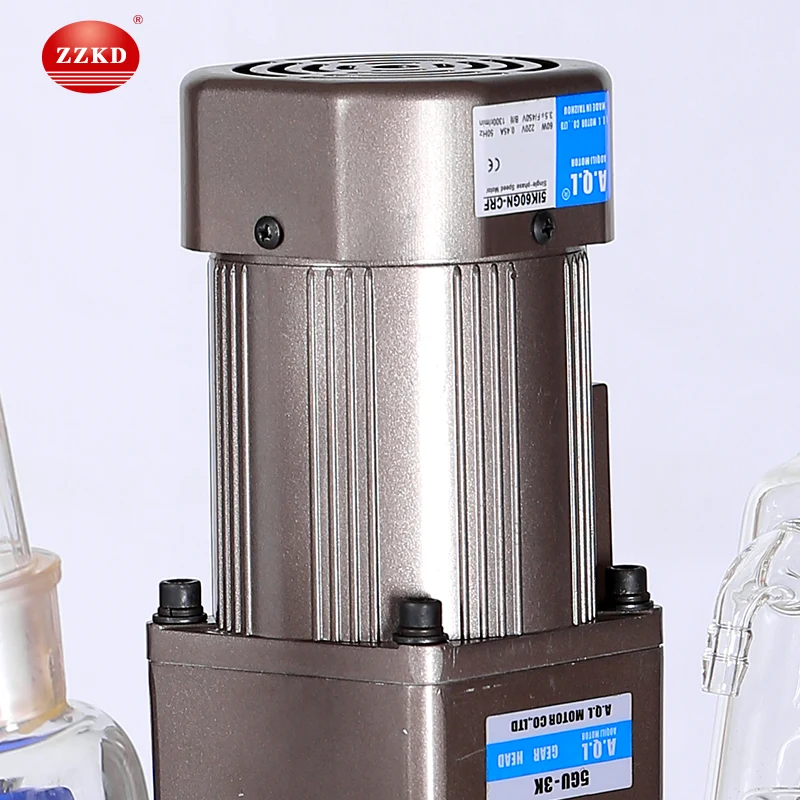

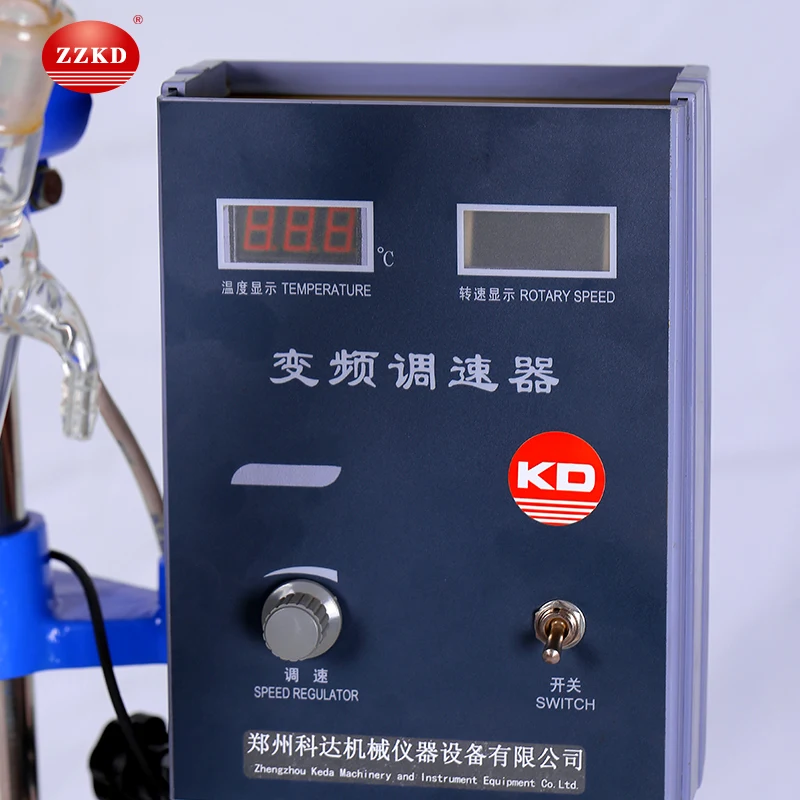

5. Frequency control speed gear motor,smooth running,high torque, automatic booster , no spark, noise free, long life.
6. SUS frame and cast aluminum material kettle body support, elegant appearance,stable structure.
Introduction of laboratory jacketed glass reactor vessel:
According to the customer's requirements and standard, we manufacture frequency control speed jacketed glass reactor which has many functions to satisfy kinds of experiments. That is, stirring reaction, high temperature reaction, low temperature reaction, constant speed good mixing reaction, distillation, refluction, condensation reaction, vacuum environment operating, dispensing material etc. We innovate to assemble rectification column and create jacketed glass reactor production line. It is widely used in modern refined chemical, biological pharmacy, new material synthesis industry research experiment, etc. OEM is also welcomed. We have rich experience in OEM.
Technical Data | |||||||||
Model |
S-1LS -L | S-2L | S-3L | S-5L | S-10L | S-20L | S-30L | S-50L | S-100L |
Stirring Power(w) | 60 | 120 | 180 | ||||||
Stirring Speed(rpm) | 0~600(Max. 1300) | ||||||||
Stirring Shaft Diameter | 12 | 15 | |||||||
Reaction Kettle Capacity(L) | 1 | 2 | 3 | 5 | 10 | 20 | 30 | 50 | 100 |
Power Supply | 220V 50/60 Hz | ||||||||
Motor Torque(g/cm) | 2000 | 2400 | 2400 | 4800 | 1000 | 1200 | 1200 | 1500 | 3000 |
Note | Floor type | 304 all stainless frame | |||||||
Explosion-proof
| 1. The stirring power (W): 180, 250, 370 | ||||||||
2. Power supply: 220V / 50Hz or 110V / 60Hz | |||||||||
110 V/60Hz can be customized | |||||||||
Ancillary Equipment:
Circulating water vacuum pump: Used to provide a vacuum source.
Cool chiller: For condensation and reducing waste of materials.
Circulating water/oil bath: Thermal power.
