Монокристаллическая солнечная батарея класса А 156
- Категория: Солнечные батареи для сварочного шлема >>>
- Поставщик: Shenzhen,Taihesheng,New,Energy,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 70.52 $* | 71.18 $* |
| Jul-20-2025 | 57.21 $* | 58.69 $* |
| Jun-20-2025 | 69.62 $* | 70.60 $* |
| May-20-2025 | 68.44 $* | 69.10 $* |
| Apr-20-2025 | 54.93 $* | 55.66 $* |
| Mar-20-2025 | 67.88 $* | 68.6 $* |
| Feb-20-2025 | 67.91 $* | 68.49 $* |
| Jan-20-2025 | 66.52 $* | 67.67 $* |
Характеристики

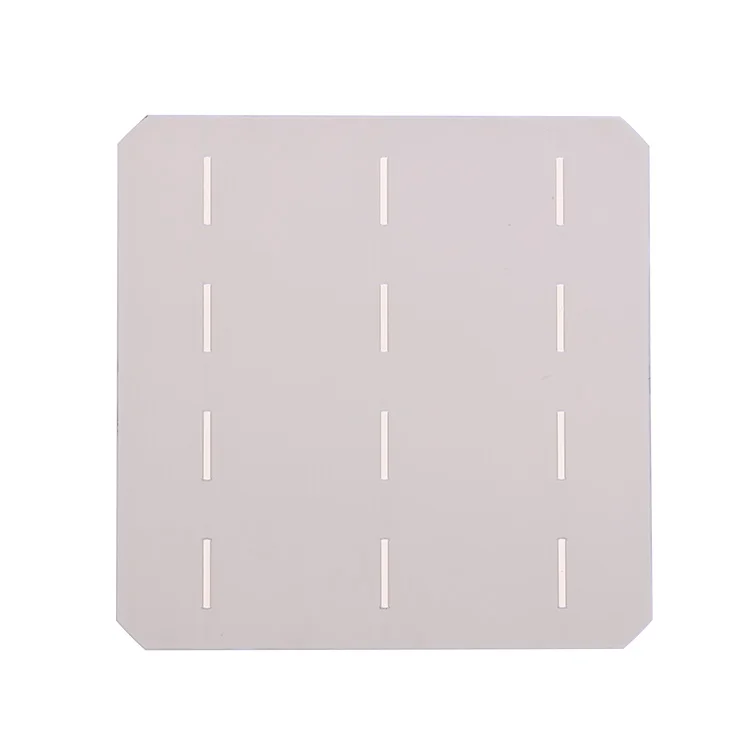

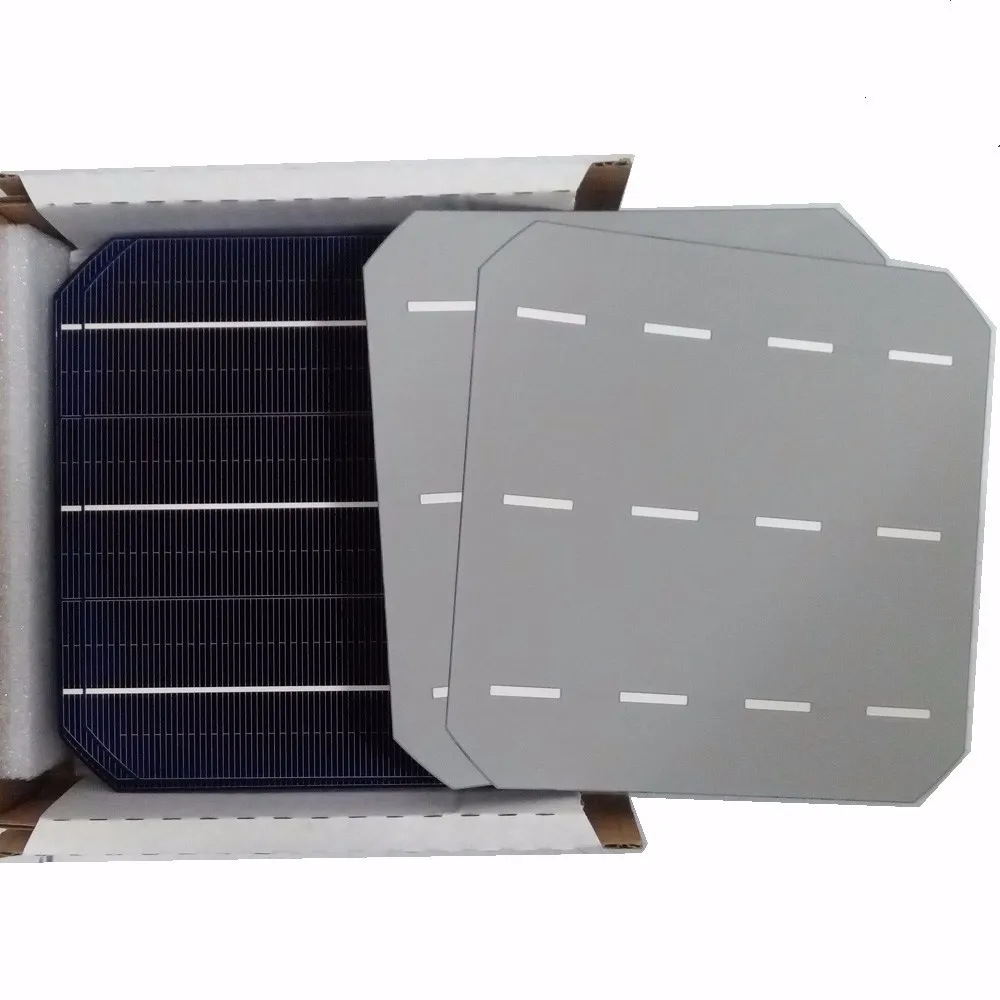

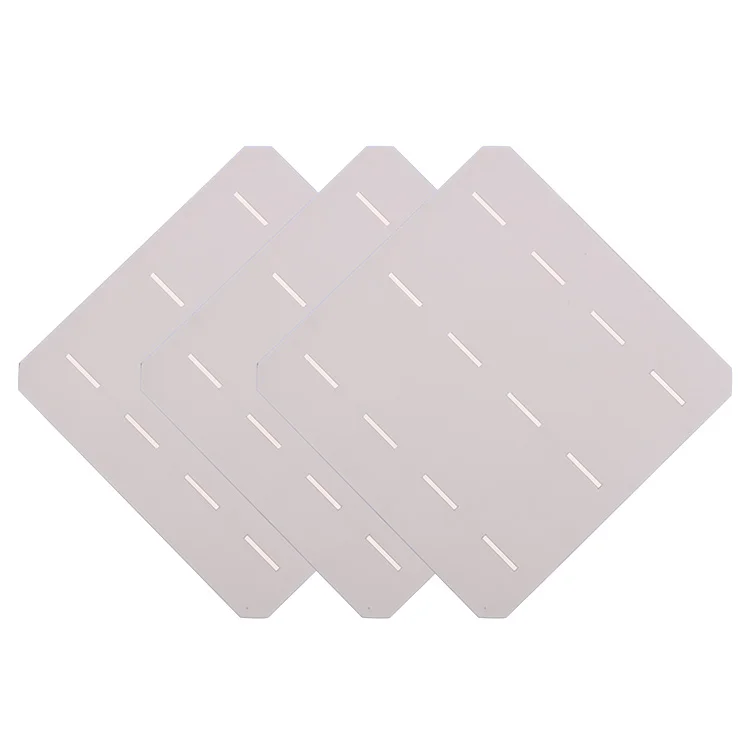

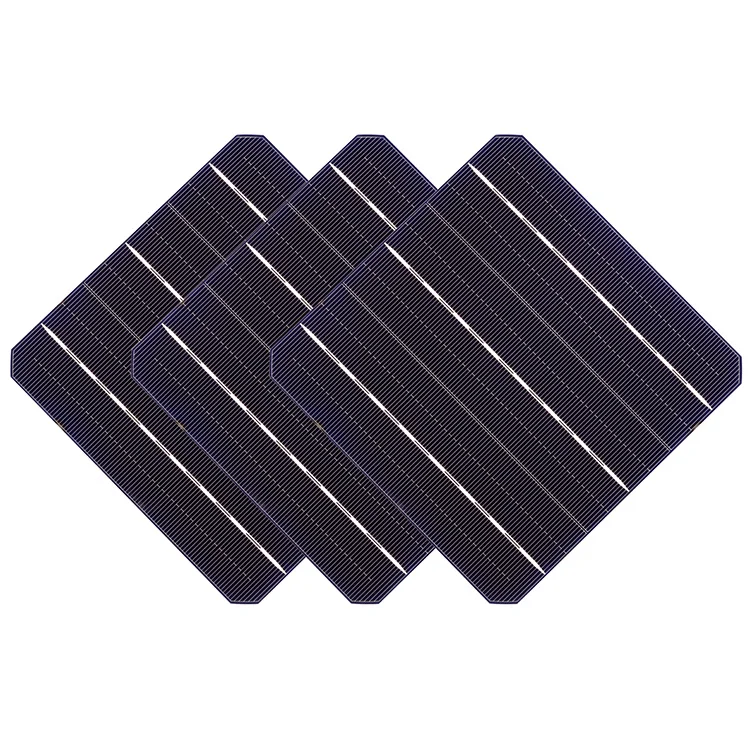

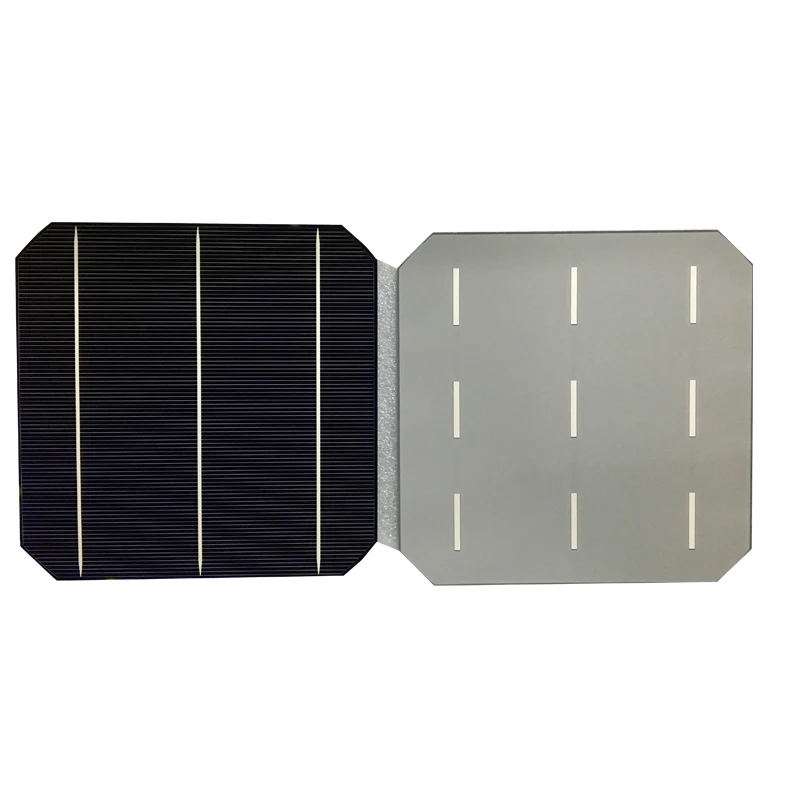

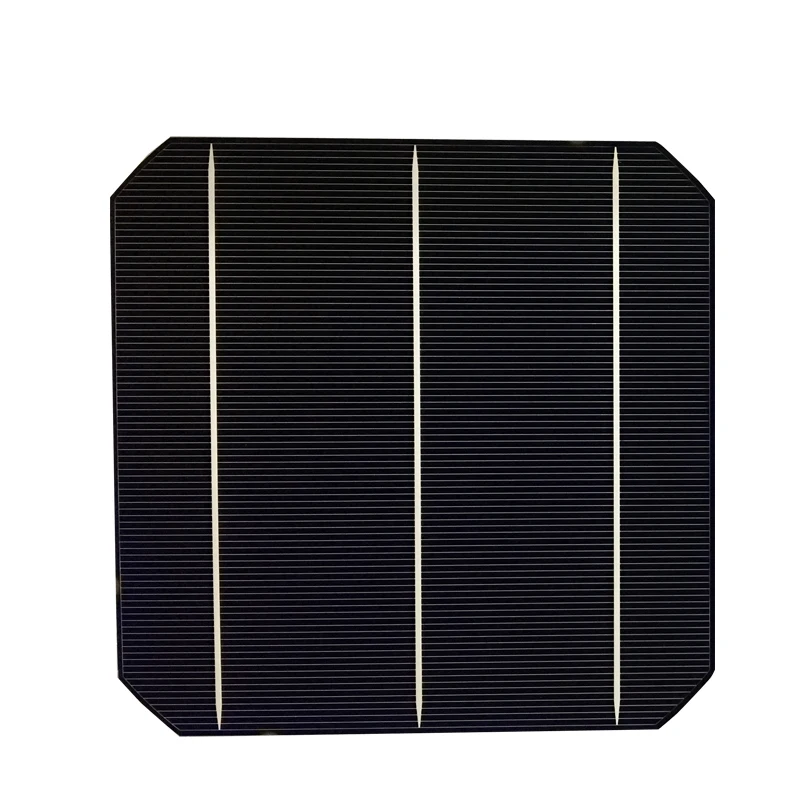

A grade solar cell monocrystalline 156mm solar cell
| Physical Characteristics |
| Item | A grade solar cell monocrystalline 156mm solar cell |
| Material | monocryalline silicon |
| Dimension | 156.76mmx156.75mm±0.25mm |
| Diagonal | / |
| Thickness(Si) | 200±20 μm/180±20μm |
| Front(-) | Blue anti-reflecting coating (silicon nitride) 1.4mm wide bus bars Distance between bus bars: 52mm |
| Back(+) | Aluminum back surface field 2.5mm wide soldering pads Distance between bus bars: 52mm |
| Electrical Characteristics |
| Efficiency code | 1860 | 1880 | 1890 | 1900 | 1920 | 1940 | 1950 | 1960 | 1970 | 1980 | 2000 |
| Efficiency(%) | 18.6% | 18.8% | 18.9% | 19.0% | 19.2% | 19.4% | 19.5% | 19.6% | 19.7% | 19.8% | 20.0% |
| Pmax(W) | 4.544 | 4.593 | 4.618 | 4.642 | 4.691 | 4.740 | 4.764 | 4.789 | 4.713 | 4.838 | 4.886 |
| Vmp(V) | 0.522 | 0.524 | 0.526 | 0.528 | 0.530 | 0.532 | 0.534 | 0.536 | 0.537 | 0.538 | 0.540 |
| Imp(A) | 8.706 | 8.766 | 8.779 | 928.7 | 8.851 | 8.909 | 9.922 | 8.934 | 8.963 | 8.992 | 9.049 |
| Voc(V) | 0.616 | 0.618 | 0.620 | 0.623 | 0.625 | 0.628 | 0.630 | 0.632 | 0.634 | 0.635 | 0.637 |
| Isc(A0 | 9.228 | 9.292 | 9.306 | 9.319 | 9.382 | 9.444 | 9.457 | 9.470 | 9.501 | 9.531 | 9.592 |
Data under standard testing conditions(STC): 1,000W/ m2 AM1.5, 25℃, eff. tolerance : average + 0.3%/-0.1% absolute.
| Production Process |
| Packaging and Shipping |
Solar
Cell Sho
| Our Services |
Quick Response
1. Any time and anywhere, reply clients' email and solve all problems happen in the work at the first time.
2. Remove clients doubts and offer the best solution at the first time.
3. Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
4. Precision cell efficiency sorting procedures
5. Stringent criteria for color uniformity and appearance
6. Reverse current and shunt resistance screening
7. We always giving our clients the most economical and fastest deliery method.
8. No matter the Air transportation / Ocean shipping / Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
We can accept payment by T/T, LC, Paypal, Western Union and Trade Assurance in Alibaba.
1. Any time and anywhere, reply clients' email and solve all problems happen in the work at the first time.
2. Remove clients doubts and offer the best solution at the first time.
3. Give our clients the lastest news of the photovoltaic, update the newest stock informtion.
4. Precision cell efficiency sorting procedures
5. Stringent criteria for color uniformity and appearance
6. Reverse current and shunt resistance screening
7. We always giving our clients the most economical and fastest deliery method.
8. No matter the Air transportation / Ocean shipping / Internation express, our professional logistic team will ensure cargo transportation Safe and High efficiency
Payment Terms
We can accept payment by T/T, LC, Paypal, Western Union and Trade Assurance in Alibaba.
| Company Information |
Shenzhen Taihesheng Solar Energy Co.,Ltd is a professional manufacturer & exporter which is concerned with the design, production,and marketing. our manufacturer covers an area of 8000m2 as a high-tech environmental friendly enterprise,which was established in 2009 and specialized in solar industry for providing solar cells ,solar modules , solar panels and solar charger etc application products.
Under strict quality control system. Our products include: 125mm mono solar cell and 156mm poly & mono solar cell,0.1W-300W mono-crystalline and poly-crystalline silicon solar panel.our products approved CE, ISO, RoHS,IEC, TUV,UL certificates, Which are widely exported to Europe,America, Africa, Asia and Middle east countries, we gainded more and more higher reputation from our clients.We also offer OEM,ODM,OBM service as per customer requirement and aim at making a greater contribution to the usage of solar energy in the world.
| FAQ |
1. Are you a manufacturer or trading company?
We have two facories, one is solar cell factory located in Jiangxi Province and the other is solar panel factory in Shenzhen.
2. What is MOQ and leading time?
The MOQ of solar cell is 100pcs and the leading time is 2-3 days, while the moq of solar panel is 1000pcs and leading time is 10-15 days.
3. What is the payment term?
Payment term is flexible and cash, T/T, Paypal, LC, Western Union, Trade assurance in Alibaba are acceptable.
4.What is the shipping method?
Sample order will be sent by courier like DHL, Fedex, UPS and TNT and bulk order can be shipped by air and sea.
