Трехцветная машина для формования шлепанцев из ПВХ с верхним
- Категория: Заготовка верха обуви >>>
- Поставщик: Dongguan,Jinlei,Shoe-Making,Machine,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.75 $* | 0.12 $* |
| Aug-19-2025 | 0.43 $* | 0.56 $* |
| Jul-19-2025 | 0.94 $* | 0.35 $* |
| Jun-19-2025 | 0.19 $* | 0.70 $* |
| May-19-2025 | 0.28 $* | 0.46 $* |
| Apr-19-2025 | 0.18 $* | 0.2 $* |
| Mar-19-2025 | 0.14 $* | 0.38 $* |
| Feb-19-2025 | 0.92 $* | 0.44 $* |
| Jan-19-2025 | 0.94 $* | 0.36 $* |
Характеристики
Product Description

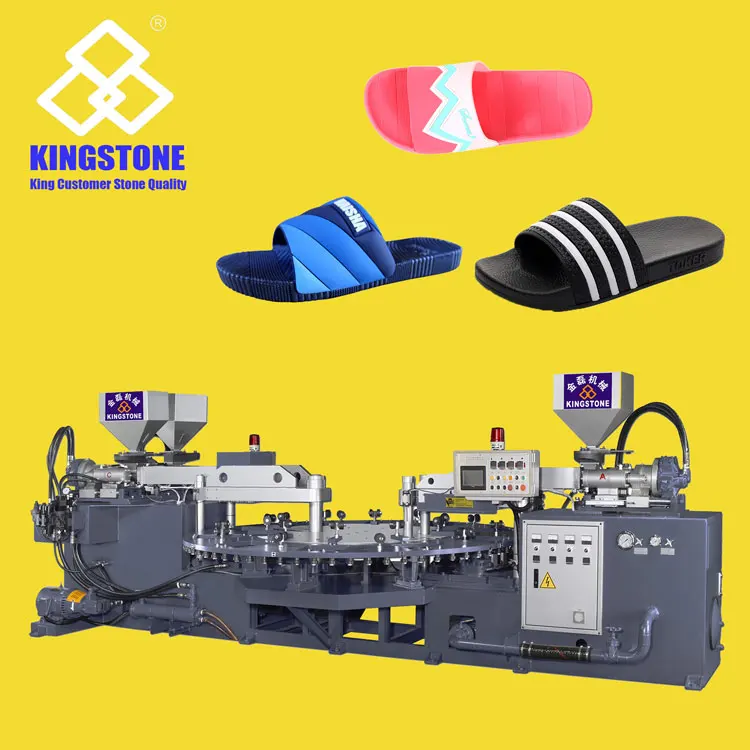

Three Color Upper Strap PVC Slipper Moulding Machine JL-138
Main Features:
1. Suitable for all kinds of thermoplastic raw materials, foaming or non-foaming, such as PVC and TPR.
2. Specialized in producing various kinds of one/two/three color slipper uppers.
3. Conformed to human engineering in design, it features operational compatibility.
4. The well-interconnected oil circuit by electric control can reduce waiting time, quicken production rate, and promote productivity.
Machine model | JL-138-2C | JL-138-3C | |
Mould-Clamping Unit | |||
Work station |
| 6 | 6 |
Clamping force | TON | 80 | 80 |
Opening stroke | MM | 210 | 210 |
Mould dimension | MM | 420*320 | 420*320 |
Height of injection nozzle | MM | 280 | 280 |
Injection Unit | |||
Injector | SET | 2 | 3 |
Screw diameter | MM | 50,40 | 50,40,40 |
Screw L/D ratio | L/D | 20 | 20 |
Max.injection volume | cm3 | 350,200 | 350,200,200 |
Injection speed | Cm/s | 500 | 500 |
Screw rotation speed | R.P.M | 10 | 10 |
Electricity Consumption | |||
Heating power of injector | KW | 8/4 | 8/4/4 |
Hydraulic unit motor | KW | 11/7.5 | 11/7.5 |
Total electric consumption | KW | 30.5 | 34.5 |
Temperature control | Section | 3 | 3 |
Dimension and Weight | |||
Machine dimension | (L*W*H)MM | 3500*2500*2900 | 3500*2500*2900 |
Machine weight | KGS | 6000 | 6200 |
*Note:Above data only for reference. | |||

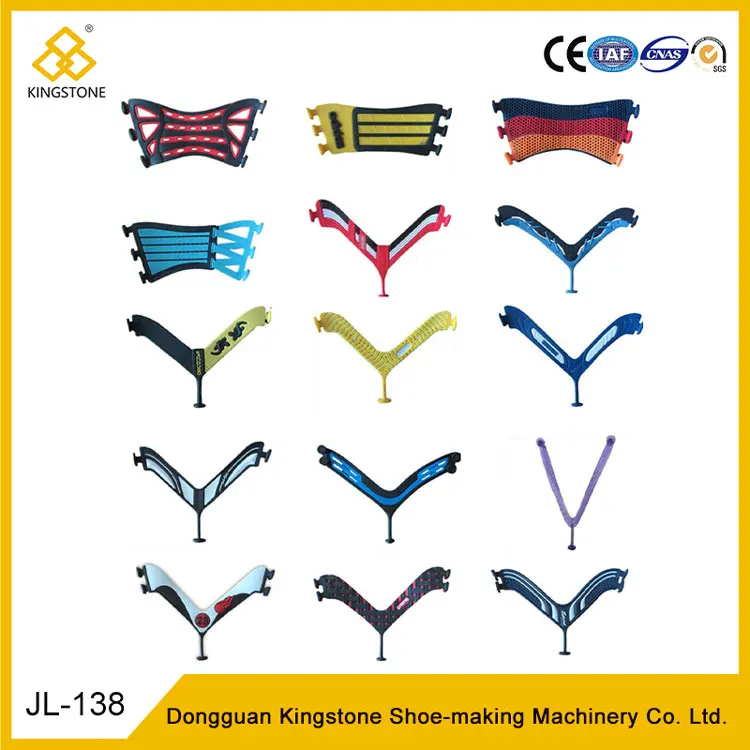

Products Show
