Submersible ultrasonic cleaner, immersible ultrasonic tranducer & generator



JTM-1030

Skymen stainless steel Ultrasonic Cleaner

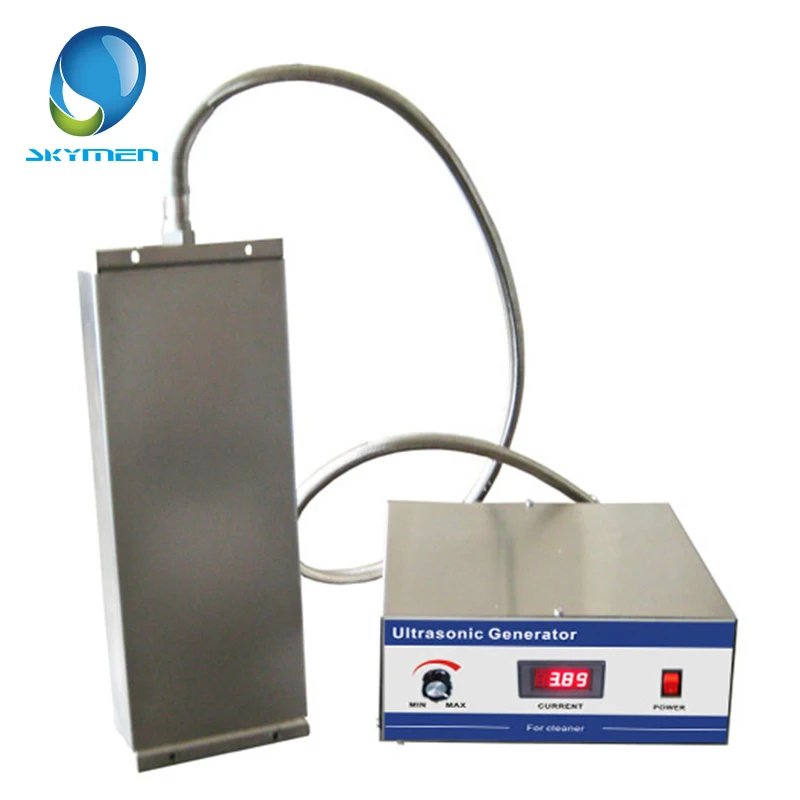

SKYMEN submersible Ultrasonic Cleaner transducers & generators





JTM-1030

Specification details:

Ultrasonic transducer box size (mm):550x406x100(LXWXH)

Housing material: SUS304/SUS316L

Surface finishing: Hard-Cr plating treatment (20+microns)

Ultrasonic frequency: 28KHz / 40KHz

Ultrasonic transducers: 30pcs

Ultrasonic power: 1500W

Electronic generator: JM-1500, Ultrasonic generator work separately control transducers

power supply: AC 110V/220V or 220/240V, 1,13AMP



Model (JTM models)		JTM-1006	JTM-1012	JTM-1018		JTM-1024	JTM-1030	JTM-1036
Ultrasonic transducer box  size (mm)	L	305	355	406		500	550	500
	W	250	305	305		355	406	460
	H	100	100	100		100	100	100
Housing material	SUS304/SUS316L
Surface finishing	Hard-Cr plating treatment (20+microns)
Ultrasonic frequency	28KHz / 40KHz
Ultrasonic transducers	6pcs		12pcs		18pcs	24pcs	30pcs		36pcs
Ultrasonic power	300W		600W		900W	1200W	1500W		1800W
Electronic generator	JM-300		JM-600		JM-900	JM-1200	JM-1500		JM-1800
	Ultrasonic generator work separately control transducers
power suppy	AC 110V/220V or 220/240V, 1,13AMP
*Custom made:68KHz/80KHz/120KHz and size are all available

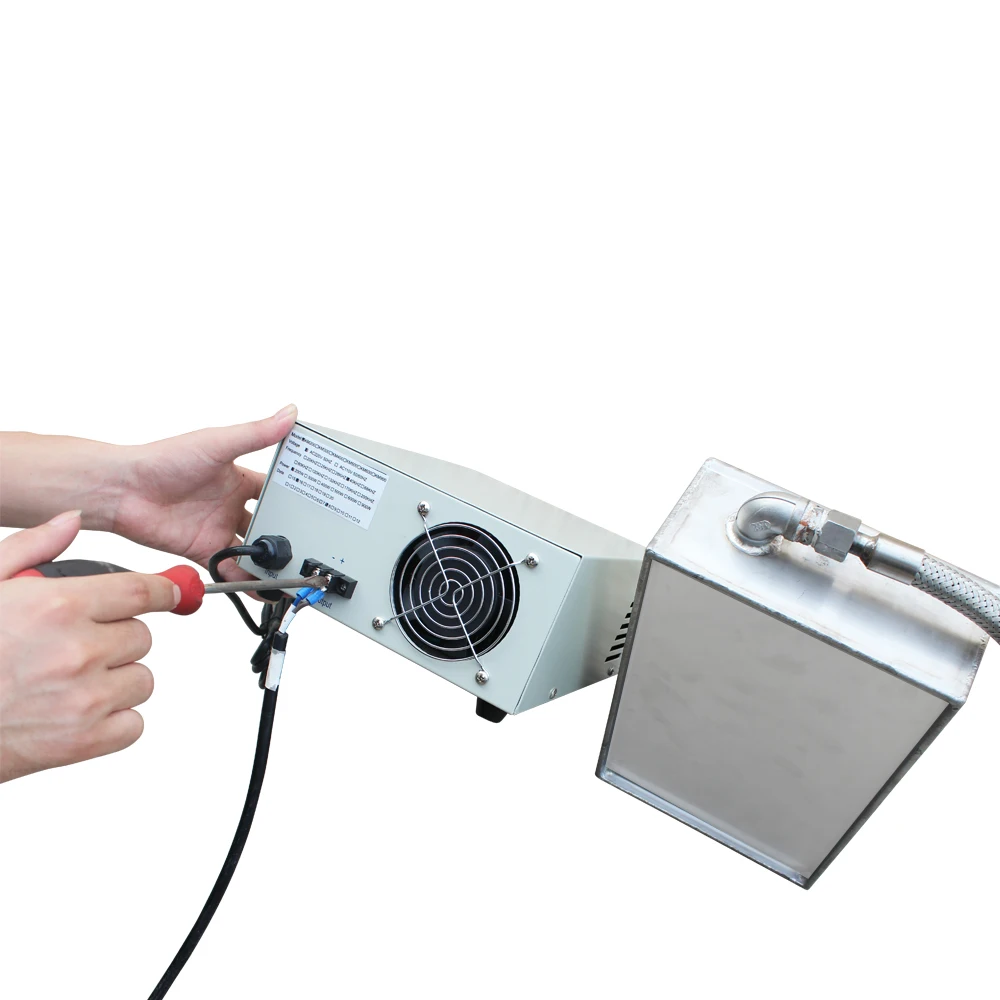

The transducer box can just put on the bottome of the water tank, or hang on the wall or fixed on the wall by screw.  Please choose cable leadout method convenient for your water tank.



Transducer pad dimension can be customized as your requirement.

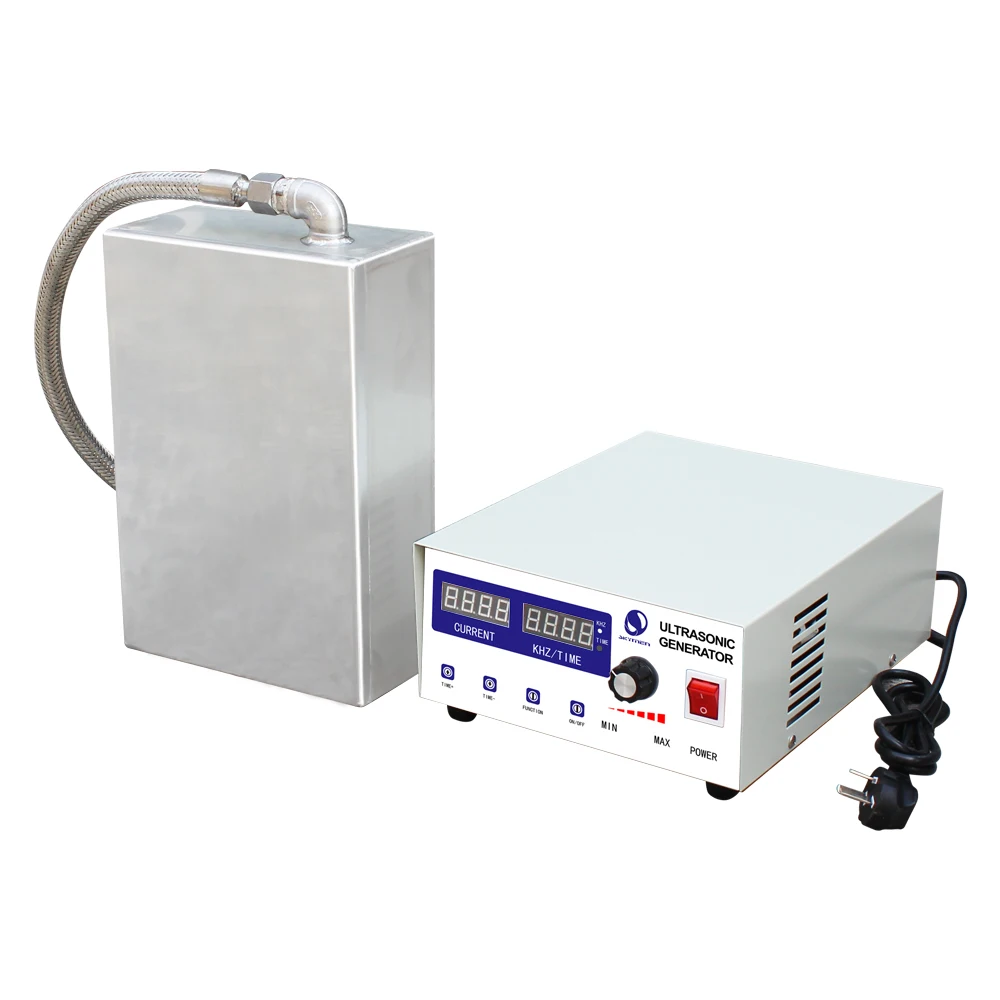

Skymen immersible ultrasonic transducer box-embedded in your existing tank.

good quality-custom made size-chemicals resistance-moveable-convenient install

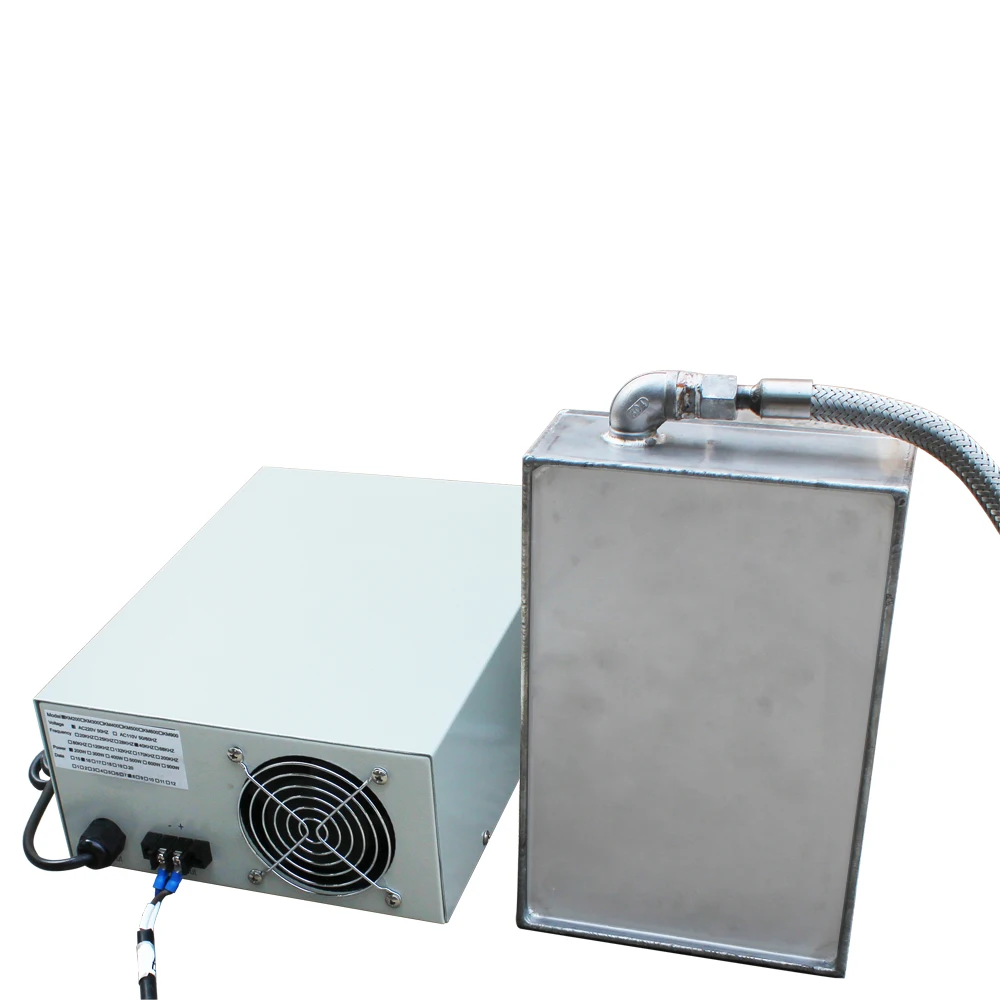

JTM series immersible ultrasonic transducer system includes transducer box and generator. It can be used when the standard model ultrasonic cleaner is inapplicable in the specific working conditions, besides may have the special specification made to order. The transducer box and generator are separate but work together to operate ultrasonic cleaning process with transducer box immersible mounted in fluid tank. The transducer box is moveable in the tank for more convenience. The number and placement of transducers is selected to give maximum results in any parts cleaning tank with any cleaning load.

Immersible ultrasonic transducer units can be installed in the tank by three ways:side and/or bottom mounted or top mounted depending on the tank geometry.

The specification of transducer boxes are available for custom made.
